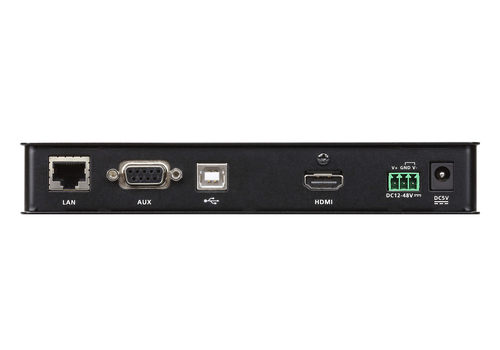

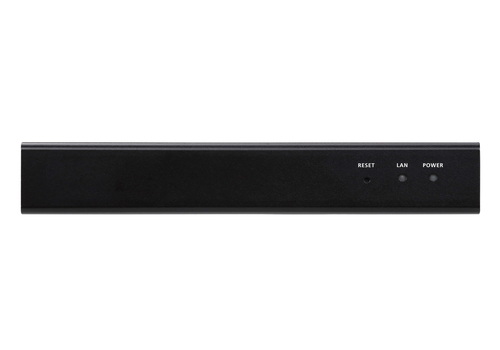

KE8900ST-AX-E KVM extender Transmitter
Model KE8900ST-AX-E
26 specifications
- ConnectivityWired
- TypeTransmitter
- ColourBlack
- Transmitter video port typeHDMI
- USB port typeUSB Type-B
- Power consumption (transmitter) (max)6.61 W
Overview
- Connectivity
- Wired
- Type
- Transmitter
- Colour
- Black
- Transmitter video port type
- HDMI
- USB port type
- USB Type-B
- Power consumption (transmitter) (max)
- 6.61 W
- Brand
- ATEN
- Category
- KVM Extender
- Model
- KE8900ST-AX-E
- Part number
- KE8900ST-AX-E
- Also known as
- ATEN KE8900ST-AX-E KVM extender Transmitter
Specifications
26 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Rack mounting | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| KVM port selection | OSD, Push-buttons |
| Supported resolutions | 640 x 480 - 1920 x 1200 |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-B |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (transmitter) (max) | 6.61 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 18.2 cm |
| Transmitter depth | 11.8 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 650 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Mounting bracket(s) included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
