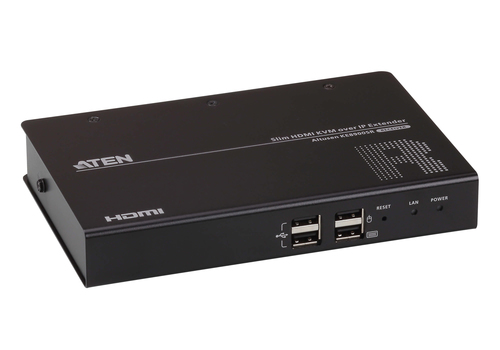

KE8900SR-AX-E KVM extender Receiver
Model KE8900SR-AX-E
28 specifications
- ConnectivityWired
- TypeReceiver
- ColourBlack
- RJ-45 ports quantity (receiver)1
- USB port typeUSB Type-A
- AC adapter output voltage5 V
Overview
- Connectivity
- Wired
- Type
- Receiver
- Colour
- Black
- RJ-45 ports quantity (receiver)
- 1
- USB port type
- USB Type-A
- AC adapter output voltage
- 5 V
- Brand
- ATEN
- Category
- KVM Extender
- Model
- KE8900SR-AX-E
- Part number
- KE8900SR-AX-E
- Also known as
- ATEN KE8900SR-AX-E KVM extender Receiver
Specifications
28 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Rack mounting | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| KVM port selection | OSD, Push-buttons |
| Supported resolutions | 640 x 480 - 1920 x 1200 |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | PS/2 / USB |
| Receiver local video port type | HDMI |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| USB 2.0 ports quantity | 4 |
| RS-232 ports | 1 |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| Power consumption (receiver) (max) | 4.35 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver width | 18.2 cm |
| Receiver depth | 11.8 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 640 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
