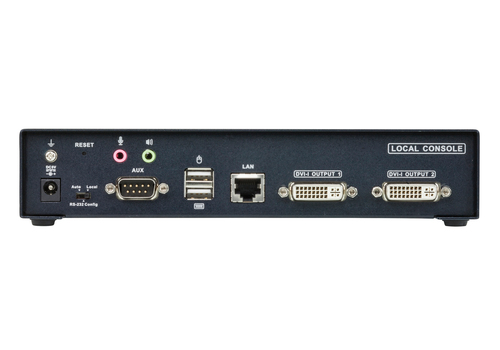

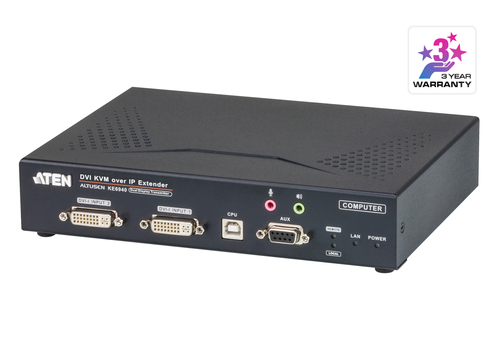

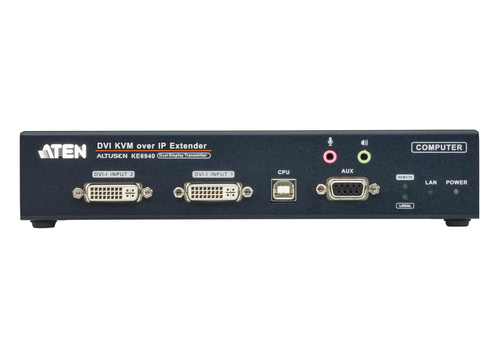

KE6940T KVM extender Transmitter
Model KE6940TEAN 672792402876
19 specifications
- ConnectivityWired
- TypeTransmitter
- ColourBlack
- Transmitter video port typeDVI-I
- AC input frequency60 Hz
- Transmitter width16.3 cm
Overview
- Connectivity
- Wired
- Type
- Transmitter
- Colour
- Black
- Transmitter video port type
- DVI-I
- AC input frequency
- 60 Hz
- Transmitter width
- 16.3 cm
- Brand
- ATEN
- Category
- KVM Extender
- Model
- KE6940T
- Part numbers
- KE6940T, KE6940T-AX-G
- EAN / UPC
- 672792402876, 4719264642029, 6727924028760
- Also known as
- ATEN KE6940T KVM extender Transmitter
Specifications
19 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Maximum digital resolution | 1920 x 1200 pixels |
| KVM port selection | Push-buttons |
| Product colour | Black |
| Material | Metal |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DVI-I |
| Transmitter local video port | Yes |
| Transmitter local video port type | DVI-I |
| Transmitter local keyboard/mouse port type | USB |
Power
| Specification | Value |
|---|---|
| AC input frequency | 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 16.3 cm |
| Transmitter depth | 21.5 cm |
| Transmitter height | 4.56 cm |
| Transmitter weight | 1.14 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
