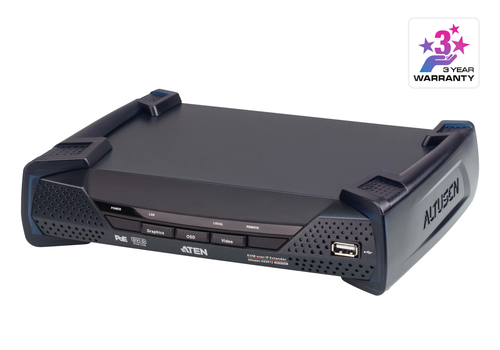

2K DVI-D dual-link KVM over IP Receiver
Model KE6912R-AXEAN 4719264648311
40 specifications
- ConnectivityWired
- TypeReceiver
- Weight1.3 kg
- ColourBlack
- RJ-45 ports quantity (receiver)1
- USB port typeUSB Type-A
Overview
- Connectivity
- Wired
- Type
- Receiver
- Weight
- 1.3 kg
- Colour
- Black
- RJ-45 ports quantity (receiver)
- 1
- USB port type
- USB Type-A
- Brand
- ATEN
- Category
- KVM Extender
- Model
- KE6912R-AX
- Part number
- KE6912R-AX
- EAN / UPC
- 4719264648311
- Also known as
- ATEN 2K DVI-D dual-link KVM over IP Receiver
Specifications
40 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 10000 m |
| Cable types supported | Cat5 |
| Rack mounting | Yes |
| Maximum digital resolution | 2560 x 2048 pixels |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| Certification | RoHS |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | DVI-D |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| RS-232 ports | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| Power consumption (receiver) (max) | 11.27 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver width | 22.8 cm |
| Receiver depth | 17.2 cm |
| Receiver height | 5.48 cm |
| Receiver weight | 1.28 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 414 mm |
| Package height | 117 mm |
| Package weight | 1.73 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Technical details
| Specification | Value |
|---|---|
| Weight | 1.3 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case net weight | 3.9 kg |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 427 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 5.89 kg |
| Products per master (outer) case | 3 pc(s) |
