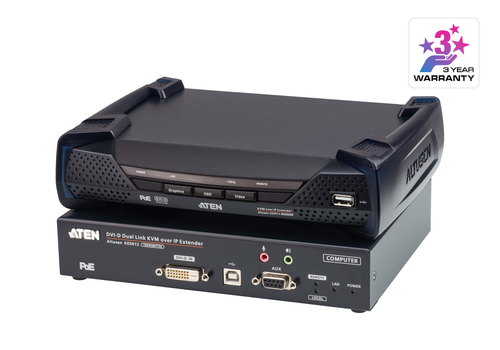

ATEN 2K DVI-D dual-link KVM over IP Extender
ATEN

2K DVI-D dual-link KVM over IP Extender

Model KE6912-AXEAN 4719264648298

48 specifications
  • ConnectivityWired
  • TypeTransmitter & receiver
  • Weight2.81 kg
  • ColourBlack
  • Transmitter video port typeDVI-D
  • RJ-45 ports quantity (receiver)1
See all specifications

Overview

Connectivity
Wired
Type
Transmitter & receiver
Weight
2.81 kg
Colour
Black
Transmitter video port type
DVI-D
RJ-45 ports quantity (receiver)
1
Brand
ATEN
Category
KVM Extender
Model
KE6912-AX
Part number
KE6912-AX
EAN / UPC
4719264648298
Also known as
ATEN 2K DVI-D dual-link KVM over IP Extender

Specifications

48 specifications in 11 groups

Features

TypeTransmitter & receiver
Connectivity technologyWired
Cable types supportedCat5e
Rack mountingYes
Maximum digital resolution2560 x 2048 pixels
On Screen Display (OSD)Yes
Product colourBlack
MaterialMetal
LED indicatorsYes
CertificationRoHS

Transmitter

Transmitter video port typeDVI-D
Transmitter local keyboard/mouse port typeUSB
RJ-45 ports quantity (transmitter)1

Receiver

RJ-45 ports quantity (receiver)1
Receiver local keyboard/mouse port typeUSB
Receiver local video port typeDVI-D

Ports & interfaces

RS-232 ports2
PC Audio inYes
PC Audio outYes

Power

AC adapter output voltage5 V
Power consumption (transmitter) (max)12.53 W
Power consumption (receiver) (max)11.27 W

Weight & dimensions

Transmitter width21.5 cm
Transmitter depth16.3 cm
Transmitter height4.18 cm
Transmitter weight1.17 kg
Receiver width22.8 cm
Receiver depth17.2 cm
Receiver height5.48 cm
Receiver weight1.28 kg

Packaging data

Package width247 mm
Package depth556 mm
Package height153 mm
Package weight3.4 kg

Packaging content

AC adapter includedYes
Cables includedKVM
ManualYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 95%

Technical details

Weight2.81 kg

Logistics data

Harmonized System (HS) code84733080
Master (outer) case net weight2.81 kg
Master (outer) case width247 mm
Master (outer) case length556 mm
Master (outer) case height153 mm
Master (outer) case gross weight3.86 kg
Products per master (outer) case1 pc(s)
