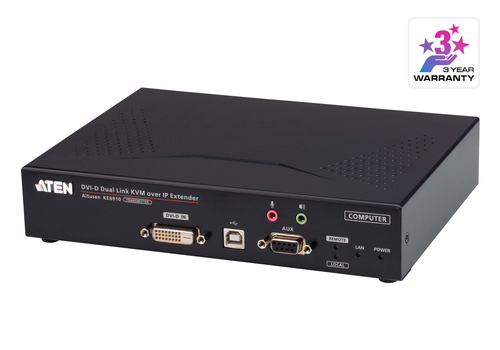

KE6910T KVM extender Transmitter
Model KE6910TEAN 672792010262
33 specifications
- ConnectivityWired
- TypeTransmitter
- ColourBlack
- Transmitter video port typeDVI-D
- USB port typeUSB Type-A
- Power consumption (transmitter) (max)10.02 W
Overview
- Connectivity
- Wired
- Type
- Transmitter
- Colour
- Black
- Transmitter video port type
- DVI-D
- USB port type
- USB Type-A
- Power consumption (transmitter) (max)
- 10.02 W
- Brand
- ATEN
- Category
- KVM Extender
- Model
- KE6910T
- Part numbers
- KE6910T, KE6910T-AX-E
- EAN / UPC
- 672792010262
- Also known as
- ATEN KE6910T KVM extender Transmitter
Specifications
33 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Maximum transfer distance | 10000 m |
| Cable types supported | Cat5e |
| Rack mounting | Yes |
| Maximum digital resolution | 2560 x 2048 pixels |
| KVM port selection | Push-buttons |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DVI-D |
| Transmitter local video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| RJ-45 ports quantity | 1 |
| RS-232 ports | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (transmitter) (max) | 10.02 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 16.3 cm |
| Transmitter depth | 21.5 cm |
| Transmitter height | 4.18 cm |
| Transmitter weight | 1.13 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, KVM |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
