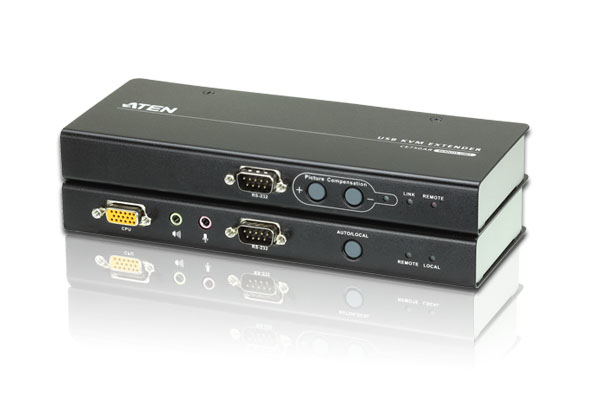

CE750A-AT-E KVM extender Transmitter & receiver
Model CE750A-AT-E
35 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- Weight1.59 kg
- ColourBlack
- Transmitter video port typeVGA
- RJ-45 ports quantity (receiver)1
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 1.59 kg
- Colour
- Black
- Transmitter video port type
- VGA
- RJ-45 ports quantity (receiver)
- 1
- Brand
- ATEN
- Category
- KVM Extender
- Model
- CE750A-AT-E
- Part number
- CE750A-AT-E
- Also known as
- ATEN CE750A-AT-E KVM extender Transmitter & receiver
Specifications
35 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 200 m |
| Cable types supported | Cat5e |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920x1200, 1600x1200, 1280x1024 |
| Product colour | Black |
| Material | Metal |
| LED indicators | Link, Power |

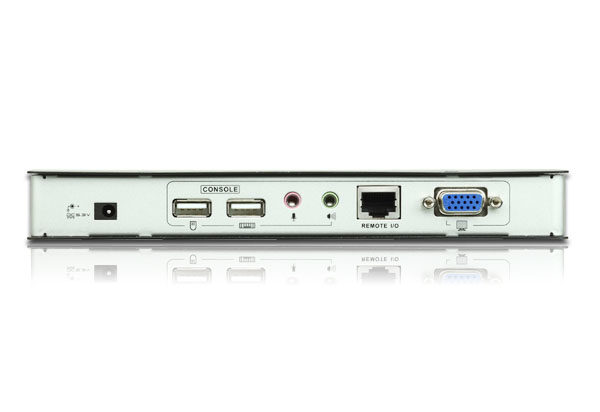

Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | VGA |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |

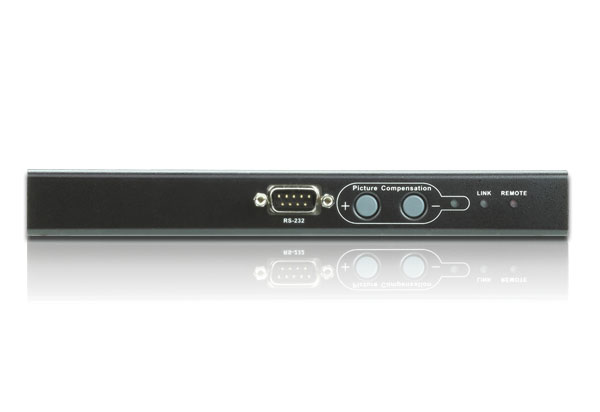

Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | VGA |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5.3 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 20.2 cm |
| Transmitter depth | 8.63 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 470 g |
| Receiver width | 20.2 cm |
| Receiver depth | 8.51 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 470 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 1.84 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Weight | 1.59 kg |
