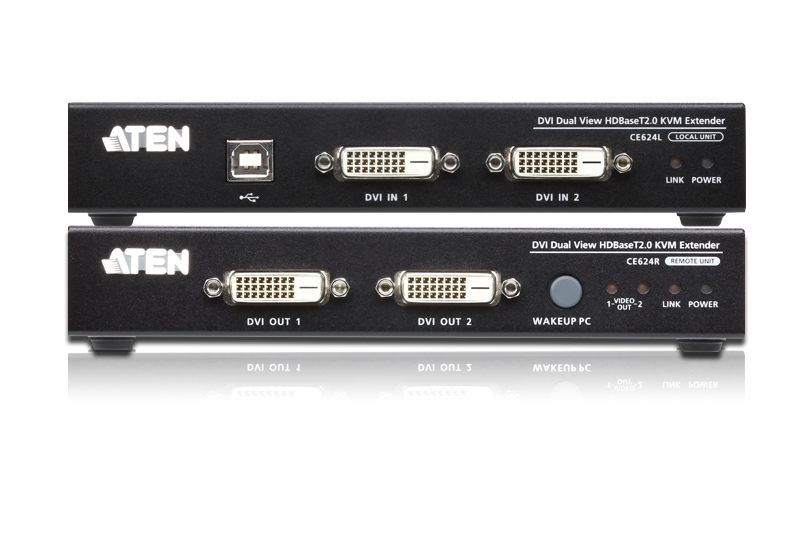

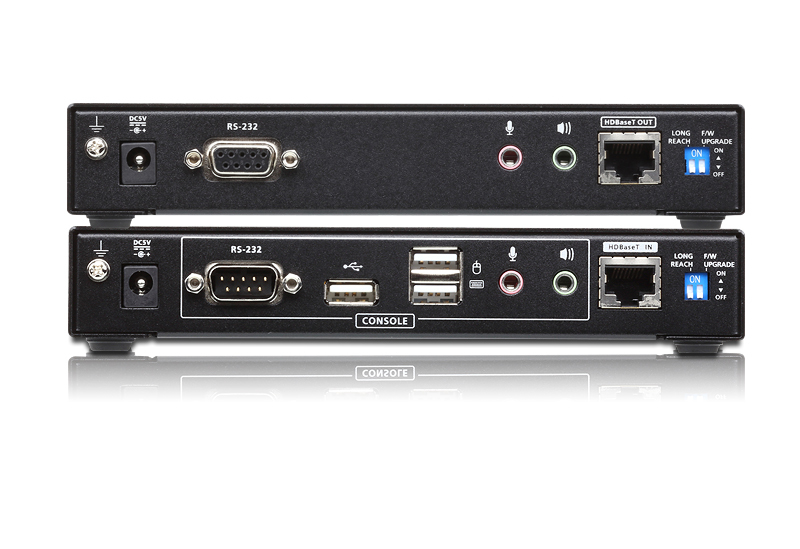

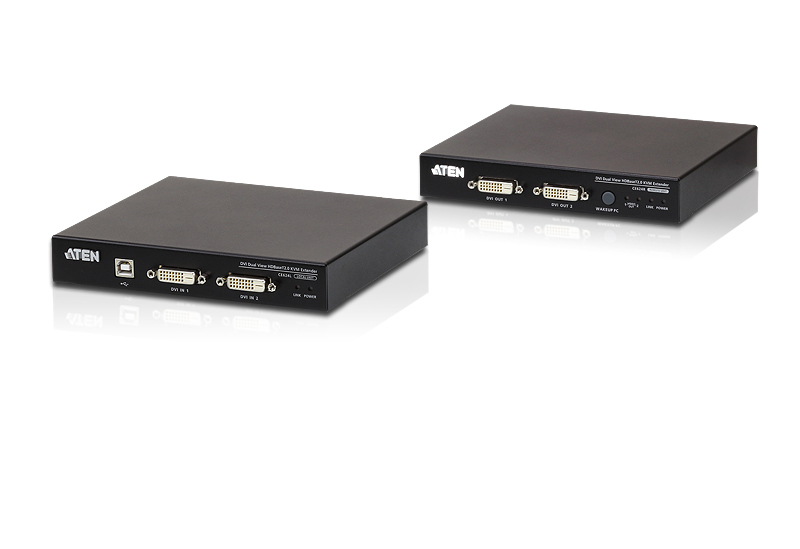

CE624-AT-E KVM extender Transmitter & receiver
Model CE624-AT-E
36 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- Weight3.65 kg
- ColourBlack
- Transmitter video port typeDVI-D
- RJ-45 ports quantity (receiver)1
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 3.65 kg
- Colour
- Black
- Transmitter video port type
- DVI-D
- RJ-45 ports quantity (receiver)
- 1
- Brand
- ATEN
- Category
- KVM Extender
- Model
- CE624-AT-E
- Part number
- CE624-AT-E
- Also known as
- ATEN CE624-AT-E KVM extender Transmitter & receiver
Specifications
36 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6a |
| Rack mounting | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1600x1200, 1920x1200, 1920x1080 |
| Product colour | Black |
| Material | Metal |
| LED indicators | Link, Power |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | DVI-D |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 17.4 cm |
| Transmitter depth | 15.9 cm |
| Transmitter height | 2.88 cm |
| Transmitter weight | 800 g |
| Receiver width | 17.4 cm |
| Receiver depth | 15.9 cm |
| Receiver height | 2.88 cm |
| Receiver weight | 810 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.04 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Weight | 3.65 kg |
