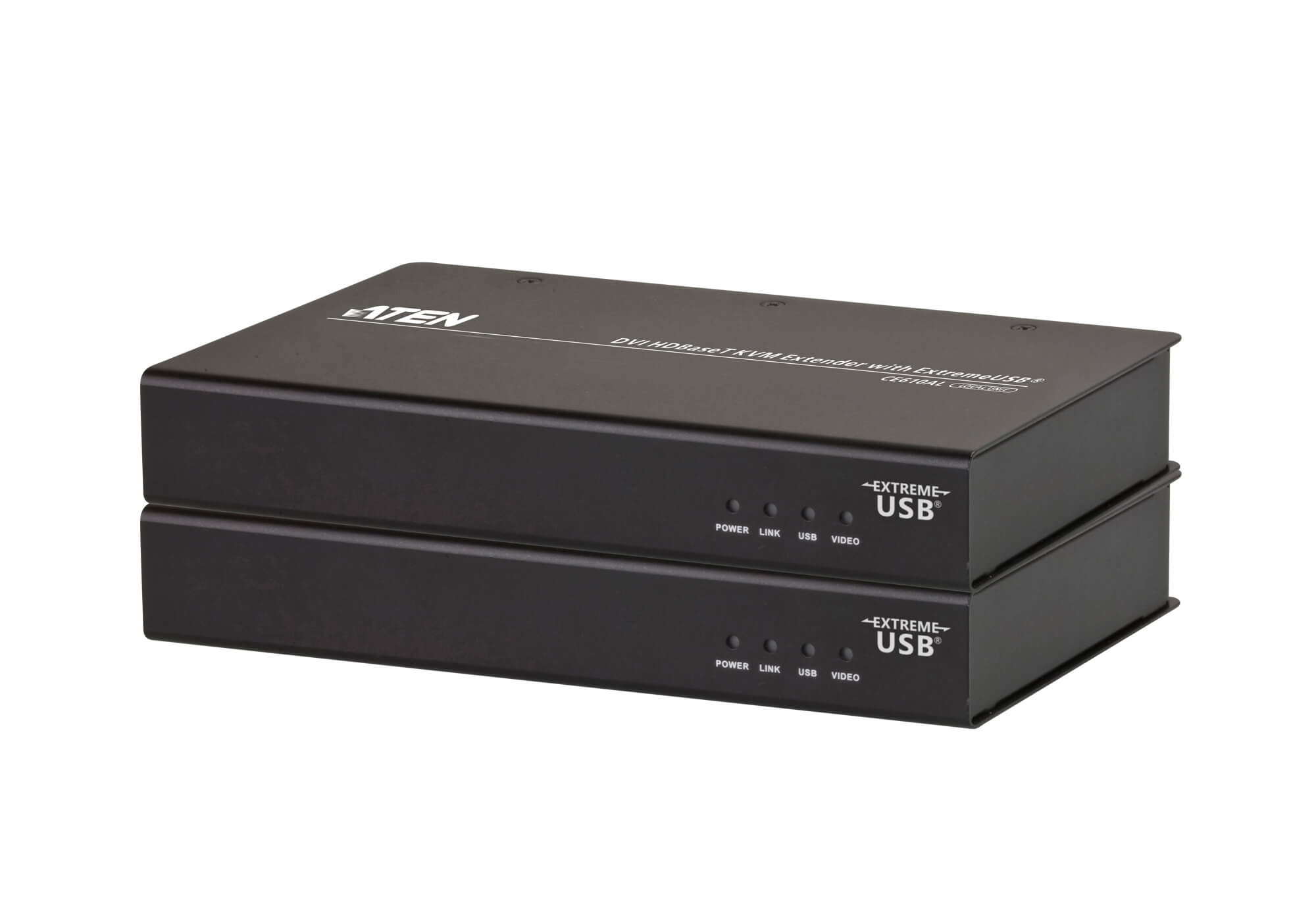

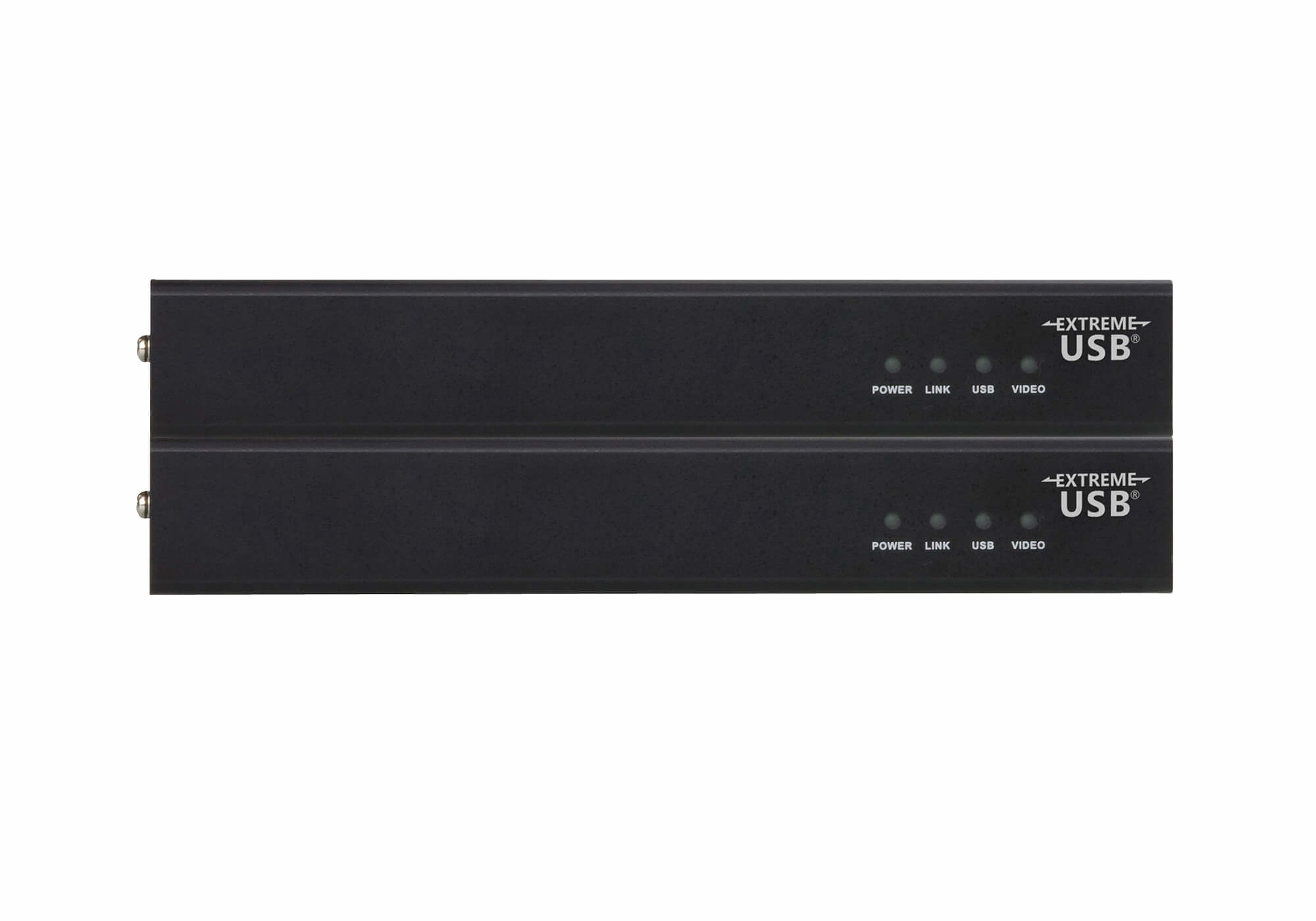

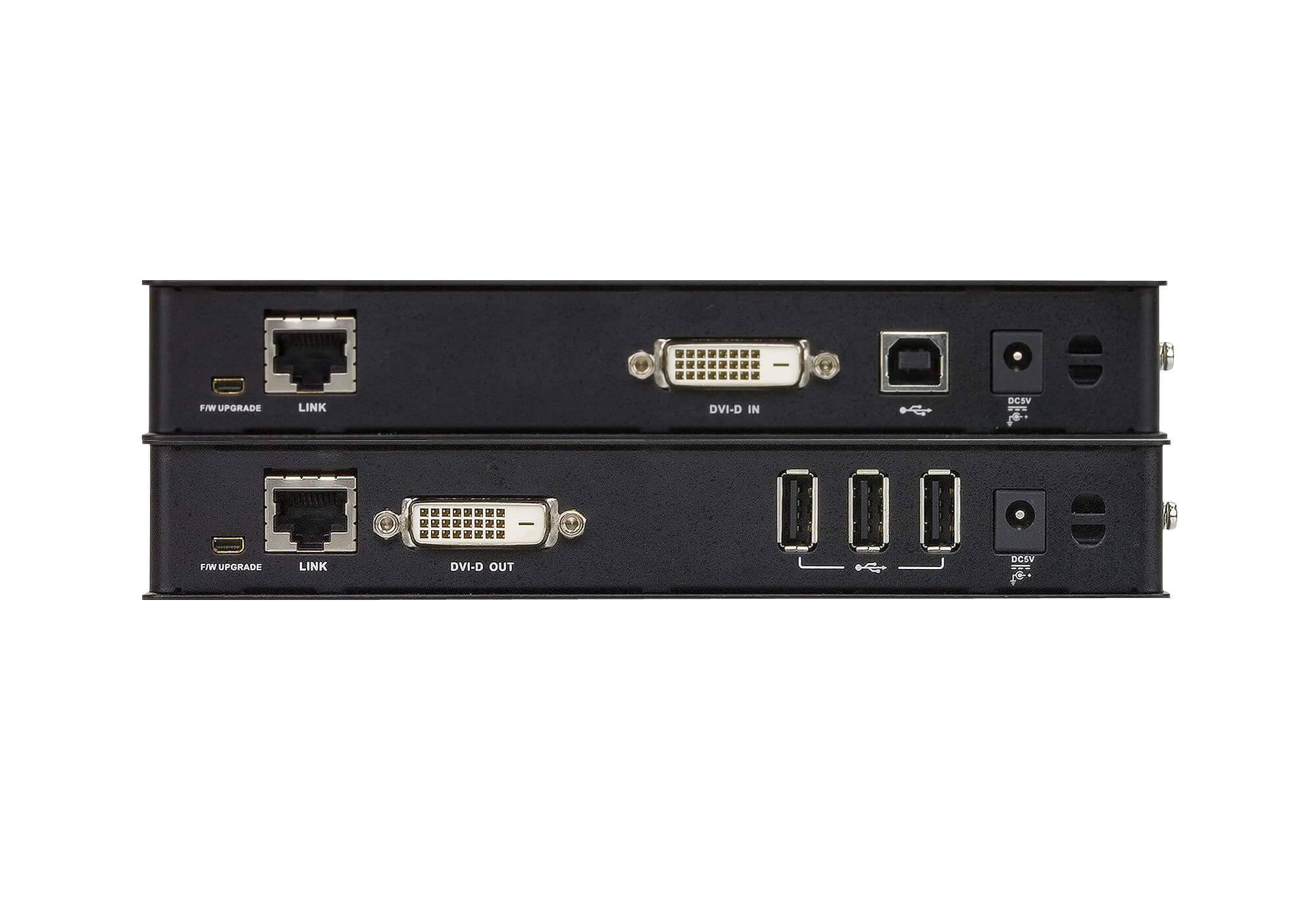

CE610A KVM extender Transmitter & receiver
Model CE610AEAN 672792007163
26 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- RJ-45 ports quantity (transmitter)2
- USB 2.0 ports quantity3
- Power consumption (transmitter) (max)15 W
- Transmitter width11.8 cm
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- RJ-45 ports quantity (transmitter)
- 2
- USB 2.0 ports quantity
- 3
- Power consumption (transmitter) (max)
- 15 W
- Transmitter width
- 11.8 cm
- Brand
- ATEN
- Category
- KVM Extender
- Model
- CE610A
- Part numbers
- CE610A, CE610A-AT-G
- EAN / UPC
- 672792007163, 4719264645129
- Also known as
- ATEN CE610A KVM extender Transmitter & receiver
Specifications
26 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum digital resolution | 1920 x 1200 pixels |
| Material | Metal |
| LED indicators | Link, Power, USB, Video |
Transmitter
| Specification | Value |
|---|---|
| RJ-45 ports quantity (transmitter) | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB data transfer rates | 40 Mbit/s |
Power
| Specification | Value |
|---|---|
| Power consumption (transmitter) (max) | 15 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 11.8 cm |
| Transmitter depth | 18.2 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 620 g |
| Receiver width | 11.8 cm |
| Receiver depth | 18.2 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 620 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | DVI, USB |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Other features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Technical details
| Specification | Value |
|---|---|
| Video in | DVI-D |
