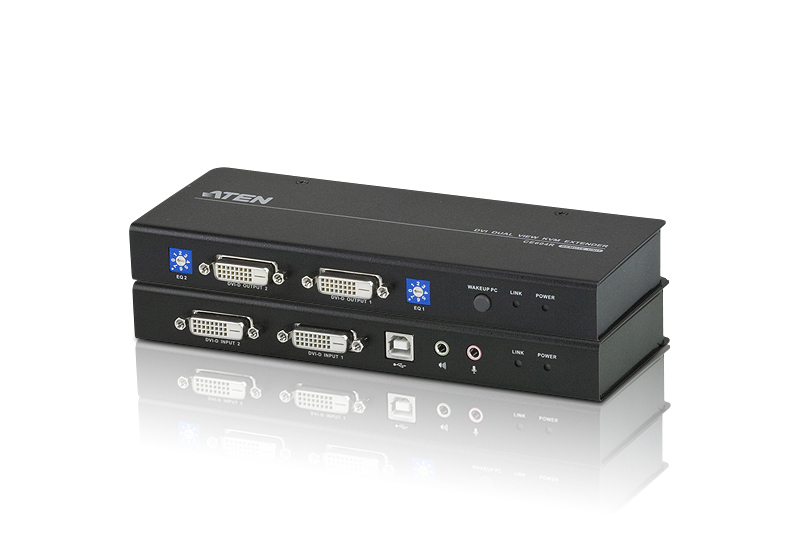

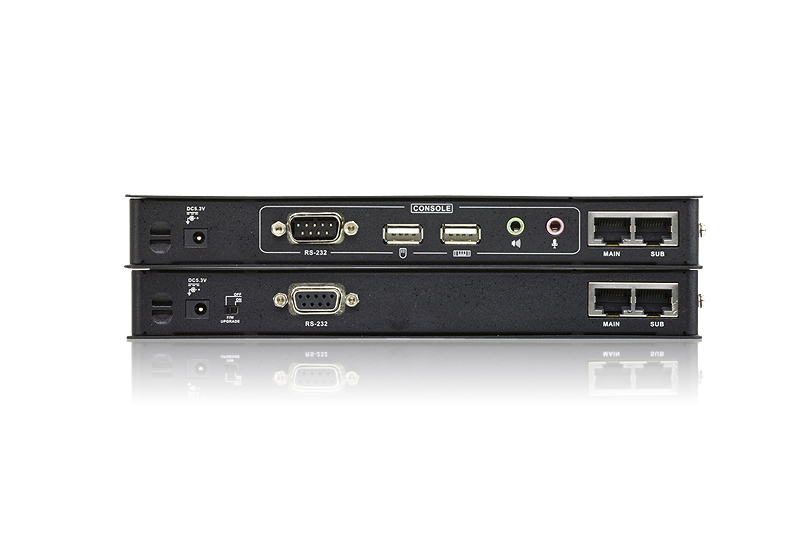

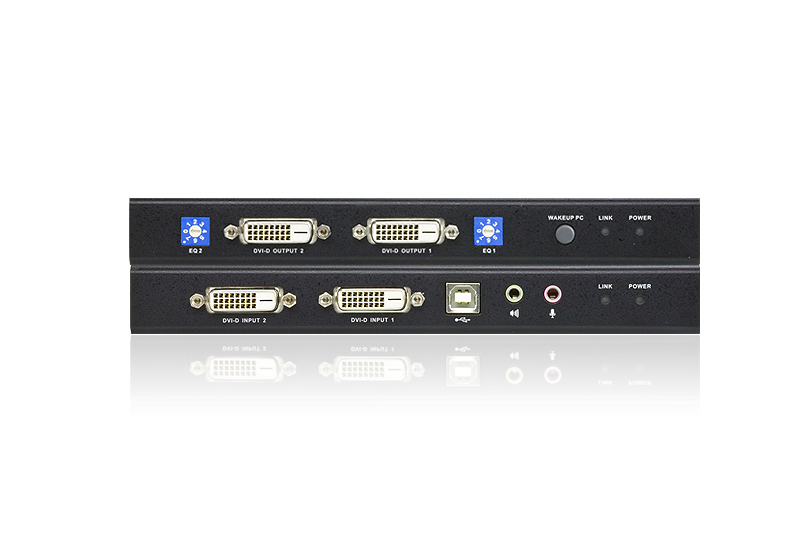

CE604-AT-E KVM extender Transmitter & receiver
Model CE604-AT-E
36 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- Weight1.99 kg
- ColourBlack
- Transmitter video port typeDVI-D
- RJ-45 ports quantity (receiver)2
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 1.99 kg
- Colour
- Black
- Transmitter video port type
- DVI-D
- RJ-45 ports quantity (receiver)
- 2
- Brand
- ATEN
- Category
- KVM Extender
- Model
- CE604-AT-E
- Part number
- CE604-AT-E
- Also known as
- ATEN CE604-AT-E KVM extender Transmitter & receiver
Specifications
36 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 60 m |
| Cable types supported | Cat5, Cat5e |
| Rack mounting | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920 x 1200, 1024 x 768 |
| Product colour | Black |
| Material | Metal |
| LED indicators | Link, Power |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 2 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 2 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | DVI-D |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5.3 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 20.2 cm |
| Transmitter depth | 8.53 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 490 g |
| Receiver width | 20.2 cm |
| Receiver depth | 8.67 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 490 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 2.06 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Weight | 1.99 kg |
