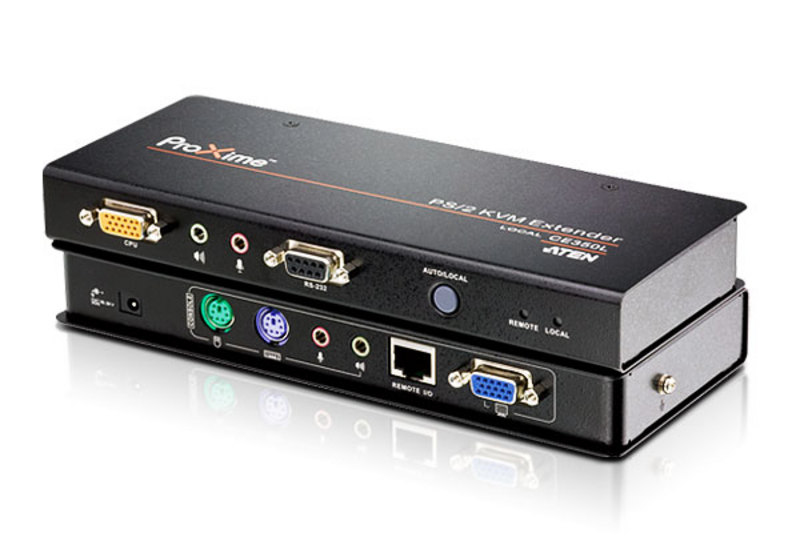

CE350-AT-E KVM extender Transmitter & receiver
Model CE350-AT-E
29 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeVGA
- Receiver local keyboard/mouse port typePS/2
- RJ-45 ports quantity2
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- VGA
- Receiver local keyboard/mouse port type
- PS/2
- RJ-45 ports quantity
- 2
- Brand
- ATEN
- Category
- KVM Extender
- Model
- CE350-AT-E
- Part number
- CE350-AT-E
- Also known as
- ATEN CE350-AT-E KVM extender Transmitter & receiver
Specifications
29 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat5, Cat5e |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920 x 1200, 1600 x 1200, 1280 x 1024 |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | VGA |
| Transmitter local keyboard/mouse port type | PS/2 |
Receiver
| Specification | Value |
|---|---|
| Receiver local keyboard/mouse port type | PS/2 |
| Receiver local video port type | VGA |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 ports quantity | 2 |
| RS-232 ports | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 20.2 cm |
| Transmitter depth | 8.64 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 500 g |
| Receiver width | 20.2 cm |
| Receiver depth | 8.64 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
