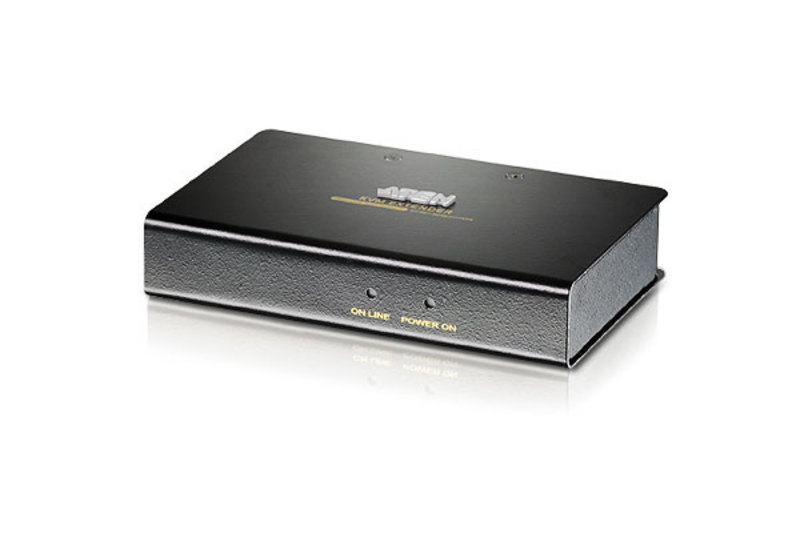

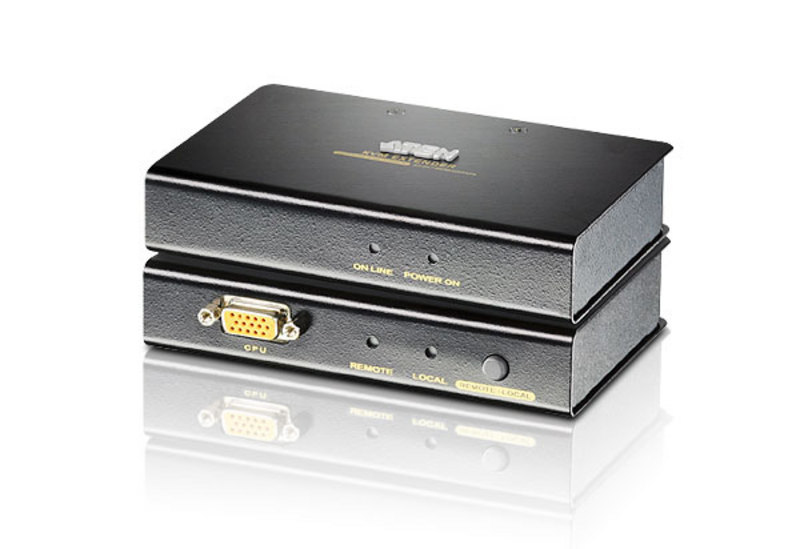

CE250A-AT-G KVM extender Transmitter & receiver
Model CE250A-AT-GPart no. CE250A-AT-EEAN 4710423774612
29 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- Weight1.11 kg
- ColourBlack
- Transmitter local keyboard/mouse port typePS/2
- RJ-45 ports quantity (receiver)1
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 1.11 kg
- Colour
- Black
- Transmitter local keyboard/mouse port type
- PS/2
- RJ-45 ports quantity (receiver)
- 1
- Brand
- ATEN
- Category
- KVM Extender
- Model
- CE250A-AT-G
- Part numbers
- CE250A-AT-E, CE250A-AT-G
- EAN / UPC
- 4710423774612
- Also known as
- ATEN CE250A-AT-G KVM extender Transmitter & receiver
Specifications
29 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Maximum digital resolution | 1280 x 1024 pixels |
| KVM port selection | Push-buttons |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
Transmitter
| Specification | Value |
|---|---|
| Transmitter local keyboard/mouse port type | PS/2 |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | PS/2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 8.66 cm |
| Transmitter depth | 12.7 cm |
| Transmitter height | 2.63 cm |
| Transmitter weight | 330 g |
| Receiver width | 8.15 cm |
| Receiver depth | 12.7 cm |
| Receiver height | 2.63 cm |
| Receiver weight | 320 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.37 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Weight | 1.11 kg |
