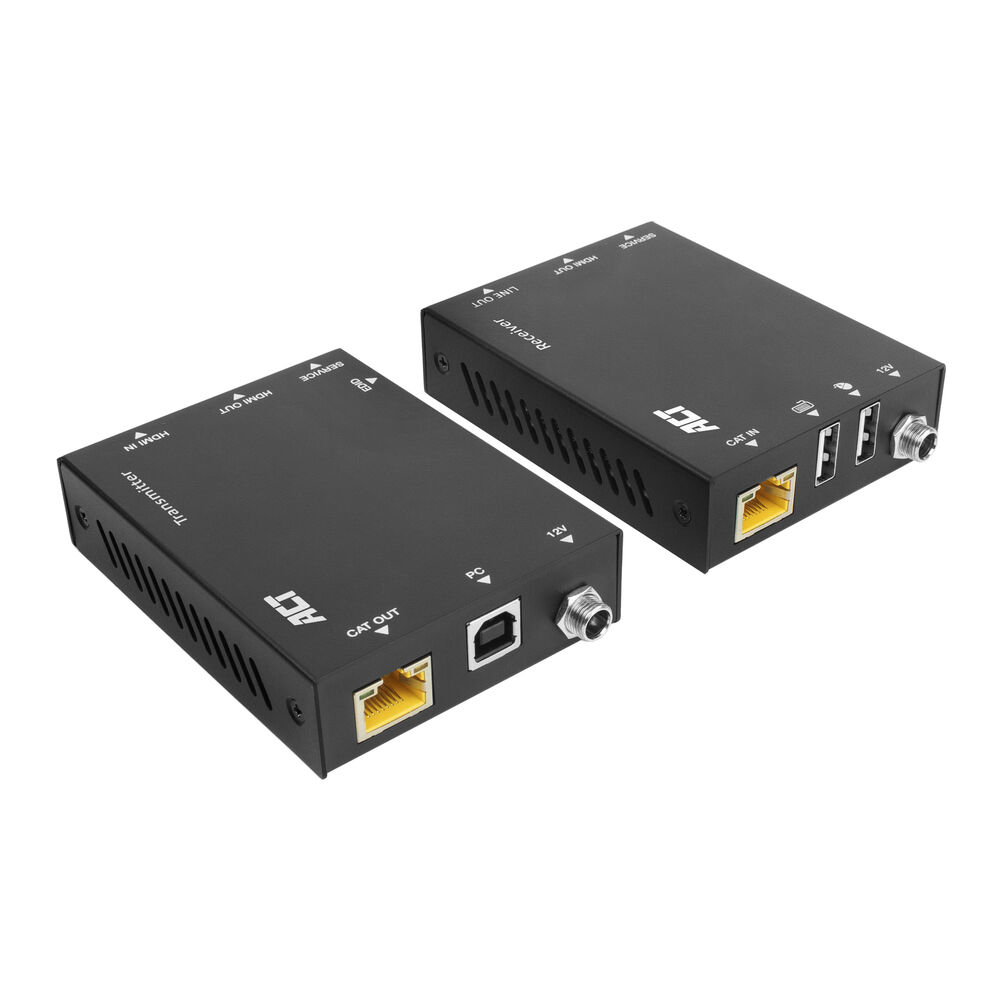

4K HDMI 2.0 KVM extender set over CAT6A up to 70 meters
Model AC7815EAN 8716065563313
40 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
- HDMI version2.0
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- HDMI version
- 2.0
- Brand
- ACT
- Category
- KVM Extender
- Model
- AC7815
- Part number
- AC7815
- EAN / UPC
- 8716065563313
- Also known as
- ACT 4K HDMI 2.0 KVM extender set over CAT6A up to 70 meters
Specifications
40 specifications in 8 groups

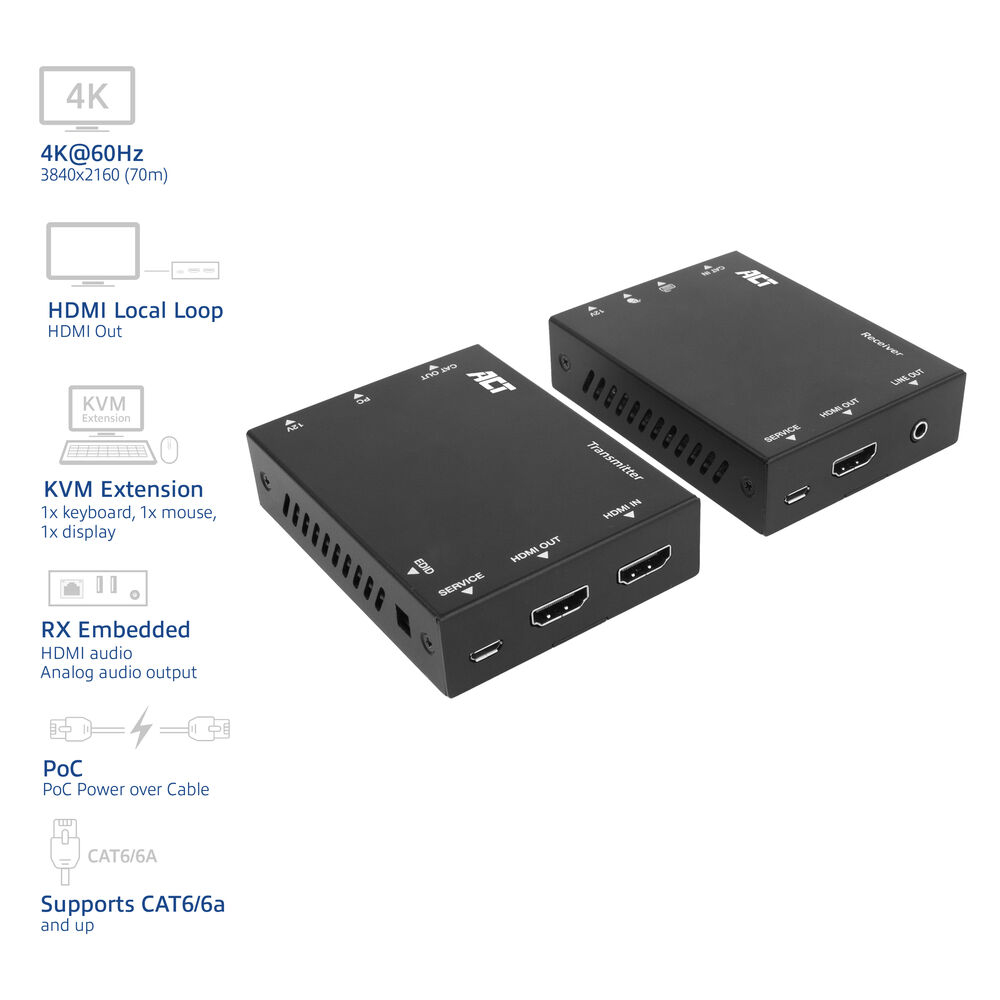

Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 70 m |
| Cable types supported | Cat6, Cat6a |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Colour depth | 12 bit |
| Product colour | Black |

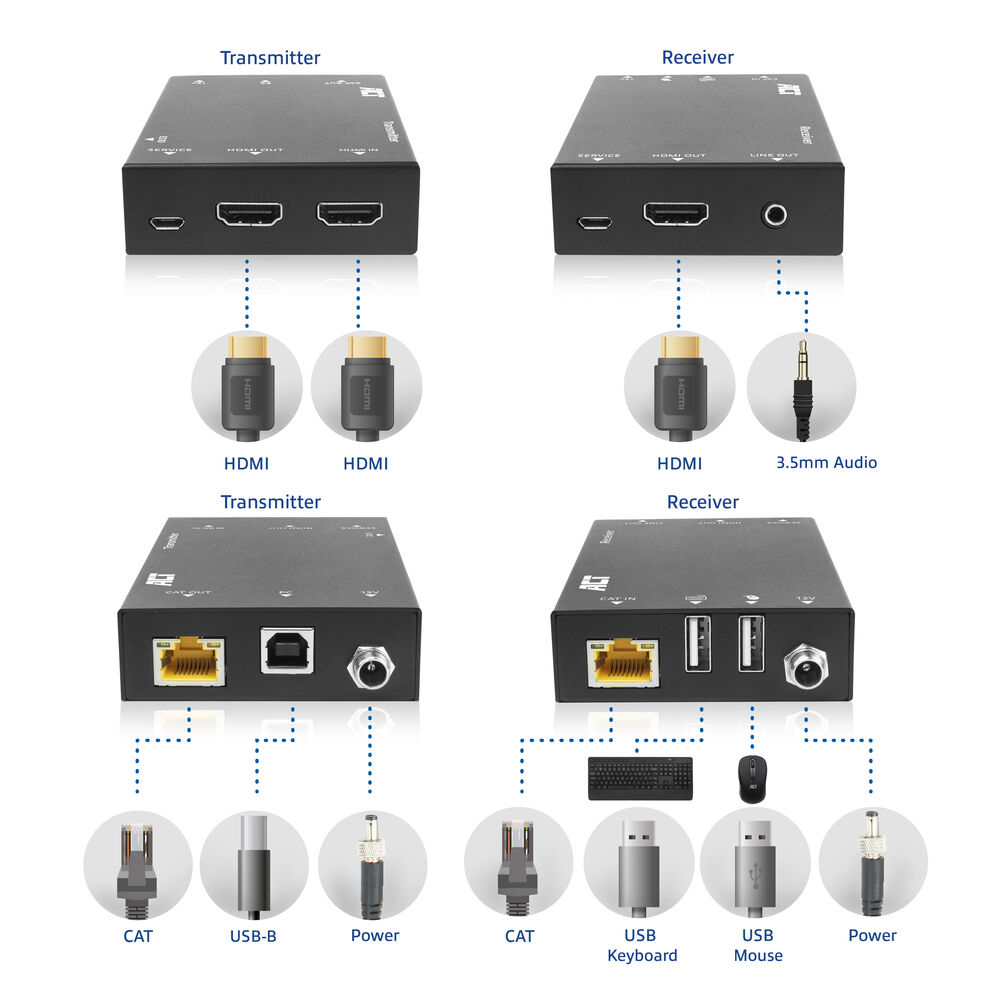

Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter Micro-USB ports quantity | 1 |
| Transmitter USB Type-B ports quantity | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver Micro-USB ports quantity | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
| Receiver local video ports quantity | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 2.0 |
| PC Audio out | Yes |

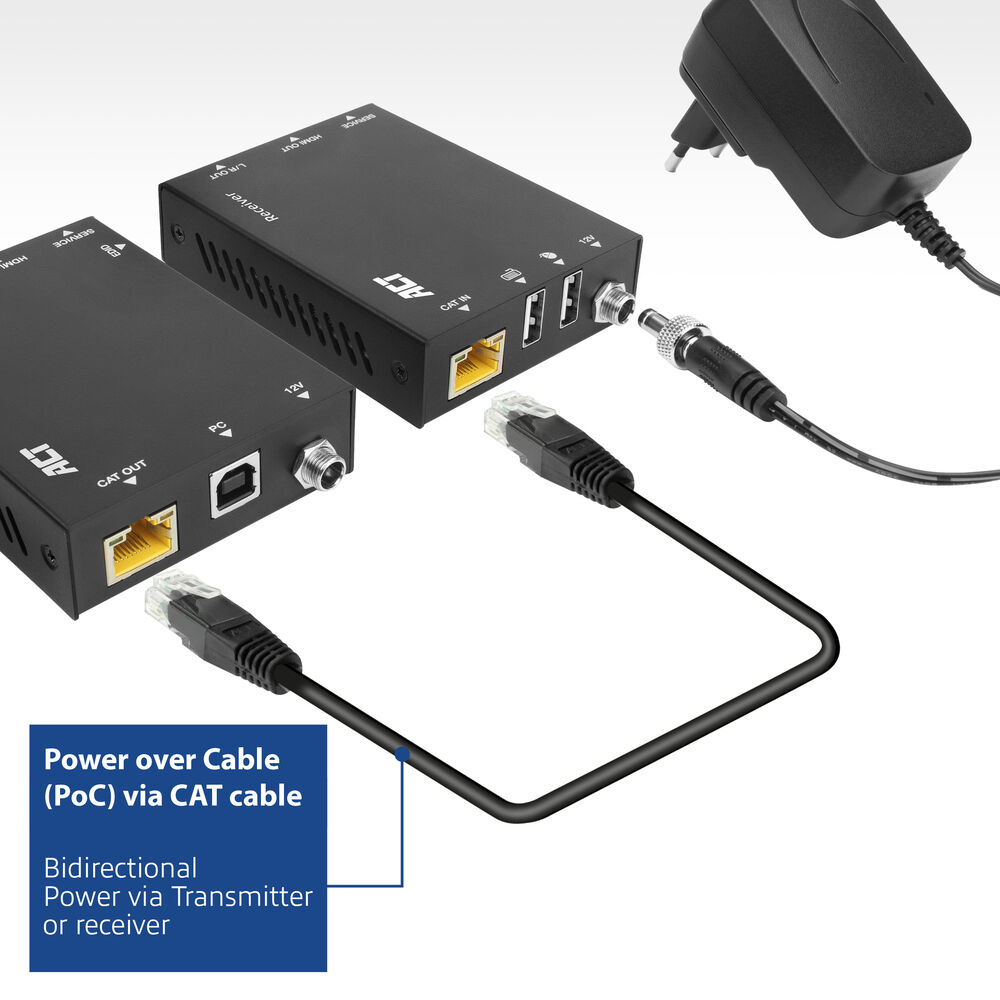

Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 9 cm |
| Transmitter depth | 6.7 cm |
| Transmitter height | 2.2 cm |
| Receiver width | 9 cm |
| Receiver depth | 6.7 cm |
| Receiver height | 2.2 cm |

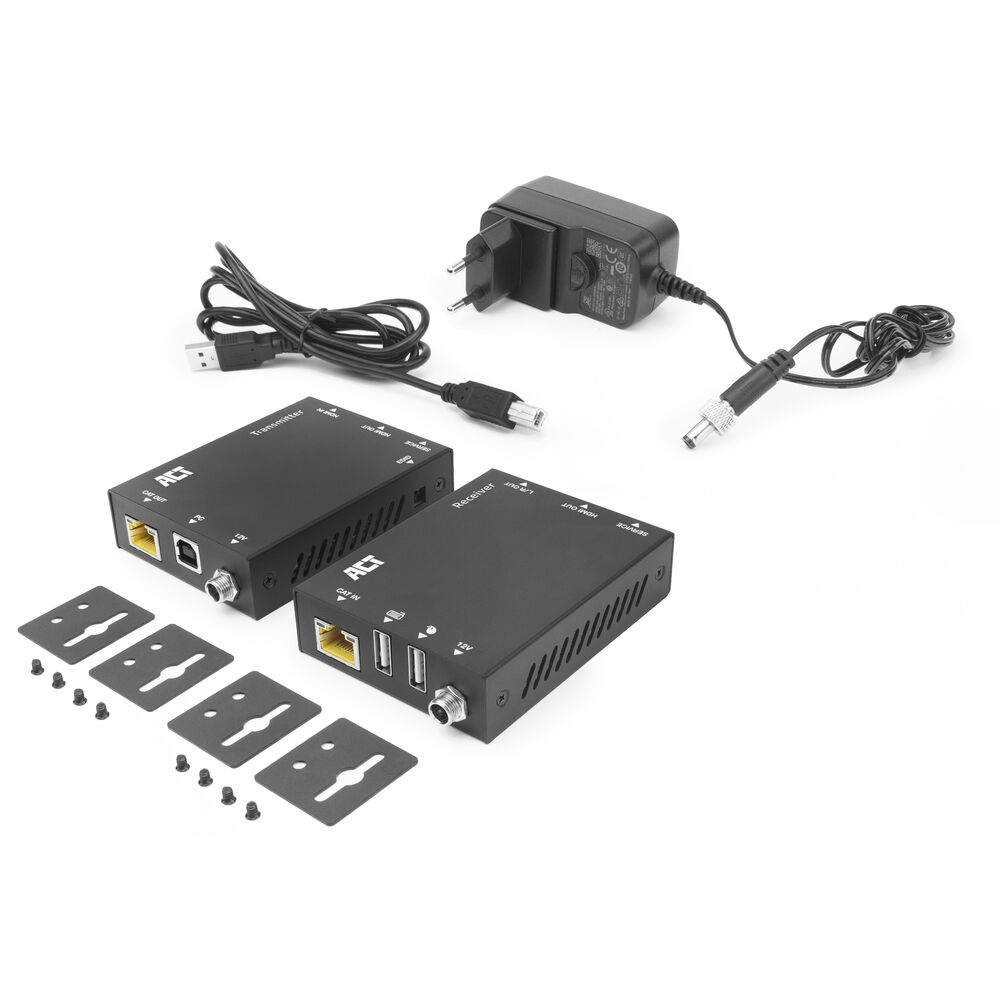

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB Type-A to USB Type-B |
| Quick installation guide | Yes |

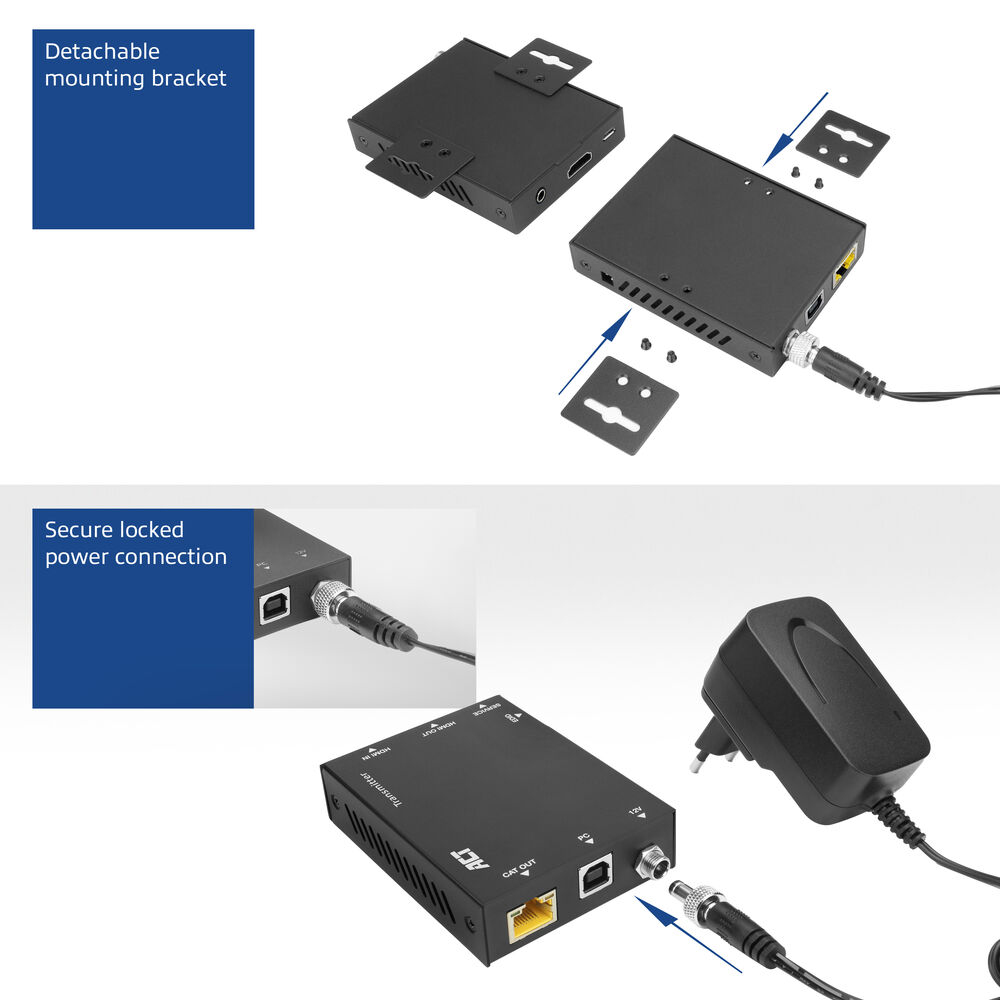

| Mounting bracket(s) included | Yes |
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| HDCP | Yes |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
