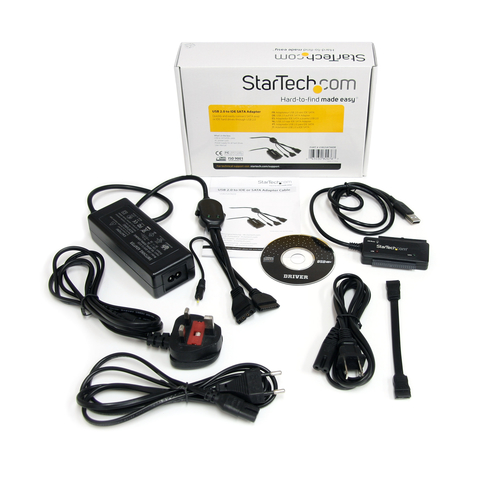

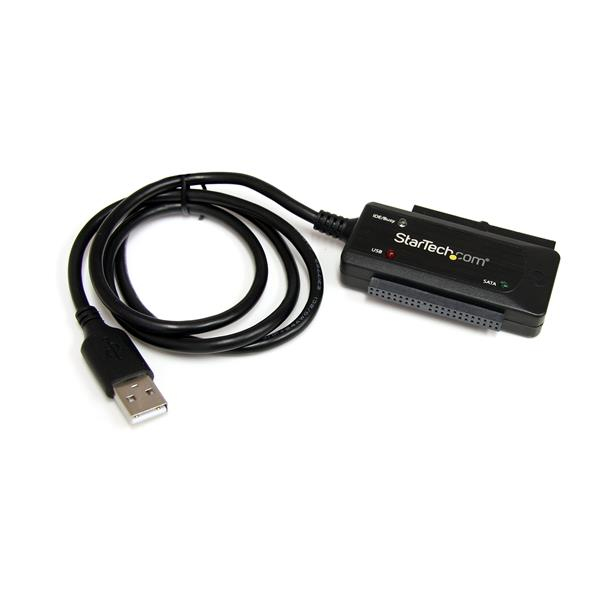

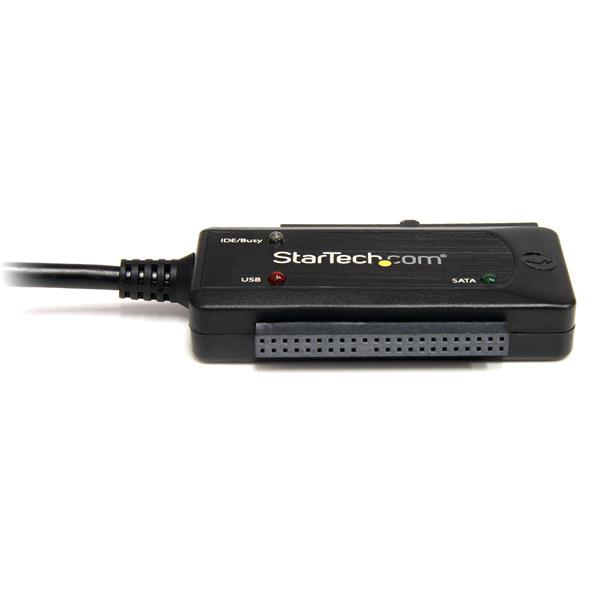

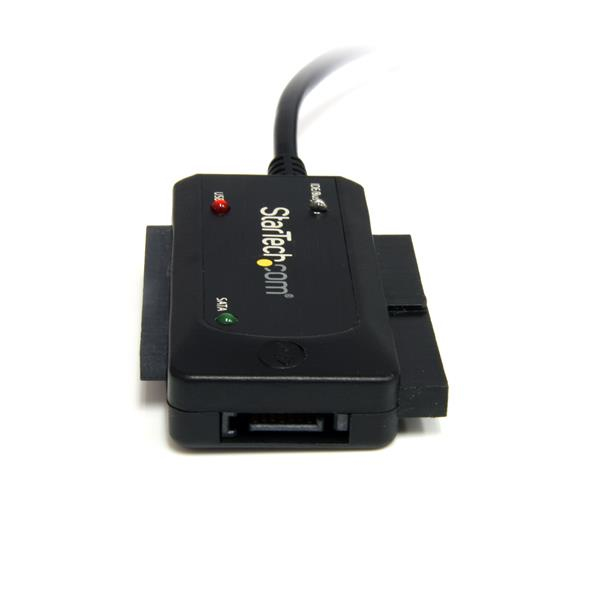

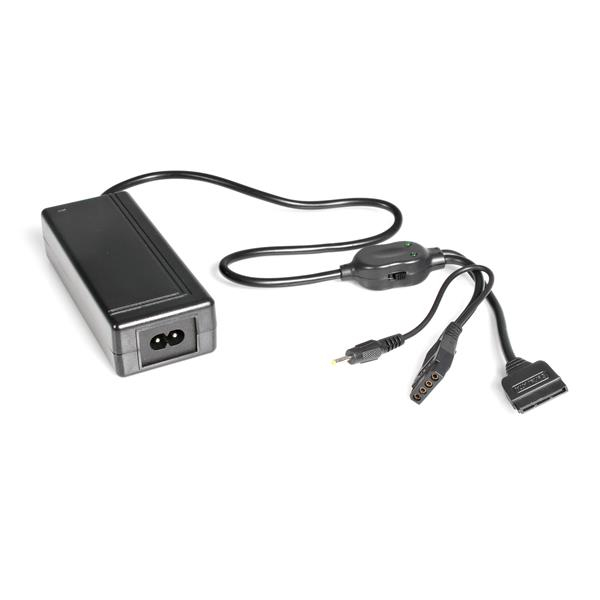

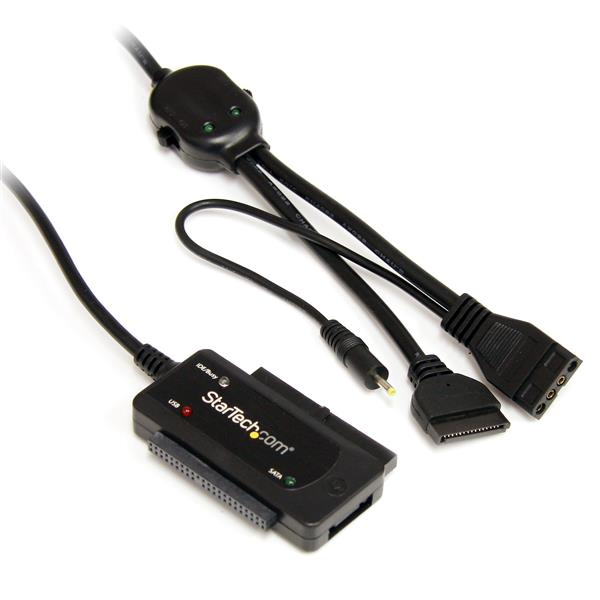

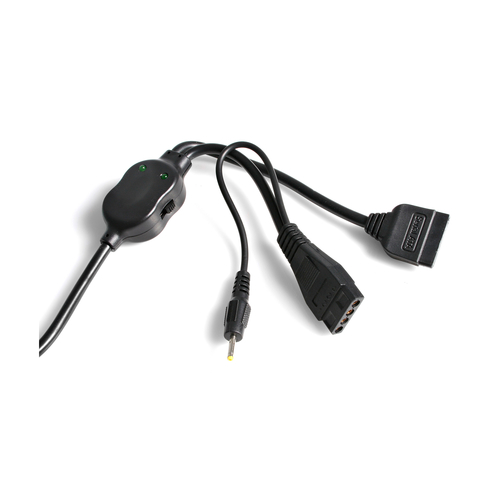

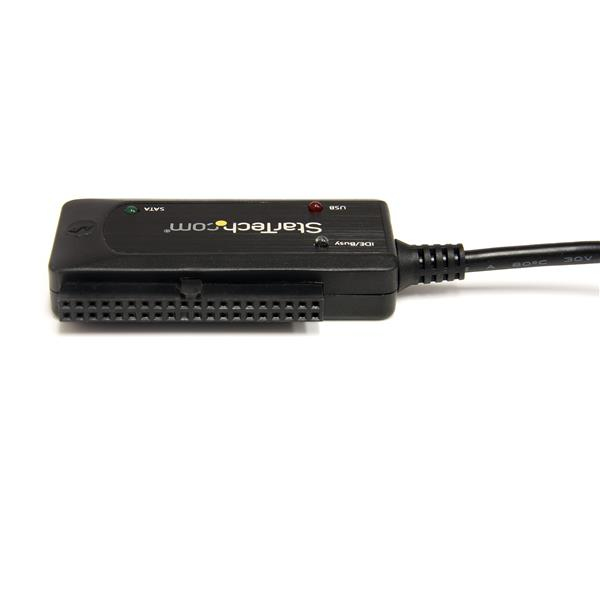

StarTech.com USB 2.0 to SATA/IDE Combo Adapter for 2.5/3.5" SSD/HDD
Model USB2SATAIDEEAN 898029626369
21 specifications
- Weight54 g
- ColourBlack
- ChipsetJMicron JM20337
- Output voltage12 V
- Compliance certificatesRoHS
- Width43 mm
Overview
- Weight
- 54 g
- Colour
- Black
- Chipset
- JMicron JM20337
- Output voltage
- 12 V
- Compliance certificates
- RoHS
- Width
- 43 mm
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- USB2SATAIDE
- Part number
- USB2SATAIDE
- EAN / UPC
- 898029626369, 065030824767, 102646188989, 132018345184 +13 more
- Also known as
- StarTech.com USB 2.0 to SATA/IDE Combo Adapter for 2.5/3.5" SSD/HDD
Specifications
21 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connector(s) | 1 x SATA Data 7 pin, 1 x IDE 40 pin, 1 x IDE 44, 1 x SATA, 1 x LP4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link |
| Certification | CE, FCC |
Features
| Specification | Value |
|---|---|
| Chipset | JMicron JM20337 |
Power
| Specification | Value |
|---|---|
| Output voltage | 12 V |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43 mm |
| Depth | 70 mm |
| Height | 15 mm |
| Weight | 54 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
| Package width | 149 mm |
| Package depth | 215 mm |
| Package height | 53 mm |
| Package weight | 410 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 0.48 Gbit/s |
| Compatible operating systems | Windows 8/8.1 (32/64bit), 7 (32/64bit), Server 2008 (32/64), Vista(32/64), Server 2003 (32/64) XP(32/64), 2000, Apple Mavericks (10.9) OSX Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6), Linux |
| Technical features | 480 Mbits/Sec |
