M.2 SSD to 2.5in SATA III Adapter - M.2 Solid State Drive Converter with Protective Housing
Model SAT2M2NGFF25EAN 5054629675779
25 specifications
- Weight54 g
- ColourBlack
- Host interfaceSATA
- InternalYes
- Data transfer rate (max)6 Gbit/s
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 54 g
- Colour
- Black
- Host interface
- SATA
- Internal
- Yes
- Data transfer rate (max)
- 6 Gbit/s
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- SAT2M2NGFF25
- Part number
- SAT2M2NGFF25
- EAN / UPC
- 5054629675779, 065030859288, 644535522844, 650308592884 +4 more
- Also known as
- StarTech.com M.2 SSD to 2.5in SATA III Adapter - M.2 Solid State Drive Converter with Protective Housing
Specifications
25 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | SATA |
| Output interface | M.2 |
| SATA revision | 3.0 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
| Hot-swap | No |
| Certification | CE, FCC, TAA, REACH |
Features
| Specification | Value |
|---|---|
| Data transfer rate (max) | 6 Gbit/s |
| Plug and Play | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|

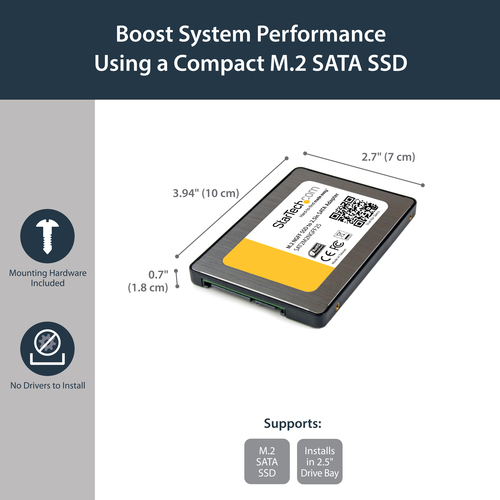

| Width | 68 mm |
| Depth | 98 mm |
| Height | 8 mm |
| Weight | 54 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |
| Manual | Yes |
| Package width | 162 mm |
| Package depth | 131 mm |
| Package height | 32 mm |
| Package weight | 116 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Material | Aluminium, Plastic |
