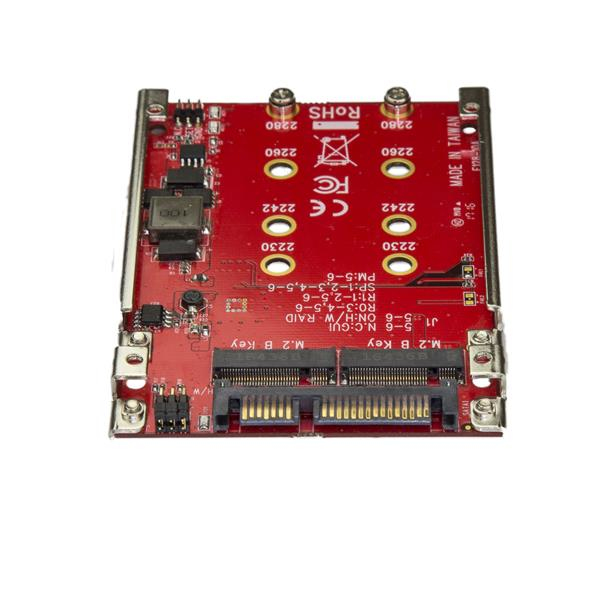

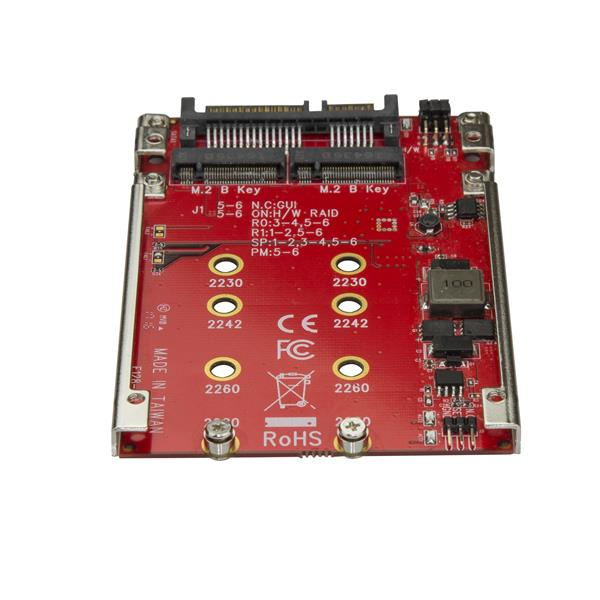

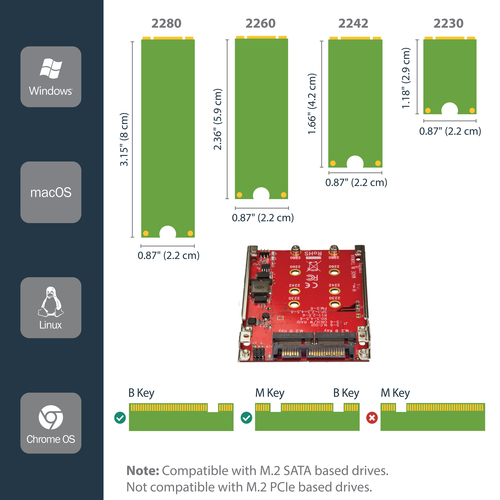

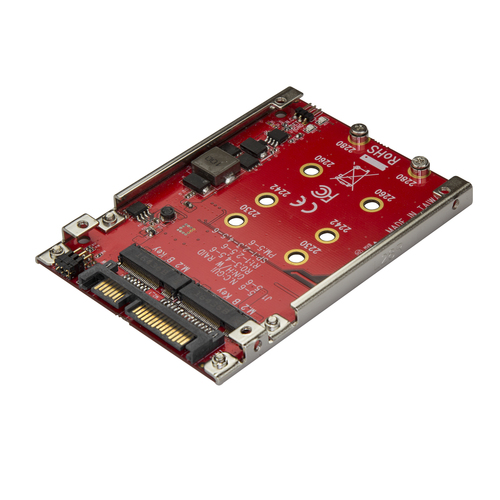

StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA

StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA

Model S322M225REAN 065030875141

33 specifications
  • Weight41 g
  • ColourRed
  • Host interfaceSATA
  • InternalYes
  • ChipsetASMedia - ASM1092R
  • Operating temperature (T-T)5 - 50 °C
See all specifications

Overview

Weight
41 g
Colour
Red
Host interface
SATA
Internal
Yes
Chipset
ASMedia - ASM1092R
Operating temperature (T-T)
5 - 50 °C
Brand
StarTech.com
Model
S322M225R
Part number
S322M225R
EAN / UPC
065030875141
Also known as
StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA

Specifications

33 specifications in 8 groups

Ports & interfaces

Host interfaceSATA
Output interfaceM.2
SATA revision3.0
Number of M.2 (B) slots2
Number of SSDs supported2
Port multiplierYes

Design

InternalYes
Product colourRed
Hot-swapNo
Easy to installYes
CertificationCE, FCC, REACH, TAA

Features

ChipsetASMedia - ASM1092R
Data transfer rate (max)6 Gbit/s
S.M.A.R.T. supportYes
TRIM supportYes
RAID levels0, 1, BIG, JBOD
Plug and PlayYes

Operational conditions

Operating temperature (T-T)5 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)15 - 90%

Technical details

Compliance certificatesRoHS

Weight & dimensions

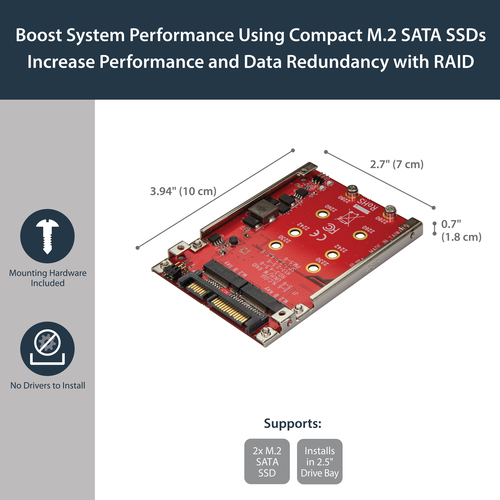

Width70 mm
Depth100 mm
Height7 mm
Weight41 g

Packaging data

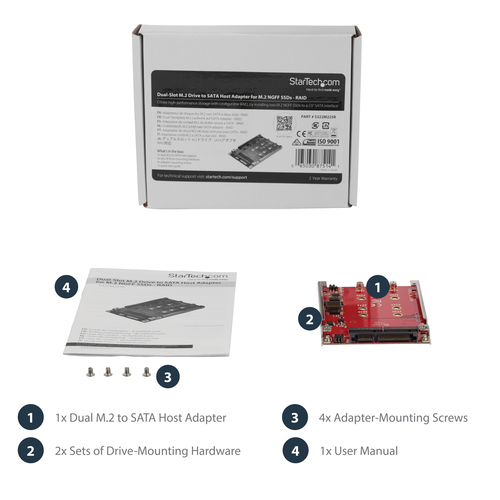

Mounting brackets includedYes
Screws includedYes
Quick installation guideYes
Package width172 mm
Package depth142 mm
Package height30 mm
Package weight110 g

Logistics data

Harmonized System (HS) code84733020
