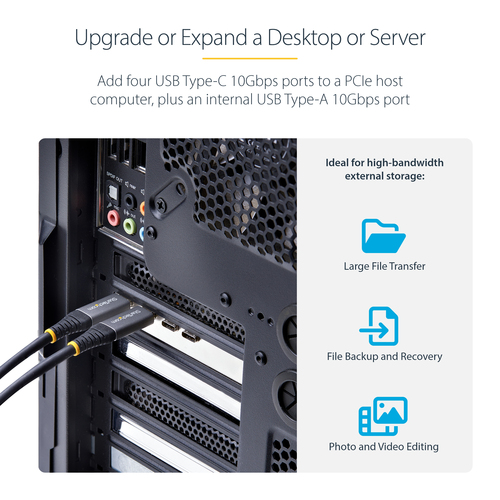

5-Port USB PCIe Card, USB 3.2 10Gbps, PCI Express Card with 4x USB-C Ports, 1x USB-A Internal Port, USB PCIe Controller Card, Windows/macOS/Linux
Model PS4C3IA3-USB-C-CARDEAN 065030909174
33 specifications
- Weight60 g
- ColourBlack
- Host interfacePCIe
- InternalYes
- Operating temperature (T-T)0 - 50 °C
- Compliance certificatesRoHS
Overview
- Weight
- 60 g
- Colour
- Black
- Host interface
- PCIe
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PS4C3IA3-USB-C-CARD
- Part number
- PS4C3IA3-USB-C-CARD
- EAN / UPC
- 065030909174
- Also known as
- StarTech.com 5-Port USB PCIe Card, USB 3.2 10Gbps, PCI Express Card with 4x USB-C Ports, 1x USB-A Internal Port, USB PCIe Controller Card, Windows/macOS/Linux
Specifications
33 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB Type-C |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCI 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
| SATA power connector type | SATA 15-pin |
| Internal USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
Features
| Specification | Value |
|---|---|
| Chipset | ASMEDIA - ASM3142, VIA LABS - VL822 |
| UASP support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 121 mm |
| Depth | 122 mm |
| Height | 22 mm |
| Weight | 60 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 216 mm |
| Package depth | 152 mm |
| Package height | 36 mm |
| Package weight | 156 g |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 451 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 324 mm |
