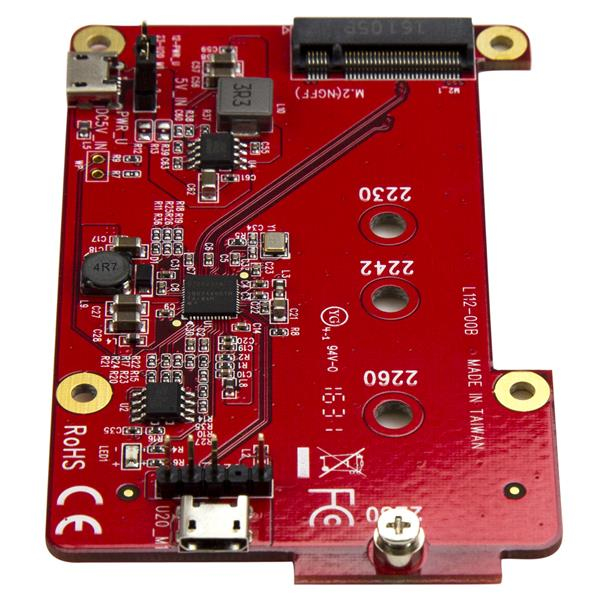

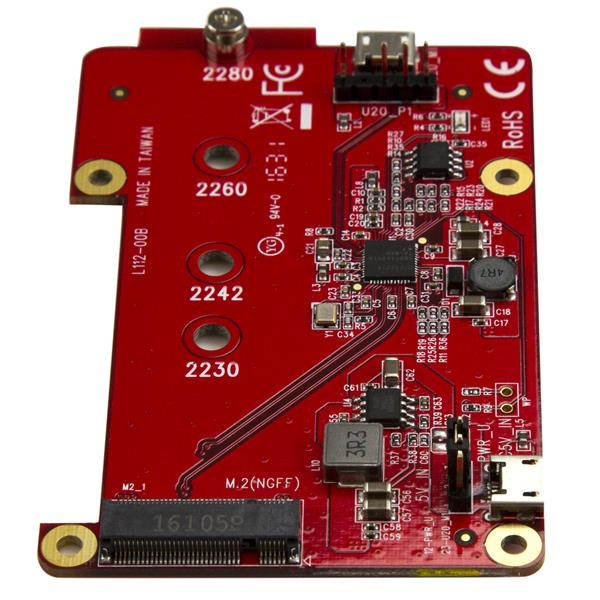

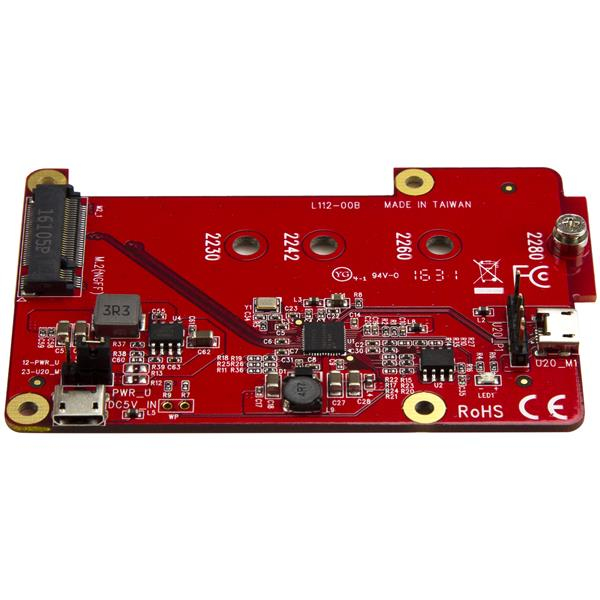

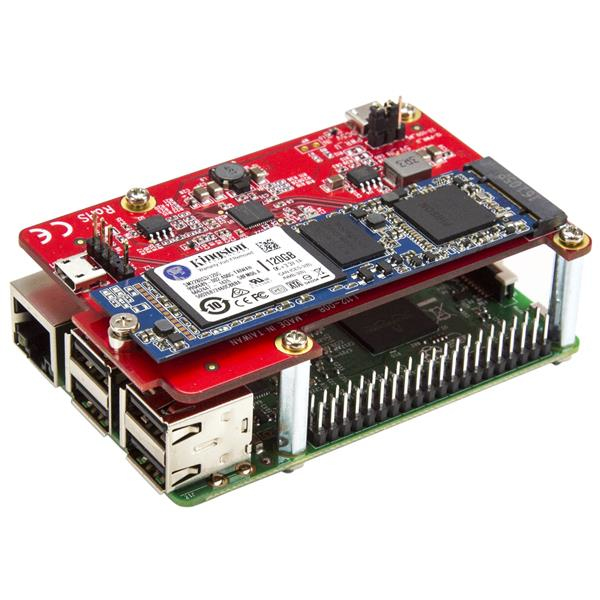

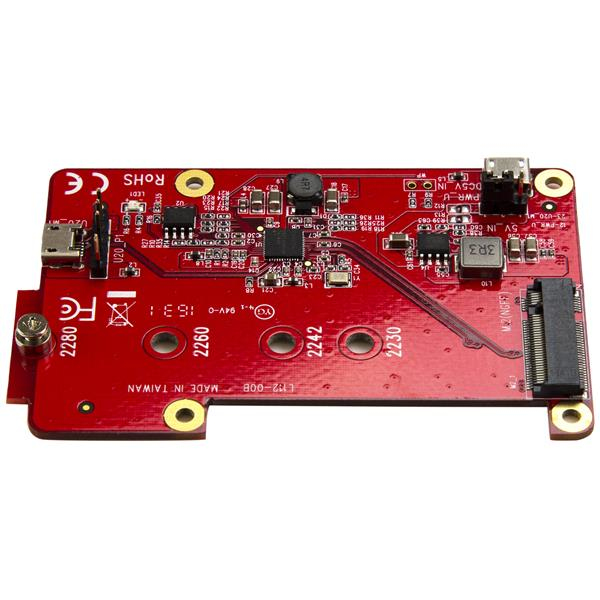

USB to M.2 SATA Converter for Raspberry Pi and Development Boards - TAA
Model PIB2M21EAN 065030867849
29 specifications
- Weight21.8 g
- ColourRed
- Host interfaceMicro-USB
- InternalYes
- ChipsetRenesas - µPD720231A
- Operating temperature (T-T)5 - 50 °C
Overview
- Weight
- 21.8 g
- Colour
- Red
- Host interface
- Micro-USB
- Internal
- Yes
- Chipset
- Renesas - µPD720231A
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PIB2M21
- Part number
- PIB2M21
- EAN / UPC
- 065030867849, 5057454624264
- Also known as
- StarTech.com USB to M.2 SATA Converter for Raspberry Pi and Development Boards - TAA
Specifications
29 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | Micro-USB |
| Output interface | M.2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Red |
| Mean time between failures (MTBF) | 5839751 h |
| Certification | CE, FCC |
Features
| Specification | Value |
|---|---|
| Chipset | Renesas - µPD720231A |
| Data transfer rate (max) | 6 Gbit/s |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 88 mm |
| Height | 11 mm |
| Weight | 21.8 g |
Packaging data
| Specification | Value |
|---|---|

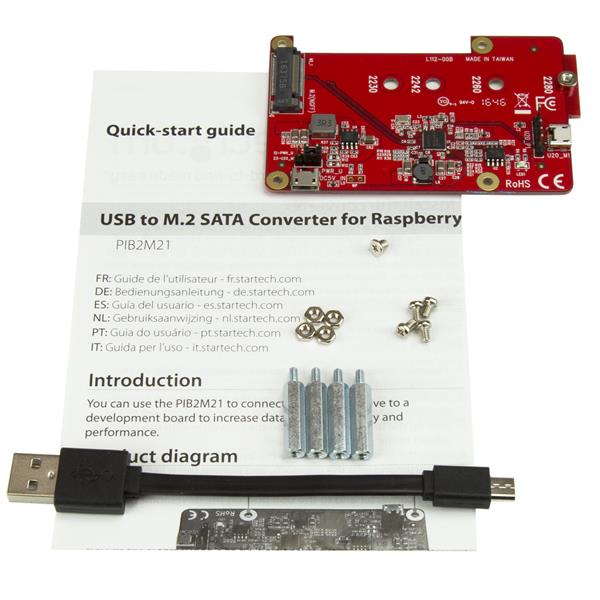

| Cables included | USB |
| Quick installation guide | Yes |
| Package width | 143 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 110 g |
| Package volume | 100 cm³ |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 498 mm |
| Master (outer) case height | 320 mm |
