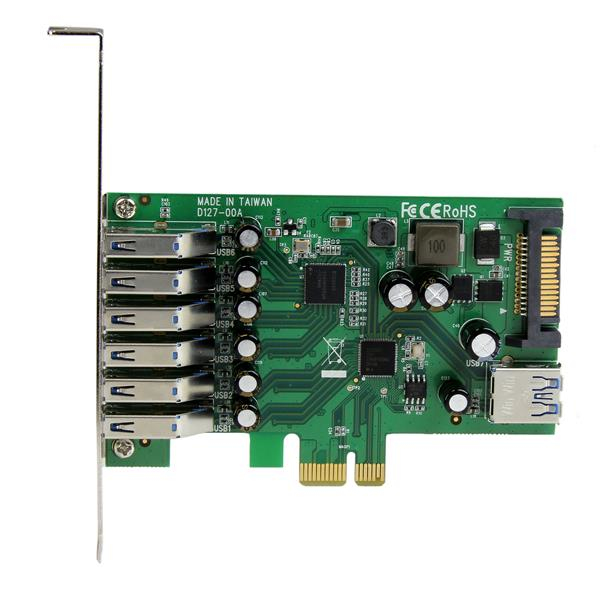

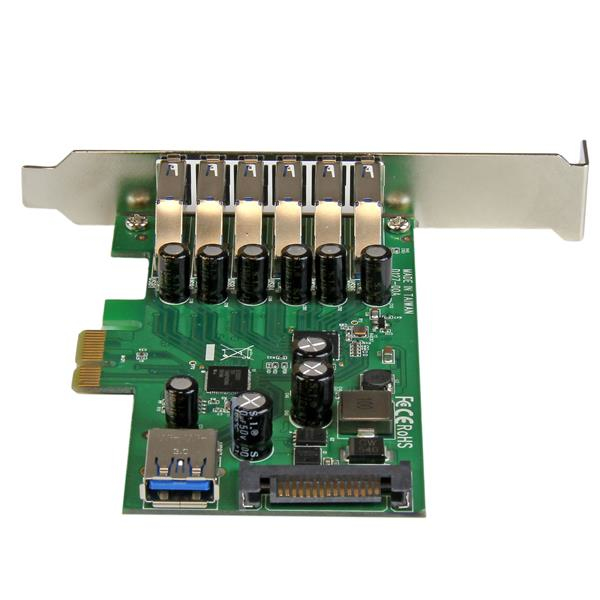

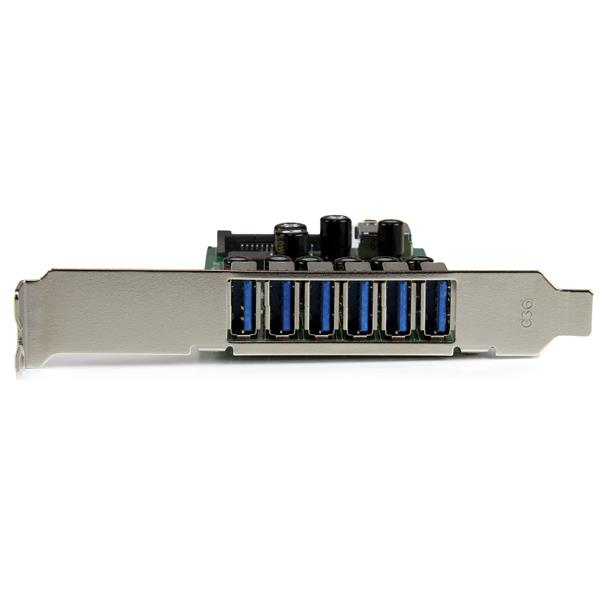

7-Port PCI Express USB 3.0 Card - 5Gbps - Standard and Low-Profile Design - TAA
Model PEXUSB3S7EAN 065030860345
37 specifications
- Weight72 g
- ColourGreen, Metallic
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)5 Gbit/s
- Operating temperature (T-T)5 - 50 °C
Overview
- Weight
- 72 g
- Colour
- Green, Metallic
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 5 Gbit/s
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUSB3S7
- Part number
- PEXUSB3S7
- EAN / UPC
- 065030860345, 723856593532, 758399118638, 5054629708408
- Also known as
- StarTech.com 7-Port PCI Express USB 3.0 Card - 5Gbps - Standard and Low-Profile Design - TAA
Specifications
37 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | SATA, USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card form factor | Full-height / Low-profile |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Internal SATA ports quantity | 1 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green, Metallic |
| Maximum cable length | 3 m |
| Mean time between failures (MTBF) | 1920042 h |
| Certification | CE, FCC, TAA |
Features
| Specification | Value |
|---|---|
| Chipset | Renesas/NEC - µPD720201, µPD720210 |
| Data transfer rate (max) | 5 Gbit/s |
| UASP support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 15 mm |
| Depth | 105 mm |
| Height | 120 mm |
| Weight | 72 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Drivers included | Yes |

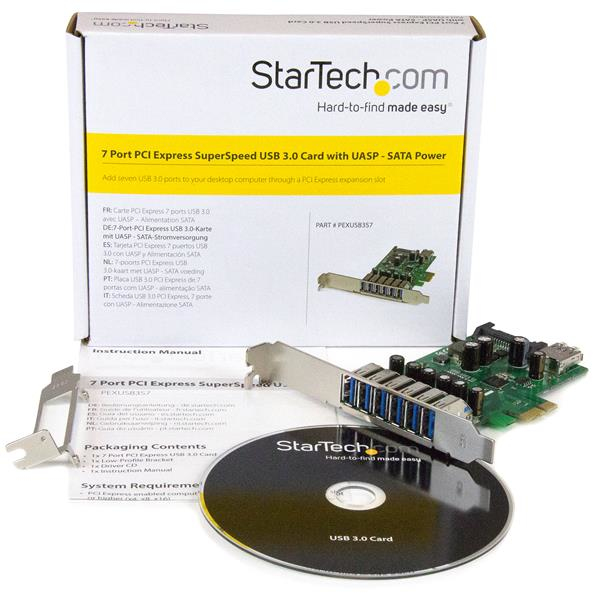

| Manual | Yes |
| Package width | 144 mm |
| Package depth | 174 mm |
| Package height | 32 mm |
| Package weight | 150 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 378 mm |
| Master (outer) case length | 496 mm |
| Master (outer) case height | 322 mm |
