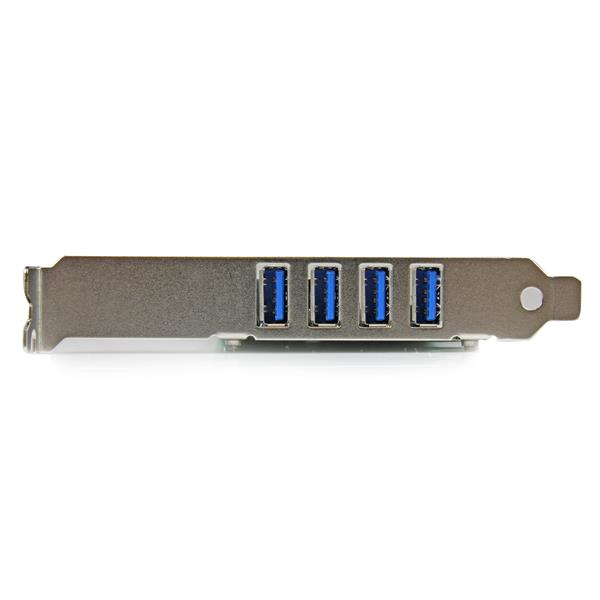

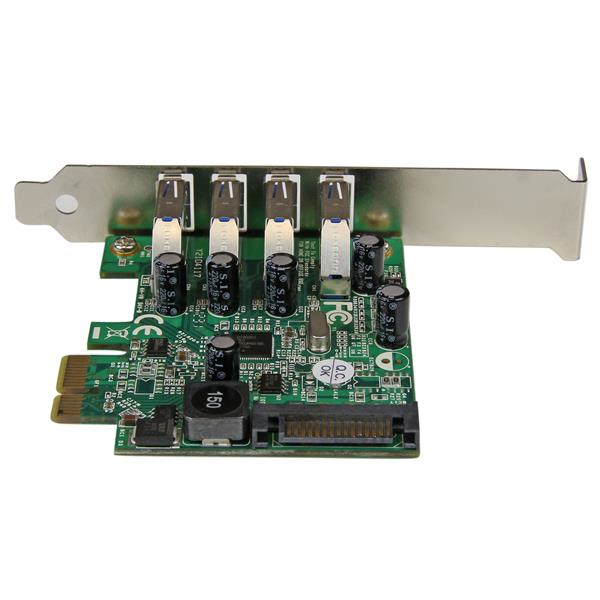

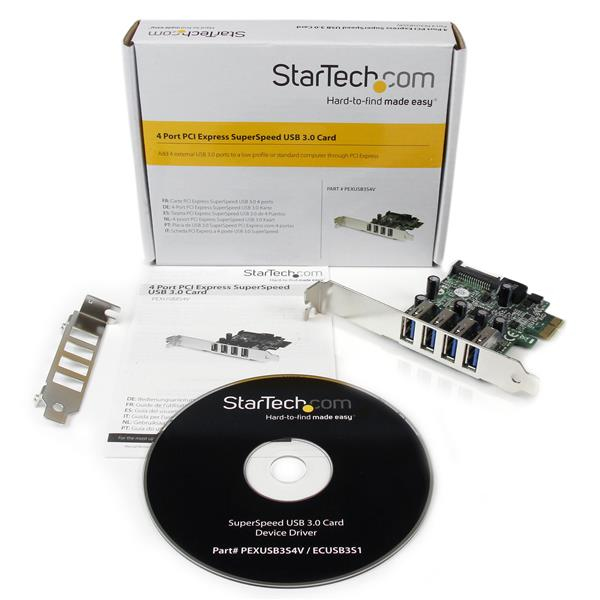

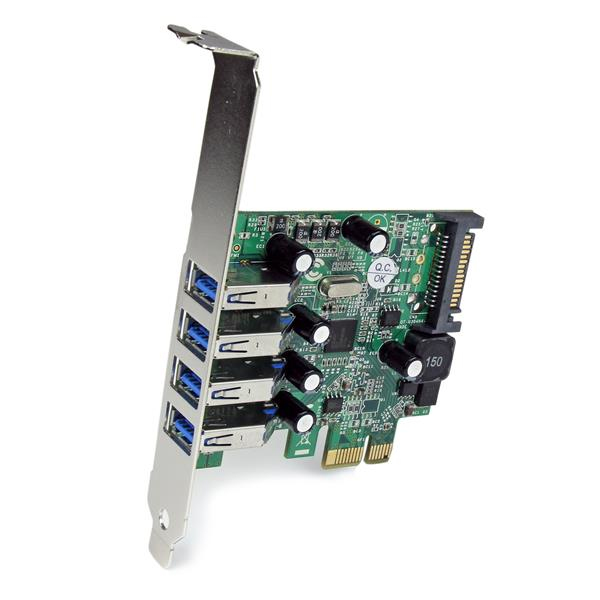

4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - 5Gbps - SATA Power - TAA
Model PEXUSB3S4VEAN 872182651512
35 specifications
- Weight45 g
- Host interfacePCIe
- InternalYes
- ChipsetNEC uPD720201
- Operating temperature (T-T)5 - 50 °C
- Compliance certificatesRoHS
Overview
- Weight
- 45 g
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- NEC uPD720201
- Operating temperature (T-T)
- 5 - 50 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUSB3S4V
- Part number
- PEXUSB3S4V
- EAN / UPC
- 872182651512, 013862090485, 065030848961, 100177410883 +14 more
- Also known as
- StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - 5Gbps - SATA Power - TAA
Specifications
35 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card standard | PCIe 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Internal SATA ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Certification | CE, FCC |
Features
| Specification | Value |
|---|---|
| Chipset | NEC uPD720201 |
| Data transfer rate (max) | 5 Gbit/s |
| UASP support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68 mm |
| Depth | 19 mm |
| Height | 75 mm |
| Weight | 45 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 131 mm |
| Package depth | 162 mm |
| Package height | 33 mm |
| Package weight | 138 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 566 mm |
| Master (outer) case length | 504 mm |
| Master (outer) case height | 340 mm |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit) |
| Ethernet LAN (RJ-45) ports | 0 |
| Mac compatibility | No |
