StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card
Model PEXUSB3S44VEAN 5054629410240
35 specifications
- Weight92 g
- ColourBlack
- Host interfacePCIe
- InternalYes
- ChipsetRenesas/NEC - µPD720202
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 92 g
- Colour
- Black
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Renesas/NEC - µPD720202
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUSB3S44V
- Part number
- PEXUSB3S44V
- EAN / UPC
- 5054629410240, 065030854627, 115971579681, 132018237366 +7 more
- Also known as
- StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card
Specifications
35 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
| Maximum cable length | 3 m |
Features
| Specification | Value |
|---|---|
| Chipset | Renesas/NEC - µPD720202 |
| Data transfer rate (max) | 20 Gbit/s |
| UASP support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 15 mm |
| Depth | 167 mm |
| Height | 120 mm |
| Weight | 92 g |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
| User guide | Yes |
| Package width | 211 mm |
| Package depth | 146 mm |
| Package height | 41 mm |
| Package weight | 202 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 444 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 319 mm |
Compare StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card
Compare any products- StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card vsStarTech.com 4 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter w/ 2 Dedicated 5Gbps Channels - UASP - SATA / LP4 PowerCompare specs
- StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card vsStarTech.com 2 Port 1394a PCI Express FireWire Card - PCIe FireWire AdapterCompare specs
- StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card vsStarTech.com SATA Drive to mSATA Host Adapter forCompare specs

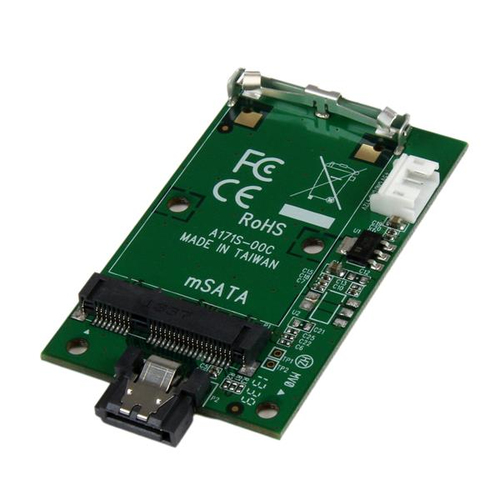

- StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card vsStarTech.com mSATA Drive to SATA Host Adapter for mSATA SSDsCompare specs
- StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card vsFujitsu DX1/200 S3 SCSICompare specs
- StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card vsFujitsu DX1/200 S3 SASCompare specs
- StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card vsDell 403-10918 interface cards/adapter Internal SASCompare specs

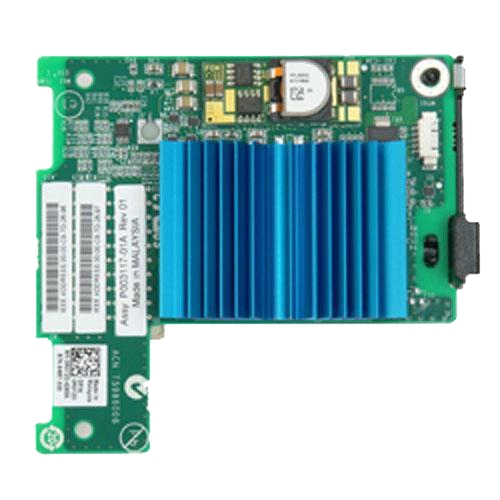

- StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card vsDell Emulex LPE1205-MCompare specs
