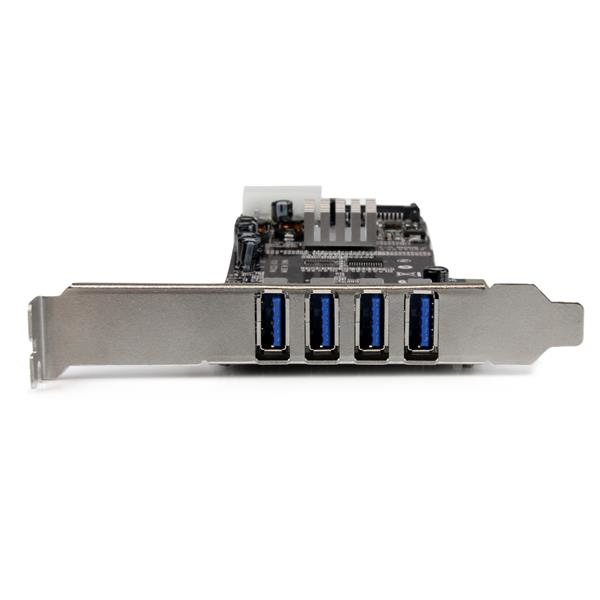

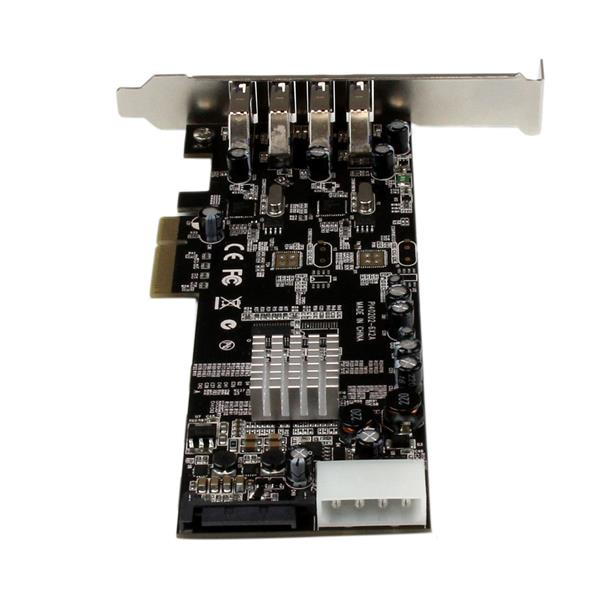

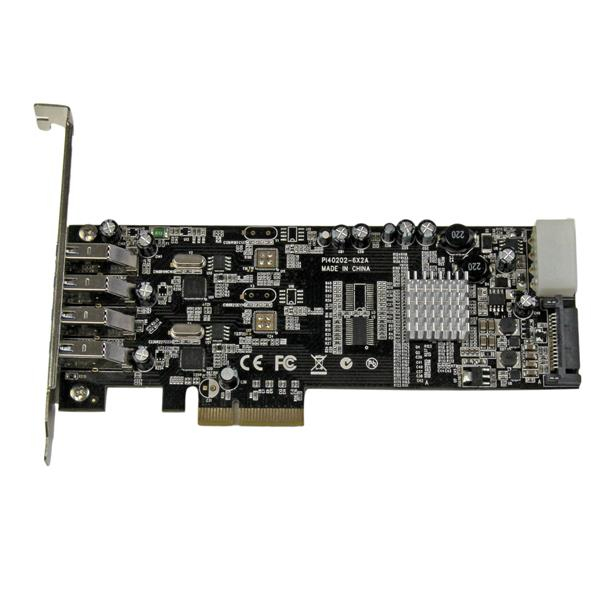

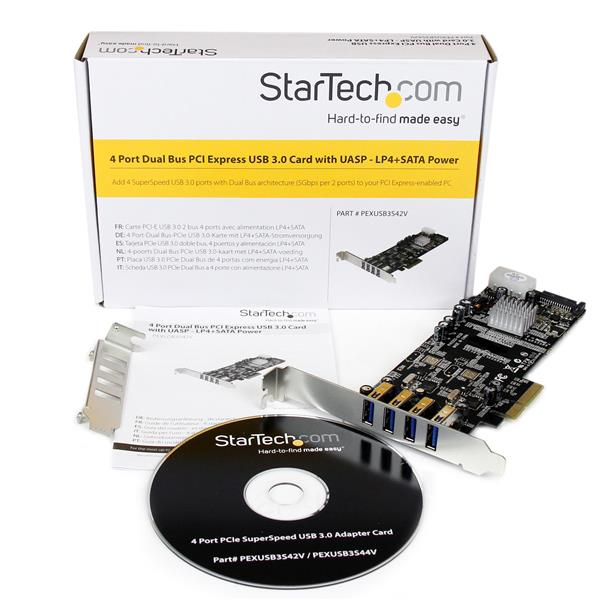

4 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter w/ 2 Dedicated 5Gbps Channels - UASP - SATA / LP4 Power
Model PEXUSB3S42VEAN 7427457756794
36 specifications
- Weight90 g
- Host interfacePCIe
- InternalYes
- Chipset2 x Renesas / NEC - µPD720202
- Operating temperature (T-T)0 - 50 °C
- Compliance certificatesRoHS
Overview
- Weight
- 90 g
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- 2 x Renesas / NEC - µPD720202
- Operating temperature (T-T)
- 0 - 50 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUSB3S42V
- Part number
- PEXUSB3S42V
- EAN / UPC
- 7427457756794, 065030854597, 132018237359, 172304231777 +7 more
- Also known as
- StarTech.com 4 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter w/ 2 Dedicated 5Gbps Channels - UASP - SATA / LP4 Power
Specifications
36 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Maximum cable length | 3 m |
| Hot-swap | Yes |
| Certification | CE, FCC |
Features
| Specification | Value |
|---|---|
| Chipset | 2 x Renesas / NEC - µPD720202 |
| Data transfer rate (max) | 5 Gbit/s |
| UASP support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 15 mm |
| Depth | 167 mm |
| Height | 120 mm |
| Weight | 90 g |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
| User guide | Yes |
| Package width | 142 mm |
| Package depth | 207 mm |
| Package height | 41 mm |
| Package weight | 200 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 315 mm |
