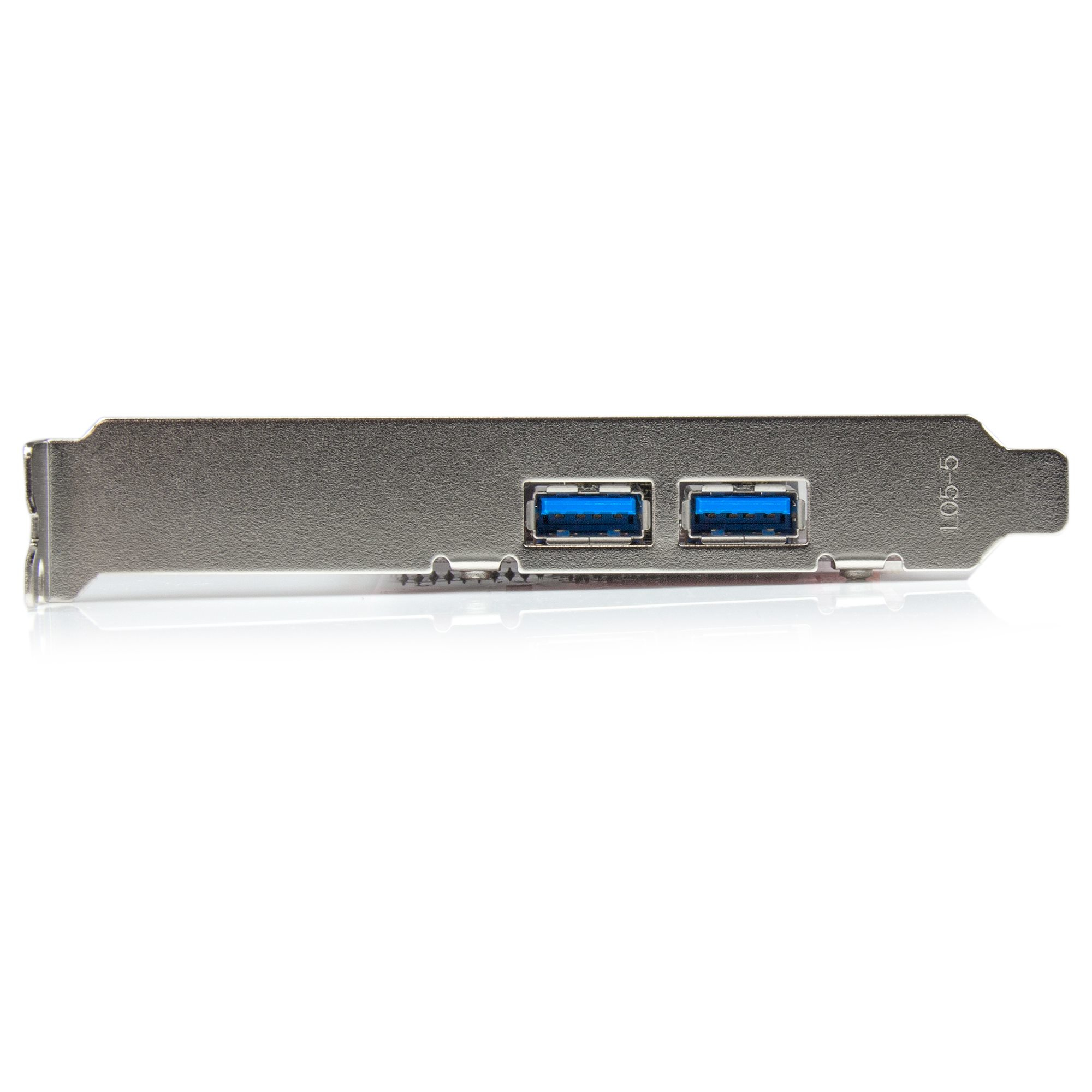

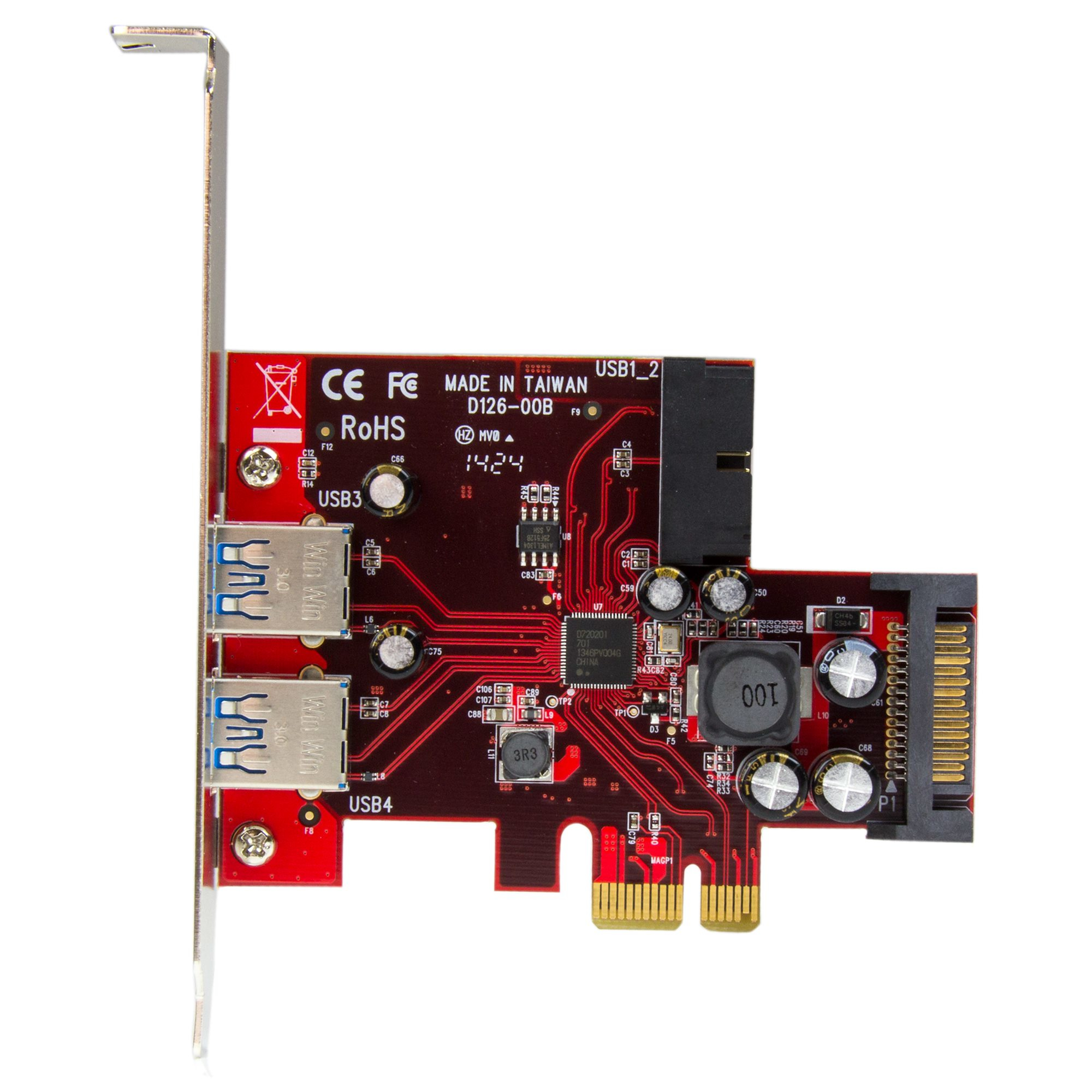

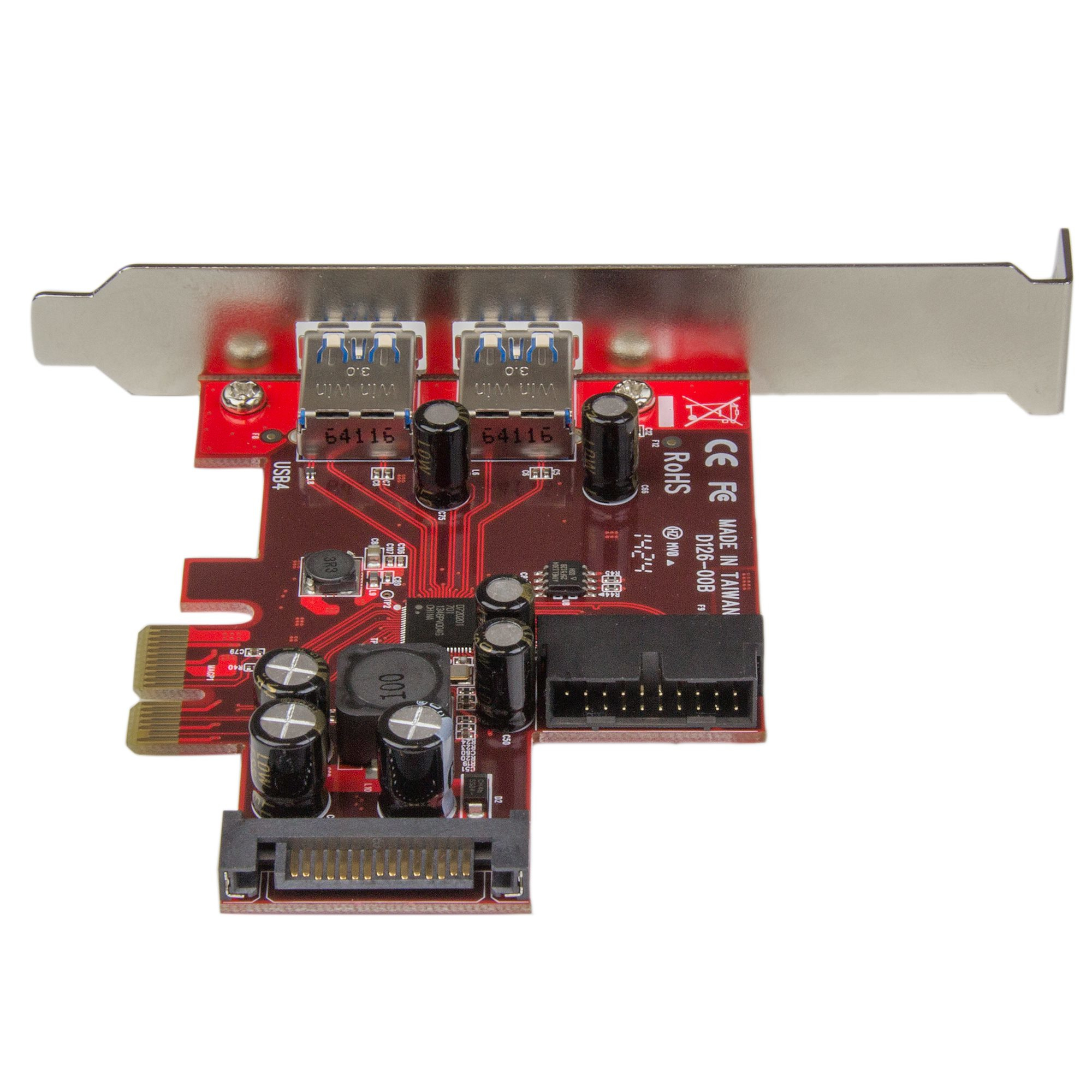

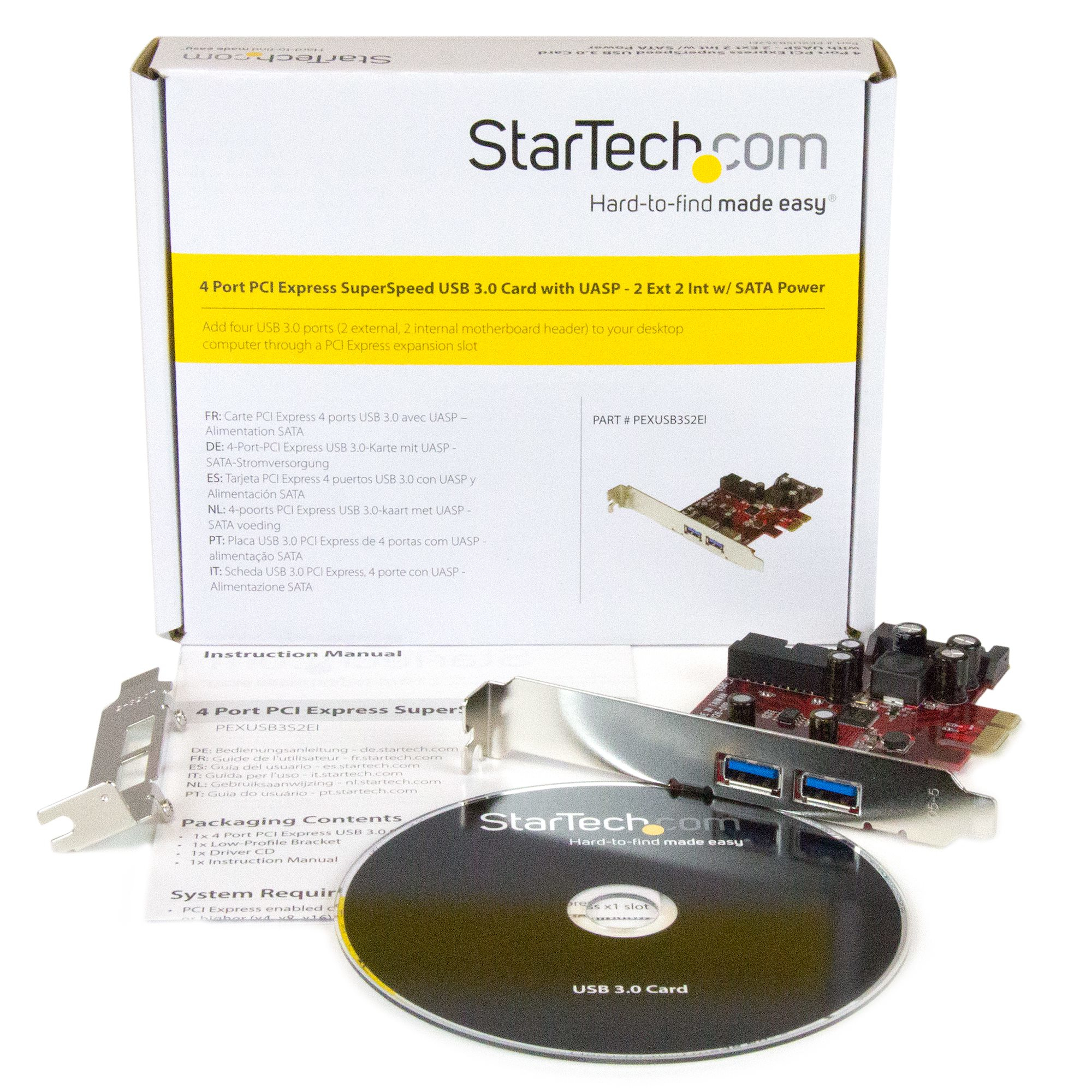

StarTech.com 4 Port PCI Express USB 3.0 Card - 5Gbps - 2 External & 2 Internal - SATA Power - UASP Support - 2x Internal (IDC) Motherboard-Style Headers - TAA
Model PEXUSB3S2EIEAN 5054629708392
36 specifications
- Weight53 g
- ColourMetallic, Red
- Host interfacePCIe
- InternalYes
- ChipsetRenesas / NEC - µPD720201
- Operating temperature (T-T)5 - 50 °C
Overview
- Weight
- 53 g
- Colour
- Metallic, Red
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Renesas / NEC - µPD720201
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUSB3S2EI
- Part number
- PEXUSB3S2EI
- EAN / UPC
- 5054629708392, 065030860338, 723856593525, 758399118591 +2 more
- Also known as
- StarTech.com 4 Port PCI Express USB 3.0 Card - 5Gbps - 2 External & 2 Internal - SATA Power - UASP Support - 2x Internal (IDC) Motherboard-Style Headers - TAA
Specifications
36 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | SATA, USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCI 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Internal SATA ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Metallic, Red |
| Maximum cable length | 3 m |
| Mean time between failures (MTBF) | 1920042 h |
Features
| Specification | Value |
|---|---|
| Chipset | Renesas / NEC - µPD720201 |
| Data transfer rate (max) | 5 Gbit/s |
| UASP support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Wi |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18 mm |
| Depth | 92 mm |
| Height | 120 mm |
| Weight | 53 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 143 mm |
| Package depth | 175 mm |
| Package height | 33 mm |
| Package weight | 143 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 382 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 318 mm |
Other features
| Specification | Value |
|---|---|
| Maximum operating distance | 3 m |
