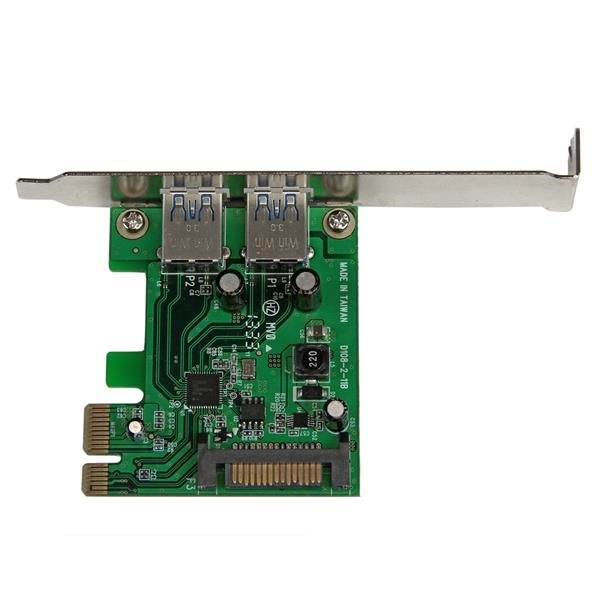

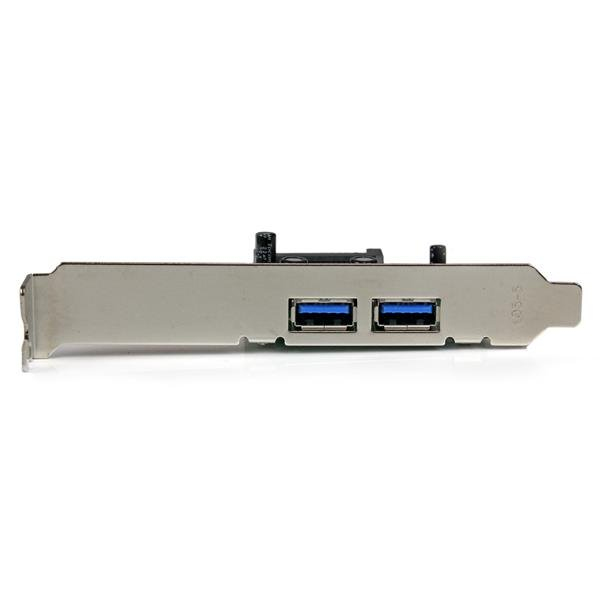

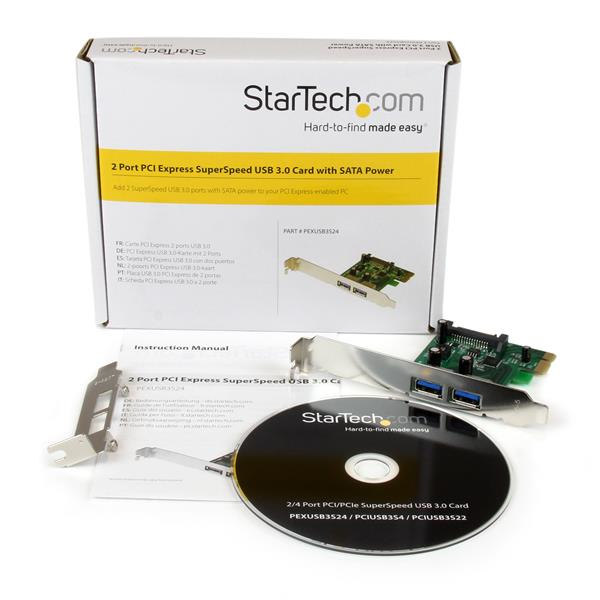

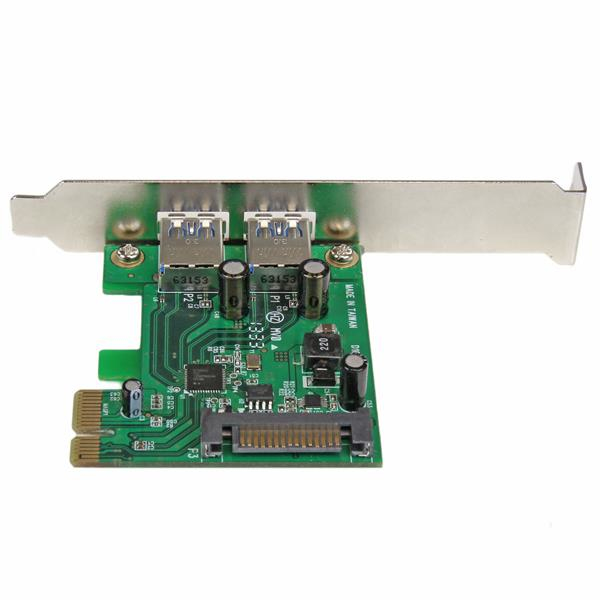

StarTech.com 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP - SATA Power - TAA
Model PEXUSB3S24EAN 7426801580535
33 specifications
- Weight40 g
- ColourGreen, Metallic
- Host interfacePCIe
- InternalYes
- ChipsetRenesas/NEC - µPD720202
- Operating temperature (T-T)5 - 50 °C
Overview
- Weight
- 40 g
- Colour
- Green, Metallic
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Renesas/NEC - µPD720202
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUSB3S24
- Part number
- PEXUSB3S24
- EAN / UPC
- 7426801580535, 065030855587, 132018236833, 163121452025 +10 more
- Also known as
- StarTech.com 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP - SATA Power - TAA
Specifications
33 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green, Metallic |
| Certification | CE, FCC, TAA, REACH |
Features
| Specification | Value |
|---|---|
| Chipset | Renesas/NEC - µPD720202 |
| Data transfer rate (max) | 5 Gbit/s |
| UASP support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18 mm |
| Depth | 65 mm |
| Height | 120 mm |
| Weight | 40 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 143 mm |
| Package depth | 175 mm |
| Package height | 32 mm |
| Package weight | 130 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 382 mm |
| Master (outer) case length | 498 mm |
| Master (outer) case height | 318 mm |
Compare StarTech.com 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP - SATA Power - TAA
Compare any products- StarTech.com 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP - SATA Power - TAA vsStarTech.com mSATA SSD toCompare specs
- StarTech.com 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP - SATA Power - TAA vsStarTech.com M.2 SATA SSD toCompare specs

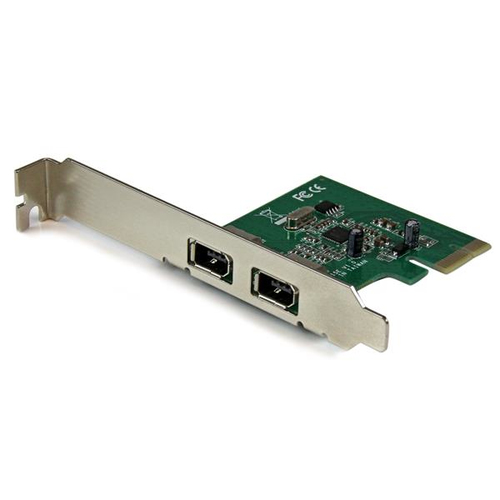

- StarTech.com 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP - SATA Power - TAA vsStarTech.com 2 Port 1394a PCI Express FireWire Card - PCIe FireWire AdapterCompare specs
