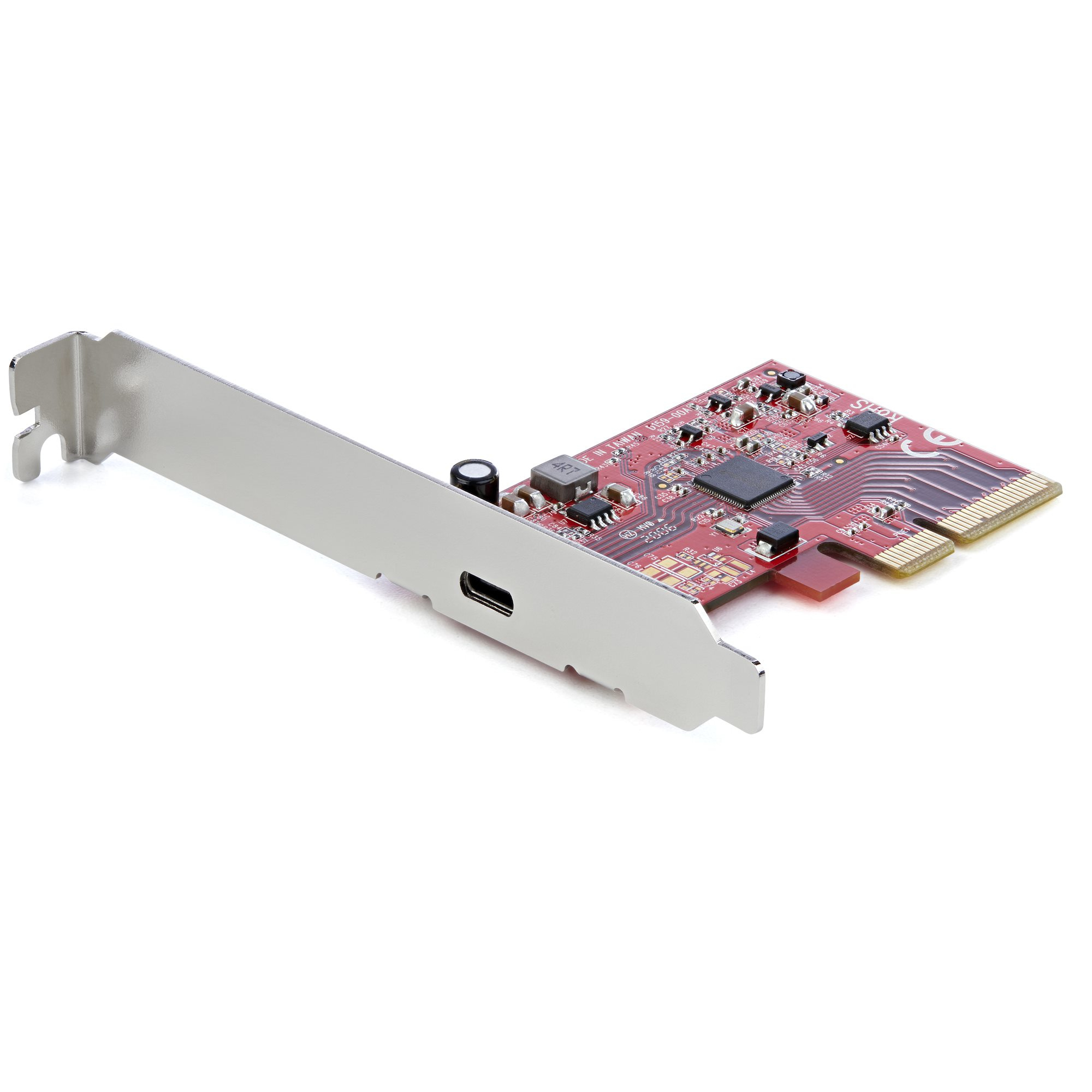

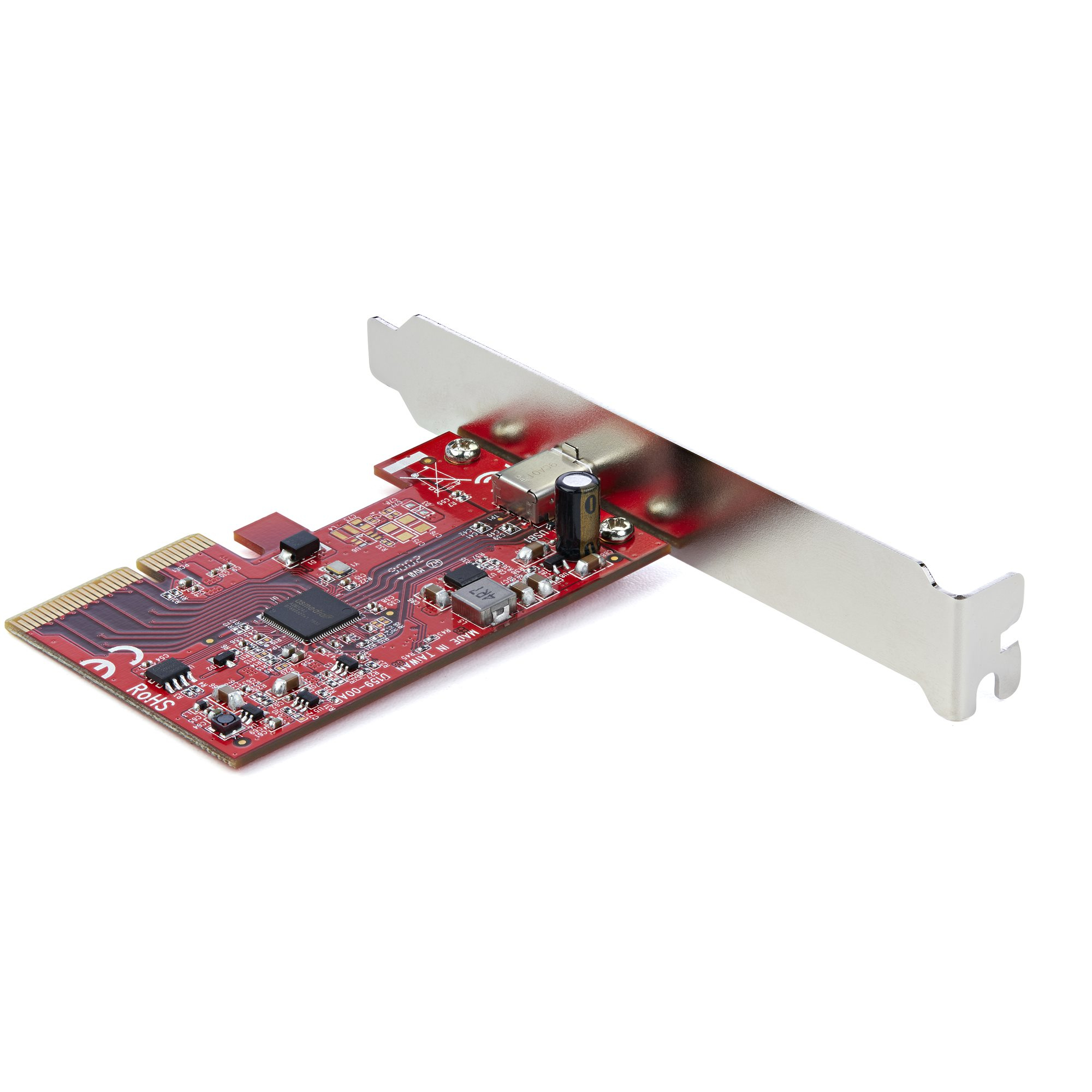

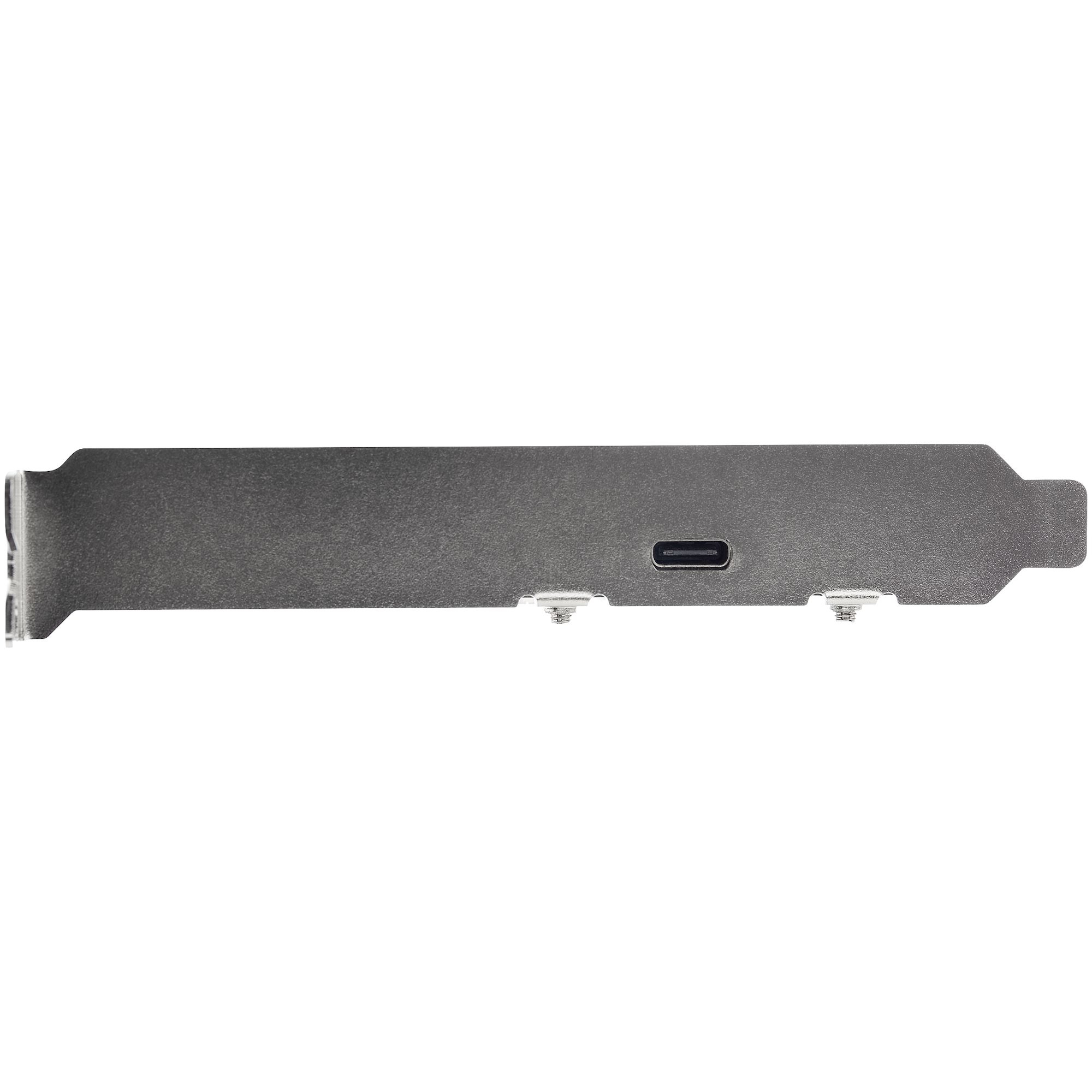

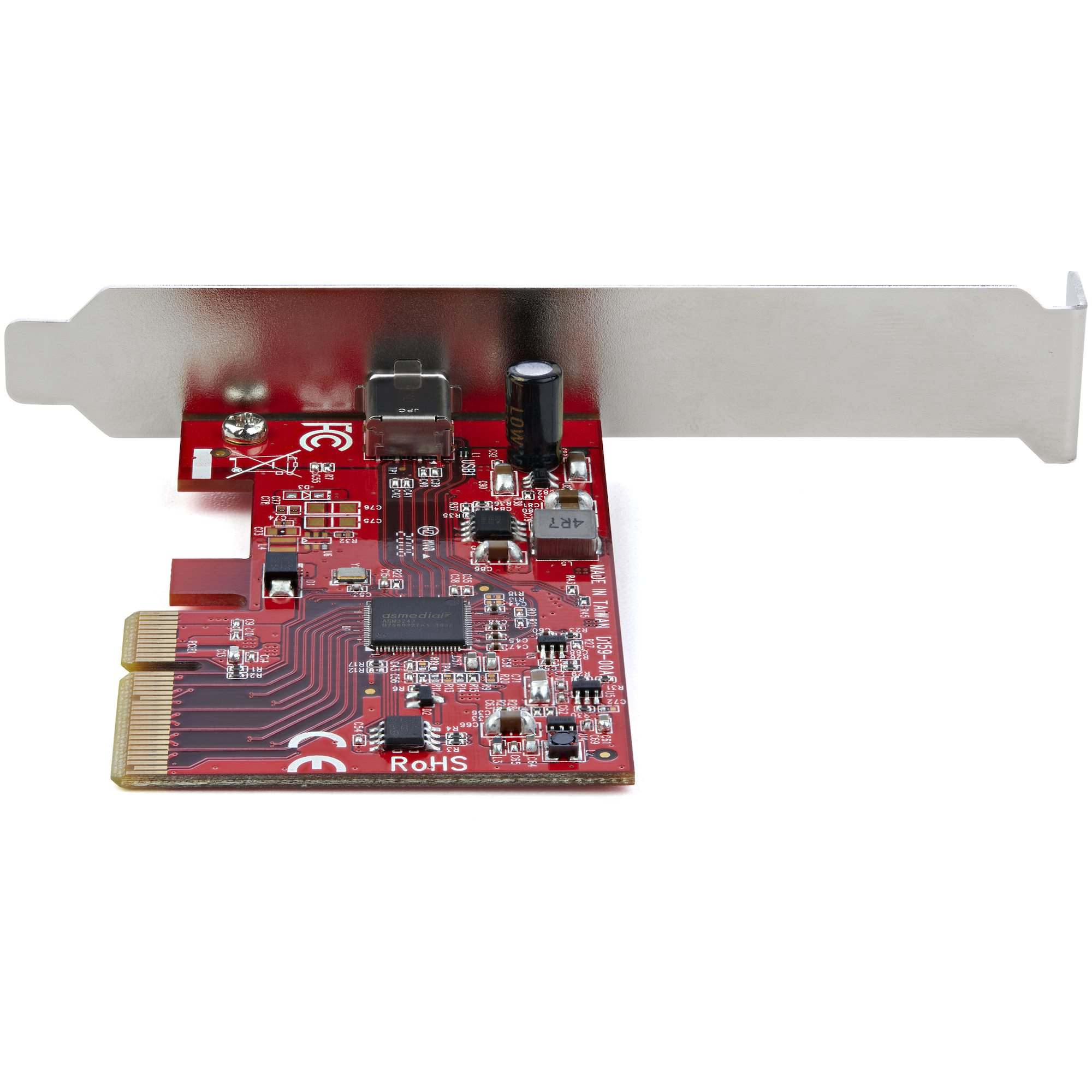

1-Port USB 3.2 Gen
2x2 PCIe Card, USB-C 20Gbps SuperSpeed PCI Express 3.0 x4 Controller Card, USB Type-C Adapter Card, Data Only, Windows/macOS/Lin
Model PEXUSB321CEAN 065030891264
33 specifications
- Weight37 g
- ColourRed
- Host interfacePCIe
- InternalYes
- ChipsetASMedia - ASM3242
- Operating temperature (T-T)0 - 85 °C
Overview
- Weight
- 37 g
- Colour
- Red
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASMedia - ASM3242
- Operating temperature (T-T)
- 0 - 85 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUSB321C
- Part number
- PEXUSB321C
- EAN / UPC
- 065030891264
- Also known as
- StarTech.com 1-Port USB 3.2 Gen 2x2 PCIe Card, USB-C 20Gbps SuperSpeed PCI Express 3.0 x4 Controller Card, USB Type-C Adapter Card, Data Only, Windows/macOS/Lin
Specifications
33 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard | PCIe 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Red |
| Mean time between failures (MTBF) | 3126209 h |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM3242 |
| Data transfer rate (max) | 20 Gbit/s |
| UASP support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 15 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterpris |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 51 mm |
| Height | 22 mm |
| Weight | 37 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 101 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 514 mm |
| Master (outer) case length | 394 mm |
| Master (outer) case height | 324 mm |
