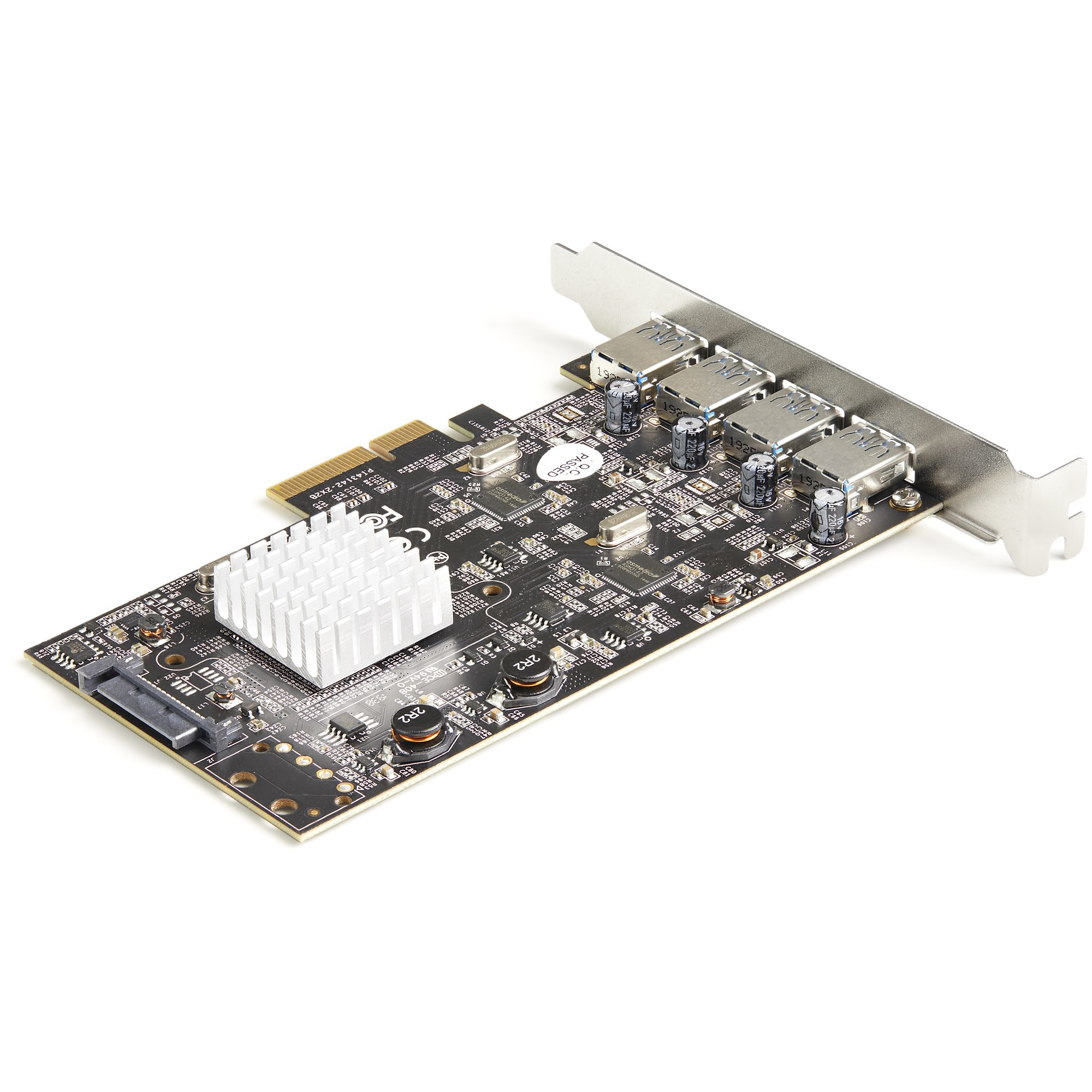

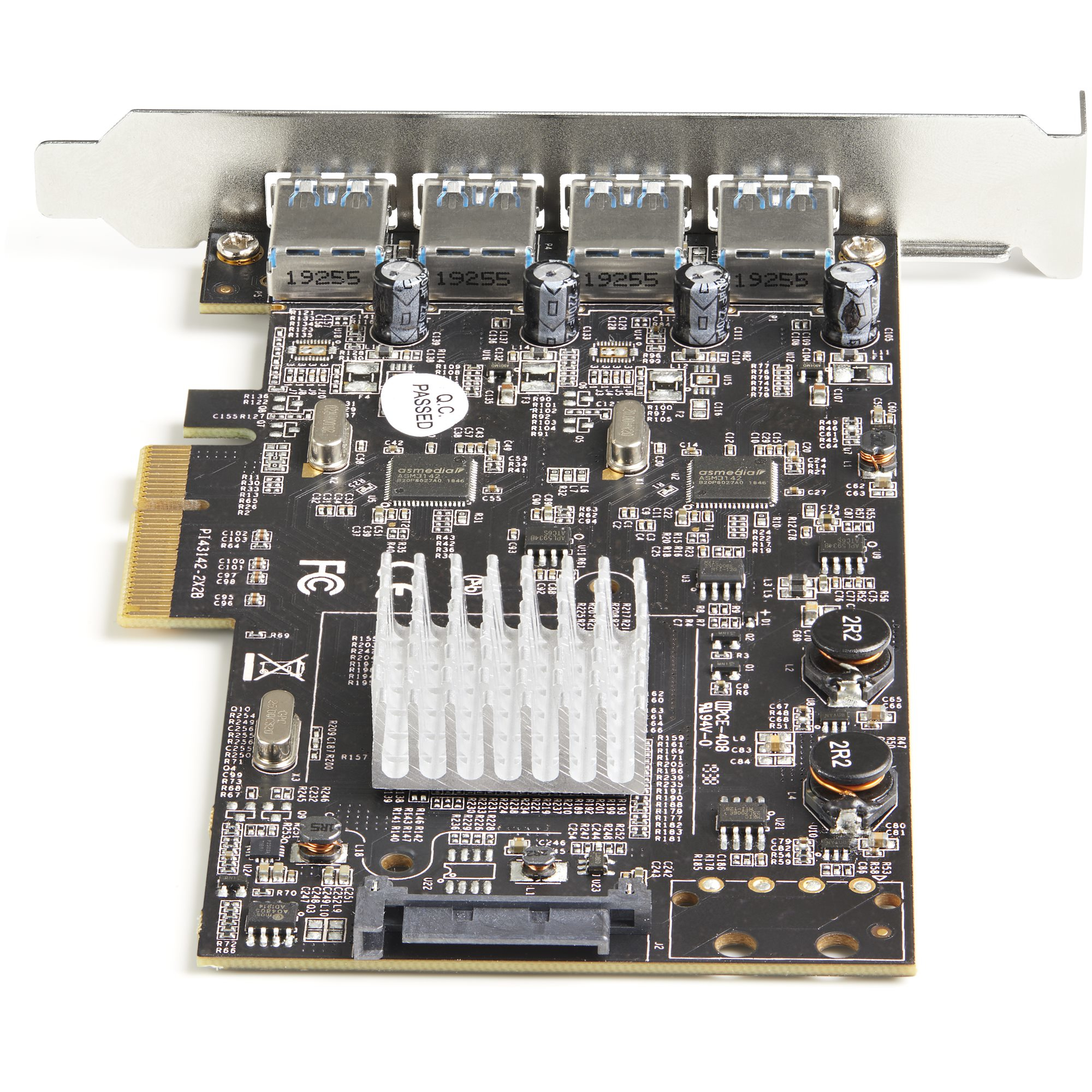

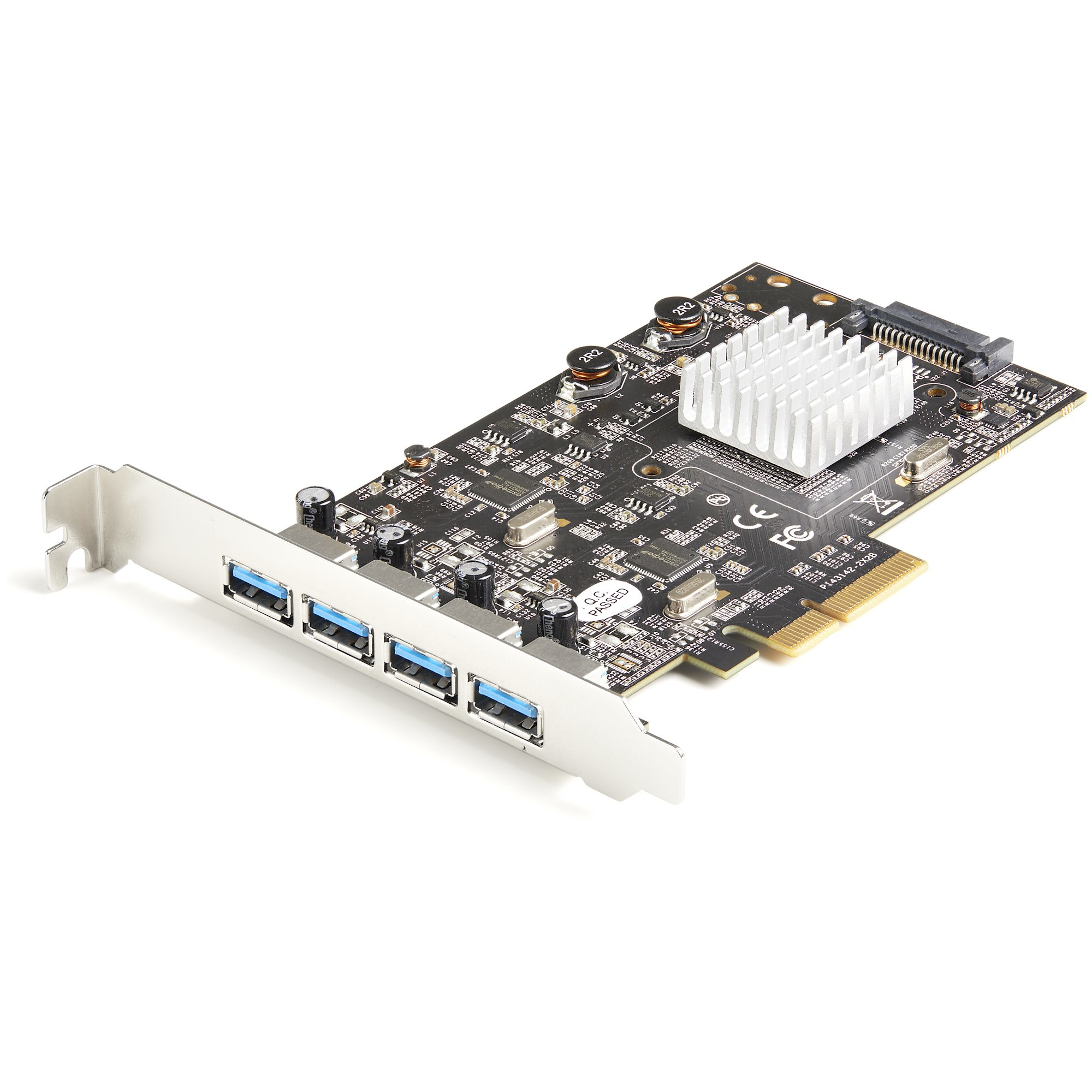

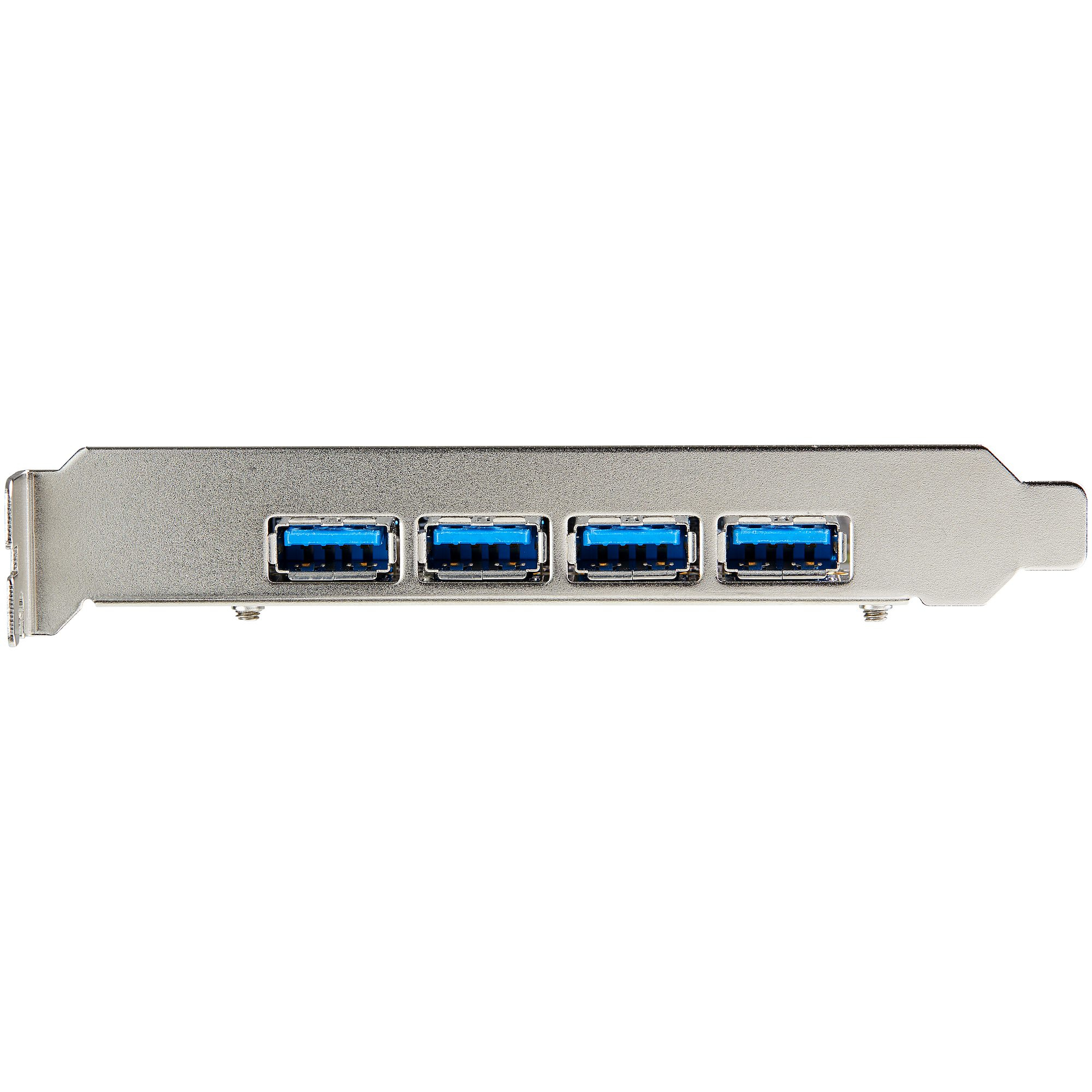

4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI Express Expansion Card with 2 Controllers - 4x USB-A - USB PCIe Add-On Adapter Card - Window
Model PEXUSB314A2V2EAN 065030887410
37 specifications
- Weight125 g
- ColourBlack, Metallic
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)10 Gbit/s
- Output voltage5 V
Overview
- Weight
- 125 g
- Colour
- Black, Metallic
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 10 Gbit/s
- Output voltage
- 5 V
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUSB314A2V2
- Part number
- PEXUSB314A2V2
- EAN / UPC
- 065030887410
- Also known as
- StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI Express Expansion Card with 2 Controllers - 4x USB-A - USB PCIe Add-On Adapter Card - Window
Specifications
37 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard | PCIe 3.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Internal SATA ports quantity | 1 |
| SATA power connector type | SATA 15-pin |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black, Metallic |
| Mean time between failures (MTBF) | 40000 h |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM3142, ASMedia - ASM1812 |
| Data transfer rate (max) | 10 Gbit/s |
| UASP support | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 120 mm |
| Height | 19 mm |
| Weight | 125 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 217 mm |
| Package depth | 151 mm |
| Package height | 36 mm |
| Package weight | 180 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 454 mm |
| Master (outer) case length | 379 mm |
| Master (outer) case height | 325 mm |
