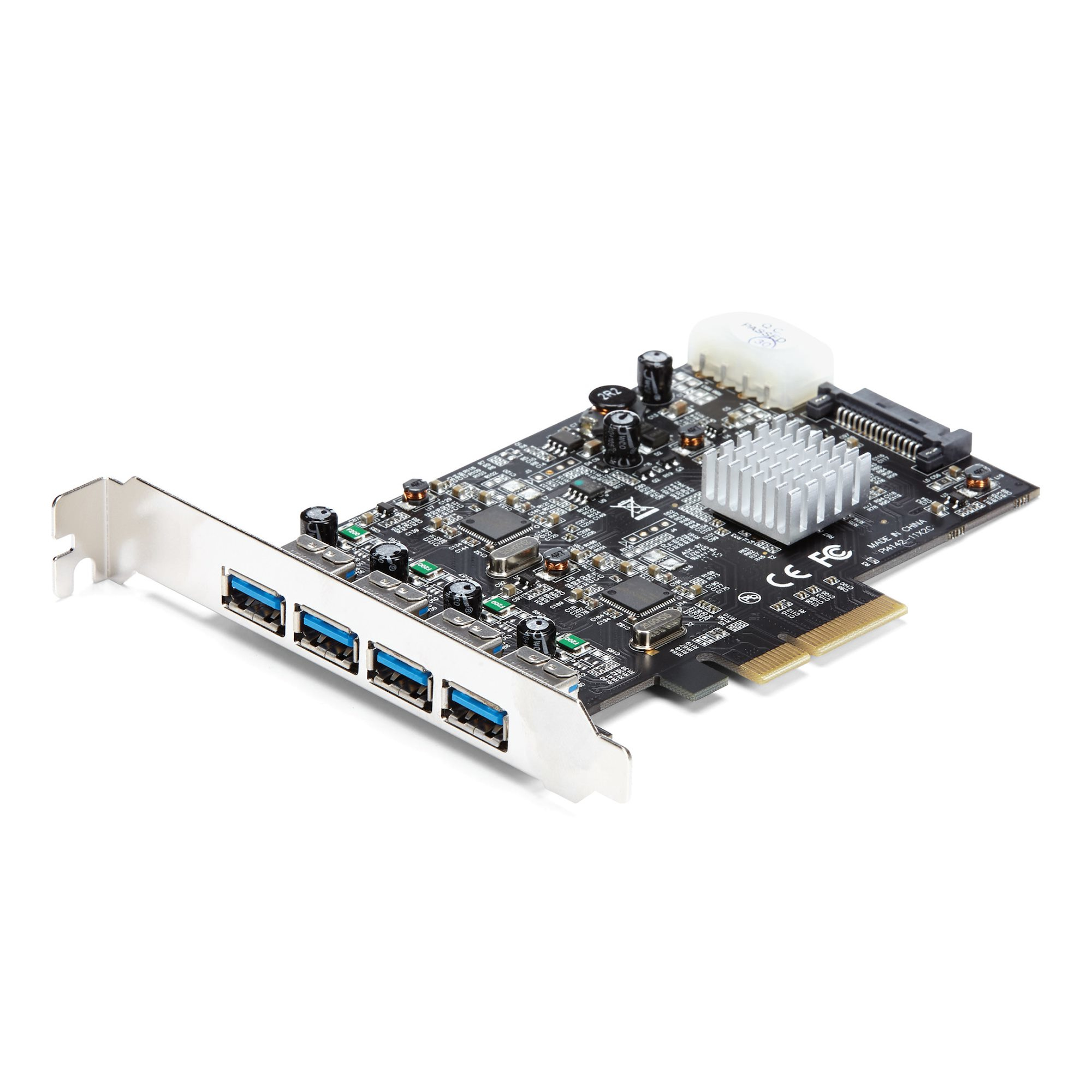

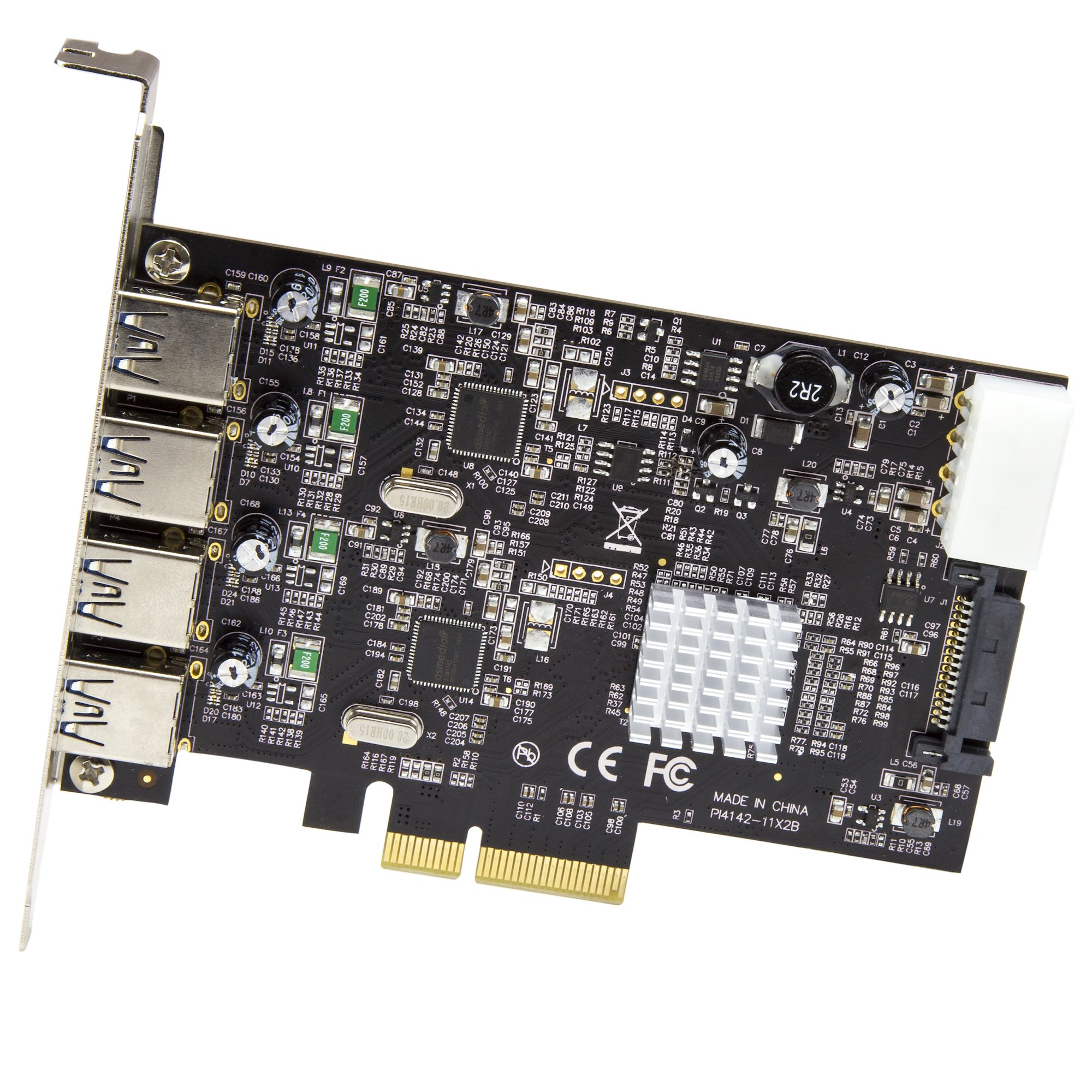

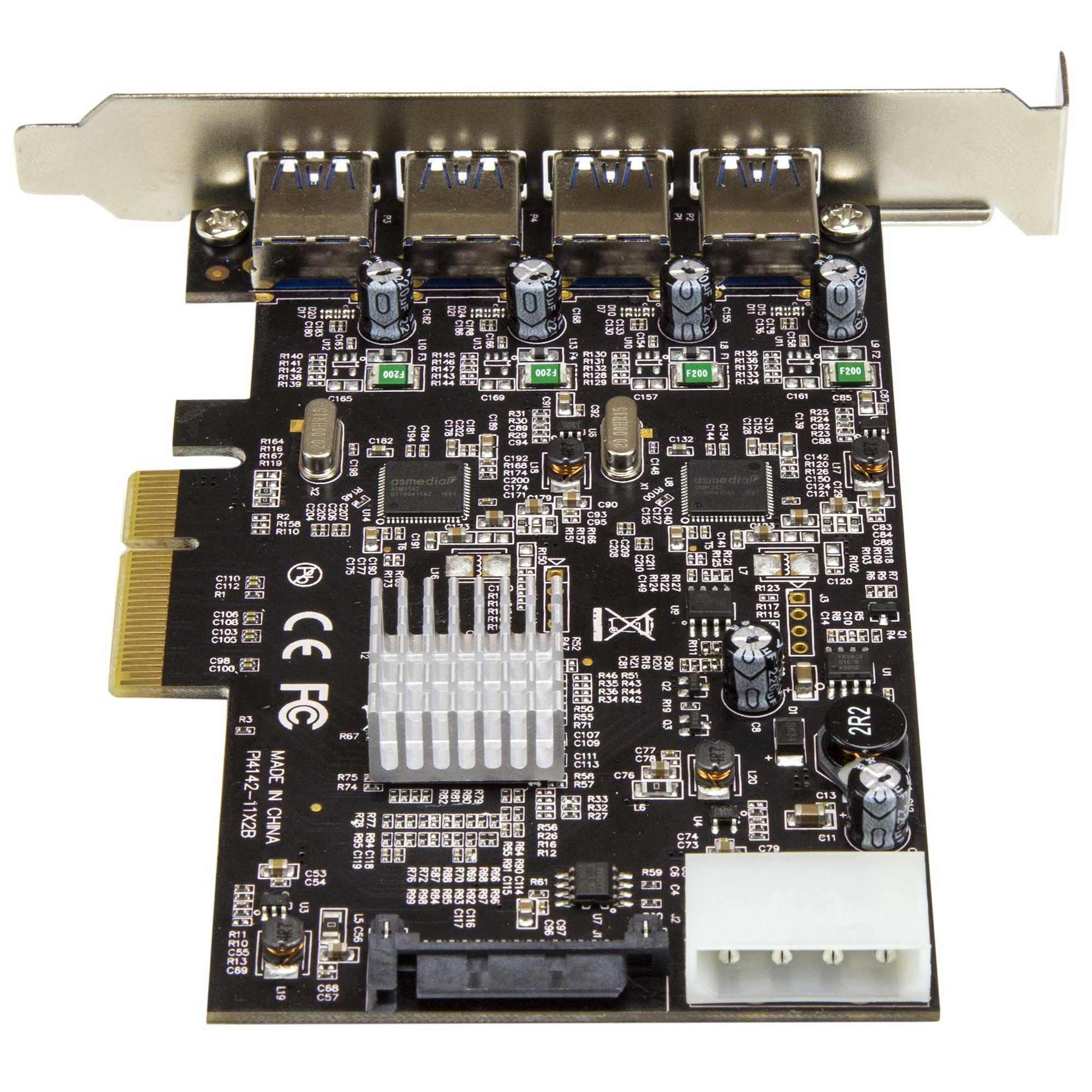

StarTech.com 4 Port USB 3.1 PCI-e Card - 10Gbps - 4x USB w/ Two Dedicated Channels - PCI Express Expansion Card / Adapter

StarTech.com 4 Port USB 3.1 PCI-e Card - 10Gbps - 4x USB w/ Two Dedicated Channels - PCI Express Expansion Card / Adapter

Model PEXUSB314A2VEAN 065030868327

32 specifications
  • Weight79 g
  • ColourBlack
  • Host interfacePCIe
  • InternalYes
  • ChipsetASMedia - ASM1142
  • Operating temperature (T-T)-20 - 60 °C
See all specifications

Overview

Weight
79 g
Colour
Black
Host interface
PCIe
Internal
Yes
Chipset
ASMedia - ASM1142
Operating temperature (T-T)
-20 - 60 °C
Brand
StarTech.com
Model
PEXUSB314A2V
Part number
PEXUSB314A2V
EAN / UPC
065030868327, 065030876827
Also known as
StarTech.com 4 Port USB 3.1 PCI-e Card - 10Gbps - 4x USB w/ Two Dedicated Channels - PCI Express Expansion Card / Adapter

Specifications

32 specifications in 9 groups

Ports & interfaces

Host interfacePCIe
Output interfaceUSB 3.2 Gen 1 (3.1 Gen 1)
Expansion card standardPCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
Peripheral (Molex) power connectors (4-pin)1

Design

InternalYes
Product colourBlack

Features

ChipsetASMedia - ASM1142
Data transfer rate (max)10 Gbit/s
UASP supportYes

Operational conditions

Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 85%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 H
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Technical details

Compliance certificatesCE, RoHS

Weight & dimensions

Width120 mm
Depth125 mm
Height15 mm
Weight79 g

Packaging data

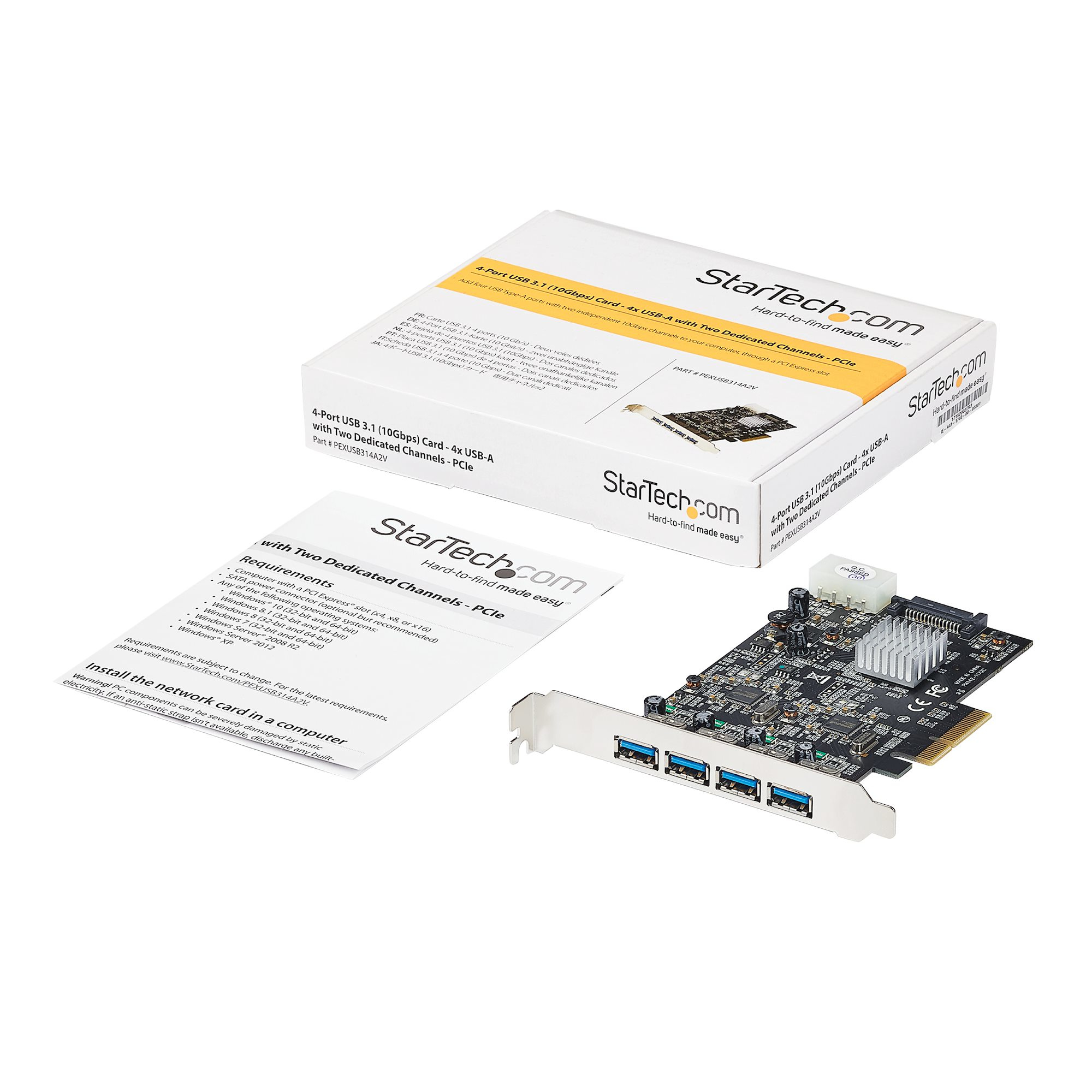

Quick installation guideYes
Package width142 mm
Package depth174 mm
Package height30 mm
Package weight135 g

Logistics data

Harmonized System (HS) code84733020
Products per master (outer) case80 pc(s)
Master (outer) case width300 mm
Master (outer) case length590 mm
Master (outer) case height355 mm
