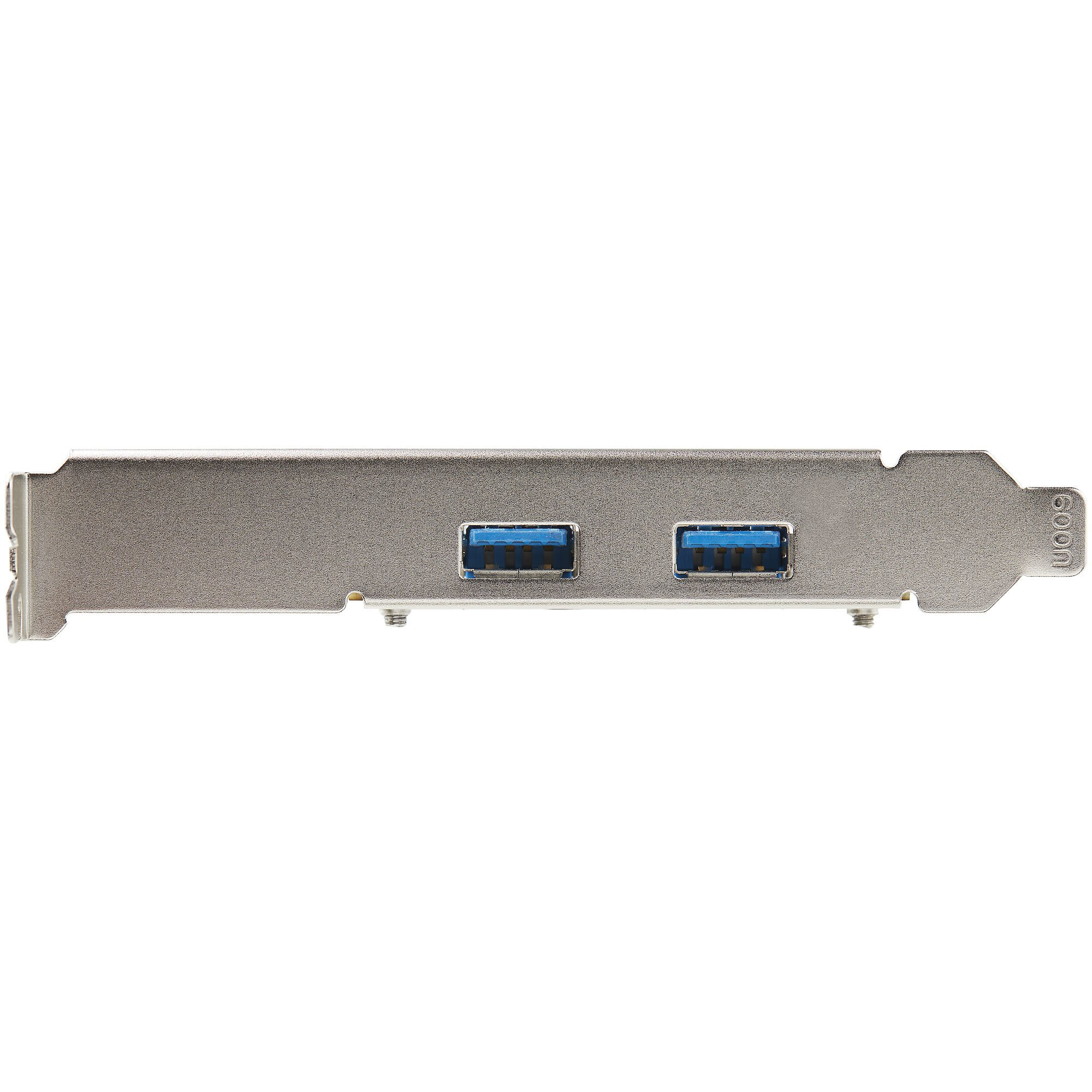

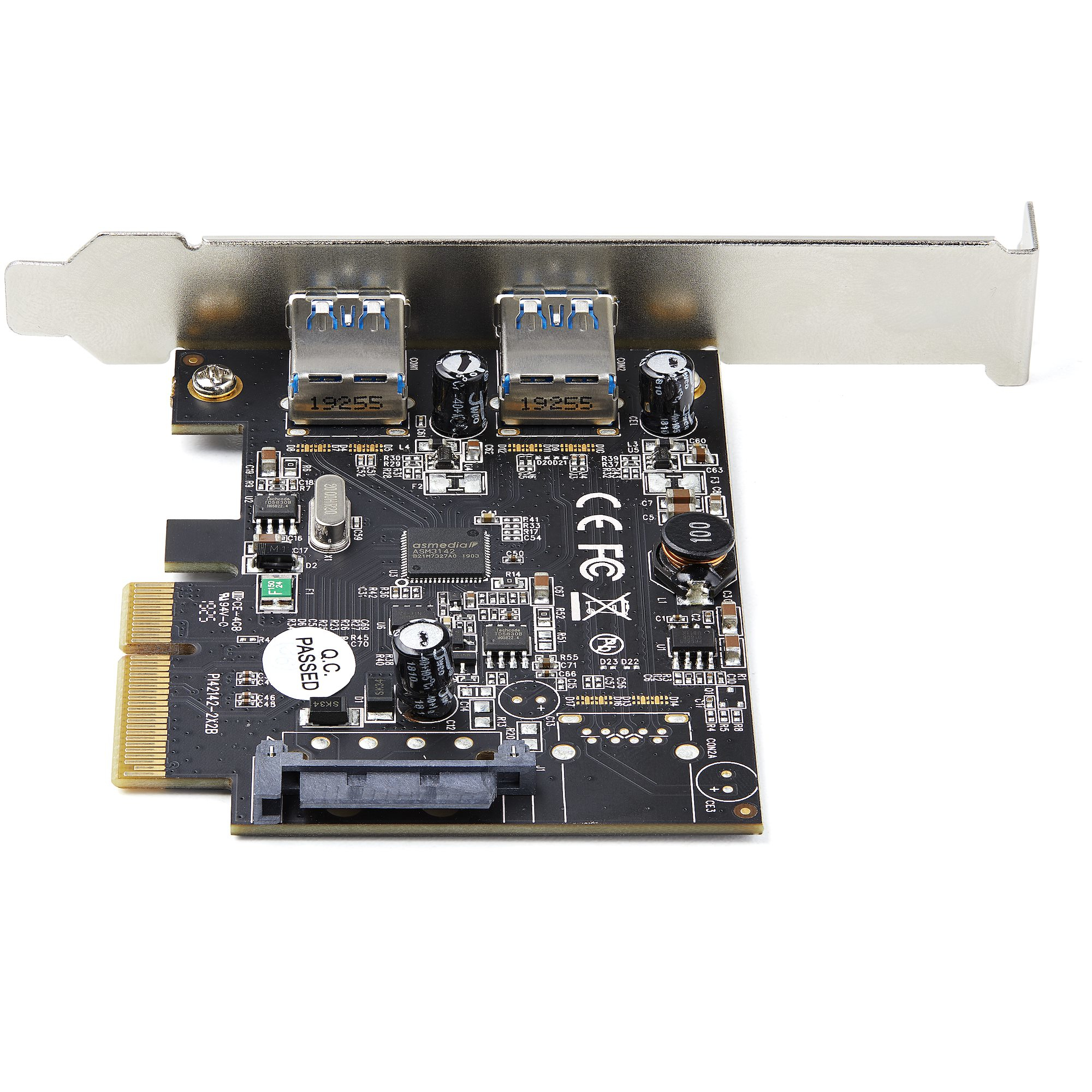

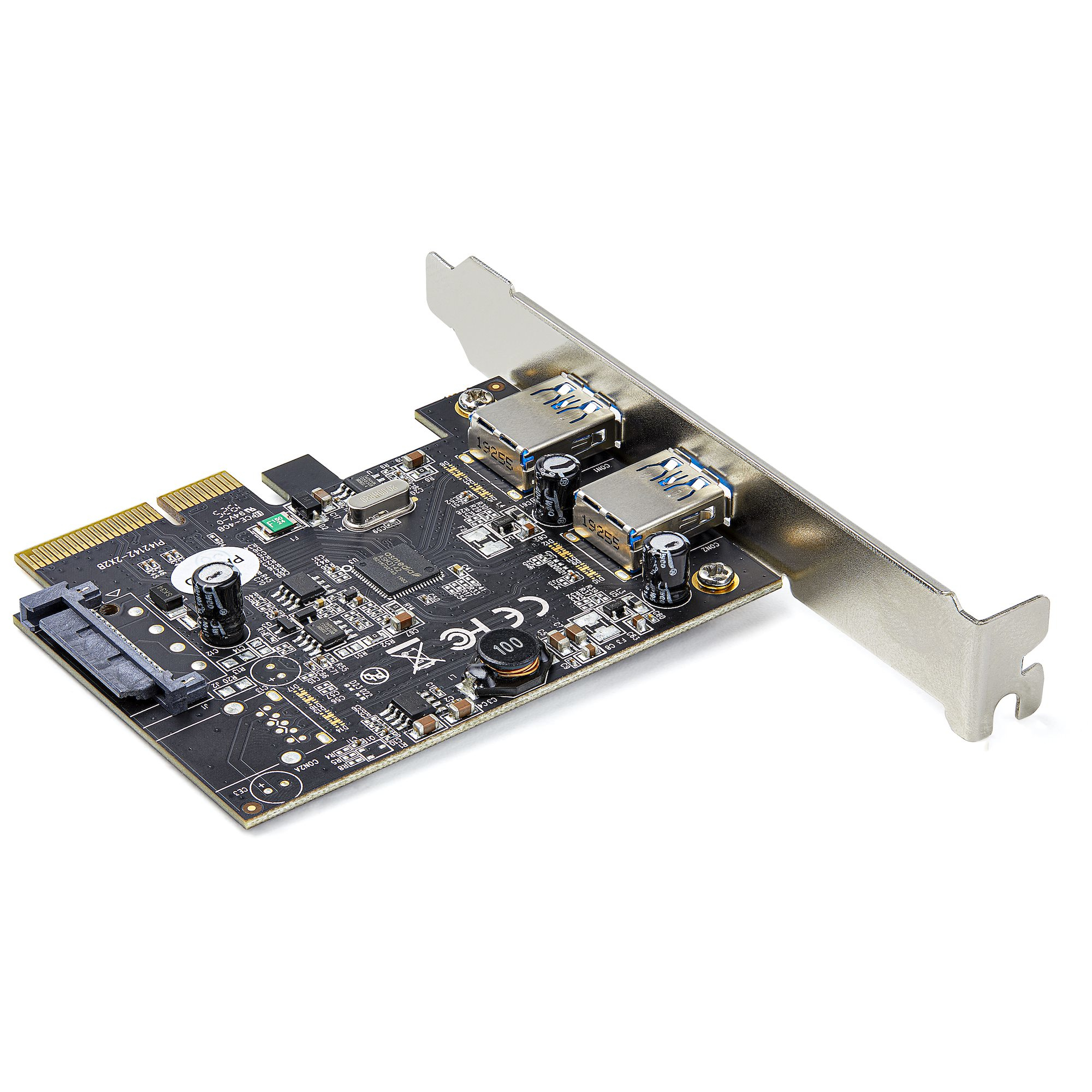

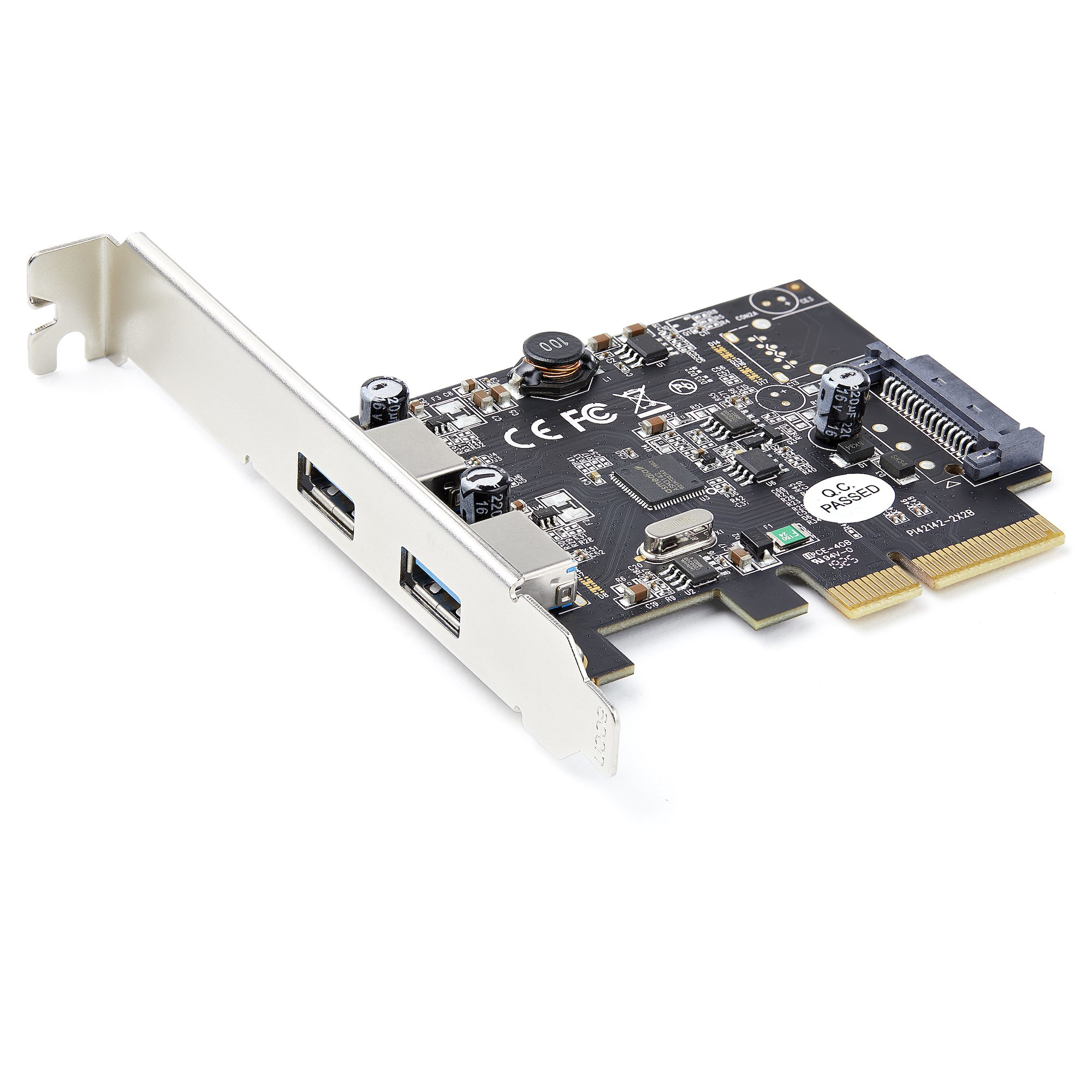

2-Port USB PCIe Card with 10Gbps/port - USB 3.2 Gen 2 Type-A PCI Express
3.0 x4 Host Controller Expansion Card - Add-On Adapter Card - Full/Low Pro
Model PEXUSB312A3EAN 065030887427
32 specifications
- Weight78 g
- ColourBlack
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)10 Gbit/s
- Operating temperature (T-T)5 - 50 °C
Overview
- Weight
- 78 g
- Colour
- Black
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 10 Gbit/s
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUSB312A3
- Part number
- PEXUSB312A3
- EAN / UPC
- 065030887427
- Also known as
- StarTech.com 2-Port USB PCIe Card with 10Gbps/port - USB 3.2 Gen 2 Type-A PCI Express 3.0 x4 Host Controller Expansion Card - Add-On Adapter Card - Full/Low Pro
Specifications
32 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Internal SATA ports quantity | 1 |
| SATA power connector type | SATA 15-pin |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
Features
| Specification | Value |
|---|---|
| Data transfer rate (max) | 10 Gbit/s |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 110 mm |
| Height | 19 mm |
| Weight | 78 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 216 mm |
| Package depth | 146 mm |
| Package height | 35 mm |
| Package weight | 142 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 452 mm |
| Master (outer) case length | 377 mm |
| Master (outer) case height | 317 mm |
