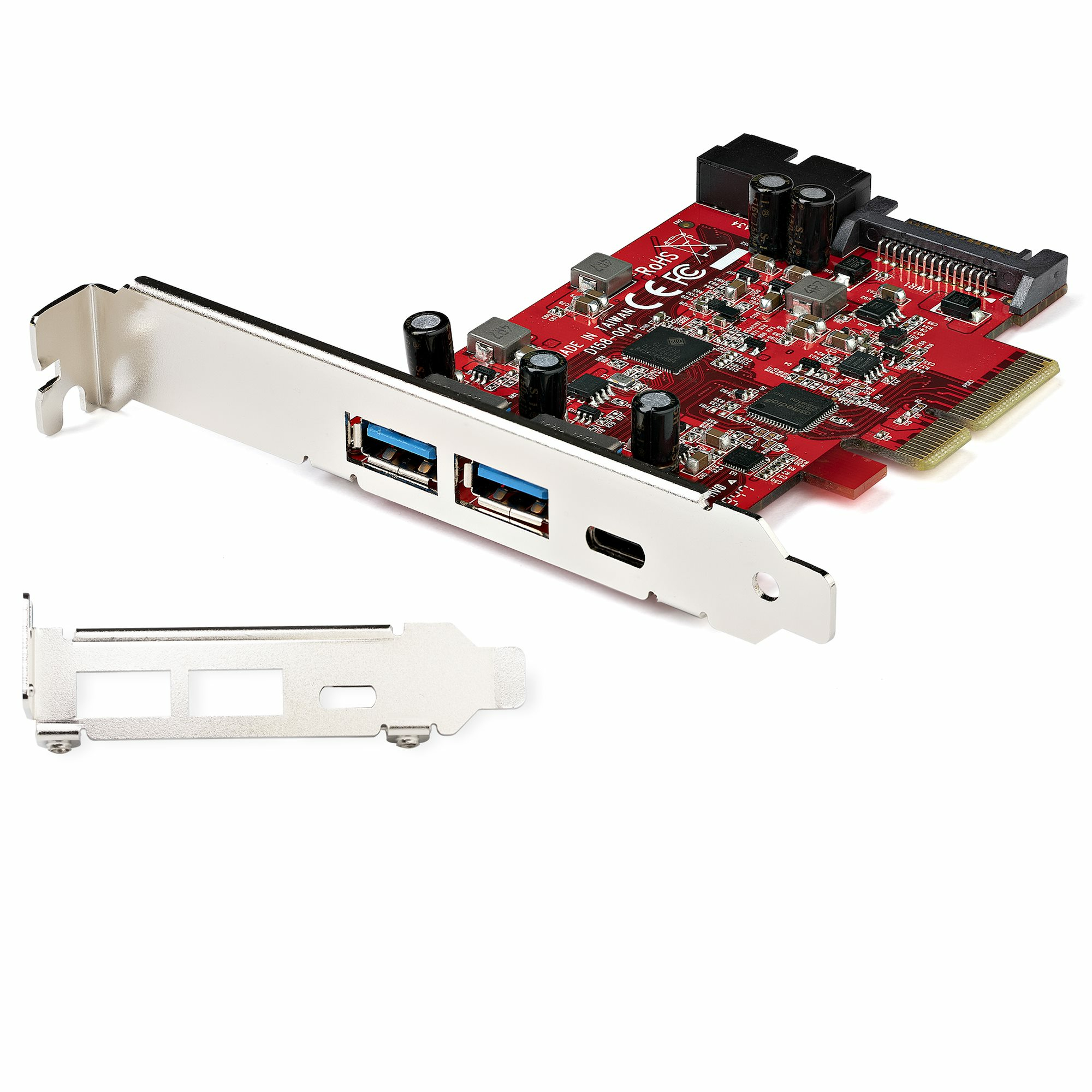

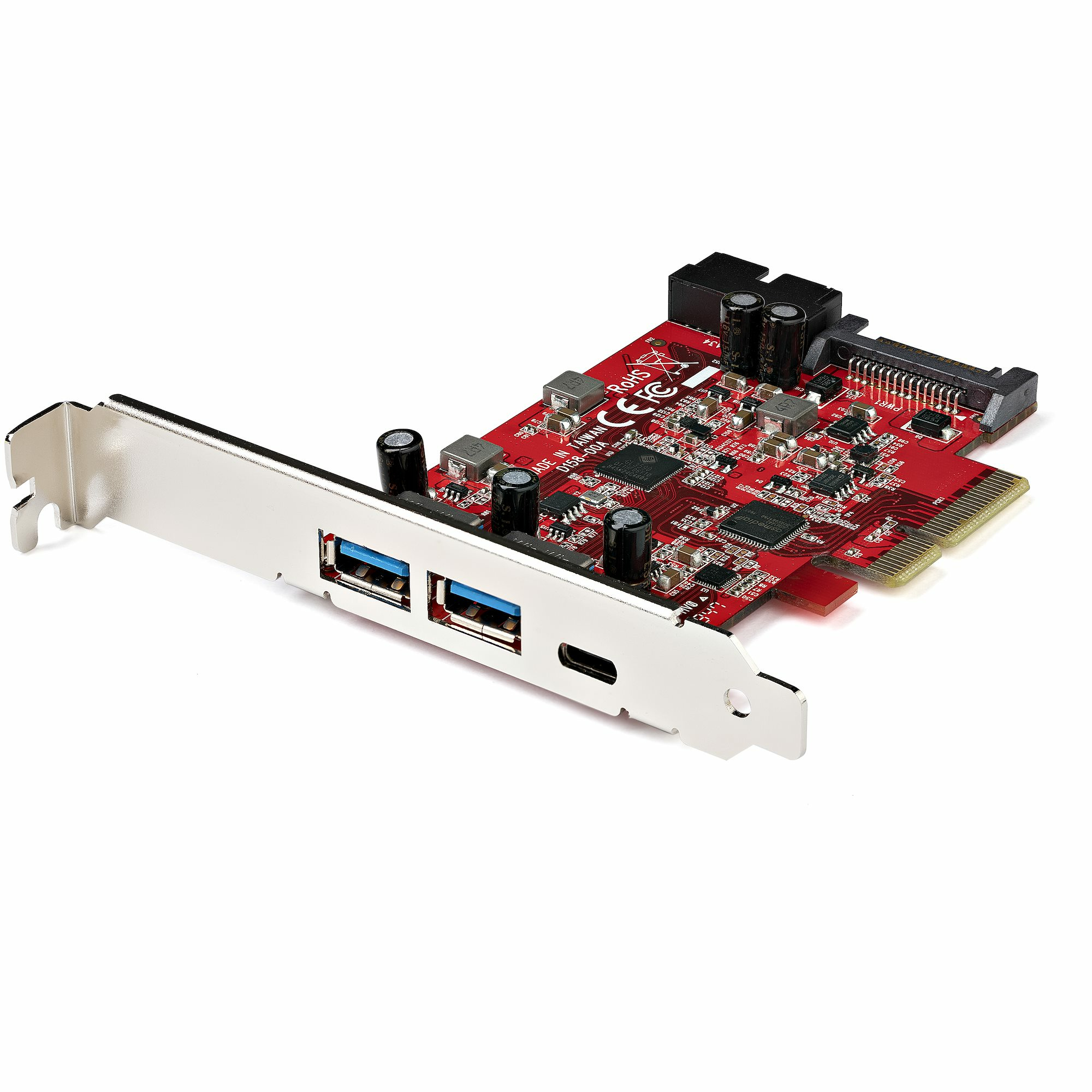

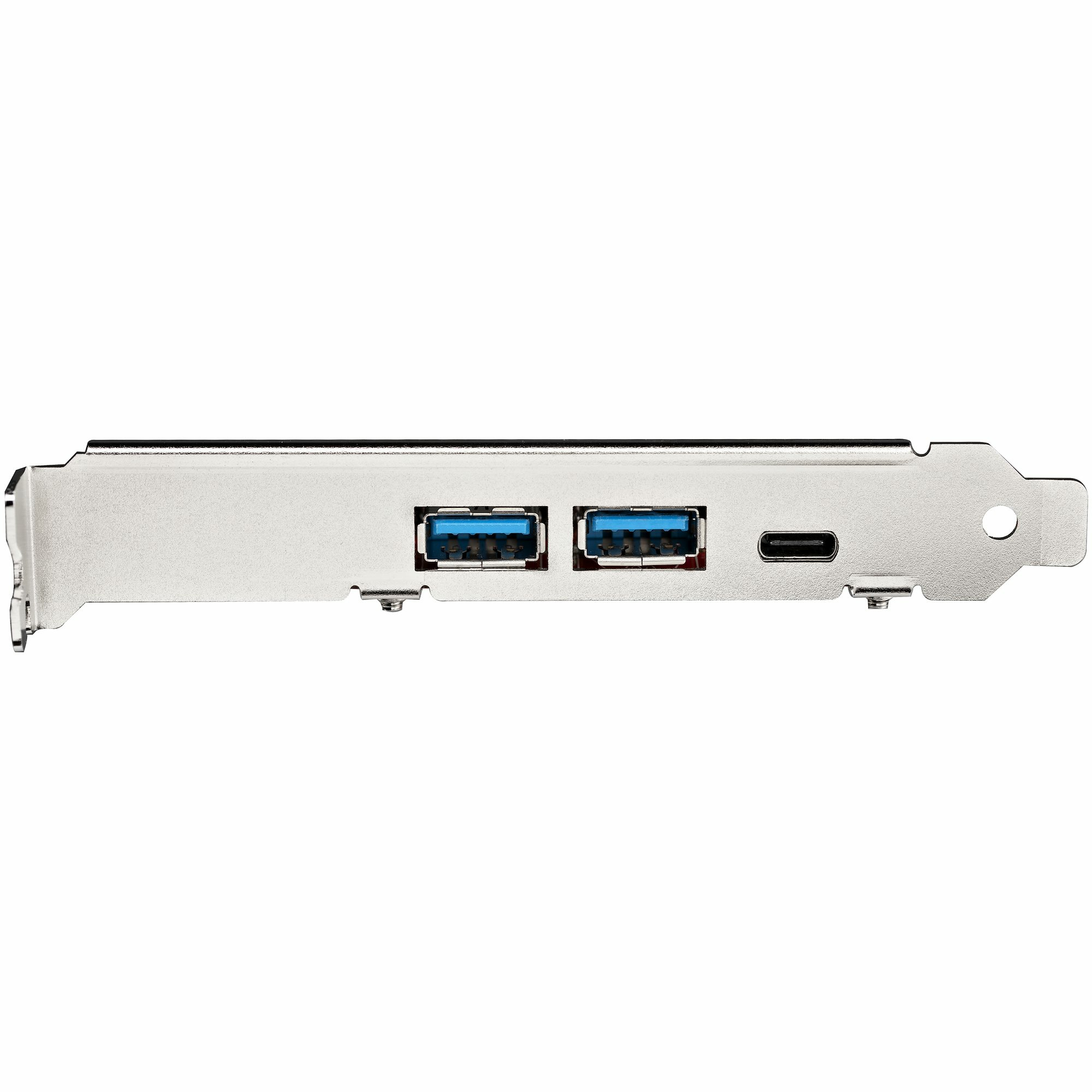

5-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A
1x 2 Port IDC (Internal 5Gbps USB Header Expansion) - USB C PCI Expr
Model PEXUSB312A1C1HEAN 065030888325
34 specifications
- Weight60 g
- ColourRed
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)10 Gbit/s
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 60 g
- Colour
- Red
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 10 Gbit/s
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUSB312A1C1H
- Part number
- PEXUSB312A1C1H
- EAN / UPC
- 065030888325
- Also known as
- StarTech.com 5-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A - 1x 2 Port IDC (Internal 5Gbps USB Header Expansion) - USB C PCI Expr
Specifications
34 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard | PCIe 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Internal SATA ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Red |
| Mean time between failures (MTBF) | 1677495 h |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM3142, Genesys Logic - GL3590 |
| Data transfer rate (max) | 10 Gbit/s |
| UASP support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 15 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68.9 mm |
| Depth | 102 mm |
| Height | 14.4 mm |
| Weight | 60 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 125 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 500 mm |
