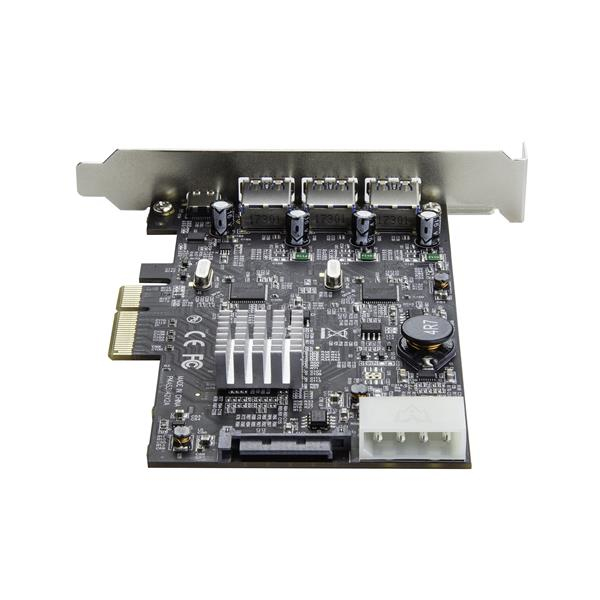

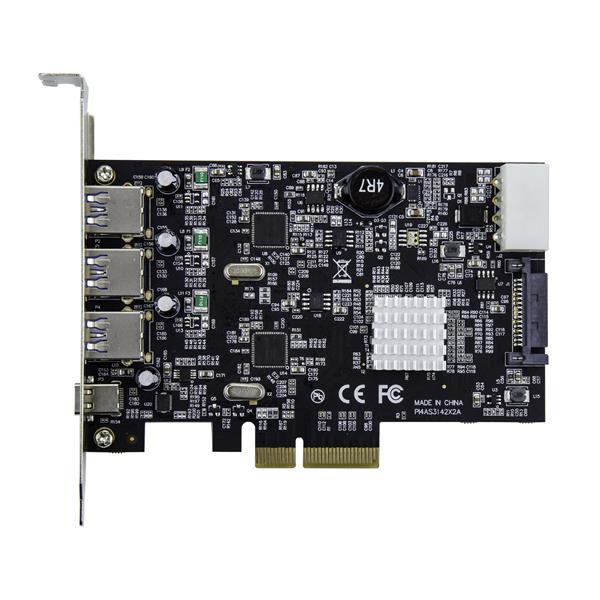

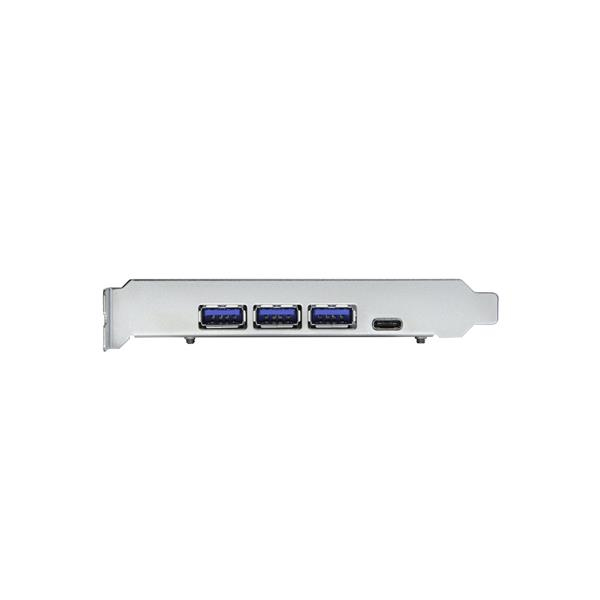

StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
Model PEXUS313AC2VEAN 065030878012
31 specifications
- Weight81 g
- ColourBlack
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)10 Gbit/s
- Operating temperature (T-T)0 - 60 °C
Overview
- Weight
- 81 g
- Colour
- Black
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 10 Gbit/s
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXUS313AC2V
- Part number
- PEXUS313AC2V
- EAN / UPC
- 065030878012
- Also known as
- StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
Specifications
31 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card standard | PCIe 2.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Internal SATA ports quantity | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
| Certification | CE, FCC |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM1142, Pericom PI7C9X2G308GP |
| Data transfer rate (max) | 10 Gbit/s |
| UASP support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 126 mm |
| Height | 20 mm |
| Weight | 81 g |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 134 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Compare StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
Compare any products- StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels vsStarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion CarCompare specs
- StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels vsStarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion CarCompare specs
- StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels vsStarTech.com 2-Port USB 3.1 (10Gbps) and eSATA PCIe Card - 1x USB-A and 1x eSATACompare specs
- StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels vsStarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAACompare specs

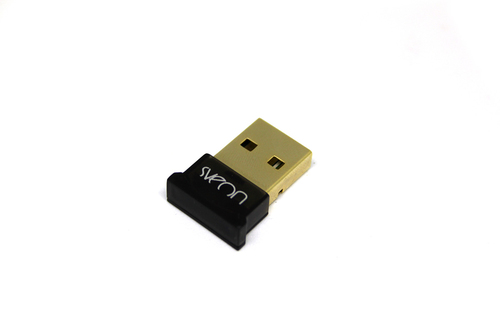

- StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels vsSveon SCT400 interface cards/adapter BluetoothCompare specs
- StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels vsHP Puerto DisplayPort Flex IOCompare specs

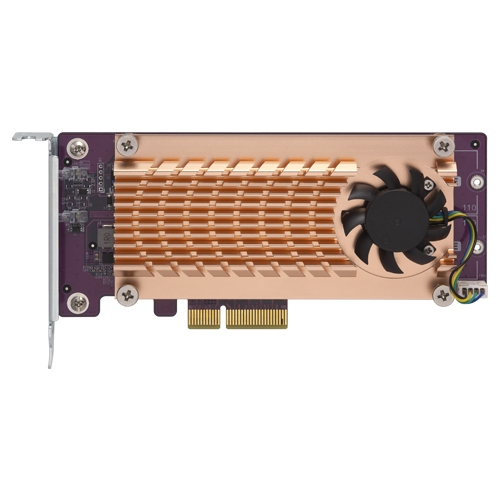

- StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels vsQNAP QM2 interface cards/adapter Internal M.2Compare specs

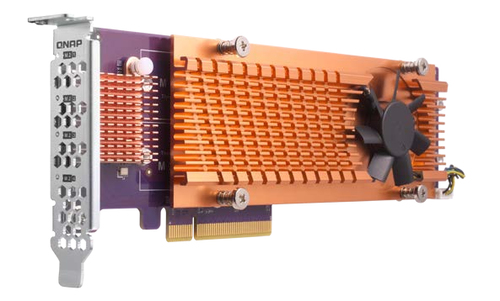

- StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels vsQNAP QM2-4P-384A interface cards/adapter Internal PCIeCompare specs
