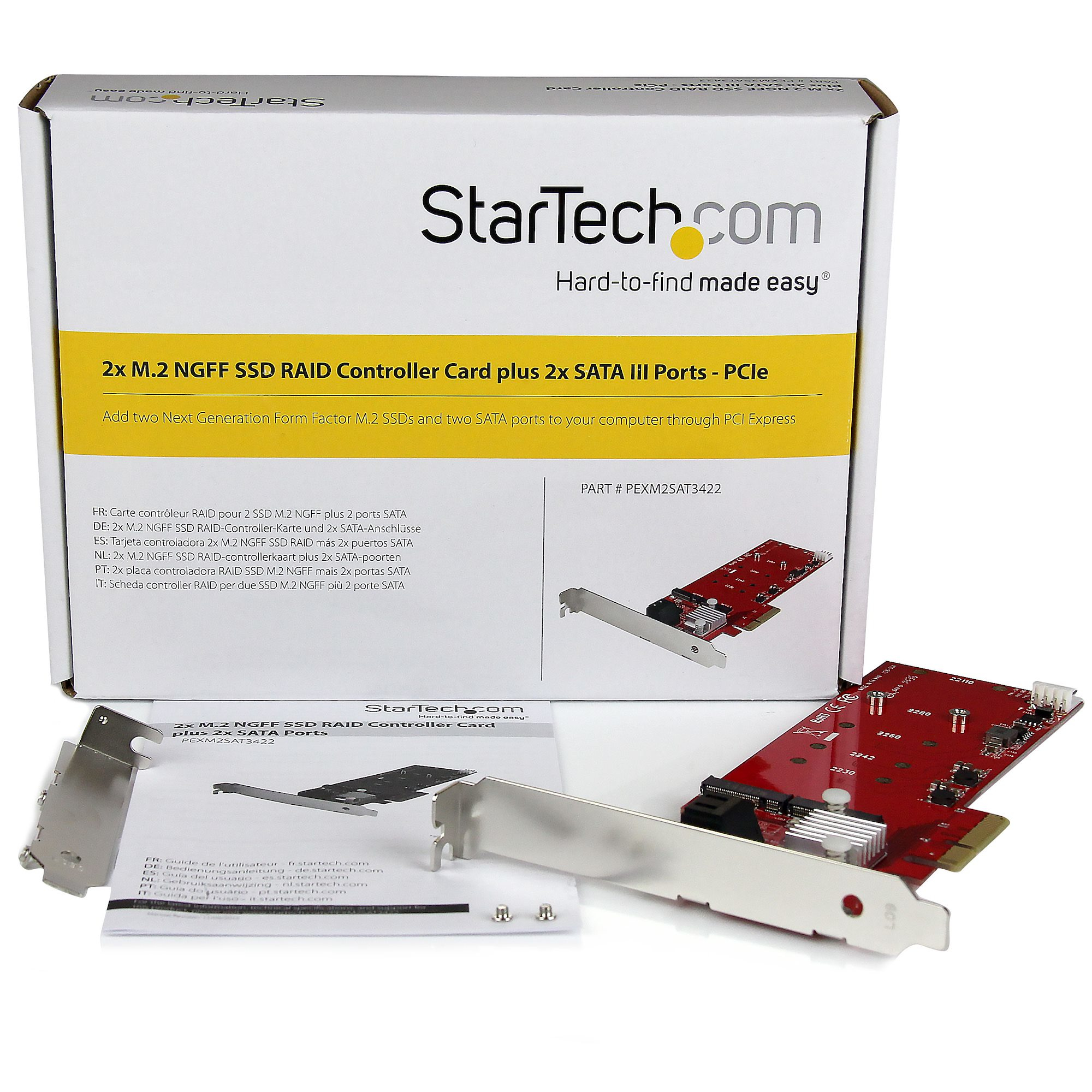

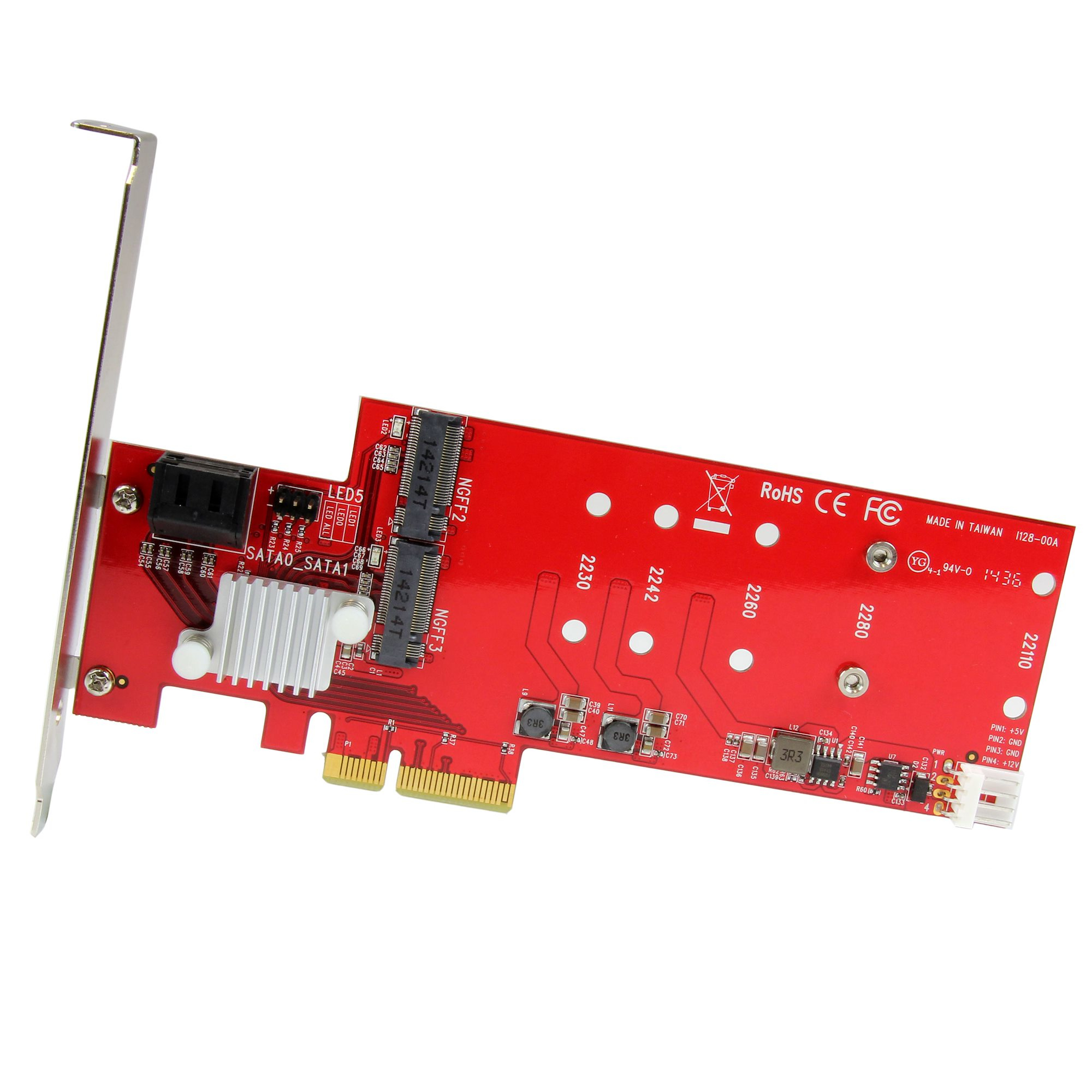

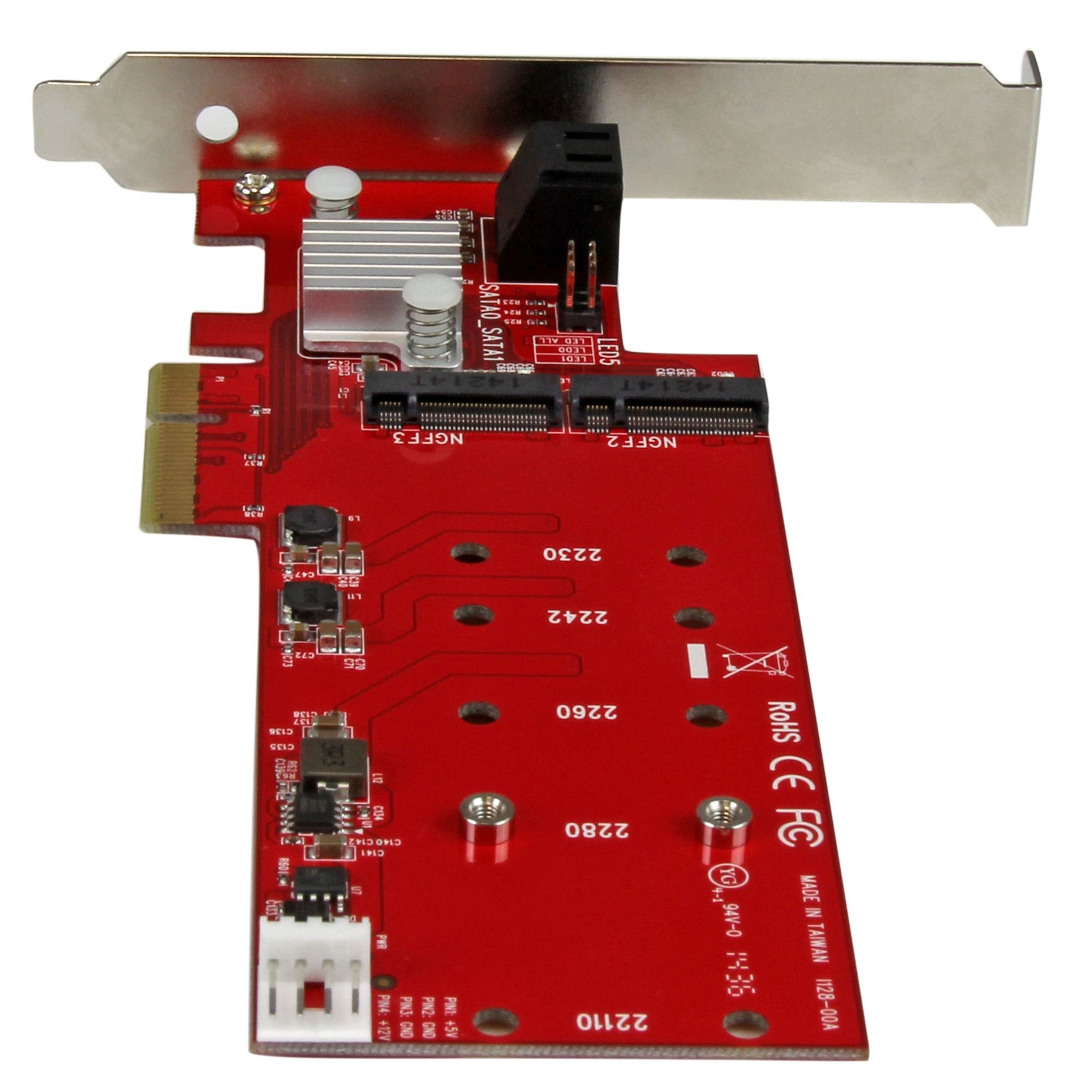

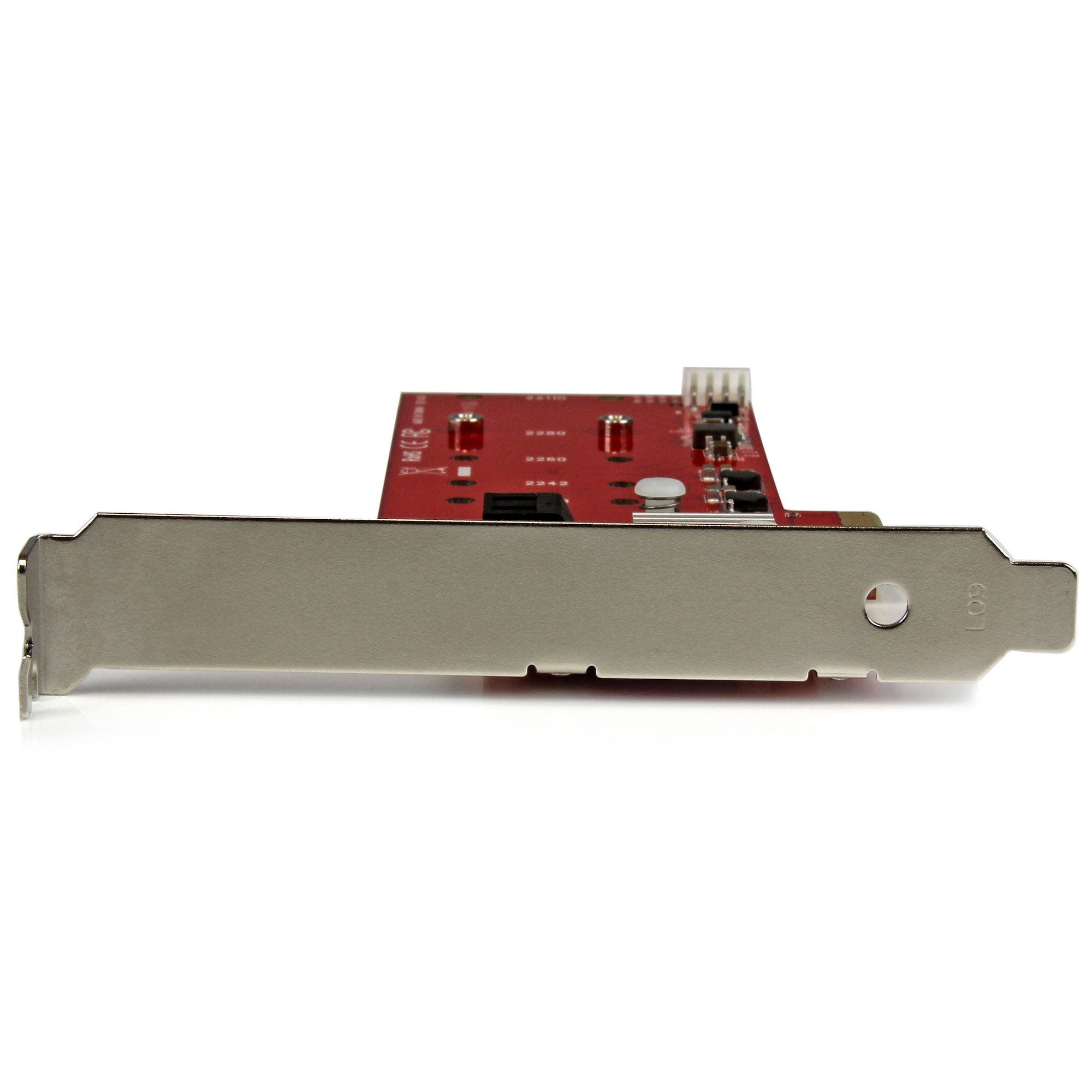

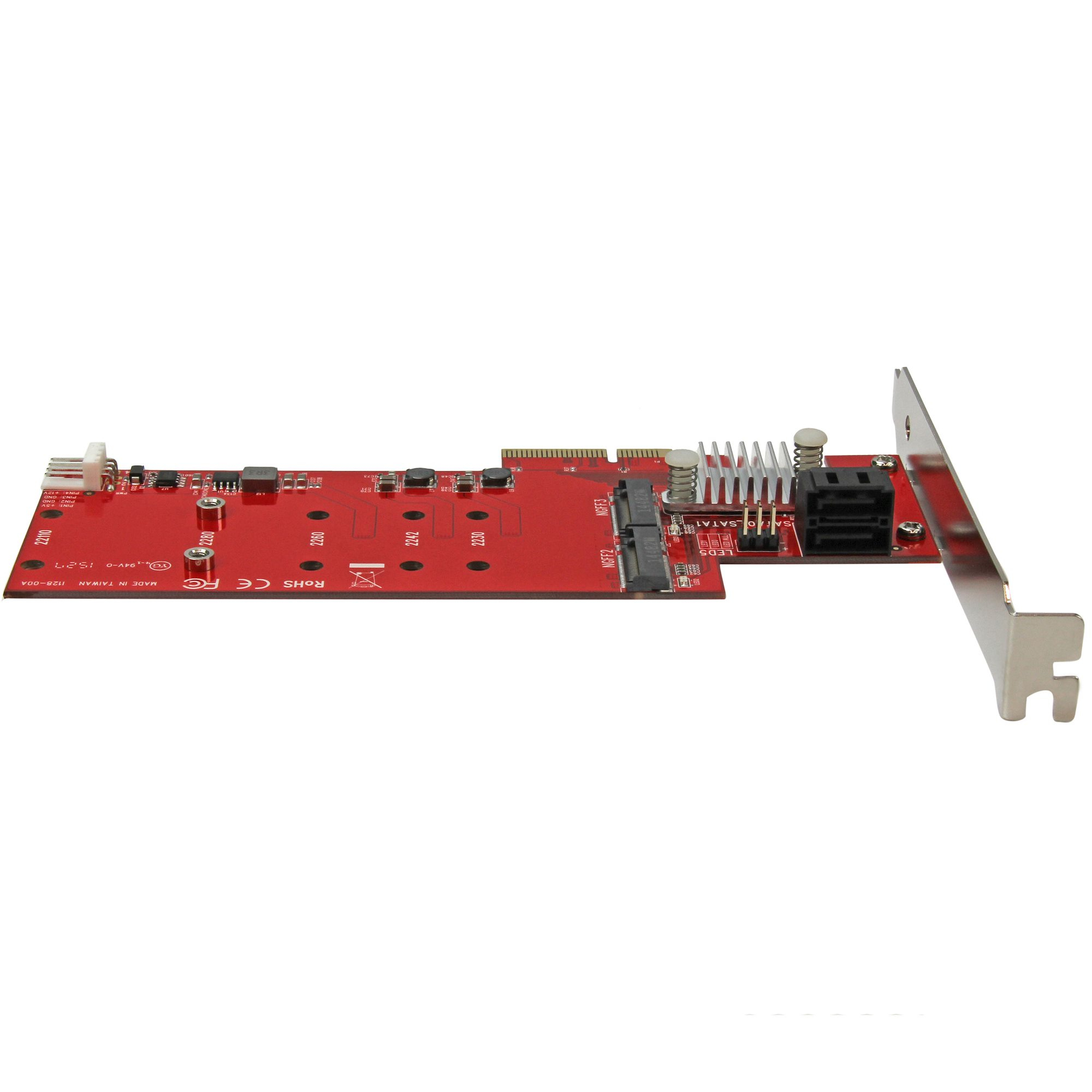

2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports - PCIe
Model PEXM2SAT3422EAN 065030863766
34 specifications
- Weight68 g
- Host interfacePCIe
- InternalYes
- ChipsetMarvell - 88SE9230
- Operating temperature (T-T)5 - 50 °C
- Compliance certificatesRoHS
Overview
- Weight
- 68 g
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Marvell - 88SE9230
- Operating temperature (T-T)
- 5 - 50 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXM2SAT3422
- Part number
- PEXM2SAT3422
- EAN / UPC
- 065030863766, 5057103028115
- Also known as
- StarTech.com 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports - PCIe
Specifications
34 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | M.2 |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 2 |
| Port multiplier | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Certification | CE, FCC |
Features
| Specification | Value |
|---|---|
| Chipset | Marvell - 88SE9230 |
| Data transfer rate (max) | 6 Gbit/s |
| RAID levels | 0, 1, 10, JBOD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 20 mm |
| Depth | 180 mm |
| Height | 120 mm |
| Weight | 68 g |
Packaging data
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Package width | 219 mm |
| Package depth | 162 mm |
| Package height | 47 mm |
| Package weight | 169 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 465 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 357 mm |
