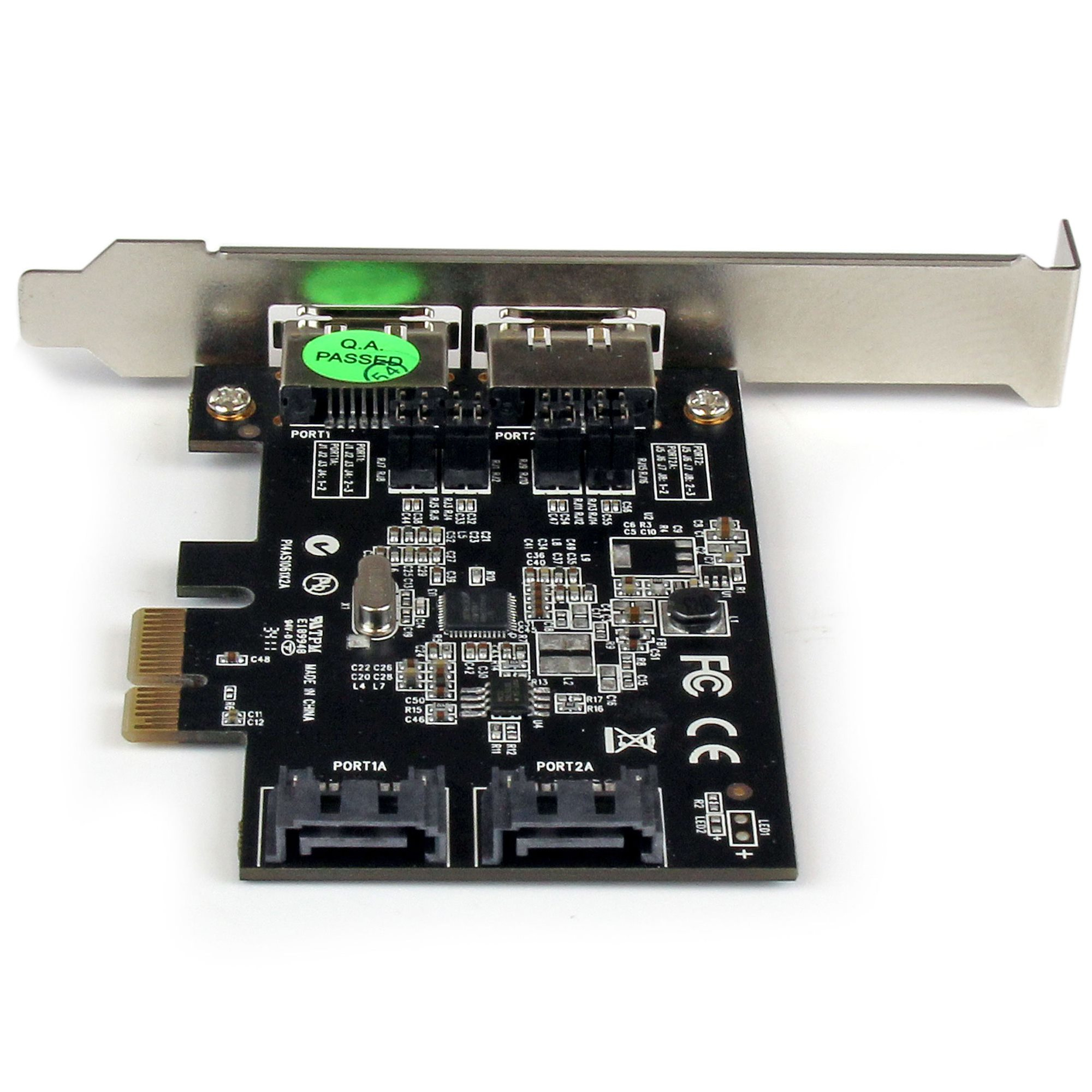

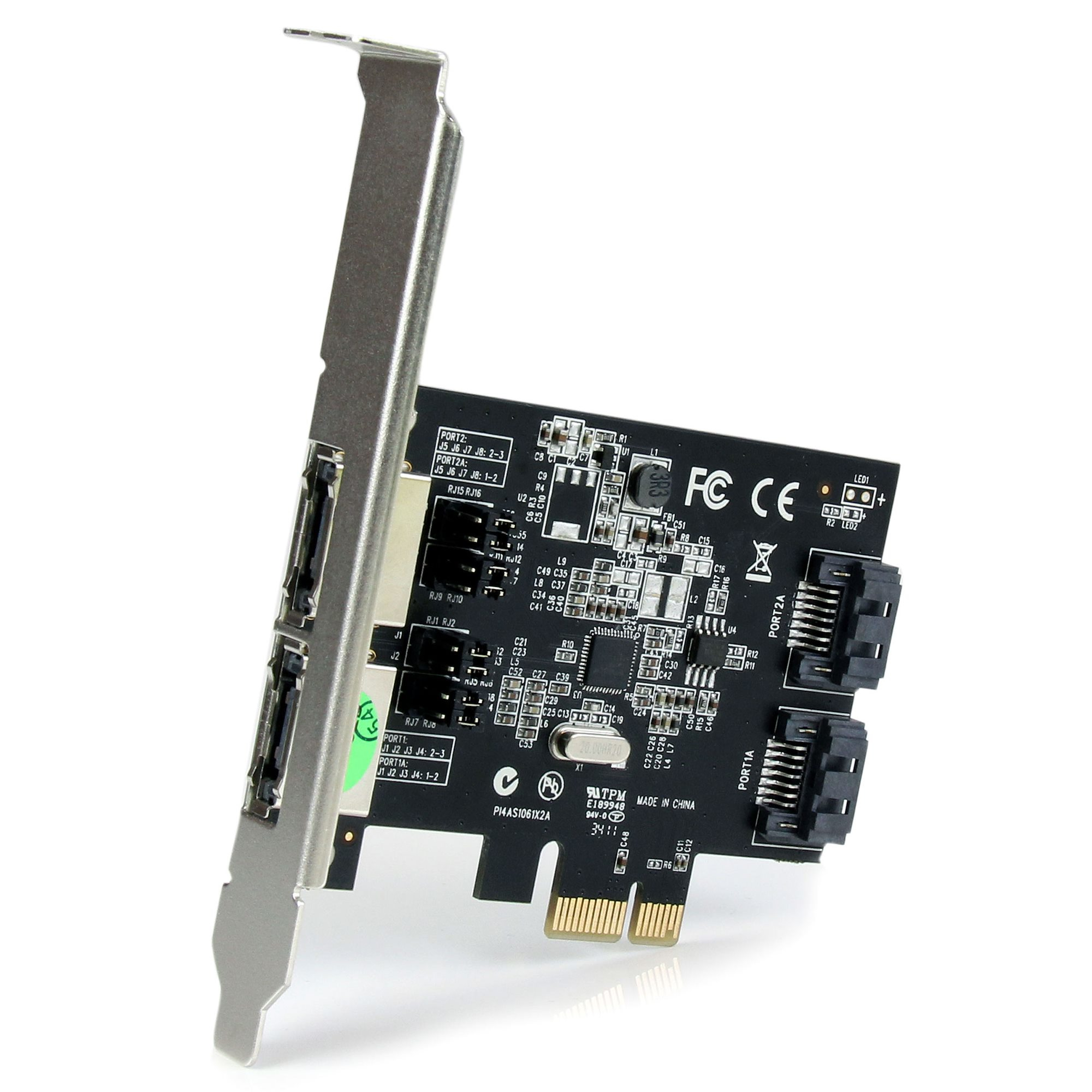

2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe x1 SATA III Adapter with Configurable Internal/External Connectivity
Model PEXESAT322IEAN 916983647982
35 specifications
- Weight48 g
- Host interfacePCIe
- InternalYes
- ChipsetASMedia - ASM1061
- Operating temperature (T-T)0 - 50 °C
- Compliance certificatesRoHS
Overview
- Weight
- 48 g
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASMedia - ASM1061
- Operating temperature (T-T)
- 0 - 50 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEXESAT322I
- Part number
- PEXESAT322I
- EAN / UPC
- 916983647982, 065030848428, 100177410906, 115970715059 +9 more
- Also known as
- StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe x1 SATA III Adapter with Configurable Internal/External Connectivity
Specifications
35 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | SATA |
| SATA revision | 3.0 |

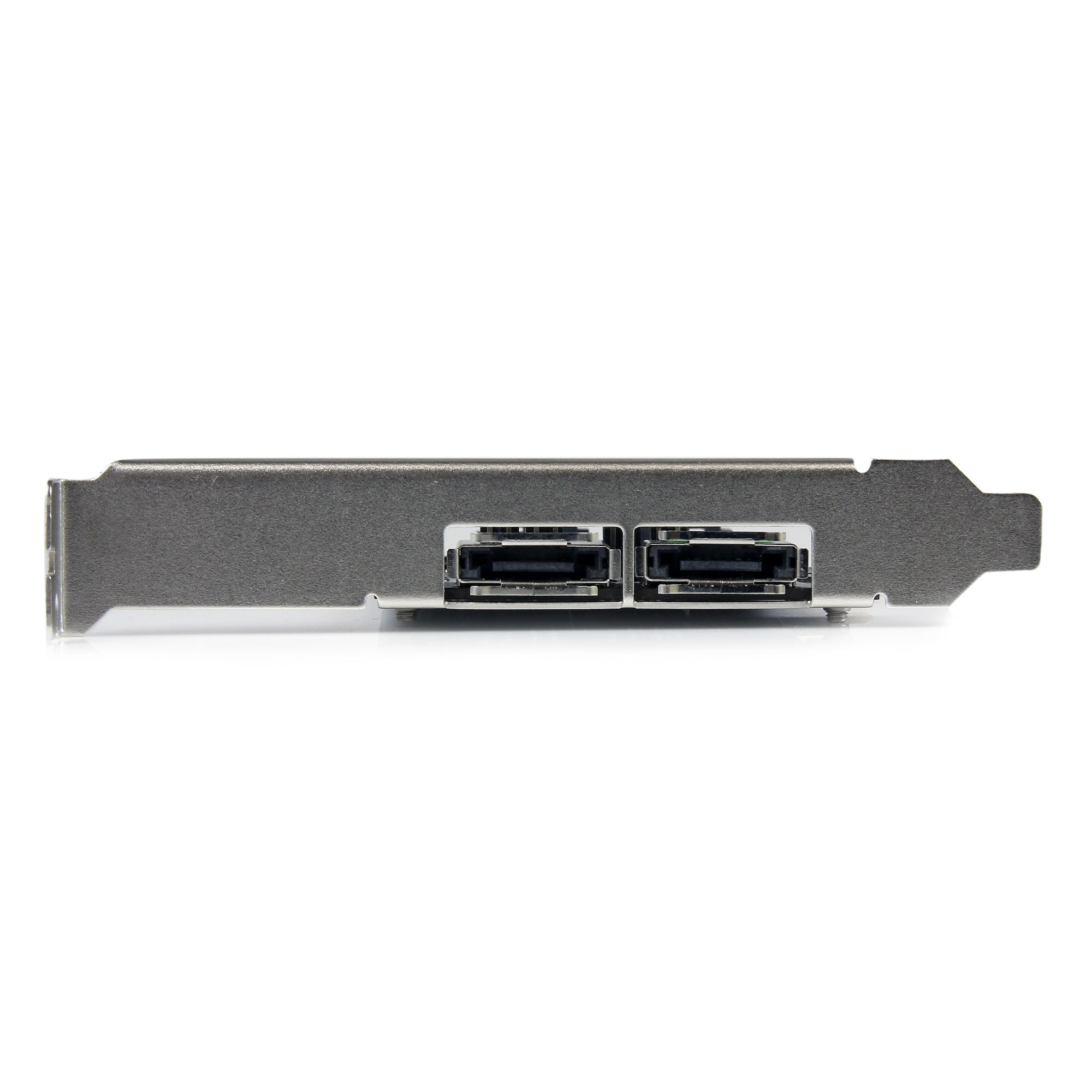

| eSATA ports quantity | 2 |
| Internal SATA ports quantity | 2 |
| Port multiplier | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Certification | CE, FCC, REACH |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM1061 |
| Logical block addressing (LBA) support | 48 bit |
| Native Command Queuing (NCQ) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92 mm |
| Depth | 121 mm |
| Height | 20 mm |
| Weight | 48 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |

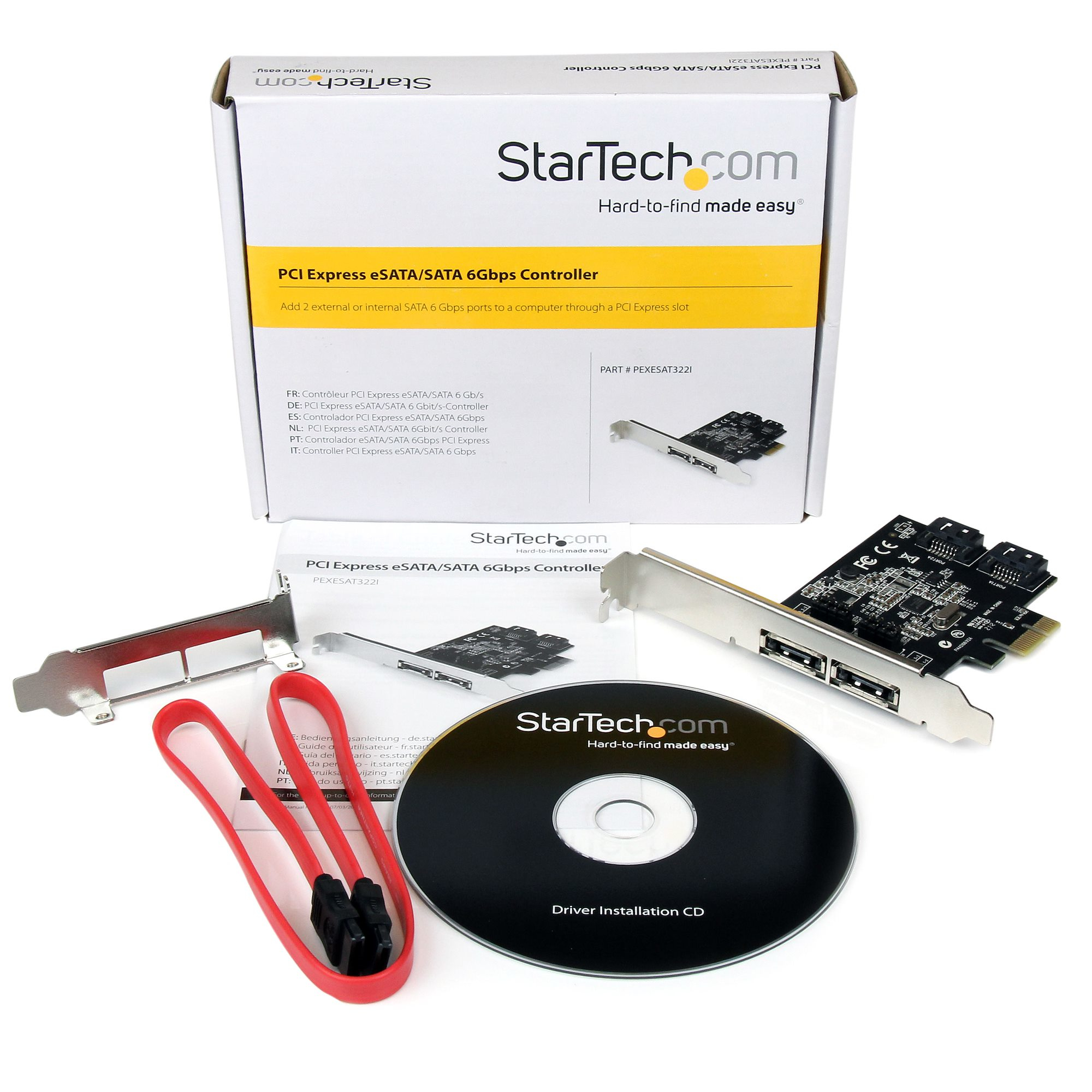

| Cables included | SATA |
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 216 mm |
| Package depth | 148 mm |
| Package height | 36 mm |
| Package weight | 152 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 451 mm |
| Master (outer) case length | 379 mm |
| Master (outer) case height | 325 mm |
