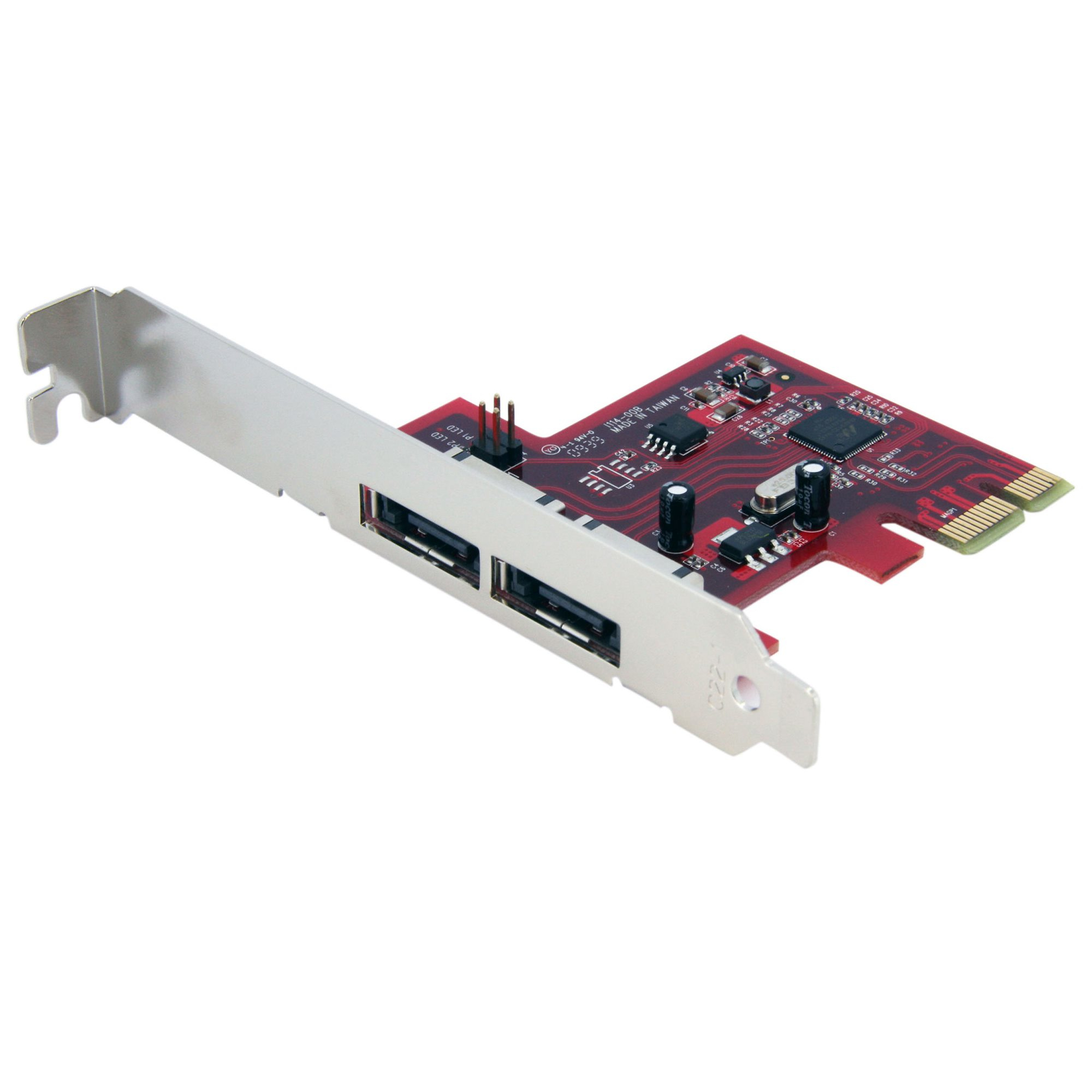

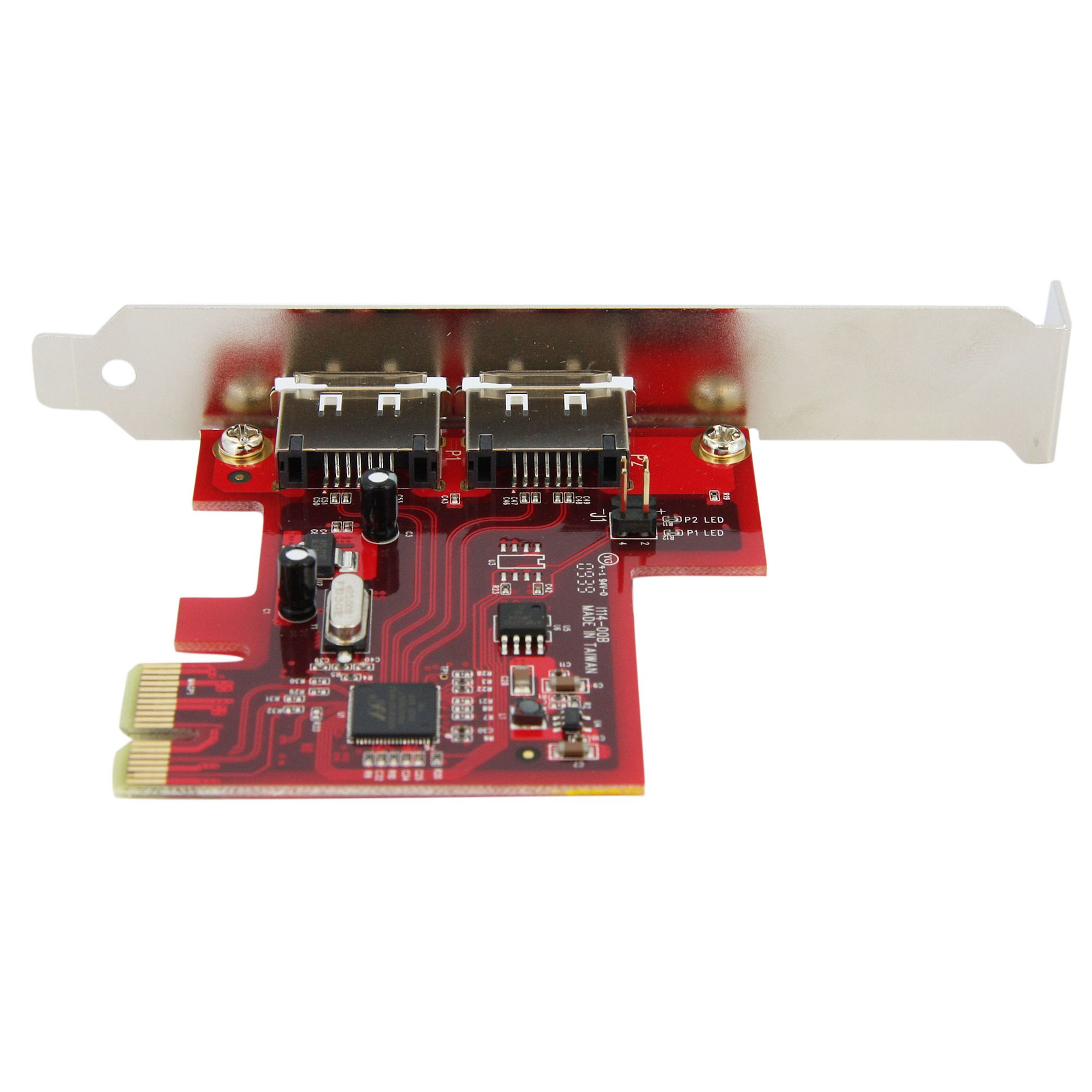

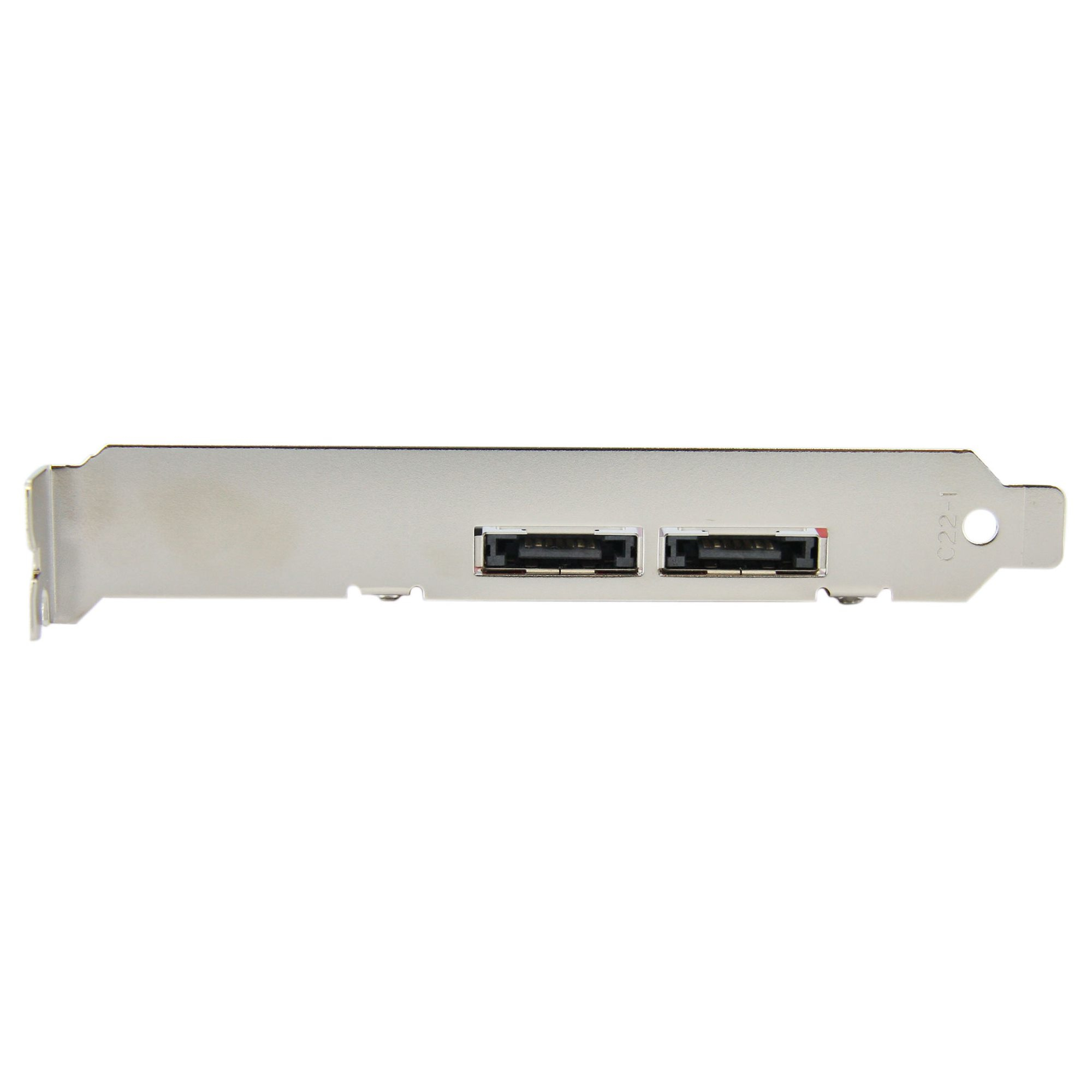

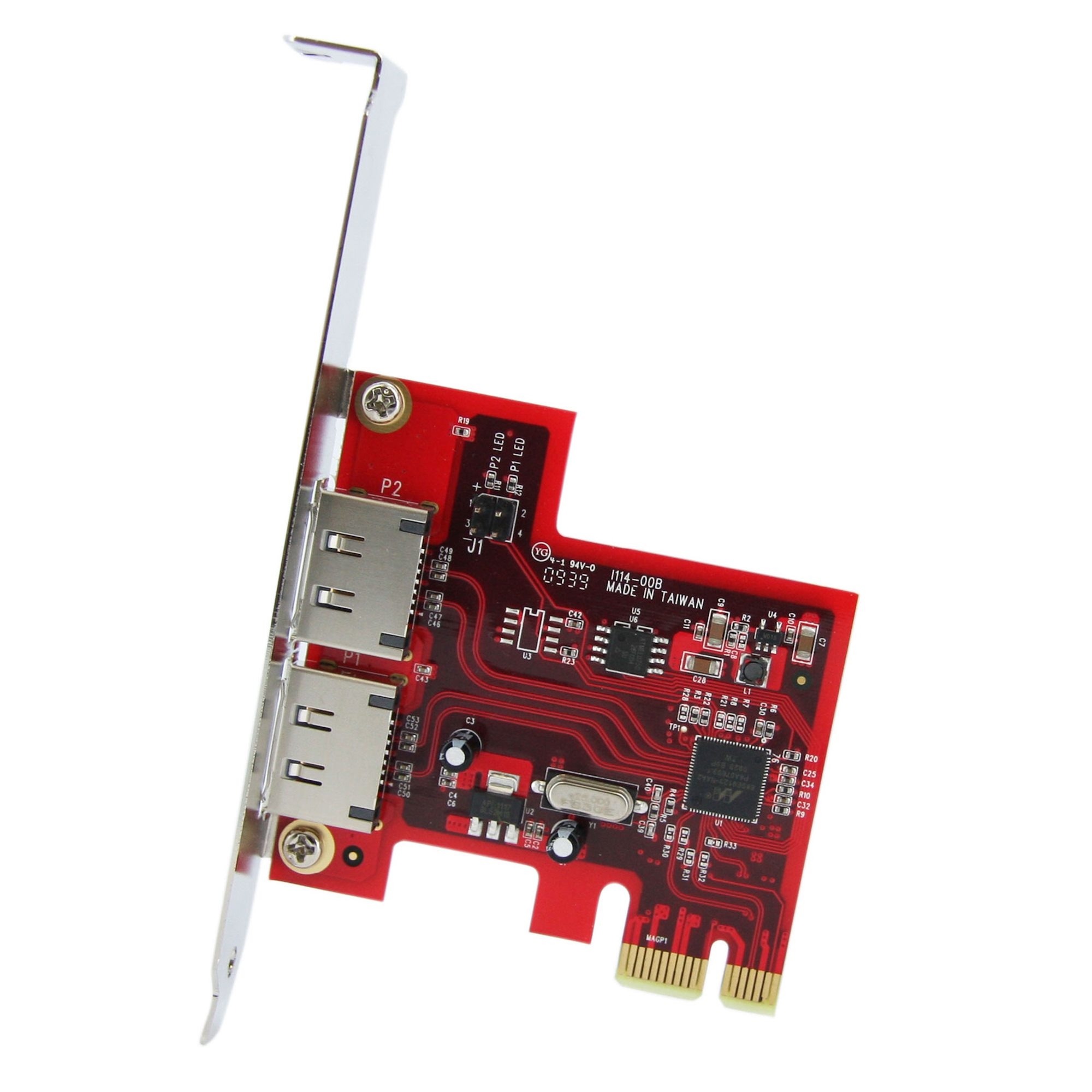

StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card

StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card

Model PEXESAT32EAN 806291845487

37 specifications
  • Weight35 g
  • Host interfacePCIe
  • InternalYes
  • ChipsetMarvell - 88SE9128
  • Operating temperature (T-T)5 - 50 °C
  • Compliance certificatesCE, RoHS
See all specifications

Overview

Weight
35 g
Host interface
PCIe
Internal
Yes
Chipset
Marvell - 88SE9128
Operating temperature (T-T)
5 - 50 °C
Compliance certificates
CE, RoHS
Brand
StarTech.com
Model
PEXESAT32
Part number
PEXESAT32
EAN / UPC
806291845487, 001910692279, 065030838948, 102646195659 +15 more
Also known as
StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card

Specifications

37 specifications in 9 groups

Ports & interfaces

Host interfacePCIe
Output interfaceeSATA
Expansion card standardPCIe 2.0
SATA revision3.0
eSATA ports quantity2
Port multiplierYes

Design

InternalYes
Mean time between failures (MTBF)5046000 h

Features

ChipsetMarvell - 88SE9128
Data transfer rate (max)6 Gbit/s
Logical block addressing (LBA) support48 bit
RAID levels0, 1, JBOD

Operational conditions

Operating temperature (T-T)5 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)15 - 90%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Win
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Technical details

Compliance certificatesCE, RoHS
Sustainability complianceYes

Weight & dimensions

Width120 mm
Depth70 mm
Height20 mm
Weight35 g

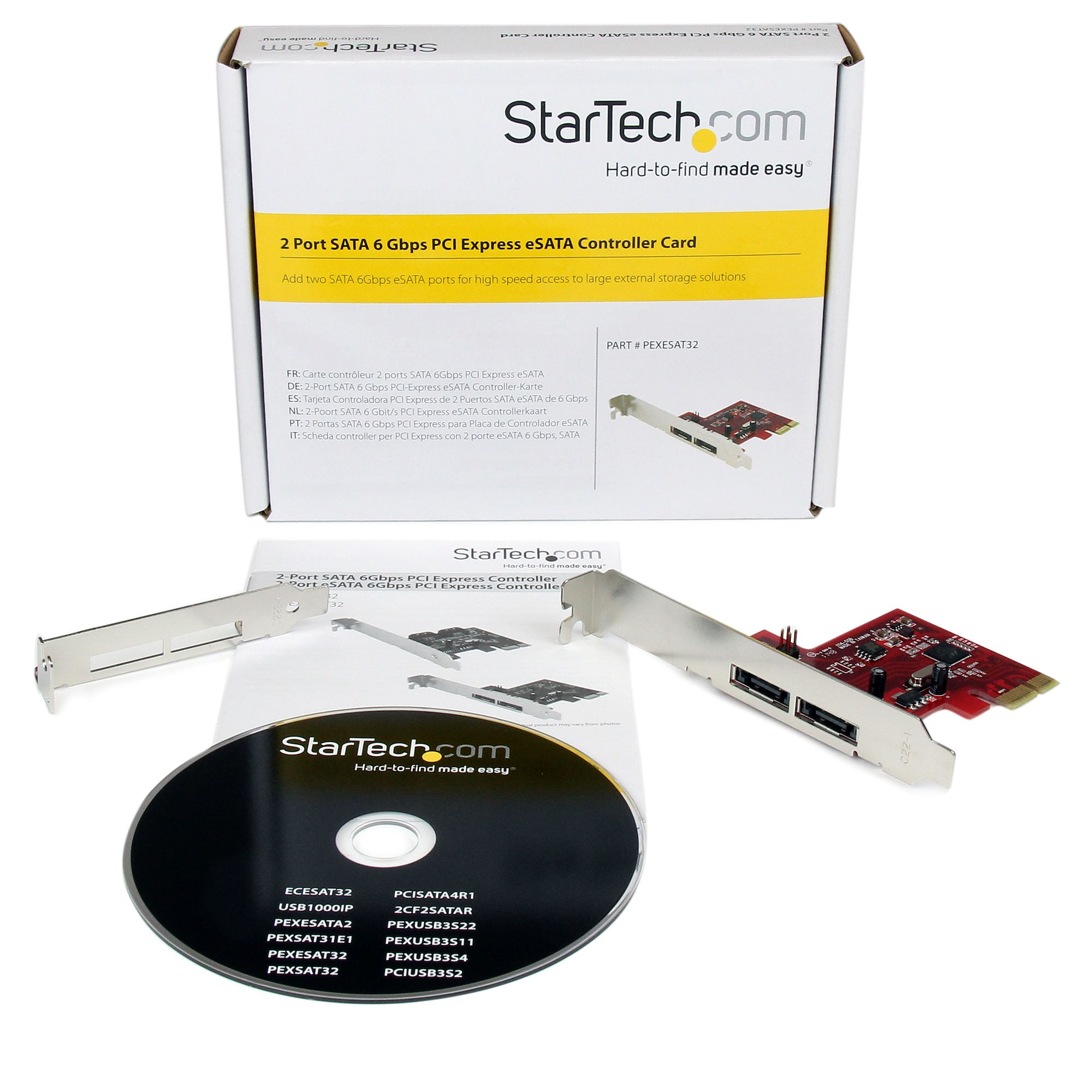

Packaging data

Mounting brackets includedYes
Drivers includedYes
Quick installation guideYes
Package width175 mm
Package depth145 mm
Package height32 mm
Package weight127 g

Logistics data

Harmonized System (HS) code84733020
Products per master (outer) case60 pc(s)
Master (outer) case width388 mm
Master (outer) case length492 mm
Master (outer) case height314 mm
