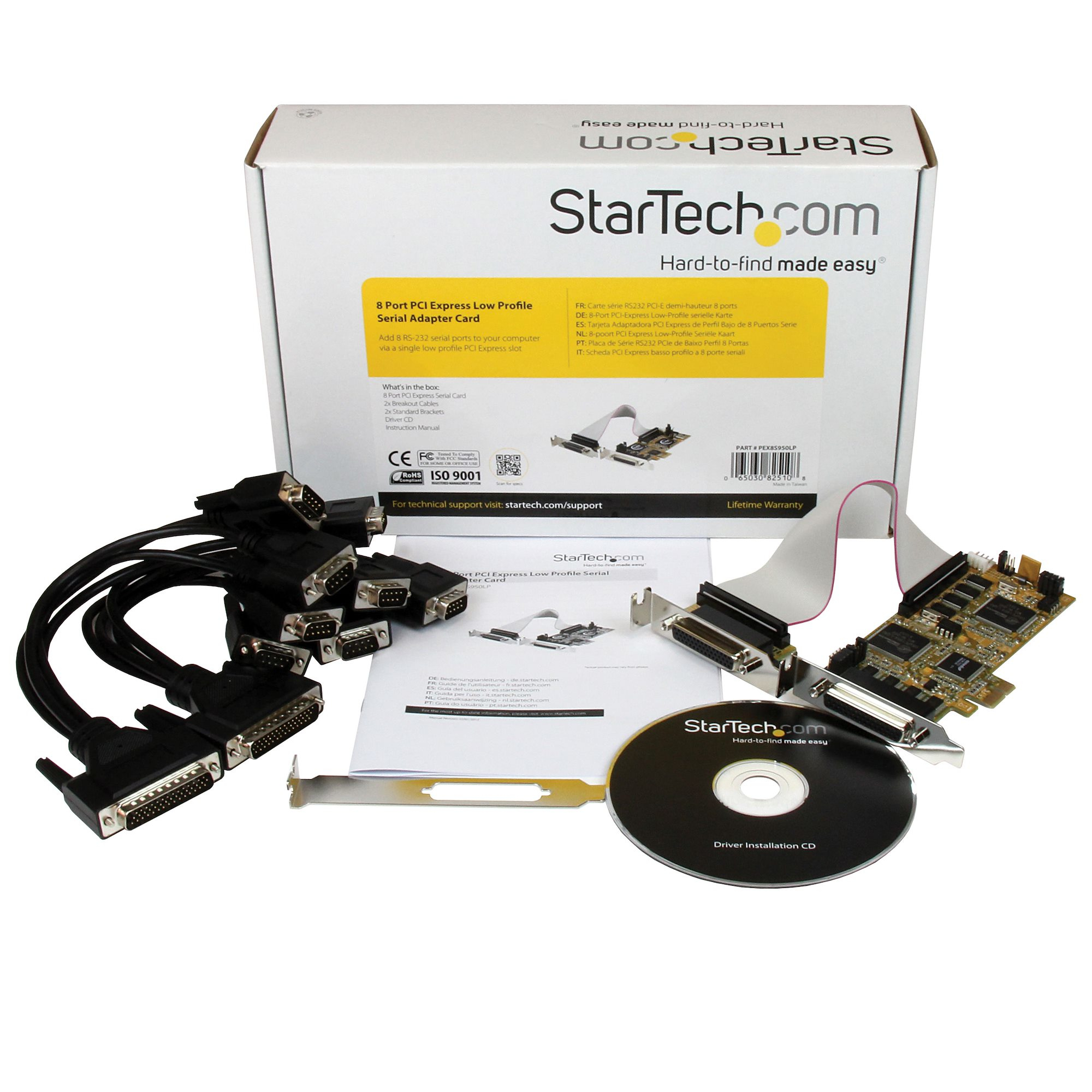

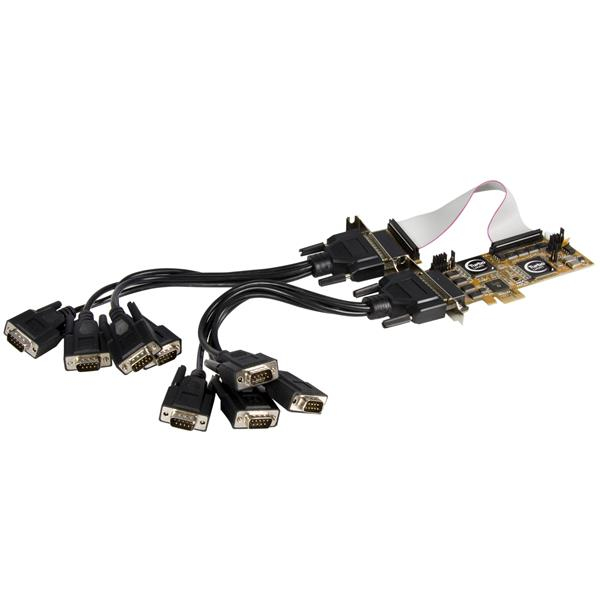

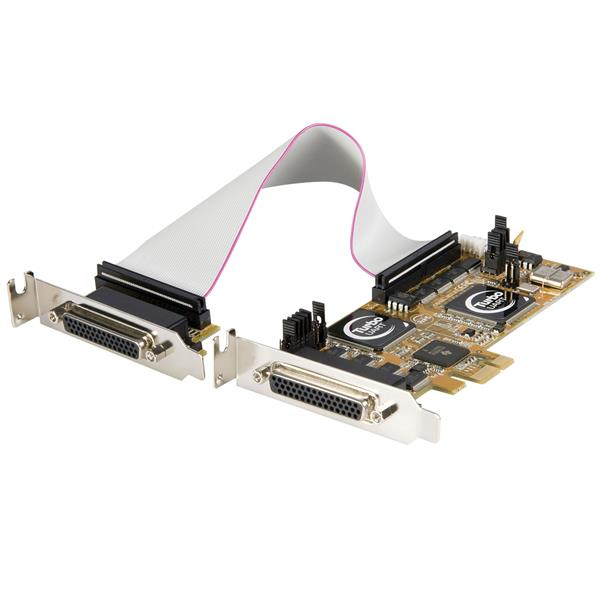

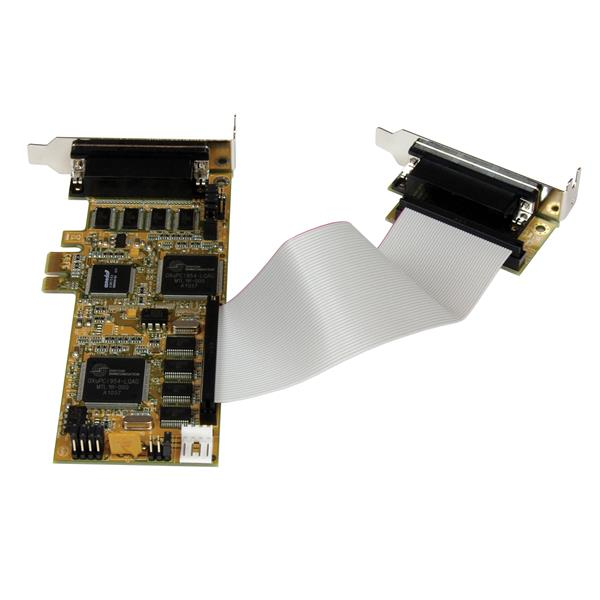

StarTech.com Newer version available PEX8S1050LP: 8 Port PCI Express Low Profile Serial Adapter Card - Serial Adapter - PCIe - RS-232-8 Ports
Model PEX8S950LPEAN 921077384223
34 specifications
- Weight559 g
- Host interfacePCIe
- InternalYes
- ChipsetPLX/Oxford - OXmPCI952
- Operating temperature (T-T)0 - 55 °C
- Compliance certificatesRoHS
Overview
- Weight
- 559 g
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- PLX/Oxford - OXmPCI952
- Operating temperature (T-T)
- 0 - 55 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX8S950LP
- Part number
- PEX8S950LP
- EAN / UPC
- 921077384223, 044111365719, 044112116716, 065030825108 +9 more
- Also known as
- StarTech.com Newer version available PEX8S1050LP: 8 Port PCI Express Low Profile Serial Adapter Card - Serial Adapter - PCIe - RS-232-8 Ports
Specifications
34 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Serial ports quantity | 8 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Certification | TAA, FCC, CE |
Features
| Specification | Value |
|---|---|
| Chipset | PLX/Oxford - OXmPCI952 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 128 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, No, Odd |
| Flow Control type | RTS/CTS, XON/XOFF |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Ba |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 20 mm |
| Depth | 157 mm |
| Height | 80 mm |
| Weight | 559 g |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
| Package width | 159 mm |
| Package depth | 285 mm |
| Package height | 52 mm |
| Package weight | 720 g |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 755 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 240 mm |
