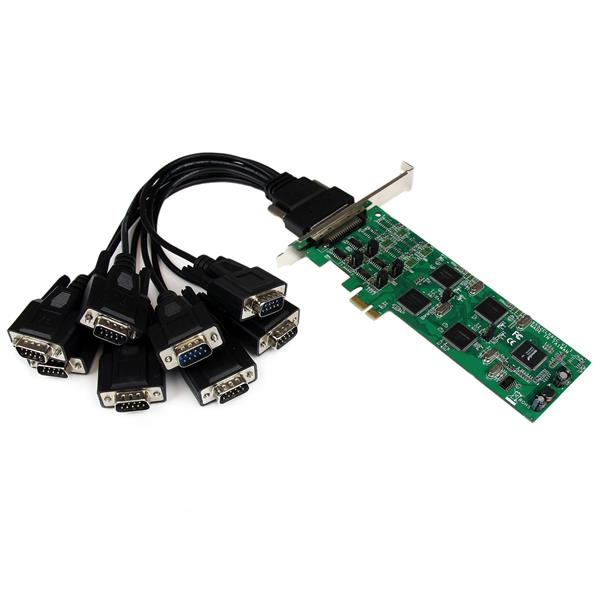

StarTech.com 8 Port PCI Express (PCIe) RS-232/422/485 Serial Card - 4 x RS232 4 x RS422 / RS485

StarTech.com 8 Port PCI Express (PCIe) RS-232/422/485 Serial Card - 4 x RS232 4 x RS422 / RS485

Model PEX8S232485EAN 5269692848382

23 specifications
  • Weight83 g
  • Host interfacePCIe
  • InternalYes
  • Data transfer rate (max)0.4608 Gbit/s
  • Operating temperature (T-T)0 - 100 °C
  • Compliance certificatesRoHS
See all specifications

Overview

Weight
83 g
Host interface
PCIe
Internal
Yes
Data transfer rate (max)
0.4608 Gbit/s
Operating temperature (T-T)
0 - 100 °C
Compliance certificates
RoHS
Brand
StarTech.com
Model
PEX8S232485
Part number
PEX8S232485
EAN / UPC
5269692848382, 012304906056, 065030852234, 110145731957 +8 more
Also known as
StarTech.com 8 Port PCI Express (PCIe) RS-232/422/485 Serial Card - 4 x RS232 4 x RS422 / RS485

Specifications

23 specifications in 8 groups

Ports & interfaces

Host interfacePCIe
Output interfaceSerial
Serial ports quantity8
Serial interface typeRS-232/422/485

Design

InternalYes

Features

Data transfer rate (max)0.4608 Gbit/s
FIFO (First In, First Out)256 B

Operational conditions

Operating temperature (T-T)0 - 100 °C
Storage temperature (T-T)-65 - 150 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 80%

System requirements

Windows operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width18 mm
Depth170 mm
Height68 mm
Weight83 g

Packaging data

Quick installation guideYes
Package width150 mm
Package depth215 mm
Package height50 mm
Package weight553 g
