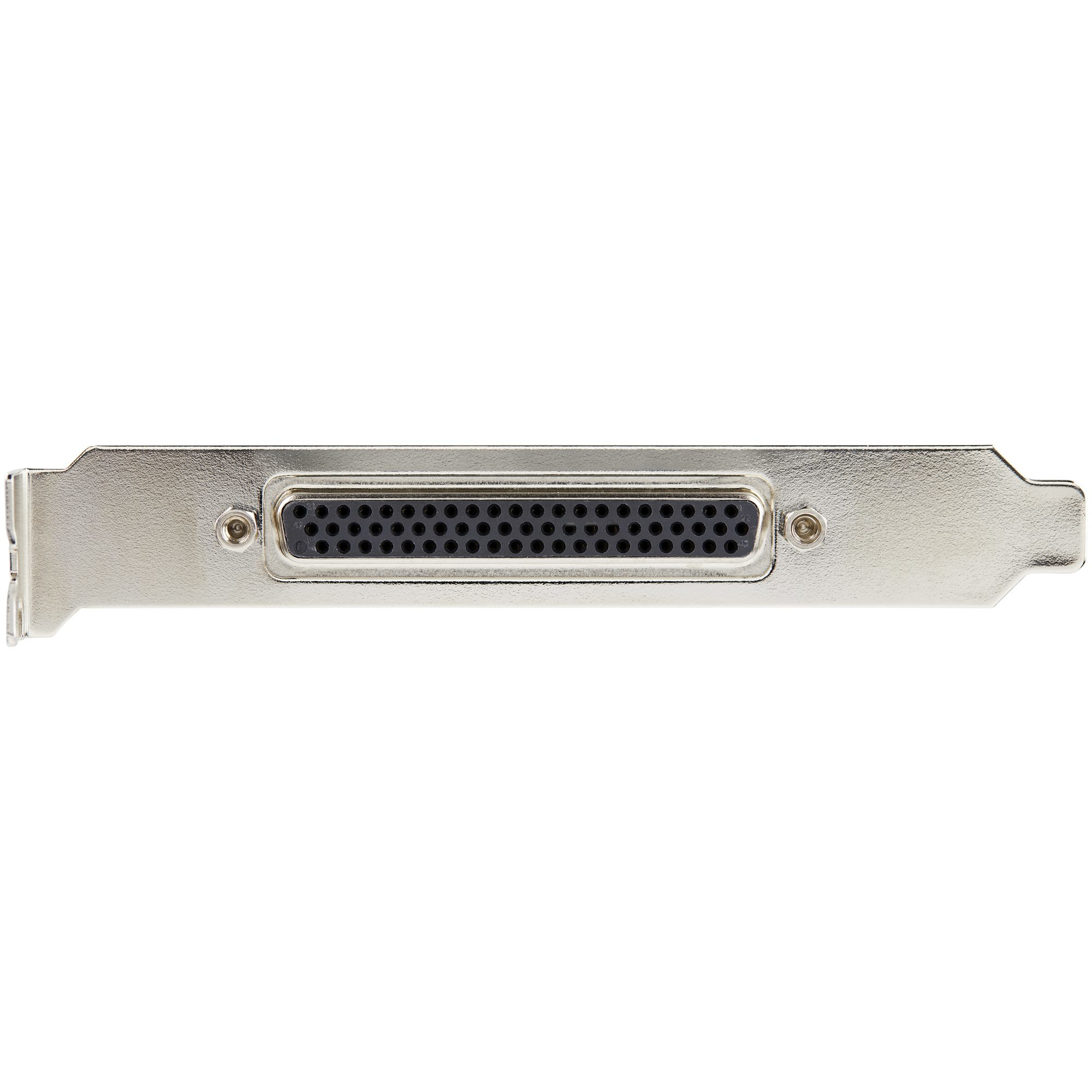

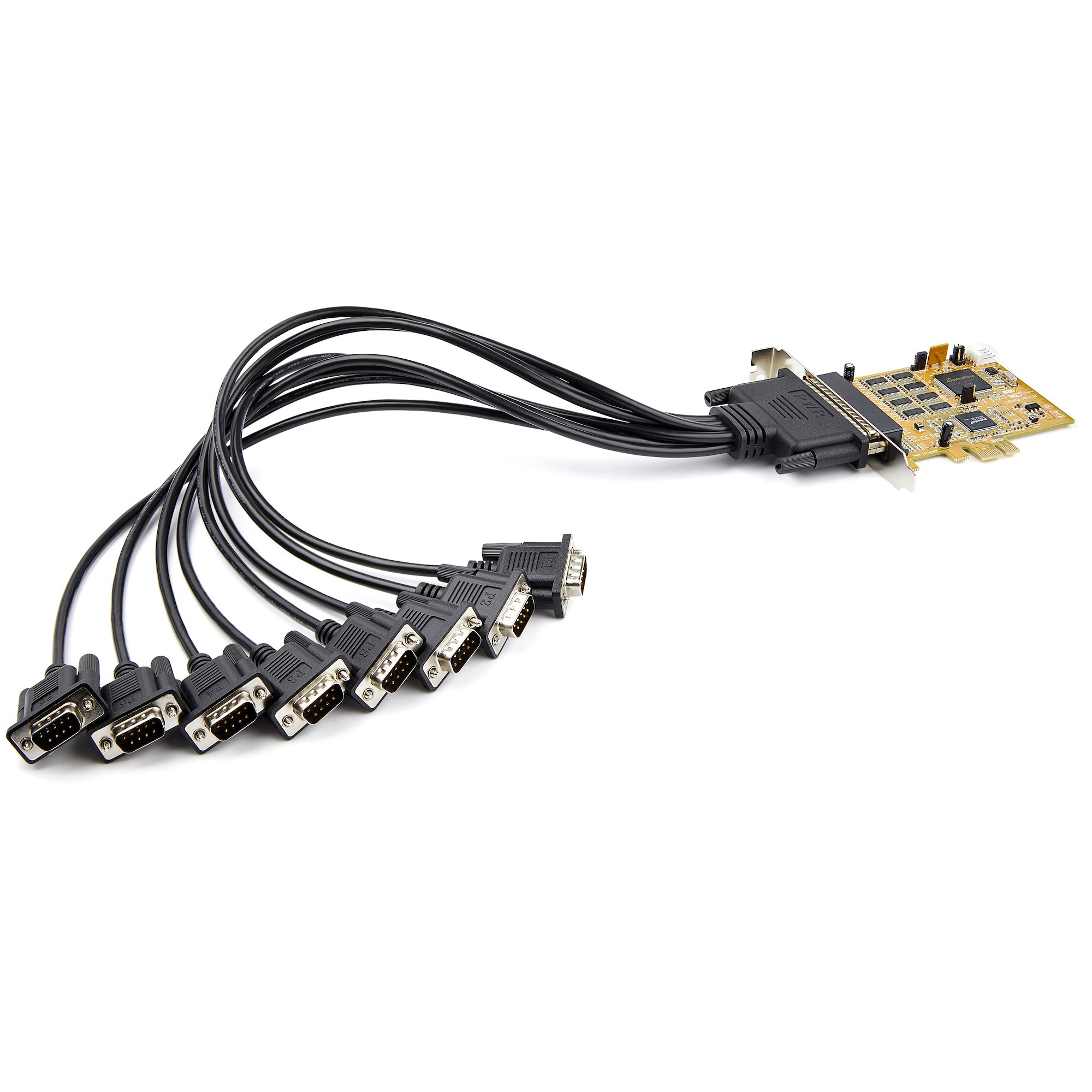

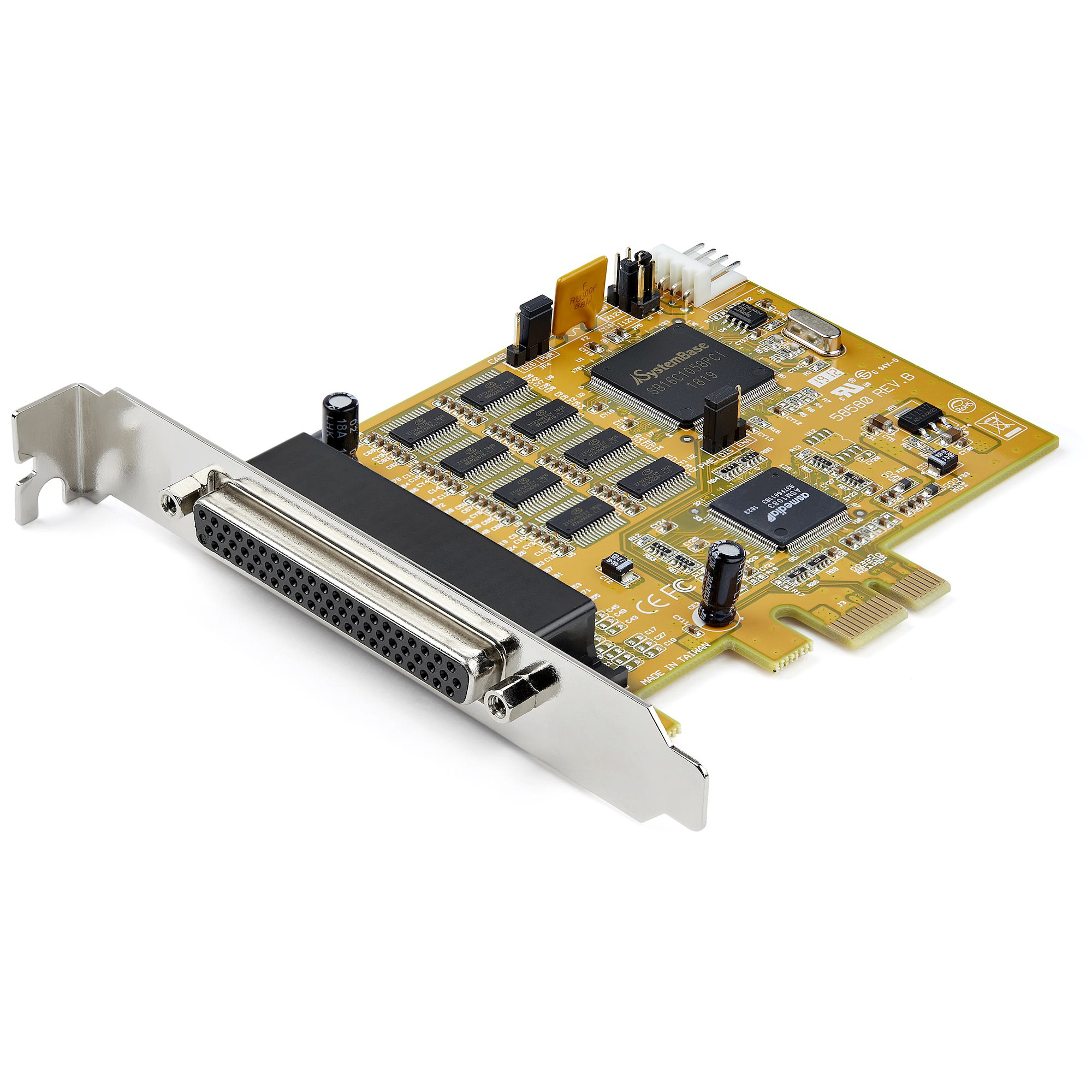

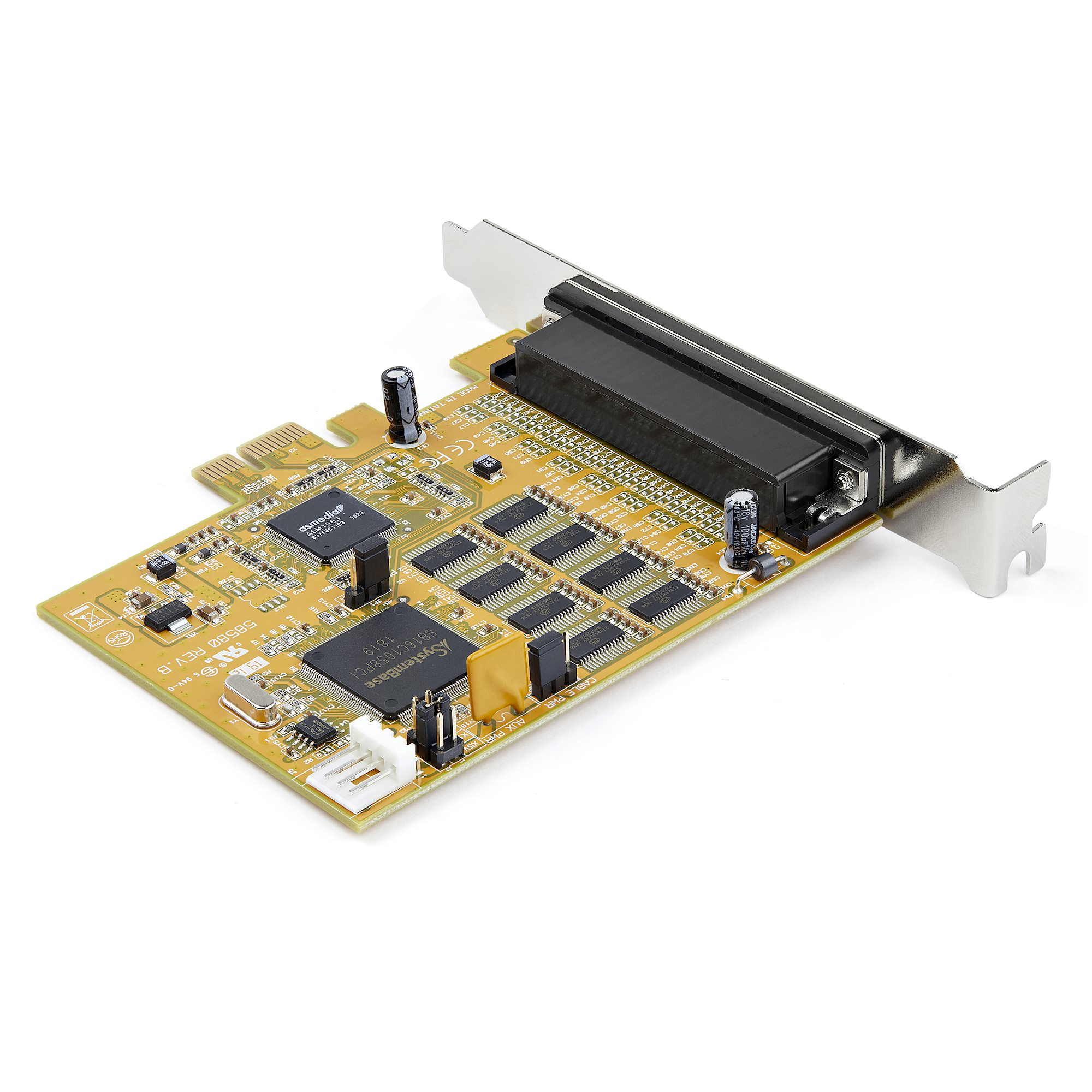

8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protec
Model PEX8S1050EAN 065030888295
38 specifications
- Weight74 g
- ColourYellow
- Host interfacePCIe
- InternalYes
- Baud rate921.6 Kbit/s
- Operating temperature (T-T)0 - 55 °C
Overview
- Weight
- 74 g
- Colour
- Yellow
- Host interface
- PCIe
- Internal
- Yes
- Baud rate
- 921.6 Kbit/s
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX8S1050
- Part number
- PEX8S1050
- EAN / UPC
- 065030888295
- Also known as
- StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protec
Specifications
38 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Serial ports quantity | 8 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Yellow |
| Maximum cable length | 0.5 m |
| Mean time between failures (MTBF) | 160013 h |
Features
| Specification | Value |
|---|---|

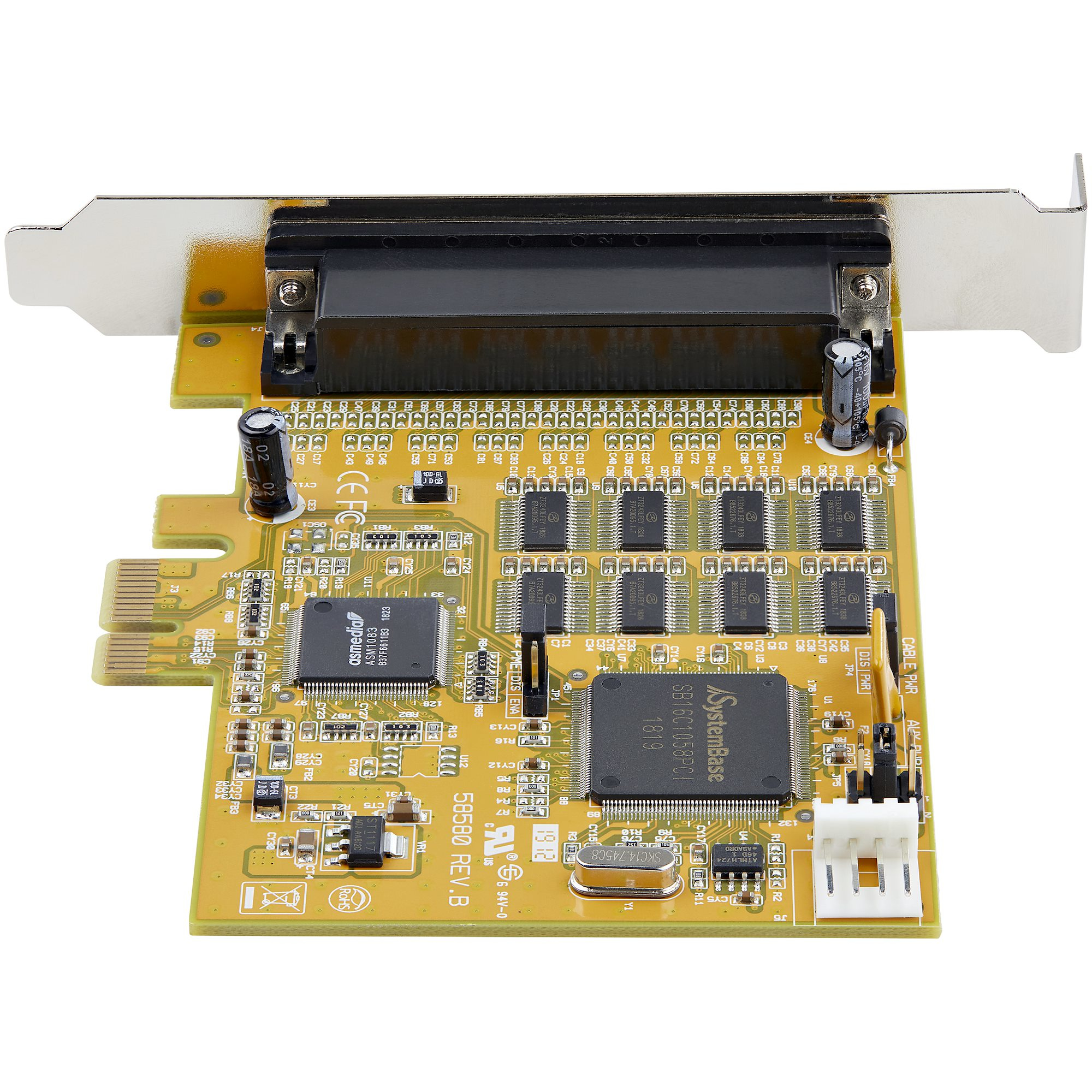

| Chipset | ASMedia - ASM1083, System Base - SB16C1058PCI |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, No, Odd |
| Flow Control type | RTS/CTS, XON/XOFF |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windo |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 16 mm |
| Depth | 105 mm |
| Height | 120 mm |
| Weight | 74 g |
Packaging data
| Specification | Value |
|---|---|

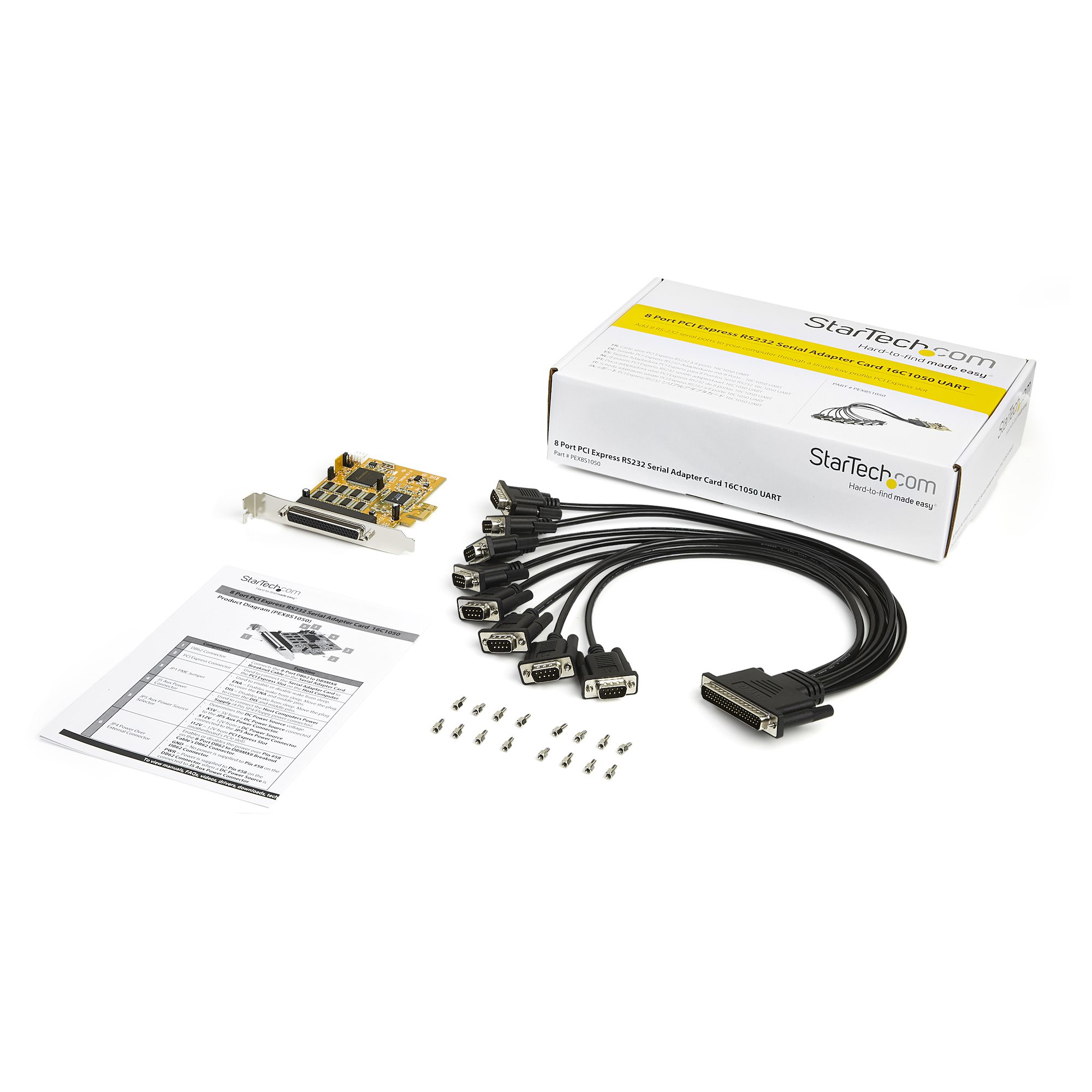

| Cables included | Serial |
| Quick installation guide | Yes |
| Package width | 192 mm |
| Package depth | 294 mm |
| Package height | 70 mm |
| Package weight | 672 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 16 pc(s) |
| Master (outer) case width | 519 mm |
| Master (outer) case length | 404 mm |
| Master (outer) case height | 330 mm |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | 16C1050 UART |
