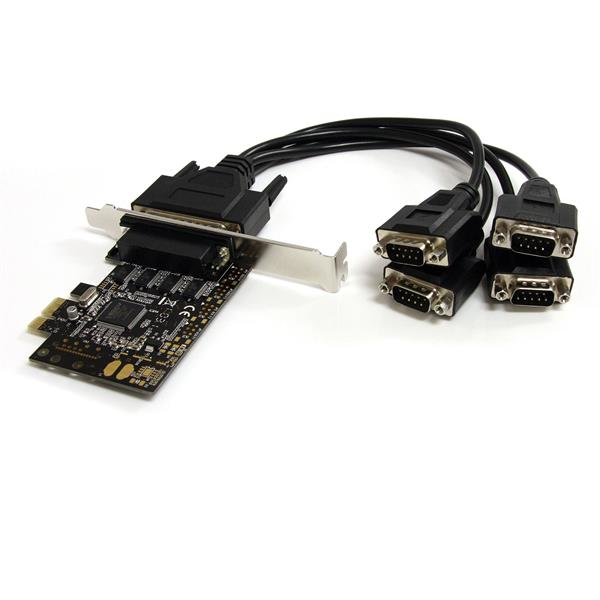

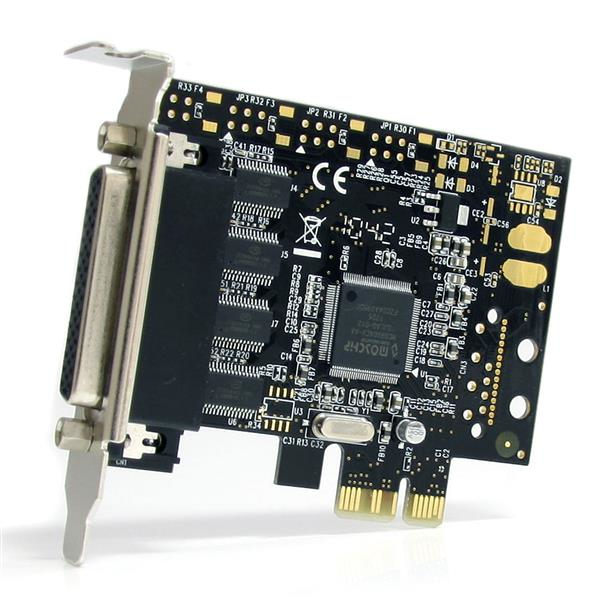

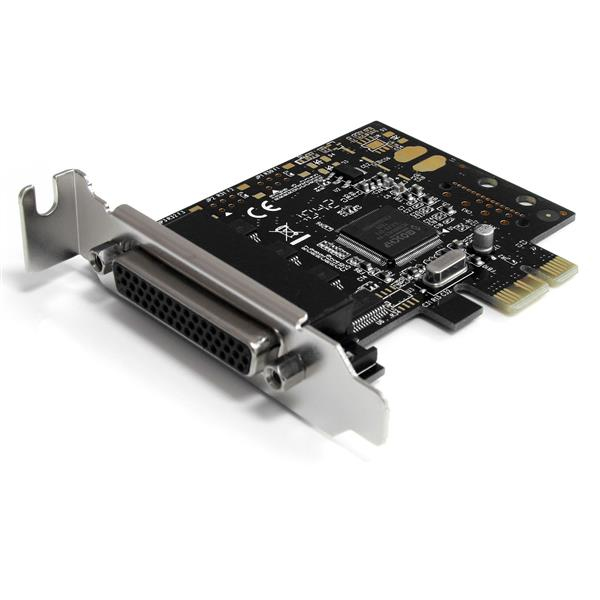

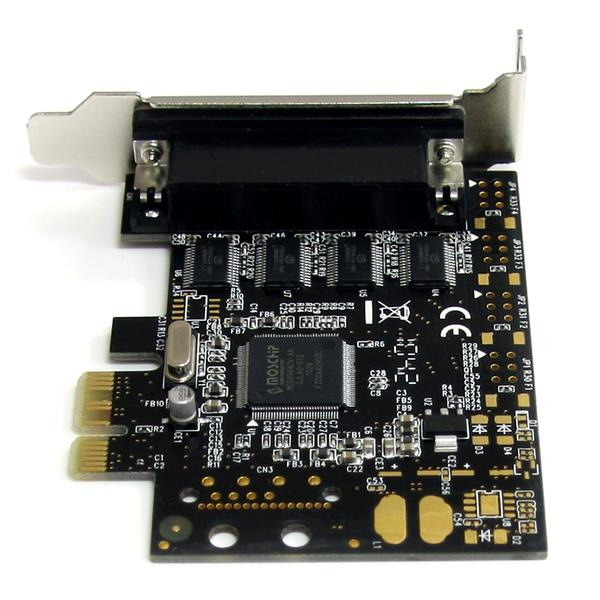

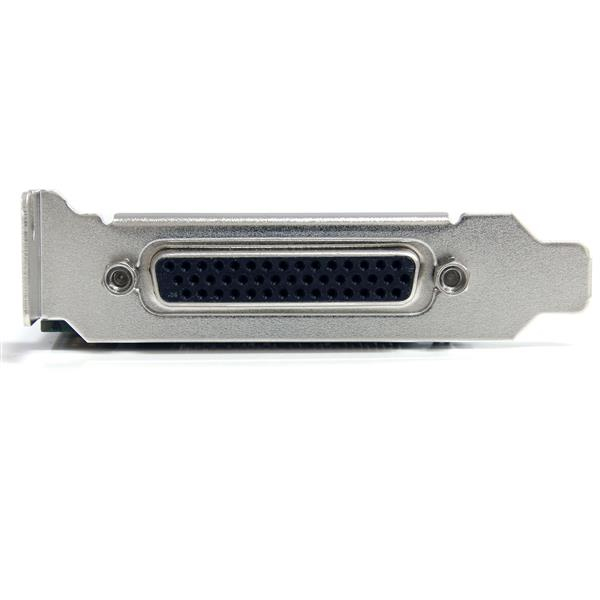

StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable

StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable

Model PEX4S553BPart no. PEX4S553SEAN 5055851295681

34 specifications
  • Weight239 g
  • ColourBlack
  • Host interfacePCIe
  • InternalYes
  • ChipsetASIX Moschip MCS9904CV-AA
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Weight
239 g
Colour
Black
Host interface
PCIe
Internal
Yes
Chipset
ASIX Moschip MCS9904CV-AA
Operating temperature (T-T)
0 - 70 °C
Brand
StarTech.com
Model
PEX4S553B
Part numbers
PEX4S553S, PEX4S553B
EAN / UPC
5055851295681, 065030842556, 078667290195, 132017726571 +16 more
Also known as
StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable

Specifications

34 specifications in 9 groups

Ports & interfaces

Host interfacePCIe
Output interfaceSerial
Serial ports quantity4
Serial interface typeRS-232

Design

InternalYes
Product colourBlack
CertificationREACH, CE

Features

ChipsetASIX Moschip MCS9904CV-AA
Baud rate230.4 Kbit/s
FIFO (First In, First Out)256 B
Data bits5, 6, 7, 8
Parity bitEven, Mark, No, Odd

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 85%

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windo
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supportedDOS, Windows Embedded POSReady 2009, Windows Embedded Standard 2009, Windows XP Embedded

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width12 mm
Depth80.5 mm
Height68 mm
Weight239 g

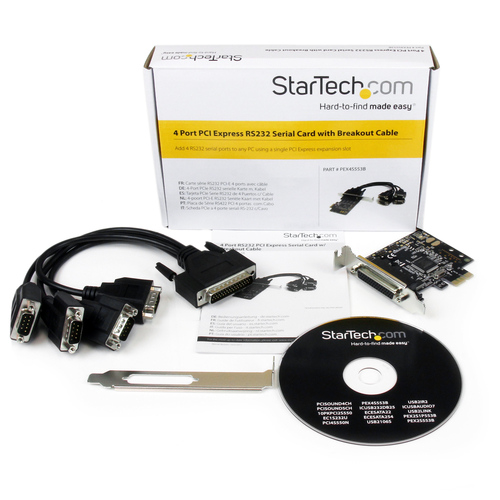

Packaging data

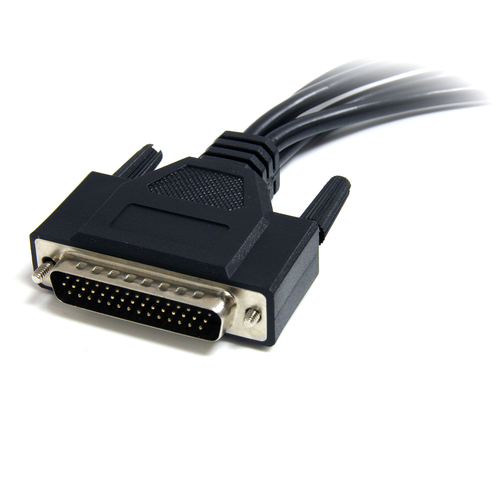

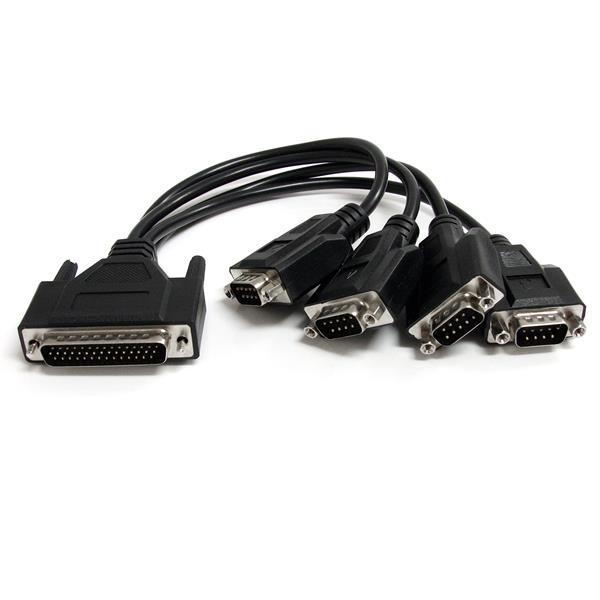

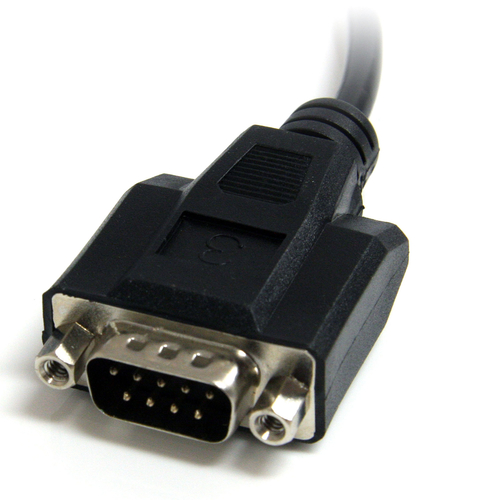

Cables includedSerial
Mounting brackets includedYes
Drivers includedYes
ManualYes
Package width208 mm
Package depth145 mm
Package height41 mm
Package weight343 g

Logistics data

Harmonized System (HS) code84733020
