3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
Model PEX1394B3LPEAN 851975718809
38 specifications
- Weight43 g
- ColourGreen
- Host interfacePCIe
- InternalYes
- ChipsetTexas Instruments - XIO2213B
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 43 g
- Colour
- Green
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Texas Instruments - XIO2213B
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX1394B3LP
- Part number
- PEX1394B3LP
- EAN / UPC
- 851975718809, 065030837897, 132017609744, 132017922782 +10 more
- Also known as
- StarTech.com 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
Specifications
38 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | IEEE 1394/Firewire |
| Expansion card standard | PCIe 1.1 |
| Firewire (IEEE 1394) ports | 3 |
| FireWire 400 ports quantity | 1 |
| FireWire 800 ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 149905 h |
Features
| Specification | Value |
|---|---|
| Chipset | Texas Instruments - XIO2213B |
| Data transfer rate (max) | 0.8 Gbit/s |
| Plug and Play | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 0 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Wind |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 90 mm |
| Height | 20 mm |
| Weight | 43 g |
Packaging data
| Specification | Value |
|---|---|

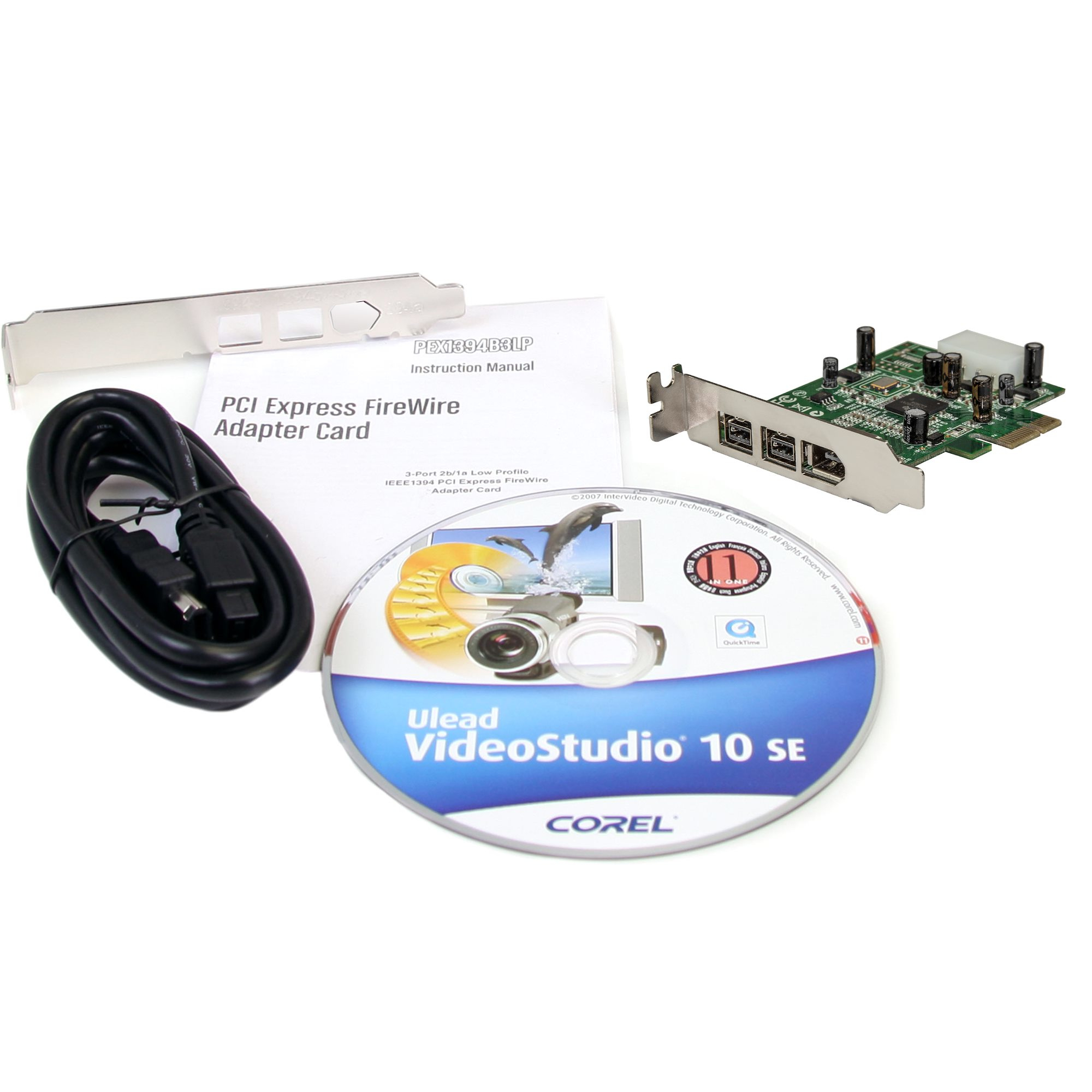

| Cables included | FireWire |
| Mounting brackets included | Yes |
| Manual | Yes |
| Package width | 175 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 200 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 28 pc(s) |
| Master (outer) case width | 331 mm |
| Master (outer) case length | 504 mm |
| Master (outer) case height | 237 mm |
