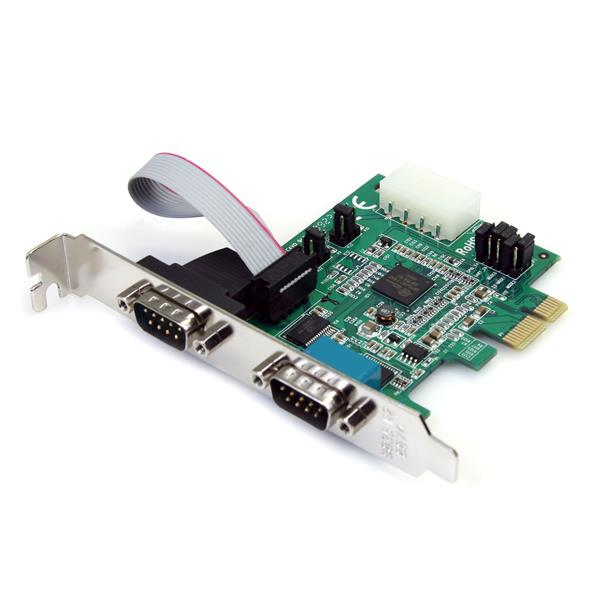

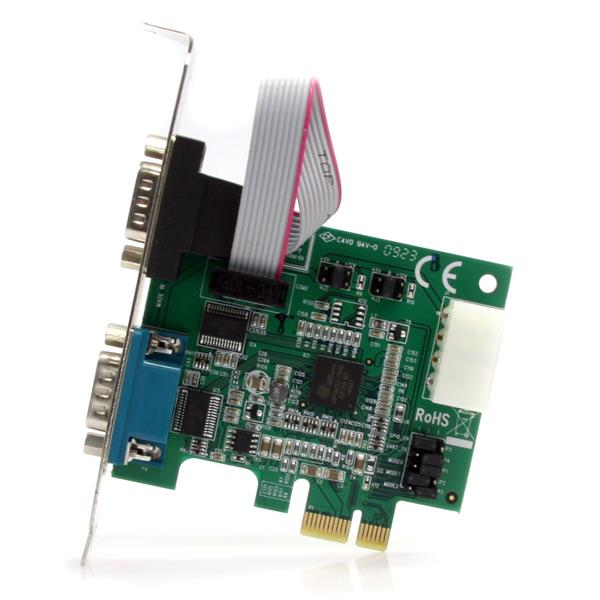

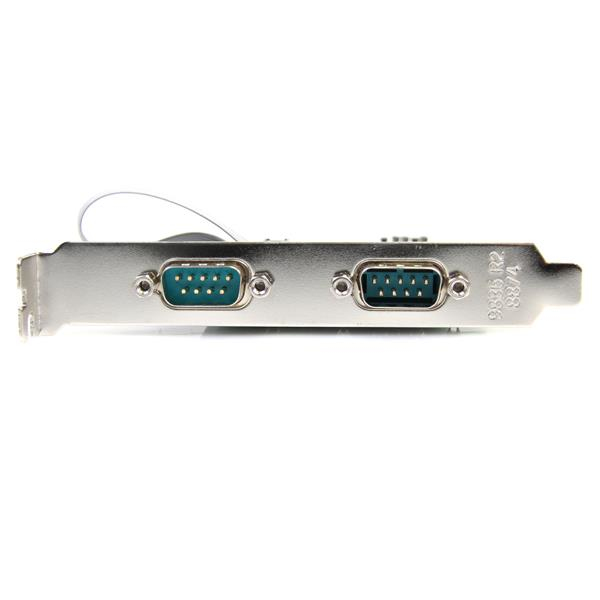

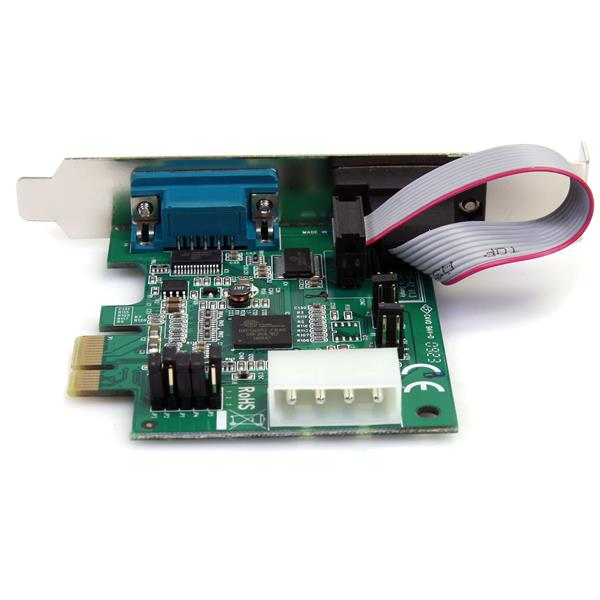

StarTech.com Discontinued and replaced by PEX2S953: 2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART

StarTech.com Discontinued and replaced by PEX2S953: 2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART

Model PEX2S952EAN 978397201143

38 specifications
  • Weight60 g
  • ColourGreen
  • Host interfacePCIe
  • InternalYes
  • ChipsetPLX/Oxford - OXPCIe952
  • Operating temperature (T-T)-10 - 80 °C
See all specifications

Overview

Weight
60 g
Colour
Green
Host interface
PCIe
Internal
Yes
Chipset
PLX/Oxford - OXPCIe952
Operating temperature (T-T)
-10 - 80 °C
Brand
StarTech.com
Model
PEX2S952
Part number
PEX2S952
EAN / UPC
978397201143, 065030831581, 088021339743, 112840344142 +12 more
Also known as
StarTech.com Discontinued and replaced by PEX2S953: 2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART

Specifications

38 specifications in 9 groups

Ports & interfaces

Host interfacePCIe
Output interfaceSerial
Expansion card standardPCIe 1.0
Serial ports quantity2
Serial interface typeRS-232
Peripheral (Molex) power connectors (4-pin)1

Design

InternalYes
Product colourGreen
Mean time between failures (MTBF)87600 h
CertificationCE, FCC

Features

ChipsetPLX/Oxford - OXPCIe952
Baud rate460.8 Kbit/s
FIFO (First In, First Out)128 B
Data bits4, 5, 6, 7, 8
Stop bits1, 1.5, 2

Operational conditions

Operating temperature (T-T)-10 - 80 °C
Storage temperature (T-T)-20 - 100 °C
Operating relative humidity (H-H)5 - 85%

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Window
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Other operating systems supportedWindows XP Embedded

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width65 mm
Depth90 mm
Height20 mm
Weight60 g

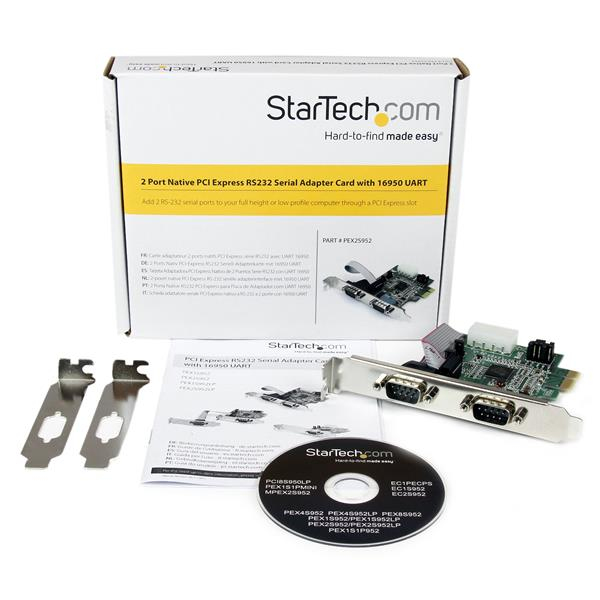

Packaging data

Mounting brackets includedYes
Drivers includedYes
ManualYes
Package width175 mm
Package depth145 mm
Package height33 mm
Package weight152 g

Logistics data

Products per master (outer) case75 pc(s)
Master (outer) case width357 mm
Master (outer) case length683 mm
Master (outer) case height310 mm
