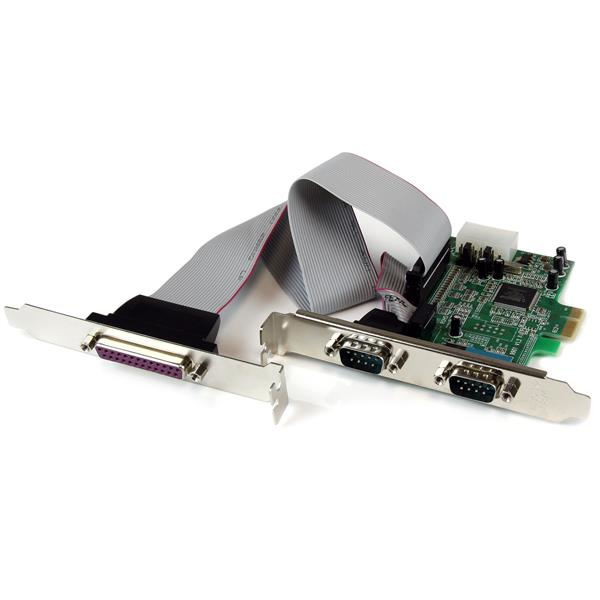

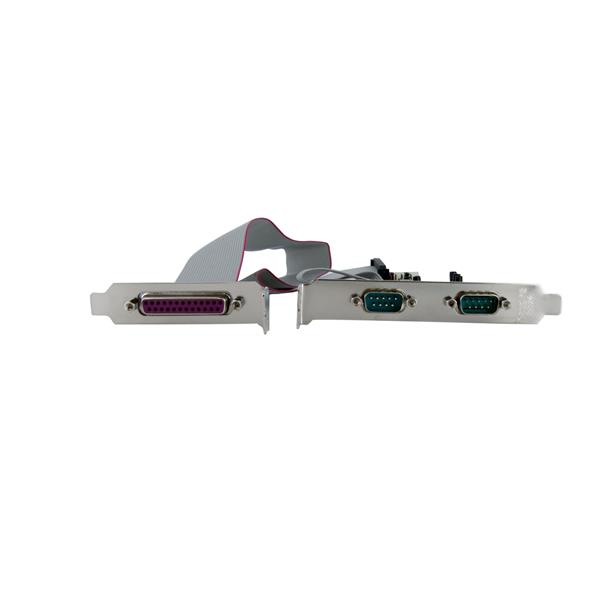

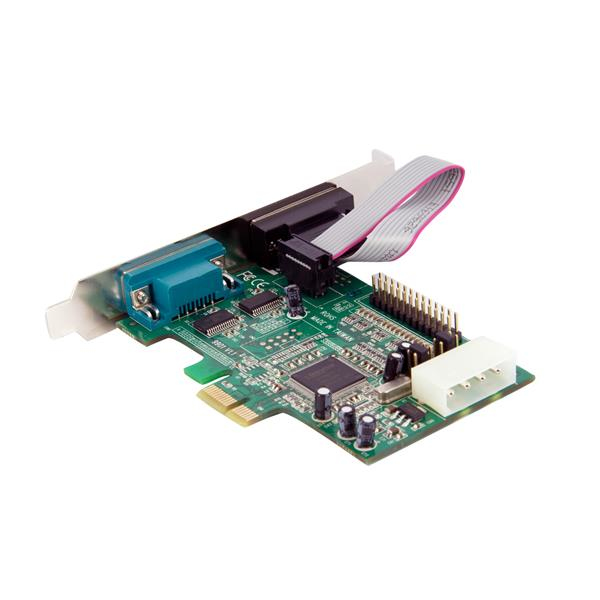

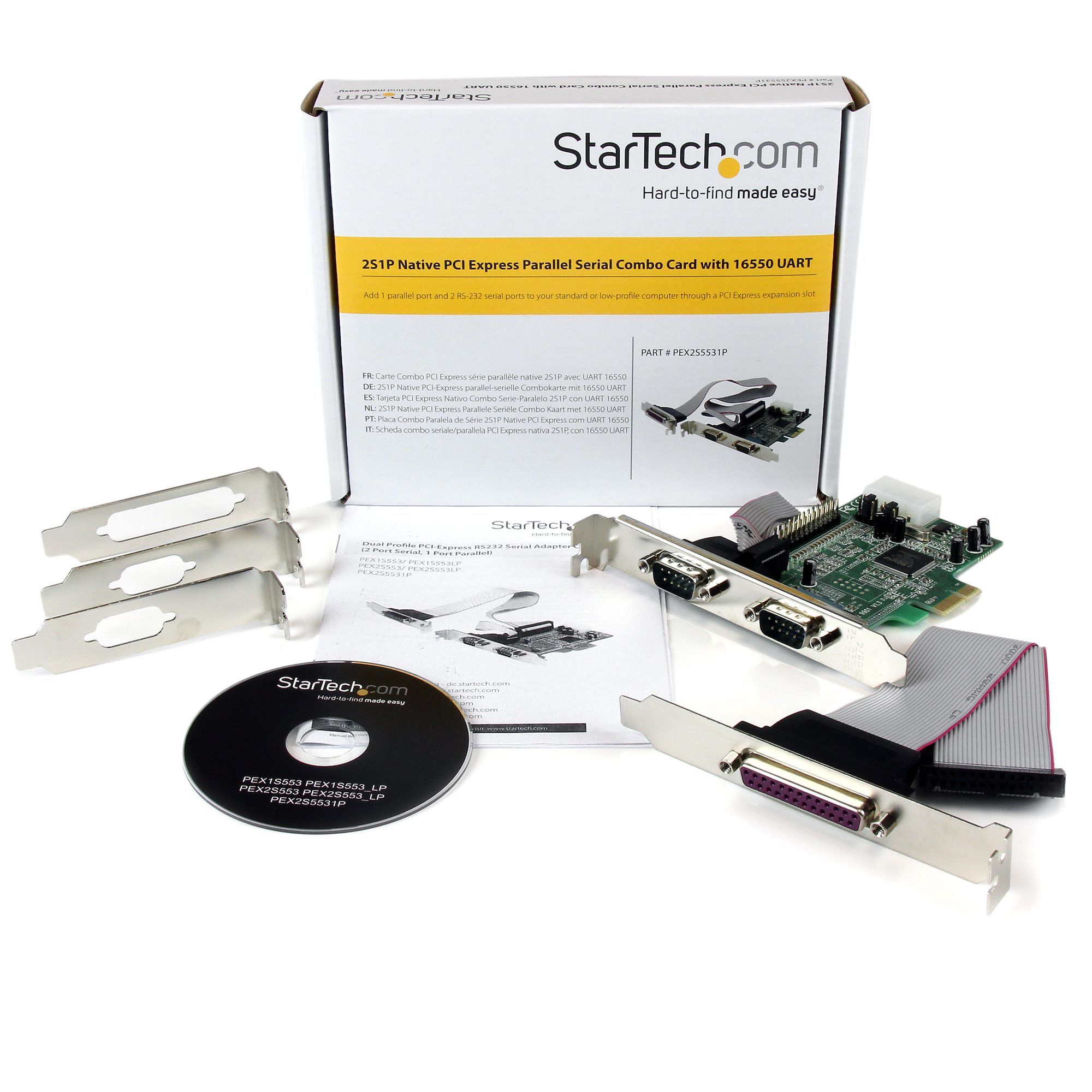

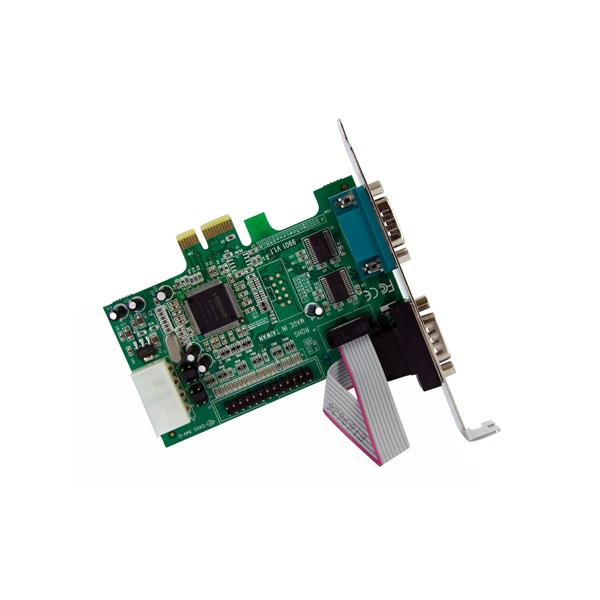

StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
Model PEX2S5531PEAN 5052217282262
37 specifications
- Weight112 g
- ColourGreen, Stainless steel
- Host interfacePCIe
- InternalYes
- ChipsetASIX - MCS9901CV-CC
- Operating temperature (T-T)-10 - 80 °C
Overview
- Weight
- 112 g
- Colour
- Green, Stainless steel
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASIX - MCS9901CV-CC
- Operating temperature (T-T)
- -10 - 80 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX2S5531P
- Part number
- PEX2S5531P
- EAN / UPC
- 5052217282262, 065030841764, 132017751887, 151903075715 +11 more
- Also known as
- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
Specifications
37 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card standard | PCIe 1.0a |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Parallel ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green, Stainless steel |
Features
| Specification | Value |
|---|---|
| Chipset | ASIX - MCS9901CV-CC |
| Baud rate | 460.8 Kbit/s |
| FIFO (First In, First Out) | 128 B |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Supported protocols | EPP, ECP, SPP, PS/2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Ba |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | Windows Embedded POSReady 2009, Windows Embedded Standard 2009 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 105 mm |
| Height | 20 mm |
| Weight | 112 g |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
| Package width | 145 mm |
| Package depth | 174 mm |
| Package height | 31 mm |
| Package weight | 208 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 679 mm |
| Master (outer) case height | 320 mm |
What people say
Reviews & ratings
StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
No reviews yet
Be the first to tell others how StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
All interface cards/adapters comparisons- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART vsStarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Linux, TAA - Replaced by PEX2S953LPCompare specs
- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART vsStarTech.com IDE to Slim Optical IDE Drive AdapterCompare specs
- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART vsStarTech.com 2-Port PCI Express RS232 Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9 Host Controller, Windows & Linux, TAA - Replaced by PEX2S953Compare specs
- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART vsStarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16550 UART - Low Profile Expansion CarCompare specs
- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART vsManhattan 160353 interface cards/adapterCompare specs
- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART vsManhattan 171557 interface cards/adapter USB 2.0Compare specs
- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART vsAxagon ECF-X1 interface cards/adapterCompare specs

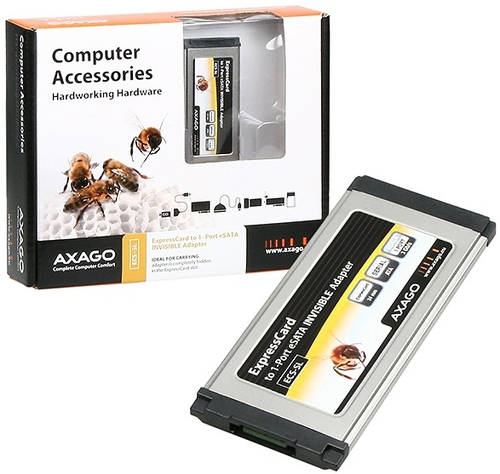

- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART vsAxagon ECS-SL interface cards/adapter eSATACompare specs
