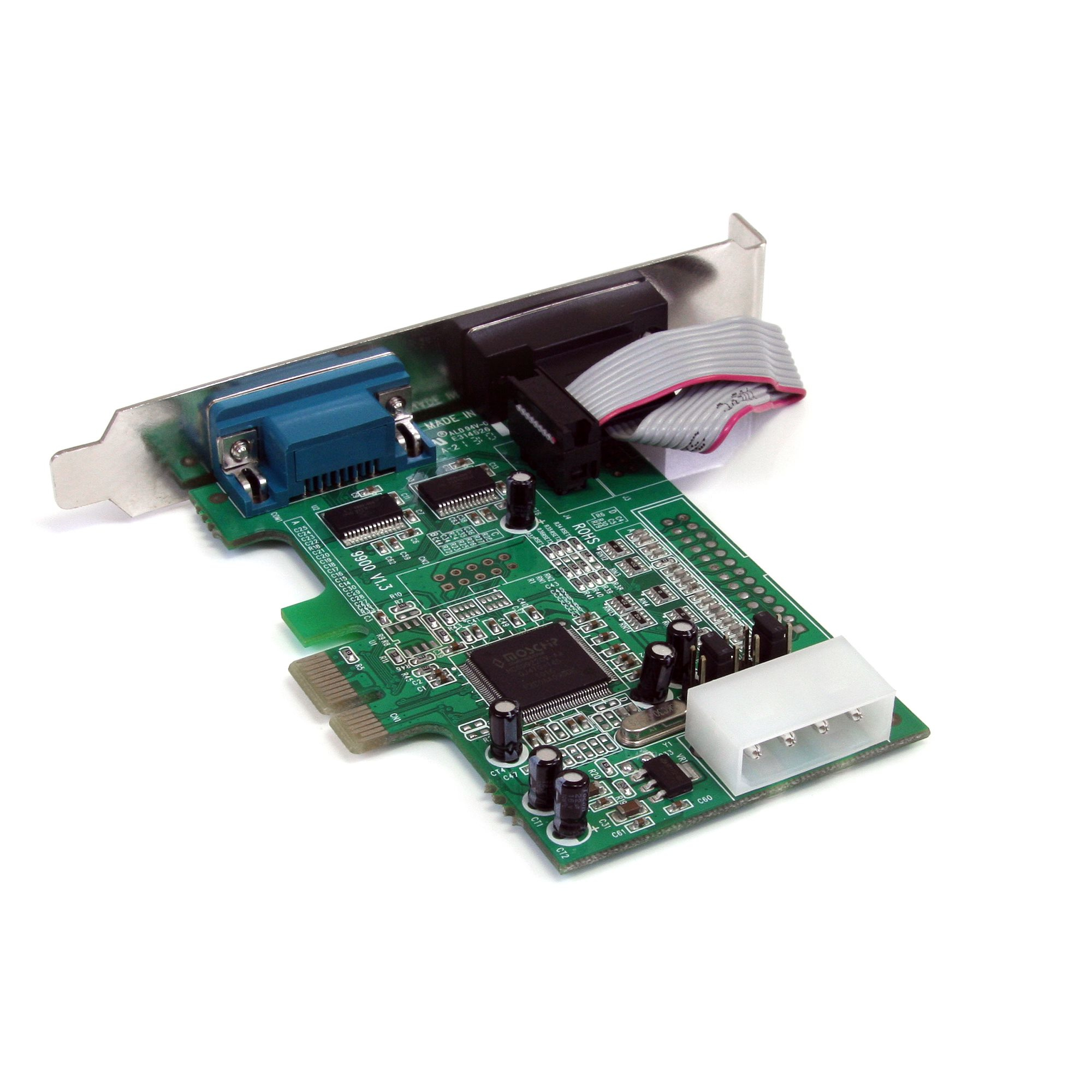

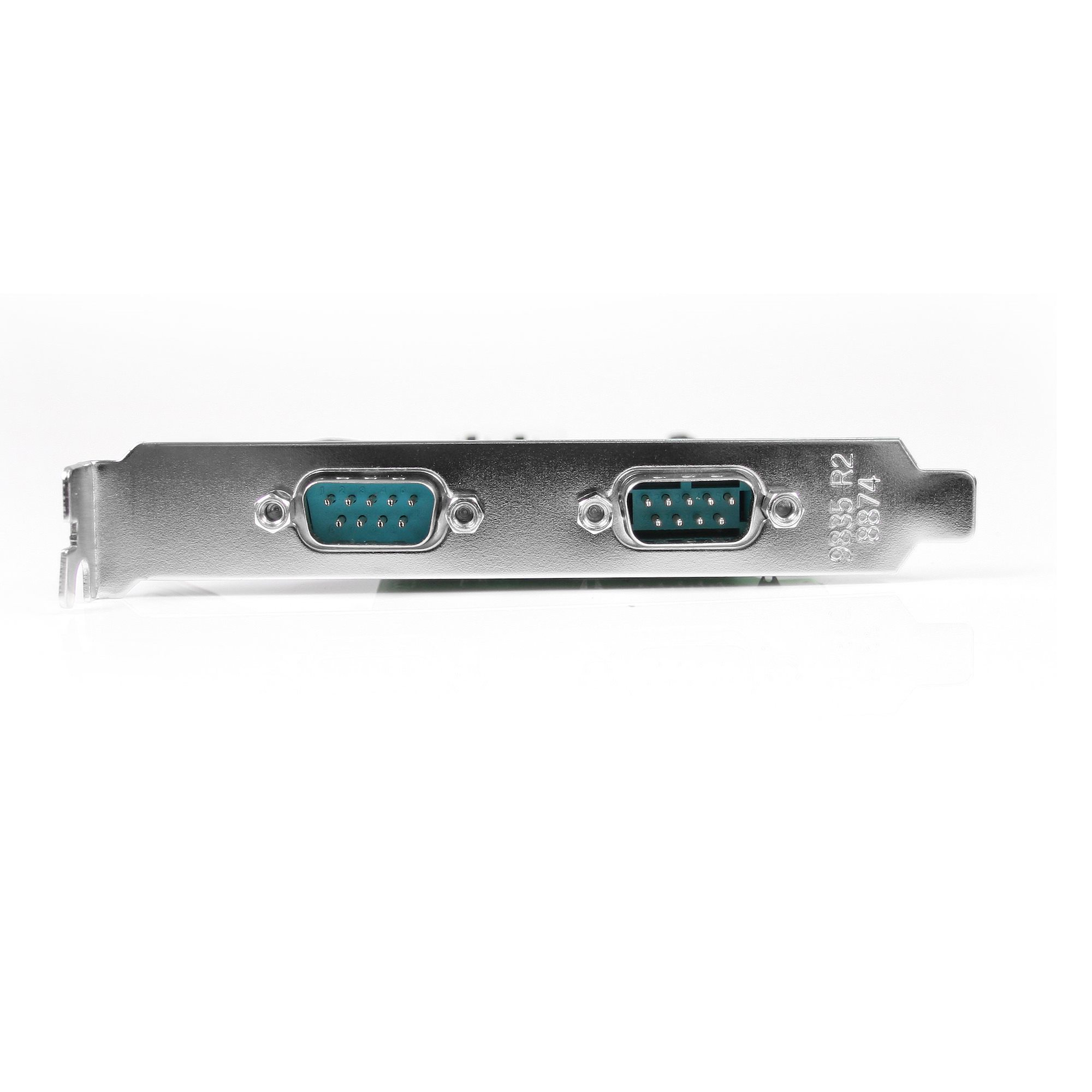

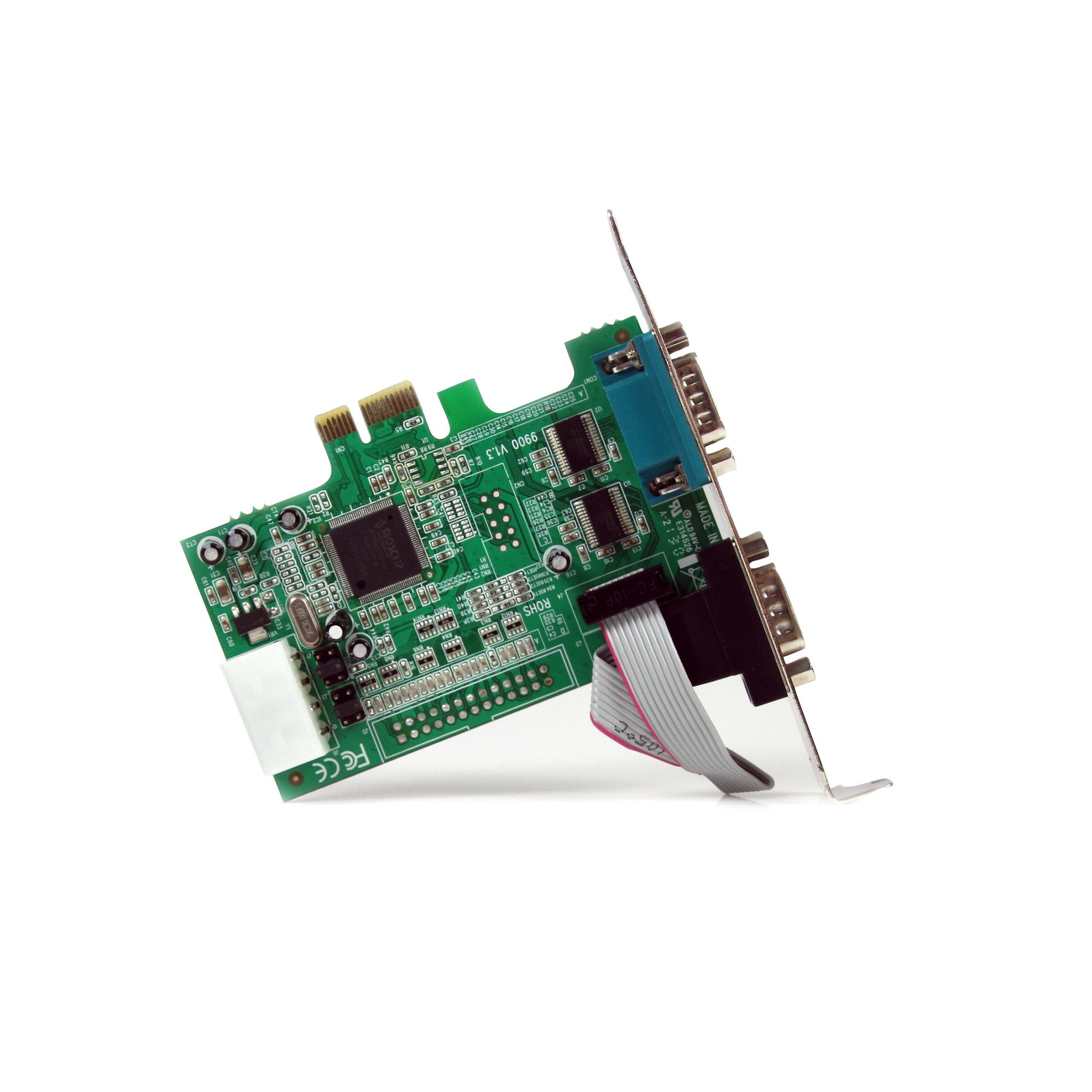

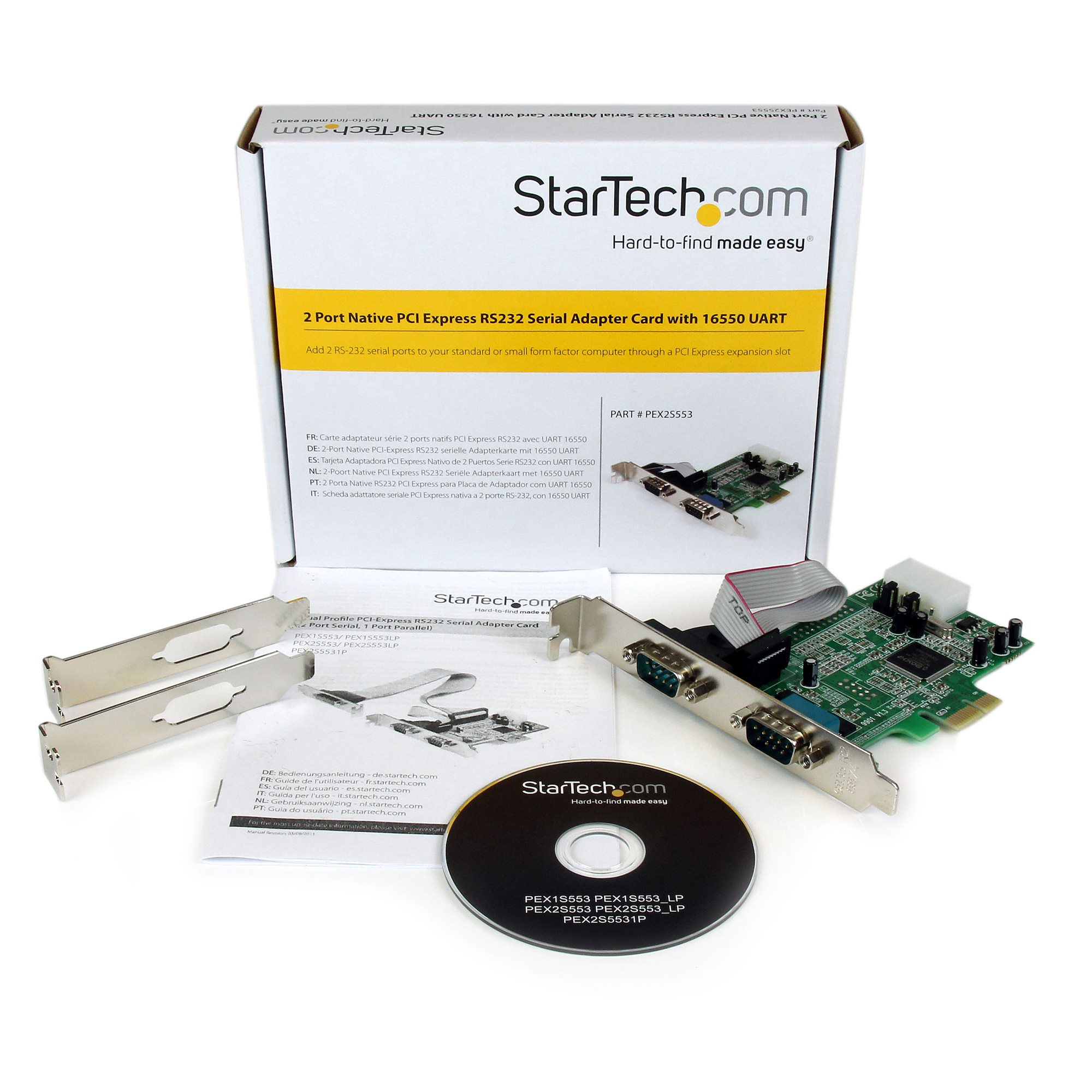

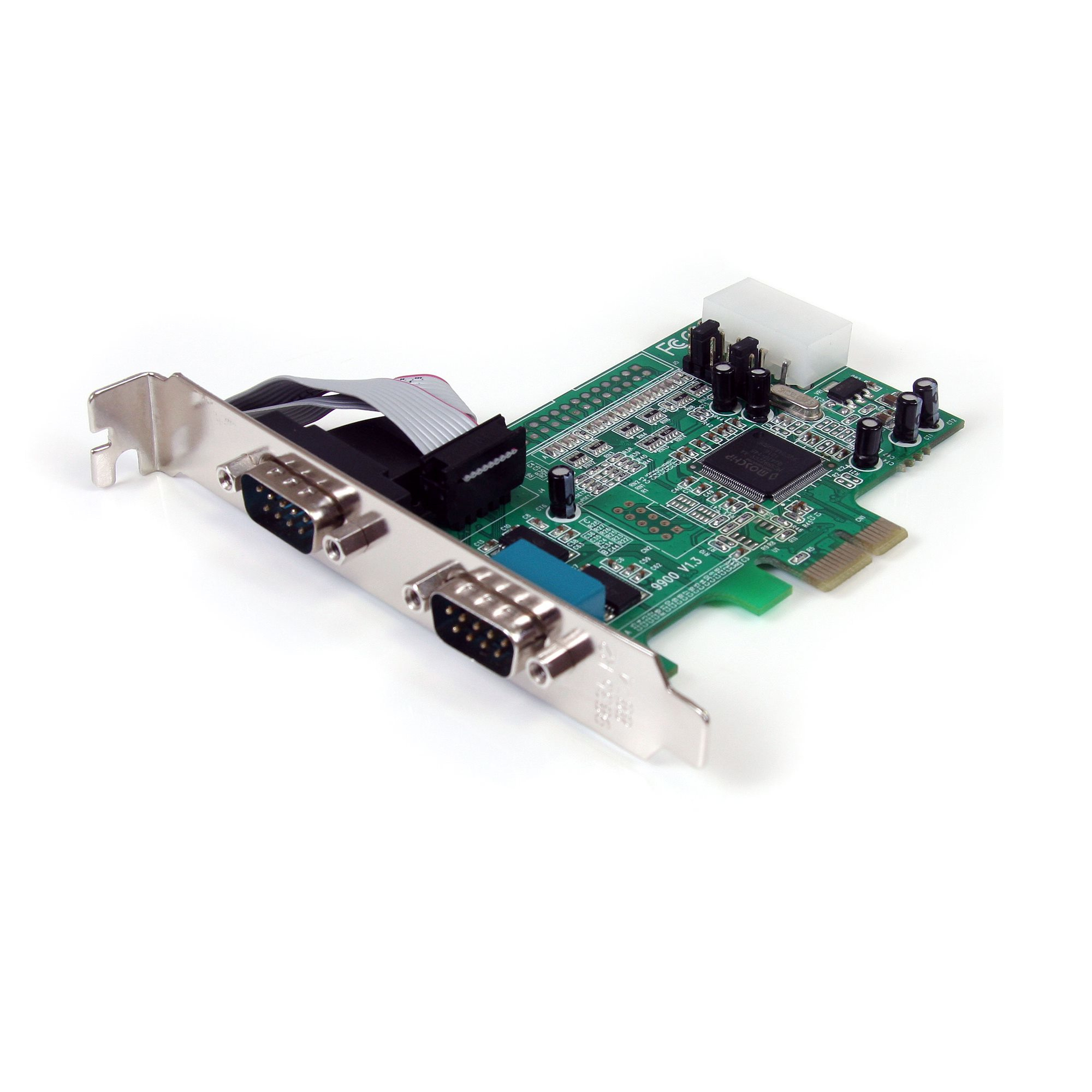

StarTech.com 2-Port PCI Express RS232 Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9 Host Controller, Windows & Linux, TAA - Replaced by PEX2S953
Model PEX2S553EAN 4139052220343
36 specifications
- Weight61 g
- ColourGreen
- Host interfacePCIe
- InternalYes
- ChipsetASIX - MCS9922CV-AA
- Operating temperature (T-T)-10 - 80 °C
Overview
- Weight
- 61 g
- Colour
- Green
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASIX - MCS9922CV-AA
- Operating temperature (T-T)
- -10 - 80 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX2S553
- Part number
- PEX2S553
- EAN / UPC
- 4139052220343, 065030841740, 132017624167, 151903075708 +13 more
- Also known as
- StarTech.com 2-Port PCI Express RS232 Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9 Host Controller, Windows & Linux, TAA - Replaced by PEX2S953
Specifications
36 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card standard | PCIe 1.0 |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
Features
| Specification | Value |
|---|---|
| Chipset | ASIX - MCS9922CV-AA |
| Baud rate | 460.8 Kbit/s |
| FIFO (First In, First Out) | 128 B |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Wind |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | DOS, Windows Embedded POSReady 2009, Windows Embedded Standard 2009, Windows XP Embedded |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 105 mm |
| Height | 20 mm |
| Weight | 61 g |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
| Package width | 145 mm |
| Package depth | 175 mm |
| Package height | 32 mm |
| Package weight | 151 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 690 mm |
| Master (outer) case height | 310 mm |
