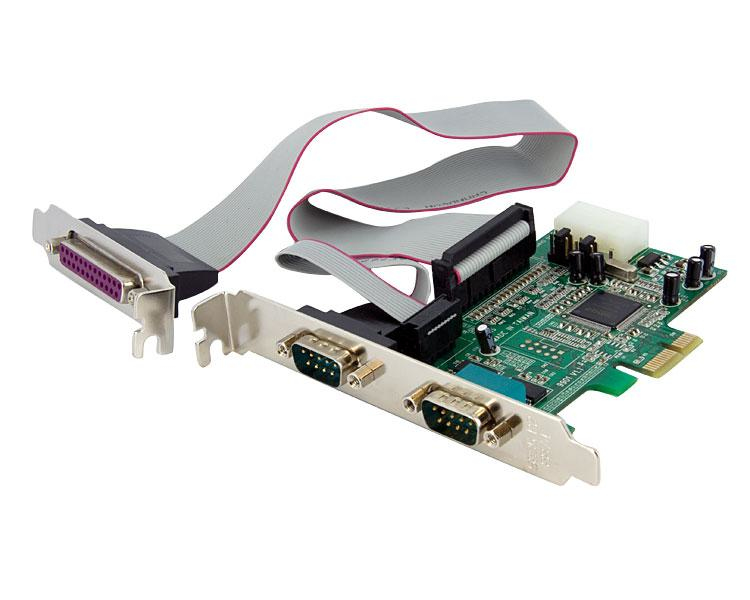

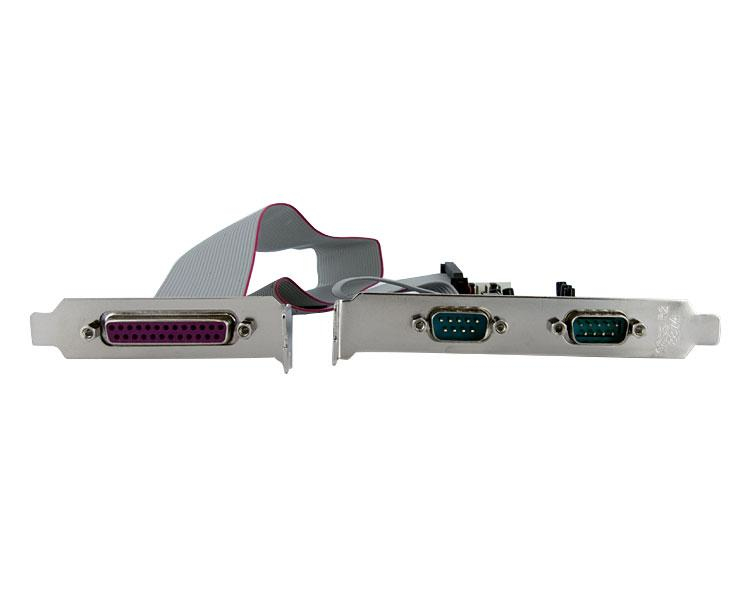

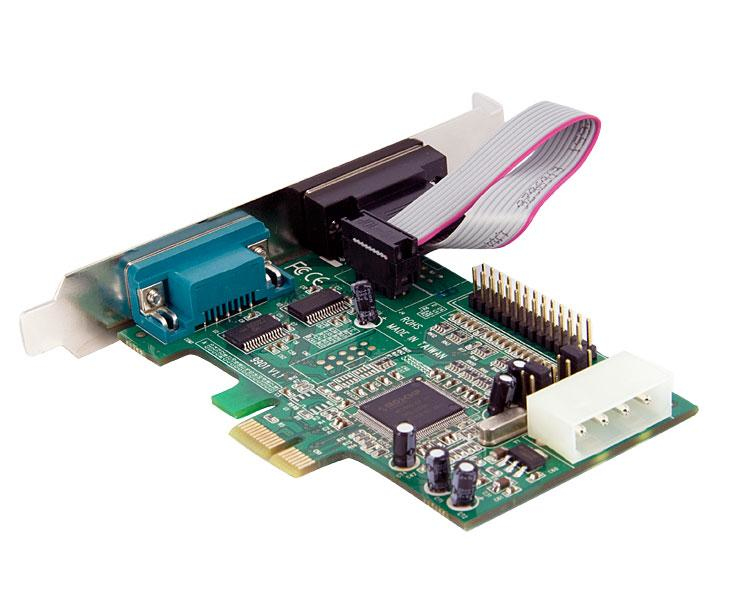

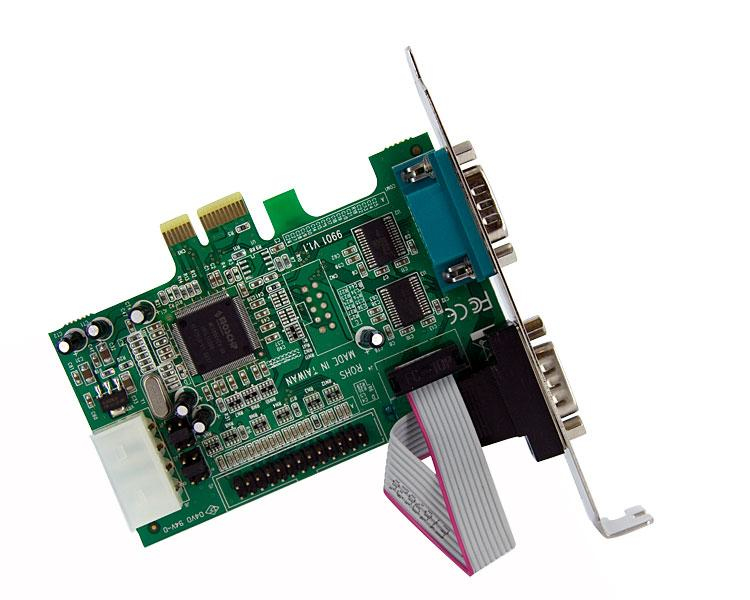

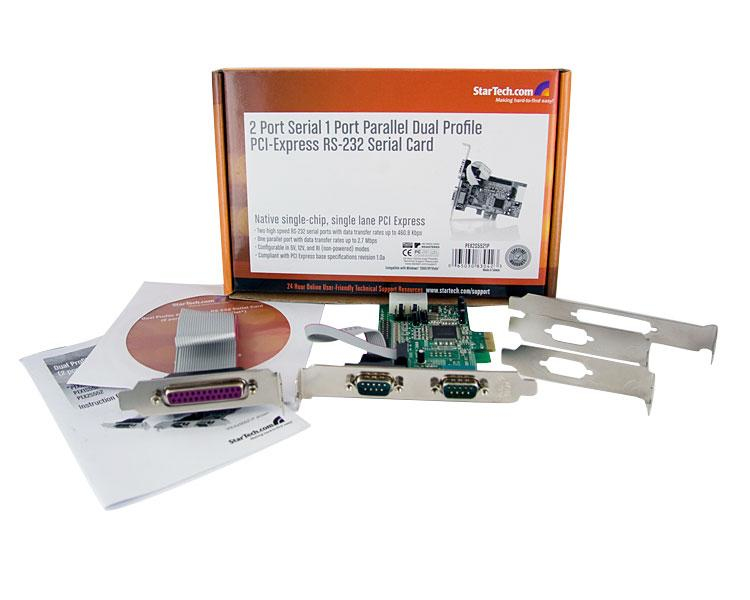

StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
Model PEX2S5521PEAN 065030830423
19 specifications
- ConnectivityWired
- Weight140 g
- Host interfacePCIe
- CertificationCE, FCC, RoSH
- ChipsetMosChip MCS9901
- Width120 mm
Overview
- Connectivity
- Wired
- Weight
- 140 g
- Host interface
- PCIe
- Certification
- CE, FCC, RoSH
- Chipset
- MosChip MCS9901
- Width
- 120 mm
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX2S5521P
- Part number
- PEX2S5521P
- EAN / UPC
- 065030830423
- Also known as
- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
Specifications
19 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | PCI Express |
| Serial ports quantity | 2 |
| Parallel ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoSH |
Features
| Specification | Value |
|---|---|
| Chipset | MosChip MCS9901 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 105 mm |
| Height | 20 mm |
| Weight | 140 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 40 mm |
| Package depth | 210 mm |
| Package height | 145 mm |
| Package weight | 250 g |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Compatible operating systems | DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Linux, & Mac OS 10.4.x & Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0 |
| Mac compatibility | Yes |
| Supported data transfer rates | 460.8 Kbps, 1.5 Mbps |
| I/O ports | 1 - DB25 M 2 - DB9 M |
What people say
Reviews & ratings
StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
No reviews yet
Be the first to tell others how StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
All interface cards/adapters comparisons- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART vsStarTech.com 2 Port PCI Express Internal SATA II Controller CardCompare specs

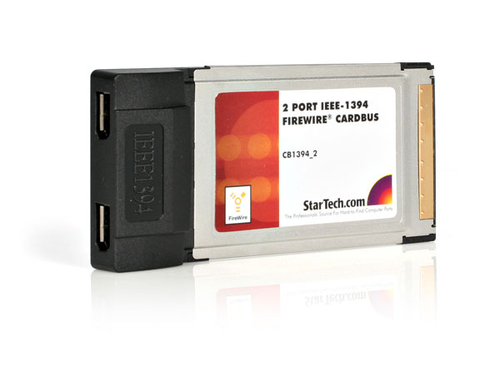

- StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART vsStarTech.com 2 Port IEEE-1394 FireWire CardBus Adapter with Digital Video Editing KitCompare specs
