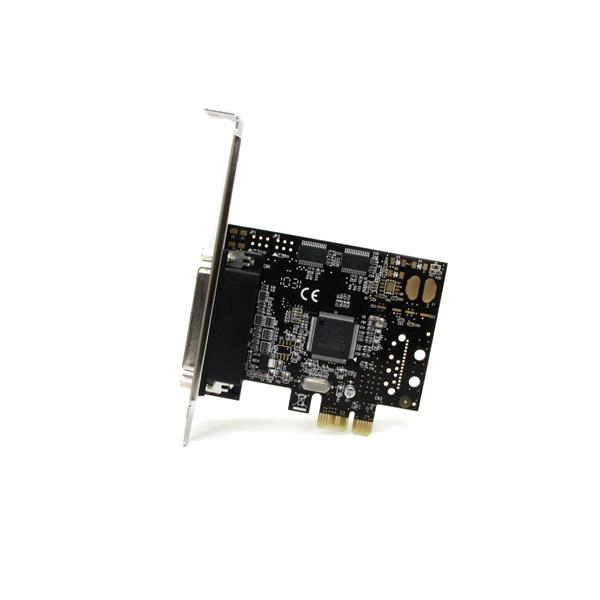

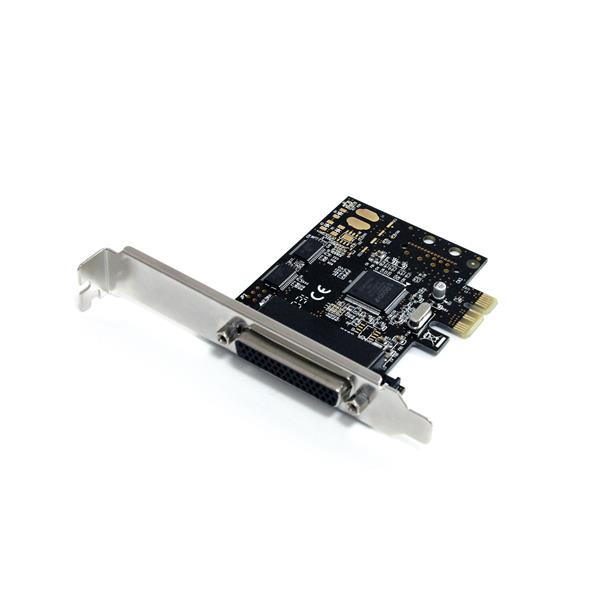

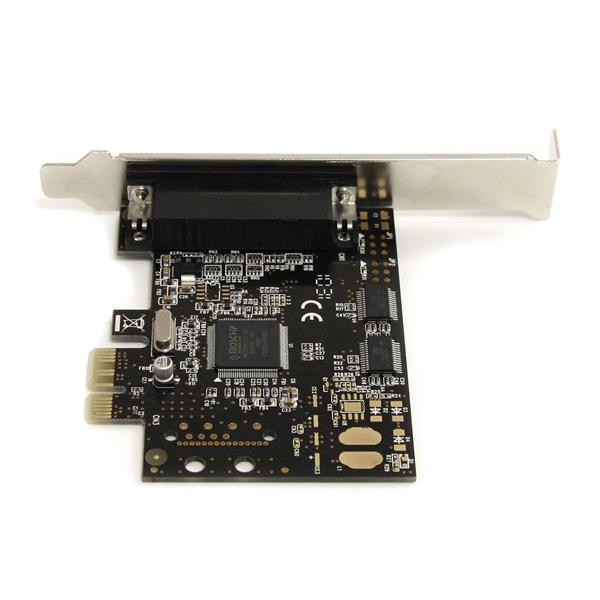

2S1P PCI Express Serial Parallel Combo Card with Breakout Cable
Model PEX2S1P553BEAN 5054629298831
38 specifications
- Weight225 g
- ColourBlack, Silver
- Host interfacePCIe
- InternalYes
- ChipsetASIX - MCS9901CV-CC
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 225 g
- Colour
- Black, Silver
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASIX - MCS9901CV-CC
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX2S1P553B
- Part number
- PEX2S1P553B
- EAN / UPC
- 5054629298831, 065030842426, 100177435053, 151903391266 +10 more
- Also known as
- StarTech.com 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable
Specifications
38 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Parallel, Serial |
| Expansion card form factor | Low-profile |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Parallel ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black, Silver |
| Certification | CE, FCC, REACH |
Features
| Specification | Value |
|---|---|
| Chipset | ASIX - MCS9901CV-CC |
| Baud rate | 230.4 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8 |
| Logical block addressing (LBA) support | 8 bit |
| Supports EPP and ECP | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | Windows Embedded POSReady 2009, Windows XP Embedded |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 23 mm |
| Depth | 95 mm |
| Height | 79 mm |
| Weight | 225 g |
Packaging data
| Specification | Value |
|---|---|

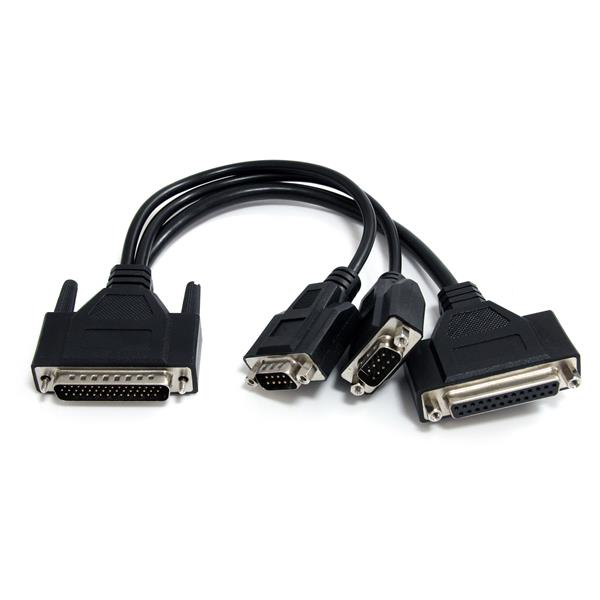

| Cables included | Serial |
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 173 mm |
| Package depth | 143 mm |
| Package height | 32 mm |
| Package weight | 317 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
