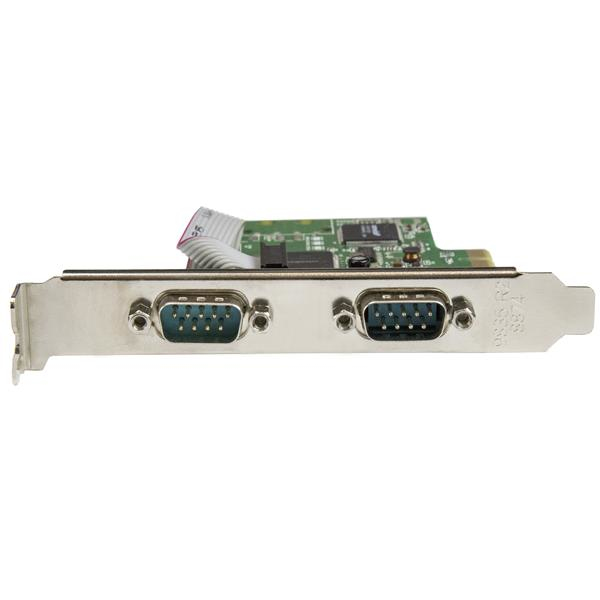

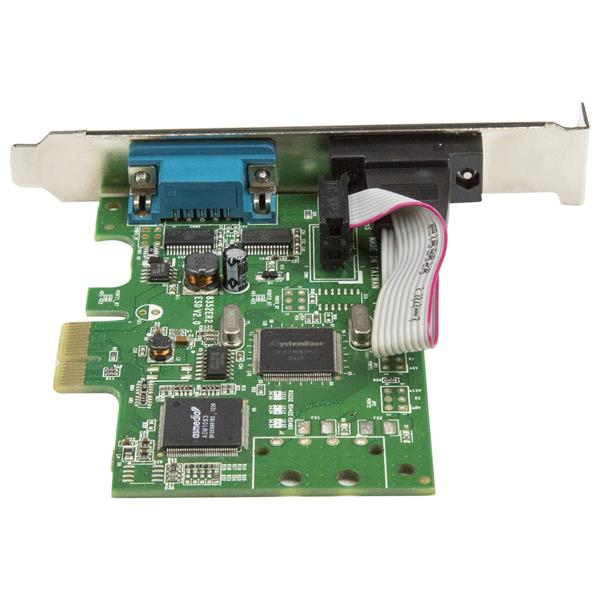

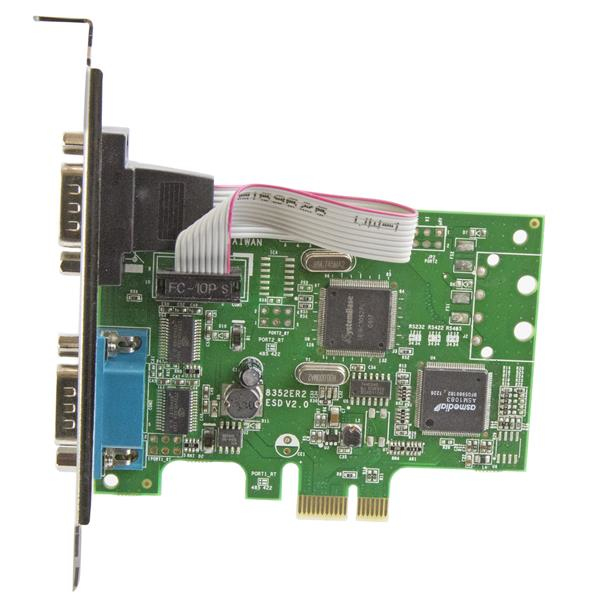

2-Port PCI Express Serial Card with 16C1050 UART - RS232 - TAA
Model PEX2S1050EAN 065030868297
35 specifications
- Weight61 g
- Host interfacePCIe
- InternalYes
- ChipsetSystemBase - SB16C1052PCI
- Operating temperature (T-T)-10 - 80 °C
- Compliance certificatesRoHS
Overview
- Weight
- 61 g
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- SystemBase - SB16C1052PCI
- Operating temperature (T-T)
- -10 - 80 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX2S1050
- Part number
- PEX2S1050
- EAN / UPC
- 065030868297, 5057454547662
- Also known as
- StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 - TAA
Specifications
35 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card form factor | Full-height / Low-profile |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Certification | CE, FCC, Microsoft WHQL |
Features
| Specification | Value |
|---|---|
| Chipset | SystemBase - SB16C1052PCI |
| Baud rate | 460.8 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8 |
| Full duplex | Yes |
| Flow control support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premi |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 103 mm |
| Height | 20 mm |
| Weight | 61 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Drivers included | Yes |

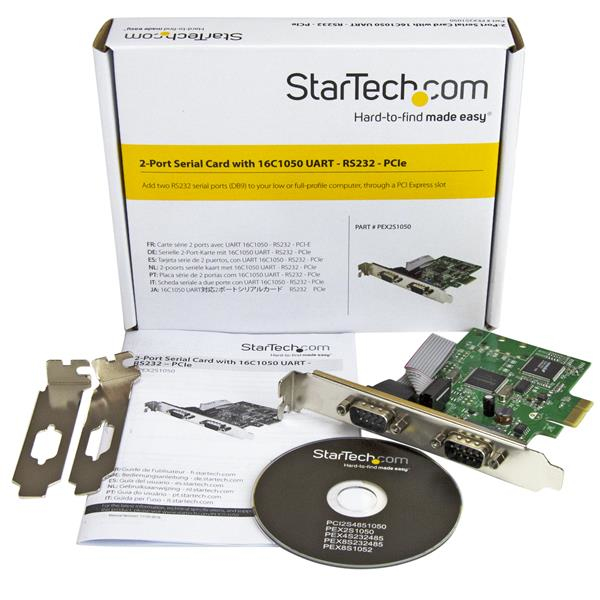

| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 149 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 356 mm |
| Master (outer) case length | 682 mm |
| Master (outer) case height | 320 mm |
