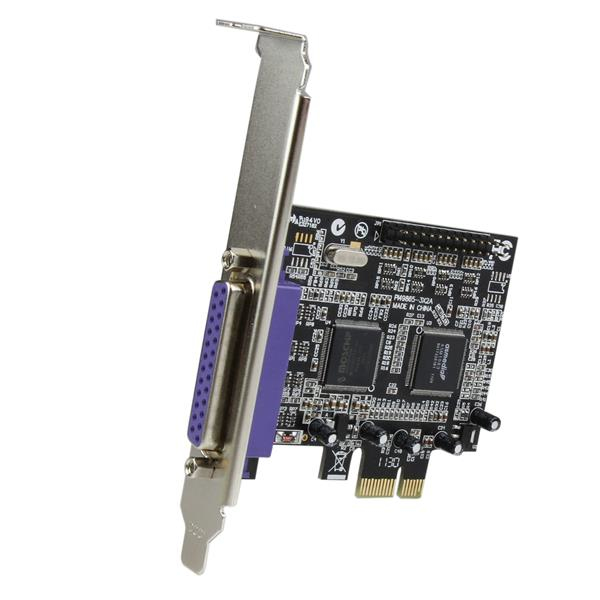

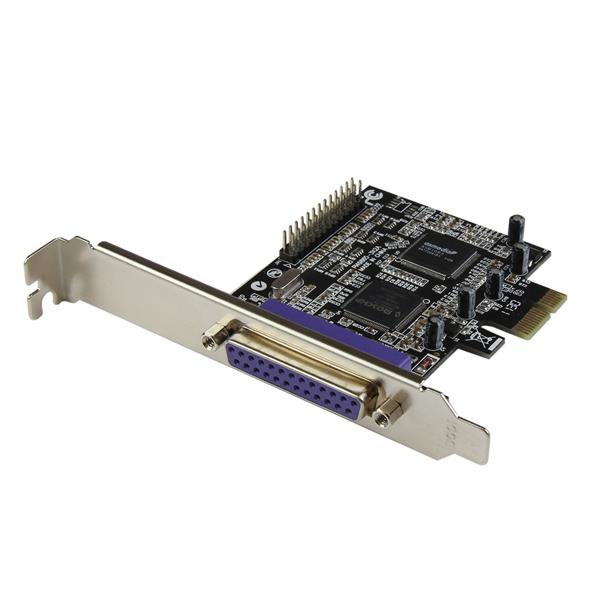

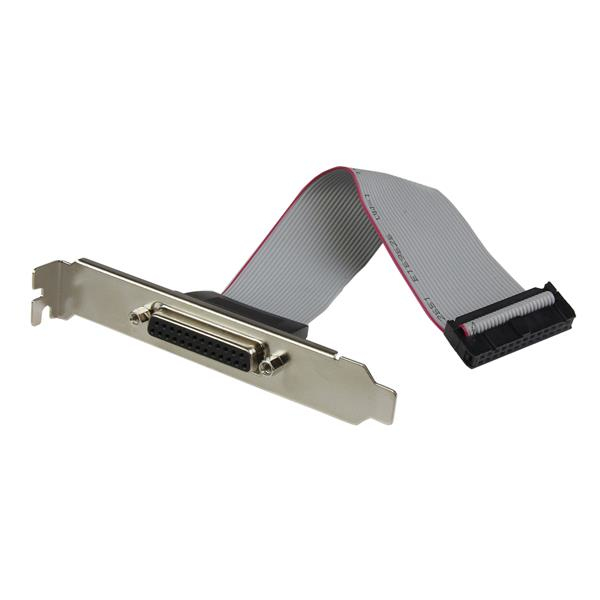

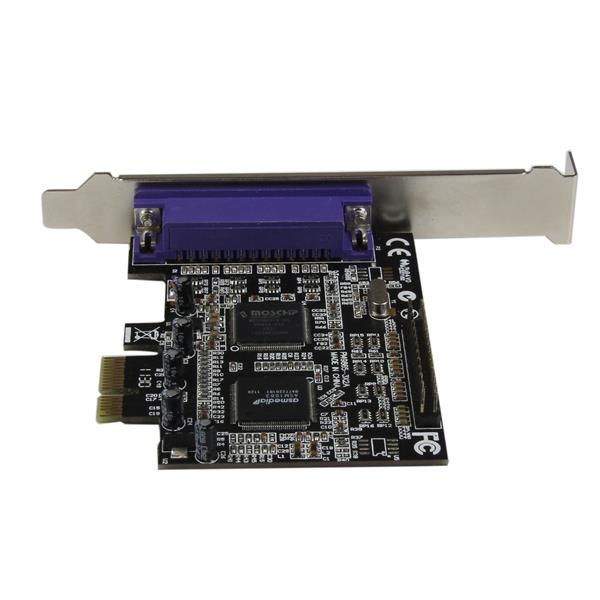

StarTech.com 2 Port PCI Express / PCI-e Parallel Adapter Card – IEEE 1284 with Low Profile Bracket
Model PEX2PECP2EAN 7337331840474
32 specifications
- ConnectivityWired
- Weight51 g
- ColourMulticolour
- Host interfacePCIe
- InternalYes
- ChipsetASIX/MosChip MCS9865
Overview
- Connectivity
- Wired
- Weight
- 51 g
- Colour
- Multicolour
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASIX/MosChip MCS9865
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX2PECP2
- Part number
- PEX2PECP2
- EAN / UPC
- 7337331840474, 065030848626, 523160951383, 666020002211 +8 more
- Also known as
- StarTech.com 2 Port PCI Express / PCI-e Parallel Adapter Card – IEEE 1284 with Low Profile Bracket
Specifications
32 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Parallel |
| CardBus PCMCIA slot type | No |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Parallel ports quantity | 2 |
| External mini-SAS ports | 0 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Multicolour |
Features
| Specification | Value |
|---|---|
| Chipset | ASIX/MosChip MCS9865 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Ba |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 19 mm |
| Depth | 121 mm |
| Height | 86 mm |
| Weight | 51 g |
Packaging data
| Specification | Value |
|---|---|
| User guide | Yes |
| Package width | 144 mm |
| Package depth | 169 mm |
| Package height | 30 mm |
| Package weight | 188 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1.5 Mbit/s |
| Connectivity technology | Wired |
| Compatible operating systems | Windows 8 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000, Windows Sever 2008 R2, 2003 (32/64), Linux |
| Ethernet LAN (RJ-45) ports | 0 |
| Mac compatibility | No |
