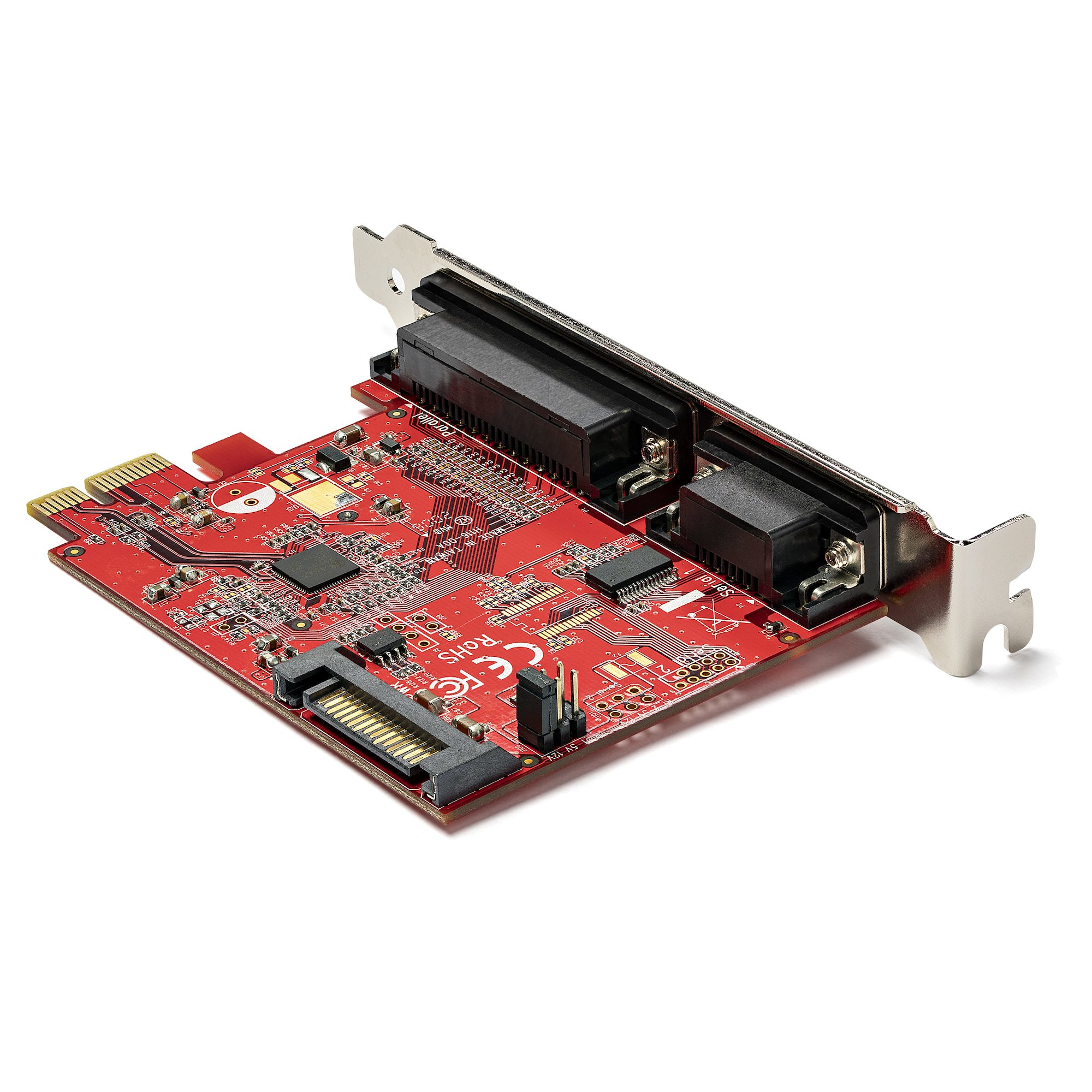

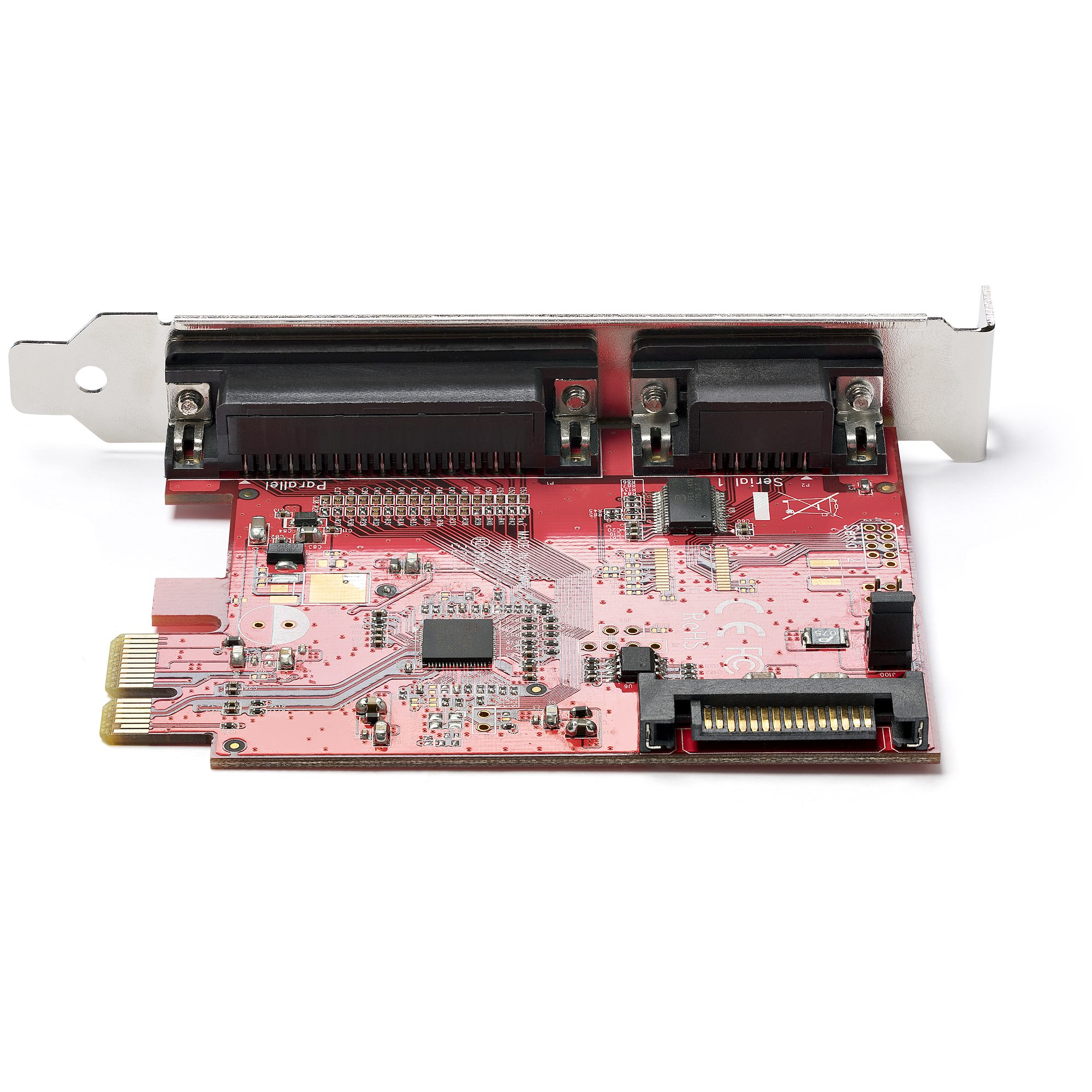

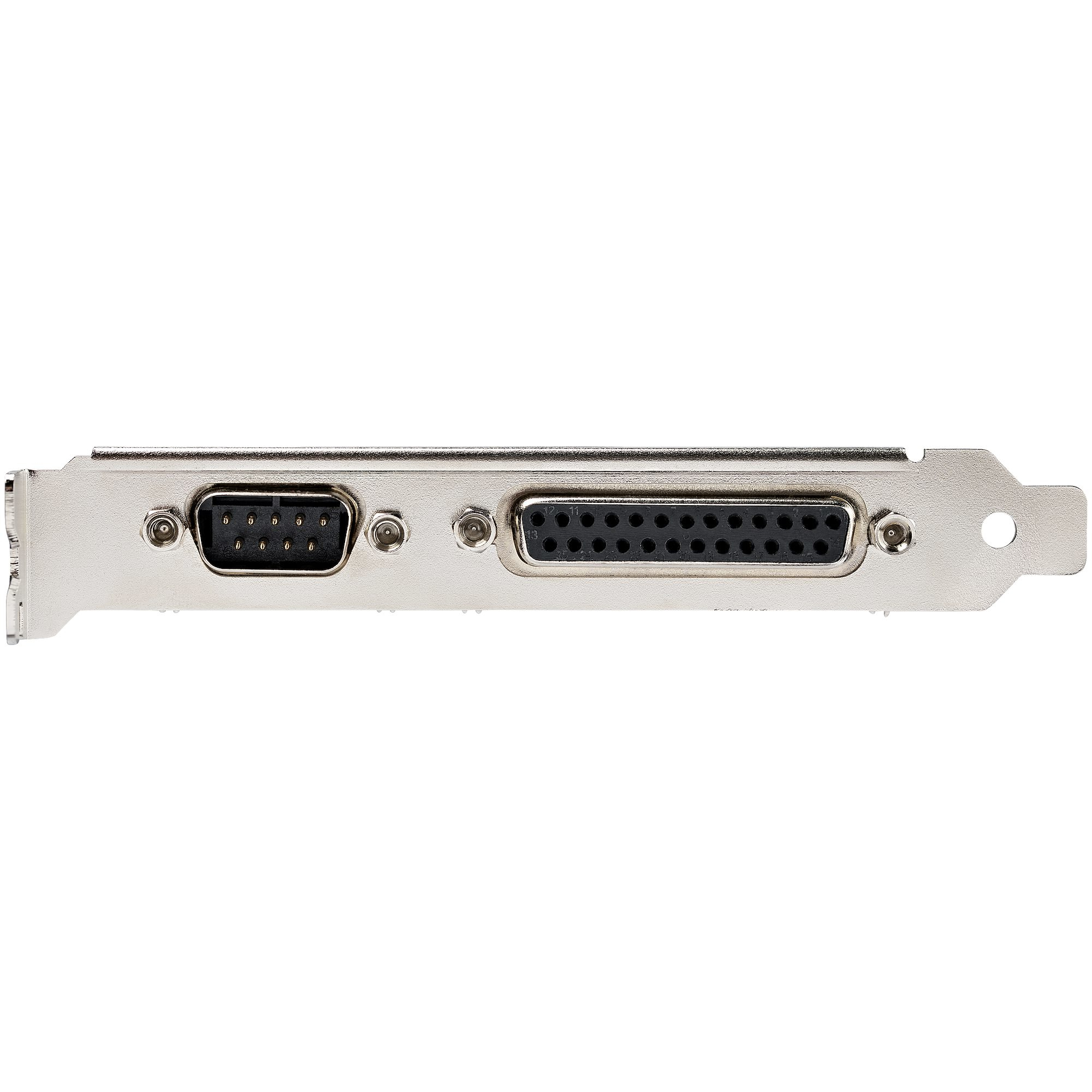

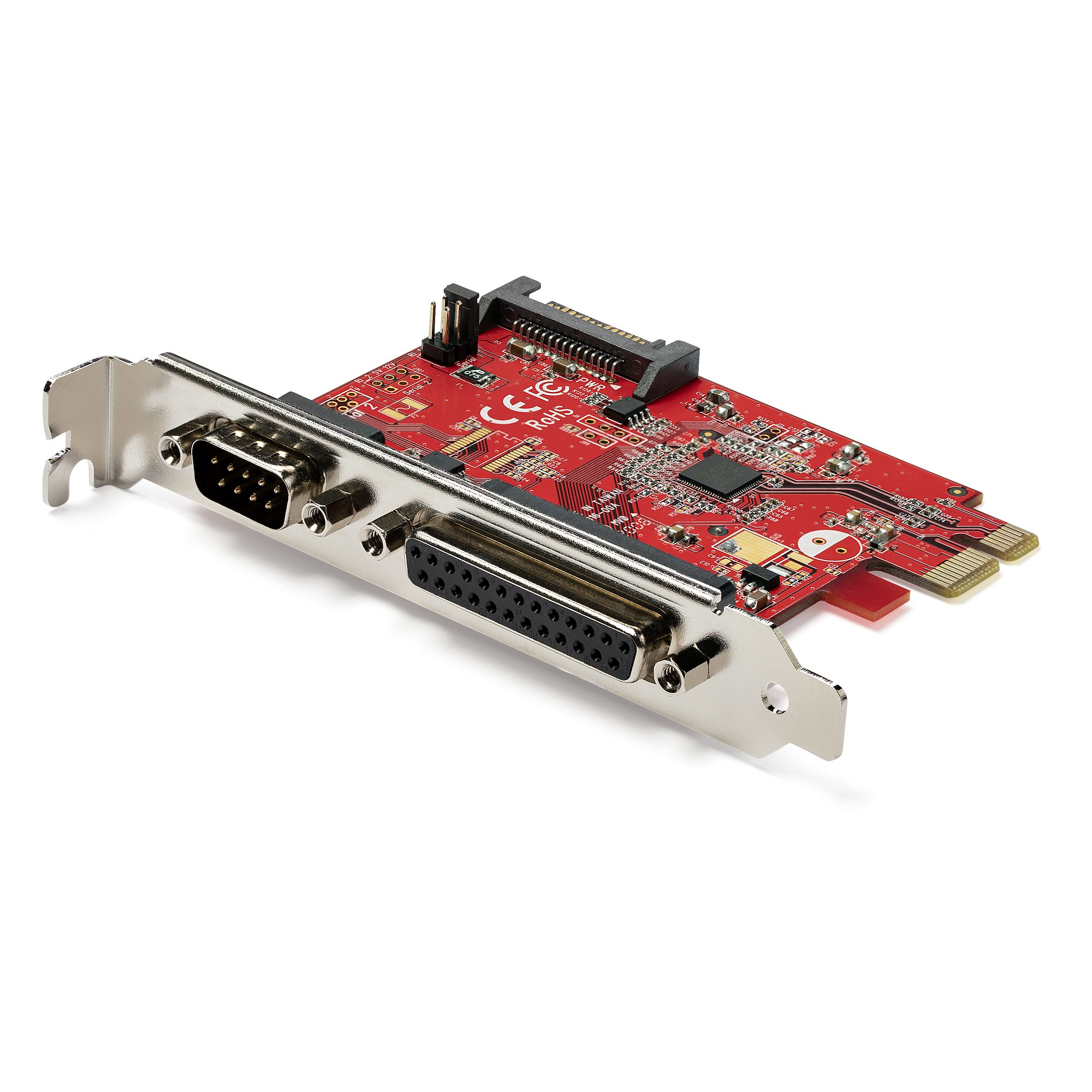

PCIe Card with Serial and Parallel Port - PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 Serial Port - Expansion/Controller C
Model PEX1S1P950EAN 065030891844
37 specifications
- Weight63 g
- ColourRed
- Host interfacePCIe
- InternalYes
- ChipsetAsix - AX99100
- Operating temperature (T-T)-40 - 85 °C
Overview
- Weight
- 63 g
- Colour
- Red
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Asix - AX99100
- Operating temperature (T-T)
- -40 - 85 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX1S1P950
- Part number
- PEX1S1P950
- EAN / UPC
- 065030891844
- Also known as
- StarTech.com PCIe Card with Serial and Parallel Port - PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 Serial Port - Expansion/Controller C
Specifications
37 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Parallel, Serial |
| Expansion card standard | PCIe 2.0 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Parallel ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Red |
| Mean time between failures (MTBF) | 3188058 h |
Features
| Specification | Value |
|---|---|
| Chipset | Asix - AX99100 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 15 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 80 mm |
| Height | 22 mm |
| Weight | 63 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 170 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Package weight | 127 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 310 mm |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 2.5 Mbit/s |
