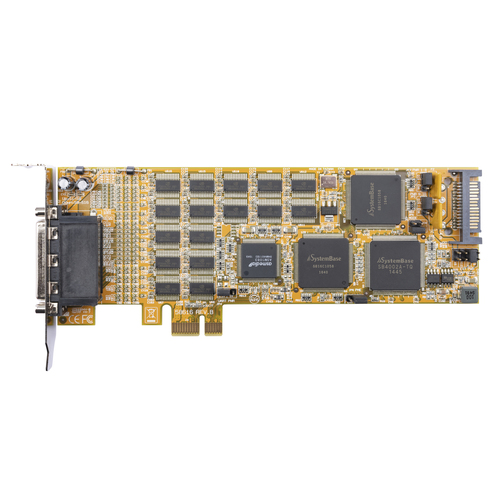

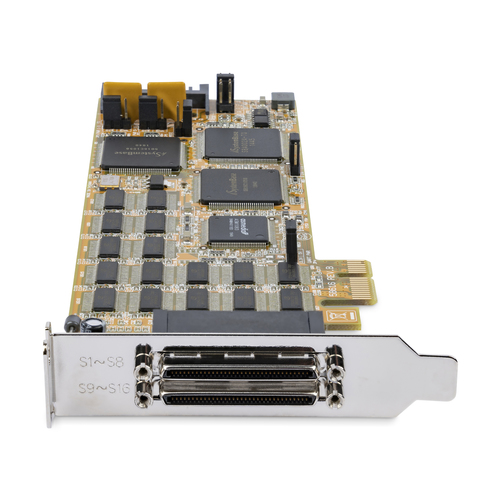

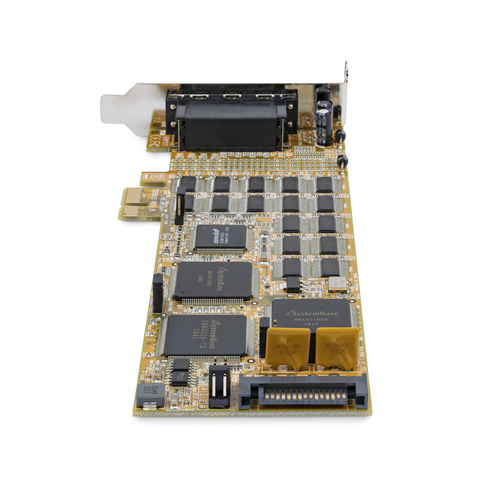

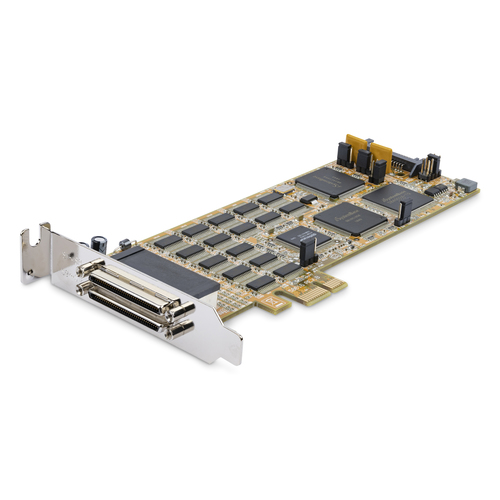

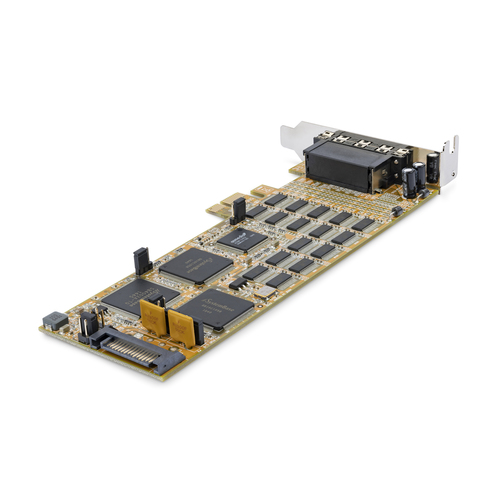

16-Port Low-Profile Serial Card - RS232 - PCI Express - TAA
Model PEX16S550LPEAN 065030868228
38 specifications
- Weight70 g
- ColourYellow
- Host interfacePCIe
- InternalYes
- Baud rate921.6 Kbit/s
- Operating temperature (T-T)0 - 55 °C
Overview
- Weight
- 70 g
- Colour
- Yellow
- Host interface
- PCIe
- Internal
- Yes
- Baud rate
- 921.6 Kbit/s
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX16S550LP
- Part number
- PEX16S550LP
- EAN / UPC
- 065030868228
- Also known as
- StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express - TAA
Specifications
38 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 1.1 |
| Serial ports quantity | 16 |
| Serial interface type | RS-232 |
| Internal SATA ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Yellow |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058 |
| Baud rate | 921.6 Kbit/s |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 H |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68 mm |
| Depth | 168 mm |
| Height | 22 mm |
| Weight | 70 g |
Packaging data
| Specification | Value |
|---|---|

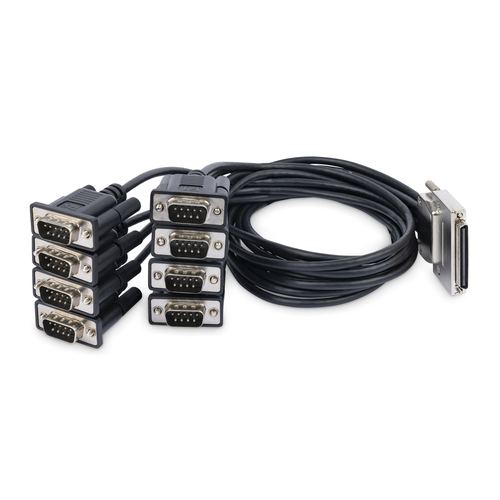

| Cables included | RS-232 |
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Quick installation guide | Yes |
| Package width | 194 mm |
| Package depth | 294 mm |
| Package height | 70 mm |
| Package weight | 1.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 14 pc(s) |
| Master (outer) case width | 396 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 324 mm |
Other features
| Specification | Value |
|---|---|
| Electrostatic Discharge (ESD) protection | 15 kV |
