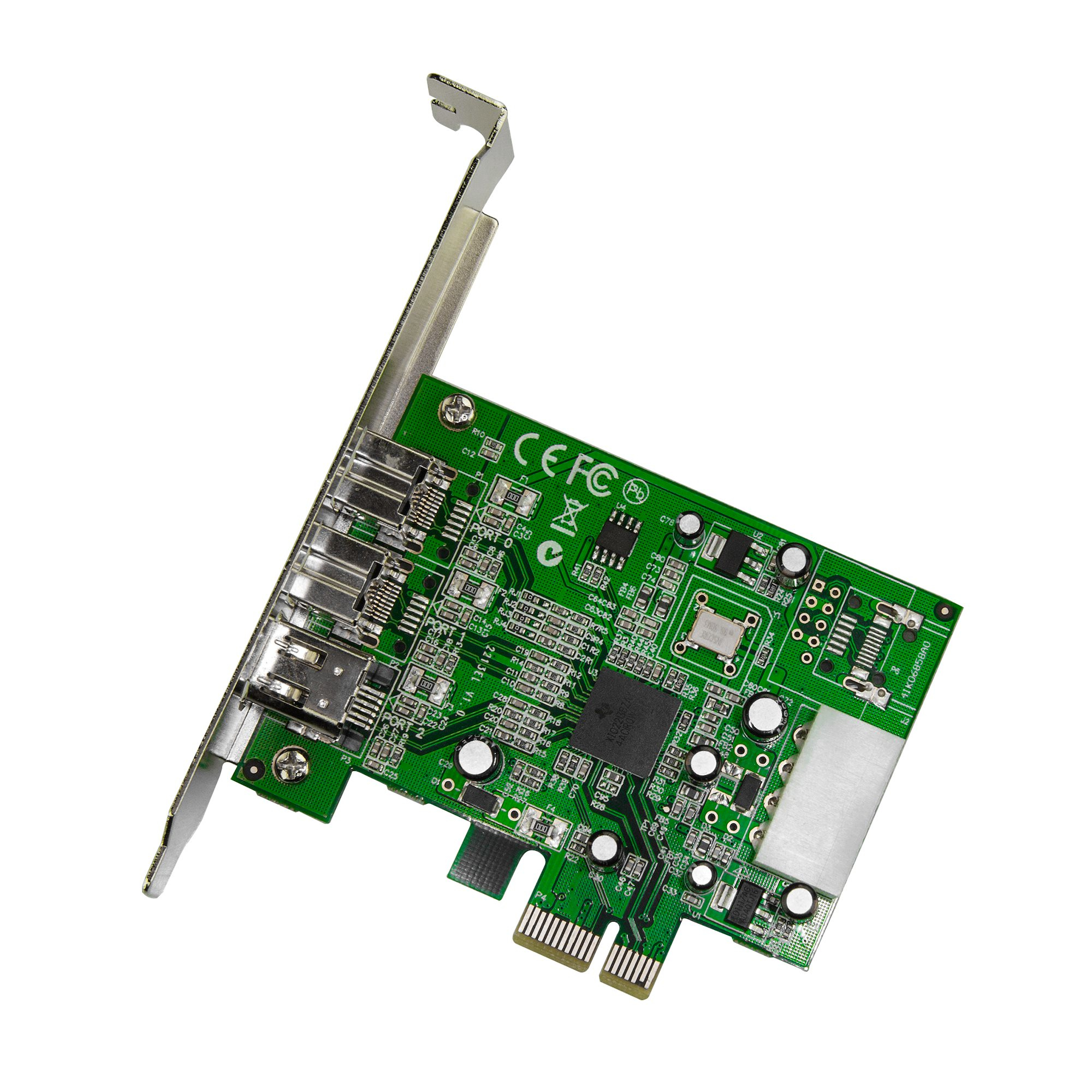

StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter
Model PEX1394B3EAN 851975707919
33 specifications
- Weight48 g
- ColourGreen
- Host interfacePCIe
- InternalYes
- ChipsetTexas Instruments - XIO2213B
- Compliance certificatesCE, RoHS
Overview
- Weight
- 48 g
- Colour
- Green
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Texas Instruments - XIO2213B
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX1394B3
- Part number
- PEX1394B3
- EAN / UPC
- 851975707919, 065030825139, 132018235409, 151903075852 +15 more
- Also known as
- StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter
Specifications
33 specifications in 8 groups

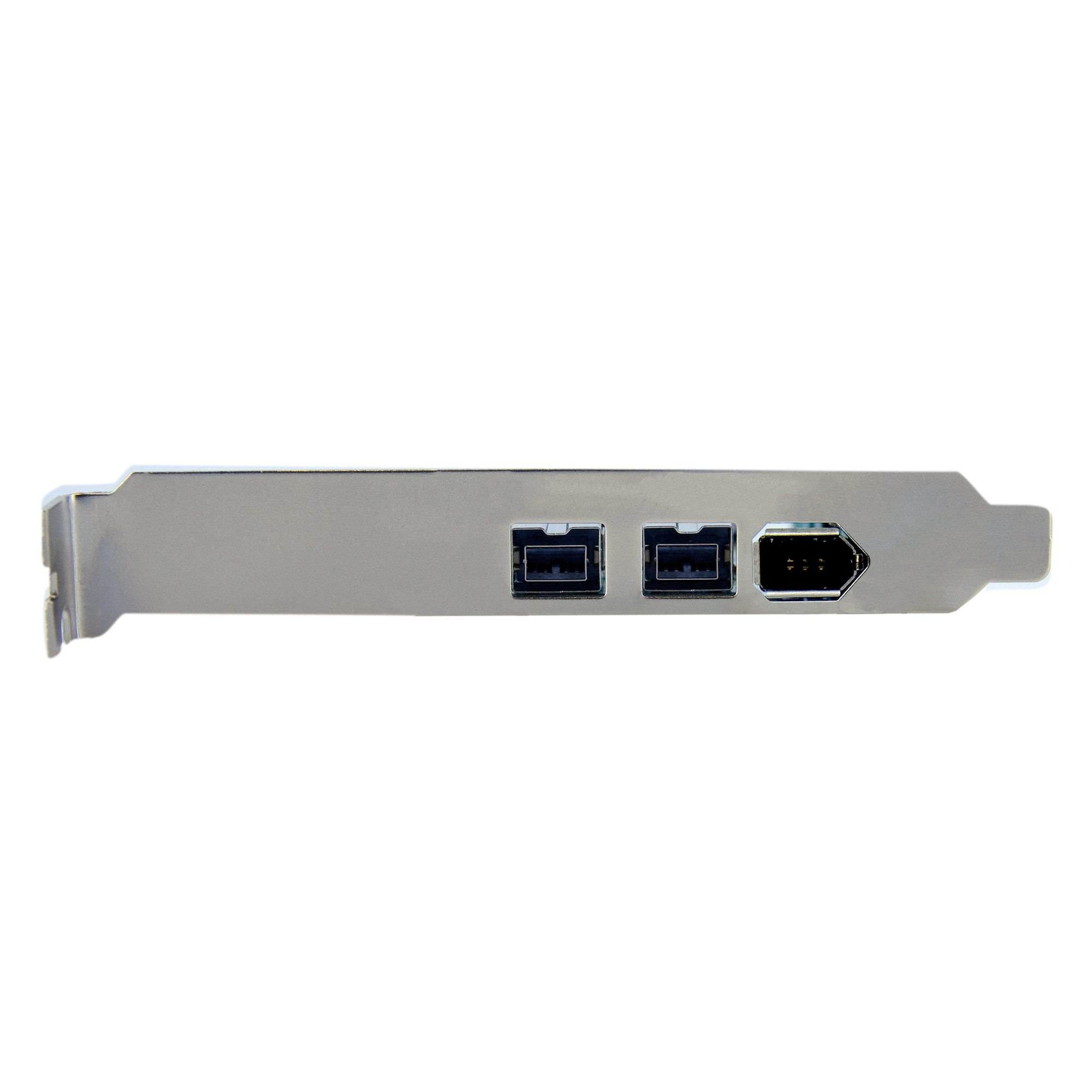

Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Firewire 800 / 400 |
| Expansion card standard | PCIe 1.1 |
| FireWire 400 ports quantity | 1 |
| FireWire 800 ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Mean time between failures (MTBF) | 149905 h |
Features
| Specification | Value |
|---|---|
| Chipset | Texas Instruments - XIO2213B |
| Data transfer rate (max) | 0.8 Gbit/s |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18 mm |
| Depth | 85 mm |
| Height | 120 mm |
| Weight | 48 g |

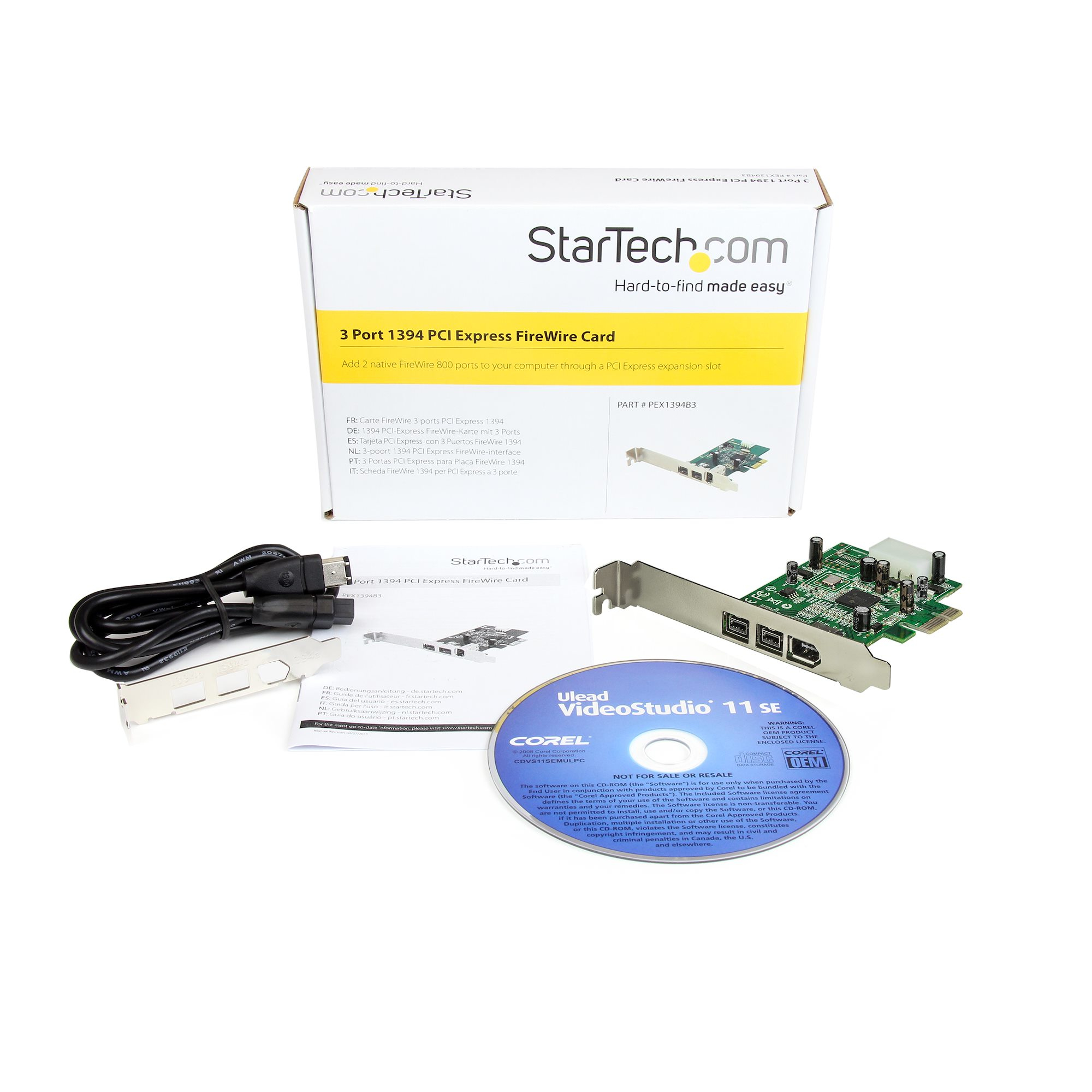

Packaging data
| Specification | Value |
|---|---|
| Cables included | FireWire |
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 148 mm |
| Package depth | 213 mm |
| Package height | 41 mm |
| Package weight | 212 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 681 mm |
| Master (outer) case height | 317 mm |
Compare StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter

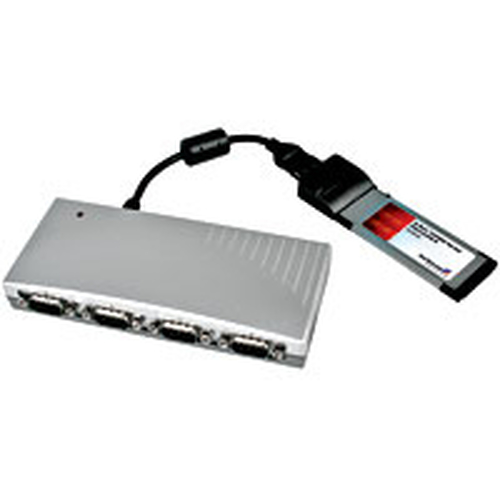

Compare any products- StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter vsStarTech.com 4 Port ExpressCard 16C950 Serial CardCompare specs

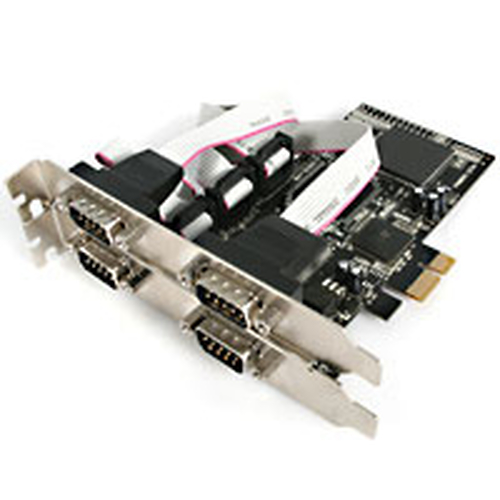

- StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter vsStarTech.com 4 Port PCI Express Serial CardCompare specs

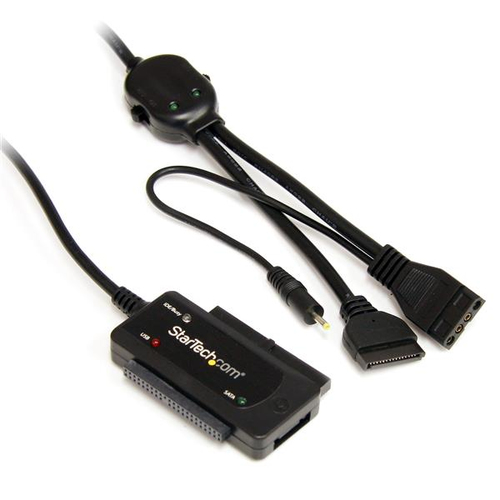

- StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter vsStarTech.com USB 2.0 to SATA/IDE Combo Adapter for 2.5/3.5" SSD/HDDCompare specs

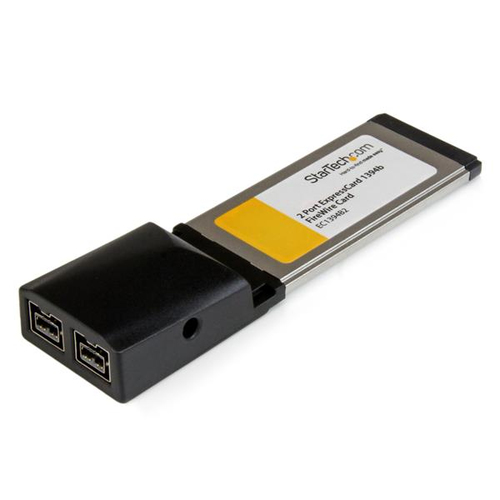

- StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter vsStarTech.com 2 Port ExpressCard 1394b FireWire Laptop Adapter CardCompare specs

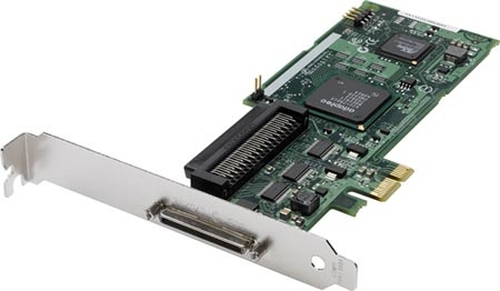

- StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter vsFujitsu Adaptec SCSI Card 29320LPECompare specs

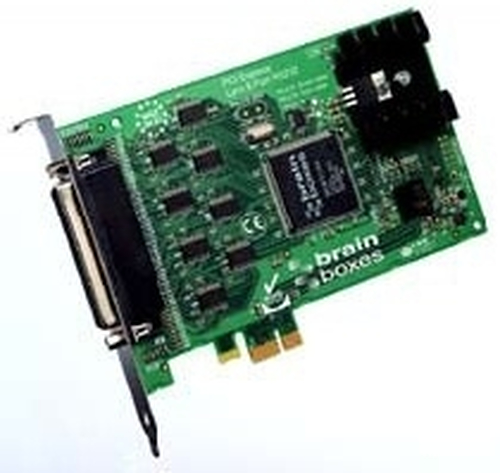

- StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter vsBrainboxes PCI-e 8-port RS232 (9-pin)Compare specs
- StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter vsAxagon PCIA-70 PCI AdapterCompare specs

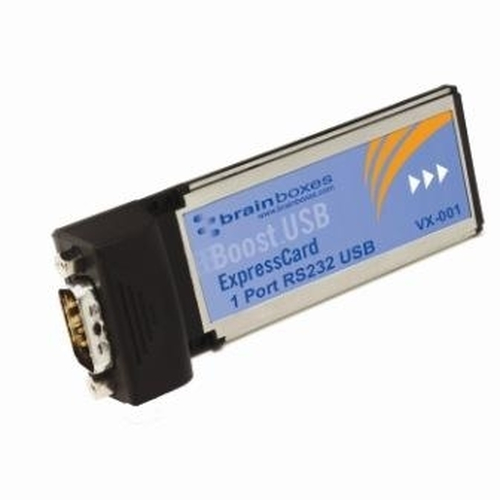

- StarTech.com 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter vsBrainboxes 1 Port RS232 ExpressCardCompare specs
