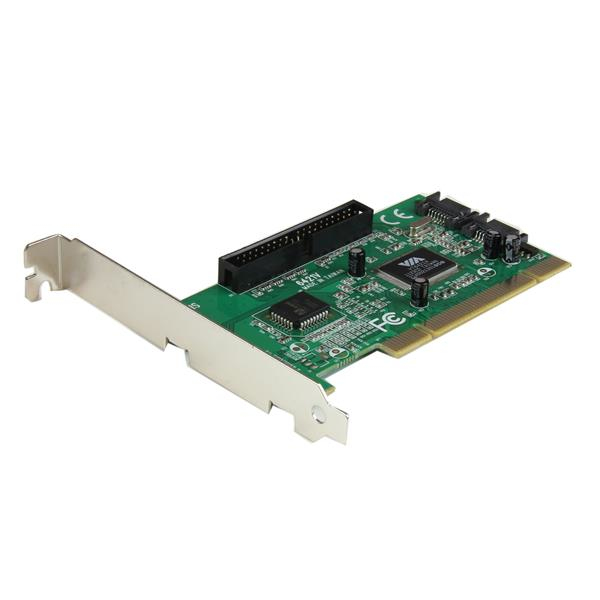

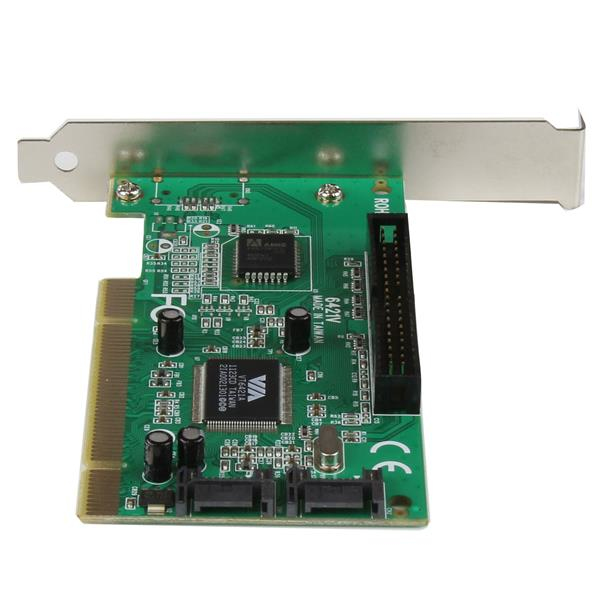

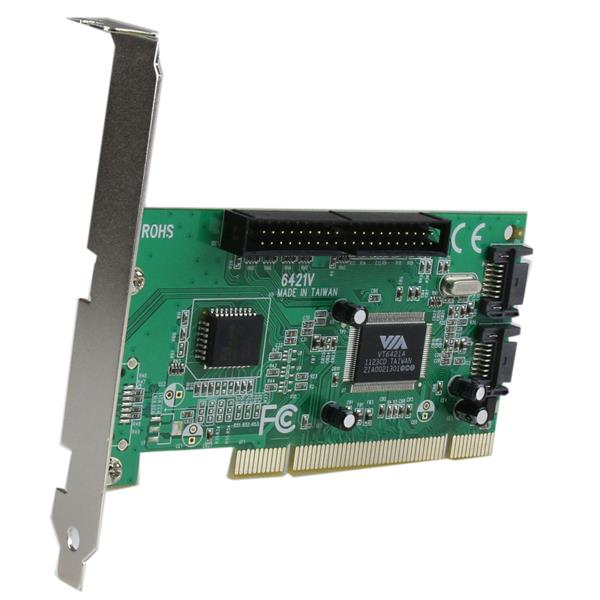

StarTech.com 2S1I PCI SATA IDE Combo Controller Adapter Card - Storage controller (RAID) - 3 Channel - SATA-150/DMA/ATA-133 - 150 MBps - RAID 0, 1, JBOD - PCI /

StarTech.com 2S1I PCI SATA IDE Combo Controller Adapter Card - Storage controller (RAID) - 3 Channel - SATA-150/DMA/ATA-133 - 150 MBps - RAID 0, 1, JBOD - PCI /

Model PCISAT2IDE1EAN 042111255177

25 specifications
  • ConnectivityWired
  • Host interfacePCI
  • InternalYes
  • ChipsetVIA VT6421A
  • Compliance certificatesRoHS
See all specifications

Overview

Connectivity
Wired
Host interface
PCI
Internal
Yes
Chipset
VIA VT6421A
Compliance certificates
RoHS
Brand
StarTech.com
Model
PCISAT2IDE1
Part number
PCISAT2IDE1
EAN / UPC
042111255177, 065030822961
Also known as
StarTech.com 2S1I PCI SATA IDE Combo Controller Adapter Card - Storage controller (RAID) - 3 Channel - SATA-150/DMA/ATA-133 - 150 MBps - RAID 0, 1, JBOD - PCI /

Specifications

25 specifications in 8 groups

Ports & interfaces

Host interfacePCI
Output interfacePCI, PCI-X
SATA revision1.0
Internal SATA ports quantity2

Design

InternalYes
PurposePC

Features

ChipsetVIA VT6421A
Data transfer rate (max)0.146 Gbit/s
FIFO (First In, First Out)256 B
RAID levels0, 1, JBOD

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes

Technical details

Compliance certificatesRoHS

Packaging data

Cables includedSATA
Package width38 mm
Package depth211 mm
Package height144 mm
Package weight200 g

Logistics data

Case or master carton quantity50 pc(s)

Other features

Data transfer rate150 Mbit/s
Ports quantity3
Connectivity technologyWired
Compatible operating systemsWindows 98/98SE/ME/NT 4.0/2000/XP/Vista
Compliance industry standardsPCI 2.2, Serial ATA V1.0
Package length8.31 mm
