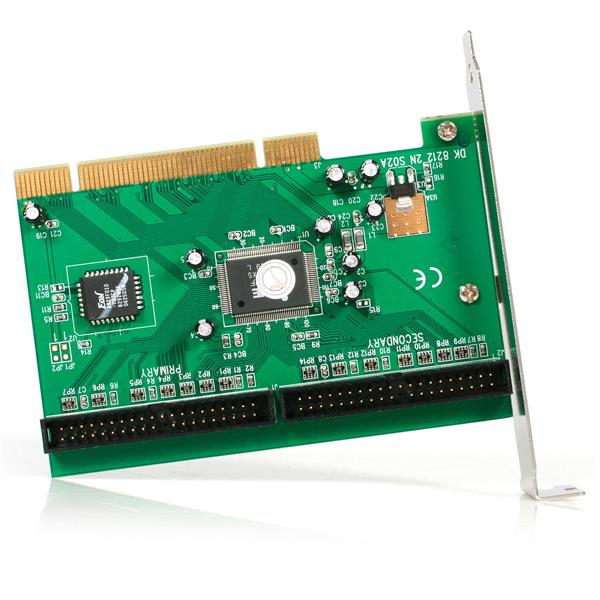

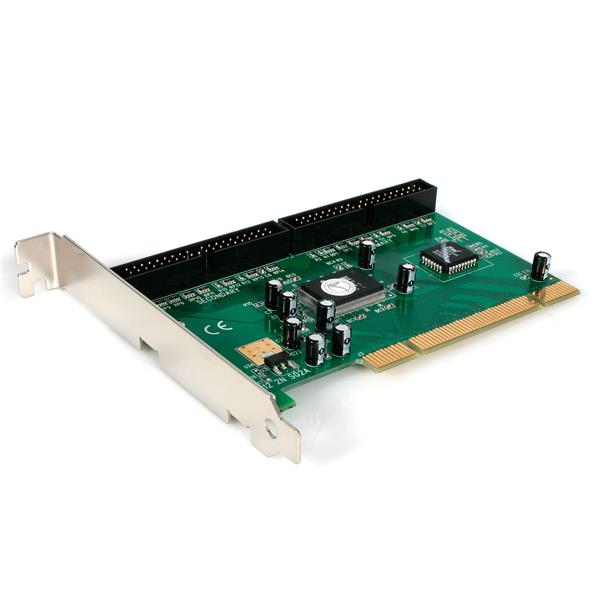

2 Port PCI IDE Controller Adapter Card
Model PCIIDE2EAN 803982782939
23 specifications
- ConnectivityWired
- Weight73 g
- Host interfacePCI
- InternalYes
- ChipsetITE IT8212F
- Compliance certificatesRoHS
Overview
- Connectivity
- Wired
- Weight
- 73 g
- Host interface
- PCI
- Internal
- Yes
- Chipset
- ITE IT8212F
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PCIIDE2
- Part number
- PCIIDE2
- EAN / UPC
- 803982782939, 045555995616, 065030824330, 100177248646 +14 more
- Also known as
- StarTech.com 2 Port PCI IDE Controller Adapter Card
Specifications
23 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCI |
| Output interface | IDE/ATA |
| Number of Parallel ATA connectors | 2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
Features
| Specification | Value |
|---|---|
| Chipset | ITE IT8212F |
| Data transfer rate (max) | 0.133 Gbit/s |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Ba |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18 mm |
| Depth | 120 mm |
| Height | 85 mm |
| Weight | 73 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 39 mm |
| Package depth | 210 mm |
| Package height | 143 mm |
| Package weight | 220 g |
Other features
| Specification | Value |
|---|---|
| Ports quantity | 2 |
| Connectivity technology | Wired |
| Compatible operating systems | DOS, Windows 98/ME/NT4/2000/XP/Server 2003/Vista |
| Supported data transfer rates | 133 MB/s |
| I/O ports | 2 - IDC 40 M |
